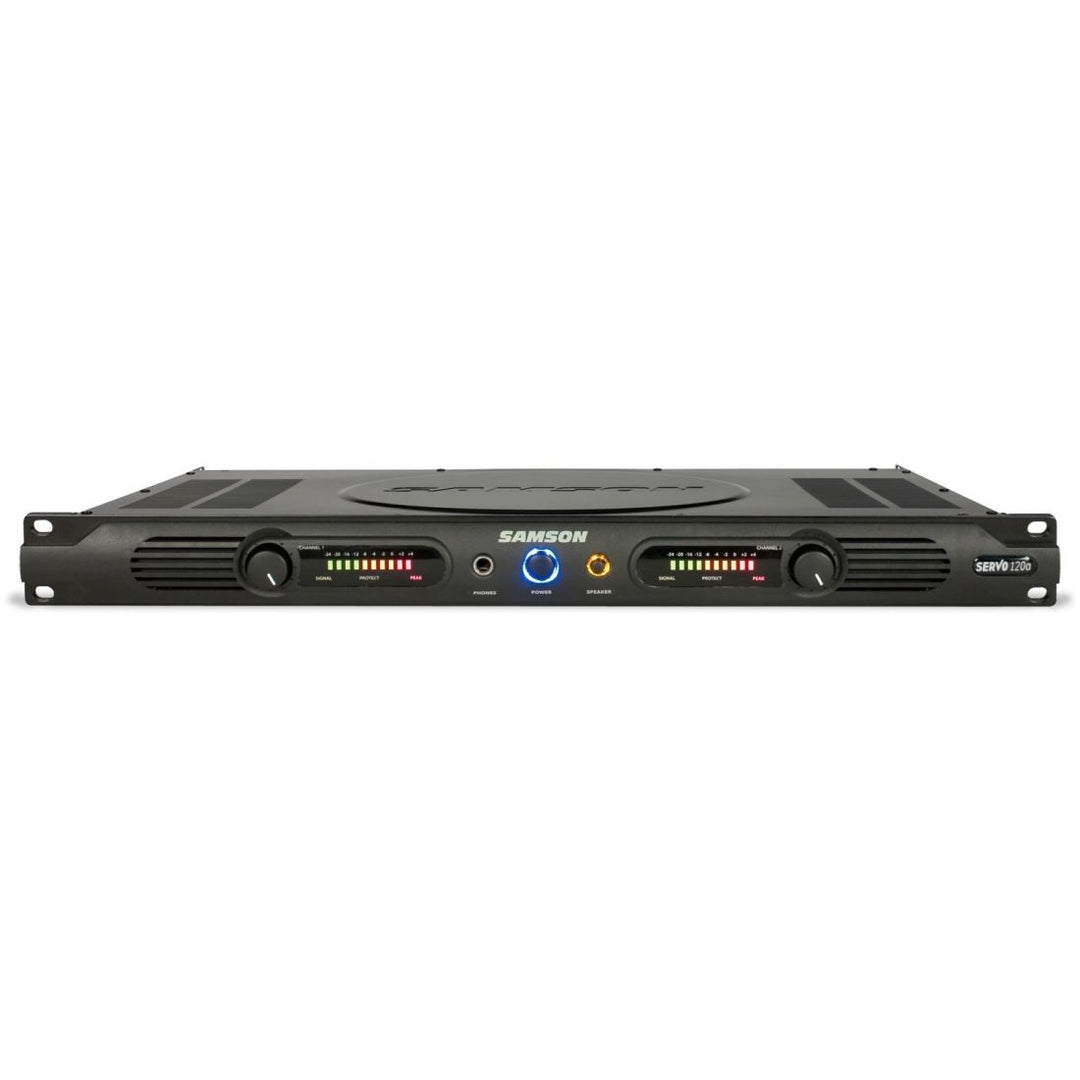

Samson Servo 120A Power Amplifier

Ideal for powering near field monitors or installation sound, the new Servo 120a provides you with "reference-class" audio performance and reliability in a compact package. This single rackspace stereo power amplifier delivers 60 watts of power per channel into 4 ohms or 120 watts into 8 ohms in bridge mode. The intuitive front panel offers controls and displays that include a power switch, independent left and right-channel input level controls, 10-segment LED meters, a protection LED and a convenient headphone jack and speaker on/off switch for private cue monitoring. Perfect for the recording studio, powering public address systems, onstage monitoring and home theater applications, the 120a's bipolar design and toroidal transformer power supply ensure reliability. The convection cooling design also means there is no fan, so you get an unbelievably quiet performance from this remarkable power amp. And with such versatility, the Servo 120a will provide seamless performance in any number of applications.

Specifications
Stereo mode
• 4 Ohm, less than 0.05% THD+N: 60 W
• 4 Ohm, 1% THD+N: 80 W
• 8 Ohm, less than 0.05% THD+N: 50 W
• 8 Ohm, 1% THD+N: 55 W
Bridge mode
• 8 Ohm, less than 0.05% THD+N: 120 W
• 8 Ohm, 1% THD+N: 150 W
• Typical Distortion, per channel THD+N (80 kHz LPF @ 1 kHz rated output power): 0.01%
• IMD (SMPTE 4:1, 60 Hz & 7 kHz @ rated output power): 0.03%
• Signal To Noise Ratio (22Hz - 22kHz bandwidth@1dB below rated output power): 105 dB
• Frequency Response: 10 Hz - 20 kHz +0, -0.5 dB/3 Hz - 65 kHz, +0, -3.0 dB
• Input Sensitivity: -10dBv on the RCA inputs, +4 dBu on the 1/4" inputs to achieve rated power. (Level control set to maximum)
• Crosstalk (adjacent channels): -75 dB, 1 kHz
• Output DC Offset Voltage: 50 mV, DC Servo Controlled
• Headphone Output Level: 400 mW (into 100Ω @ 1% THD+N)
Dimensions: 19˝ x 11.5˝ x 1.75˝/ 483mm x 292mm x 44mm
Weight: 15.4 lbs (7 kg)
