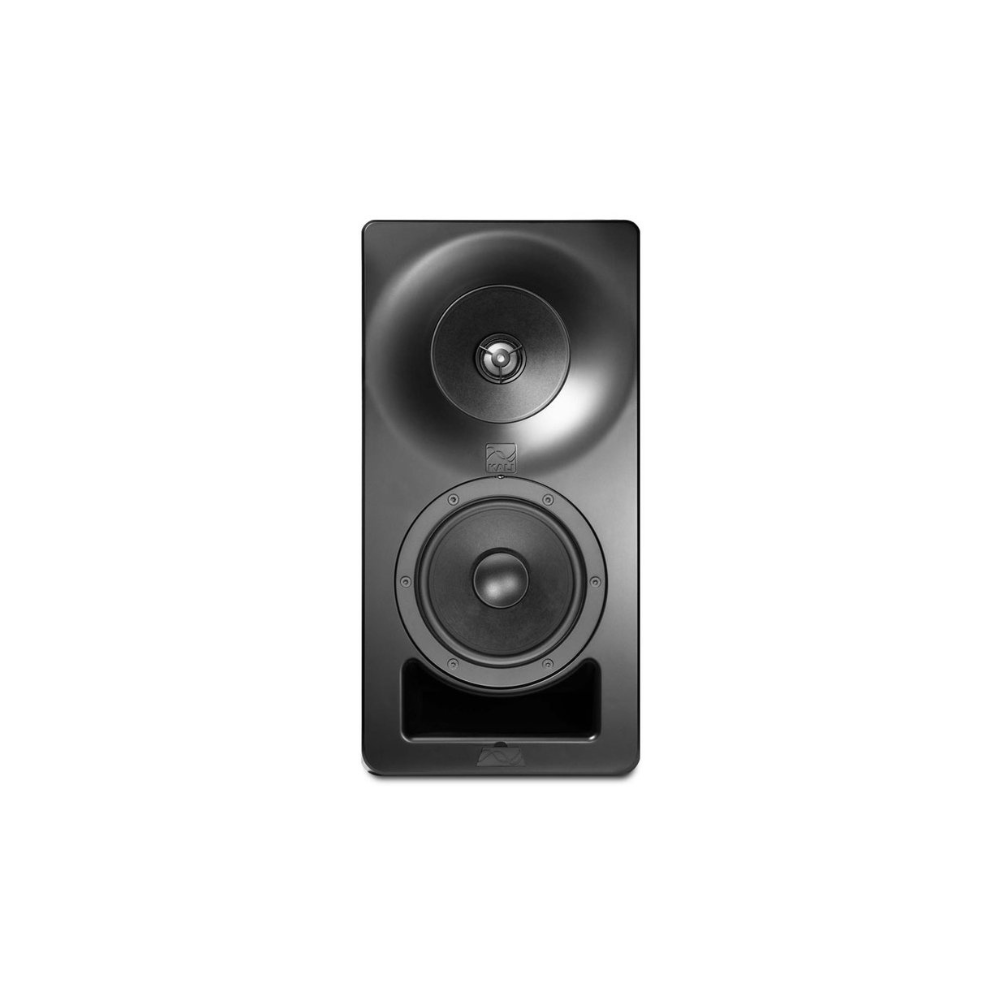

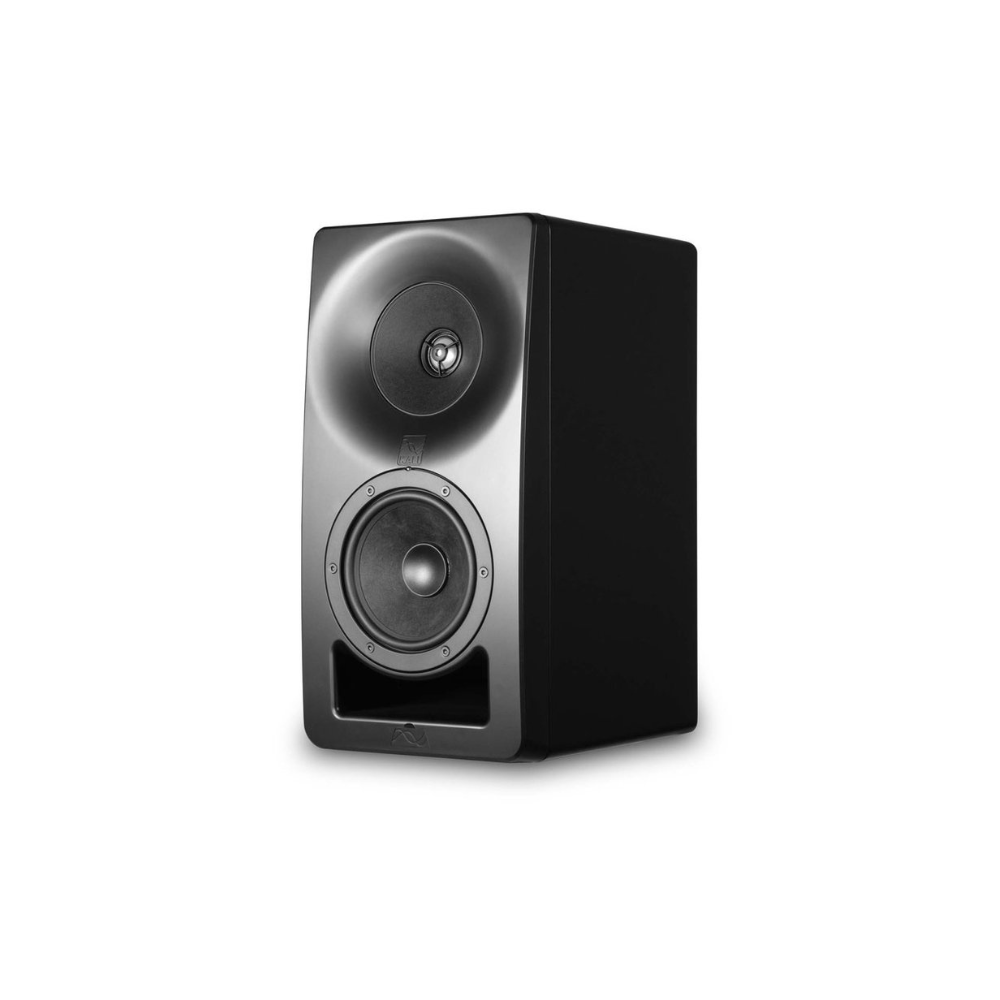

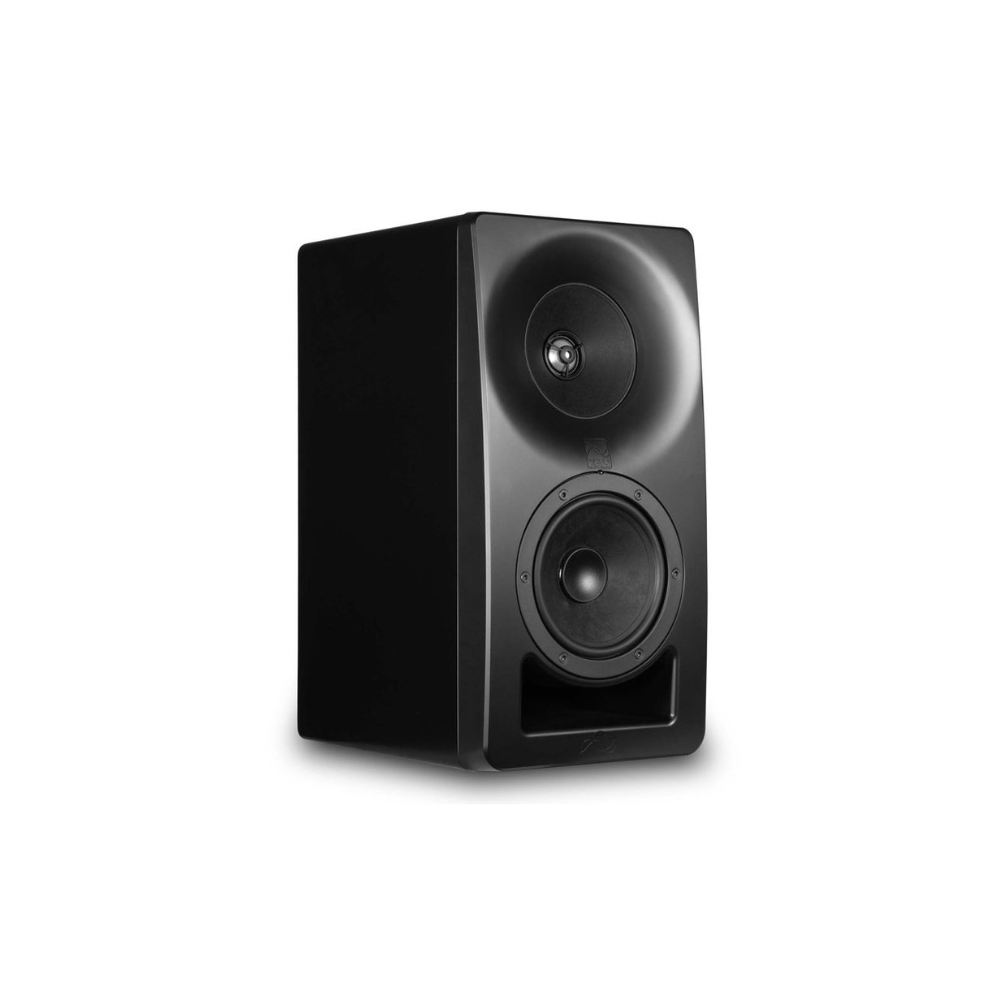

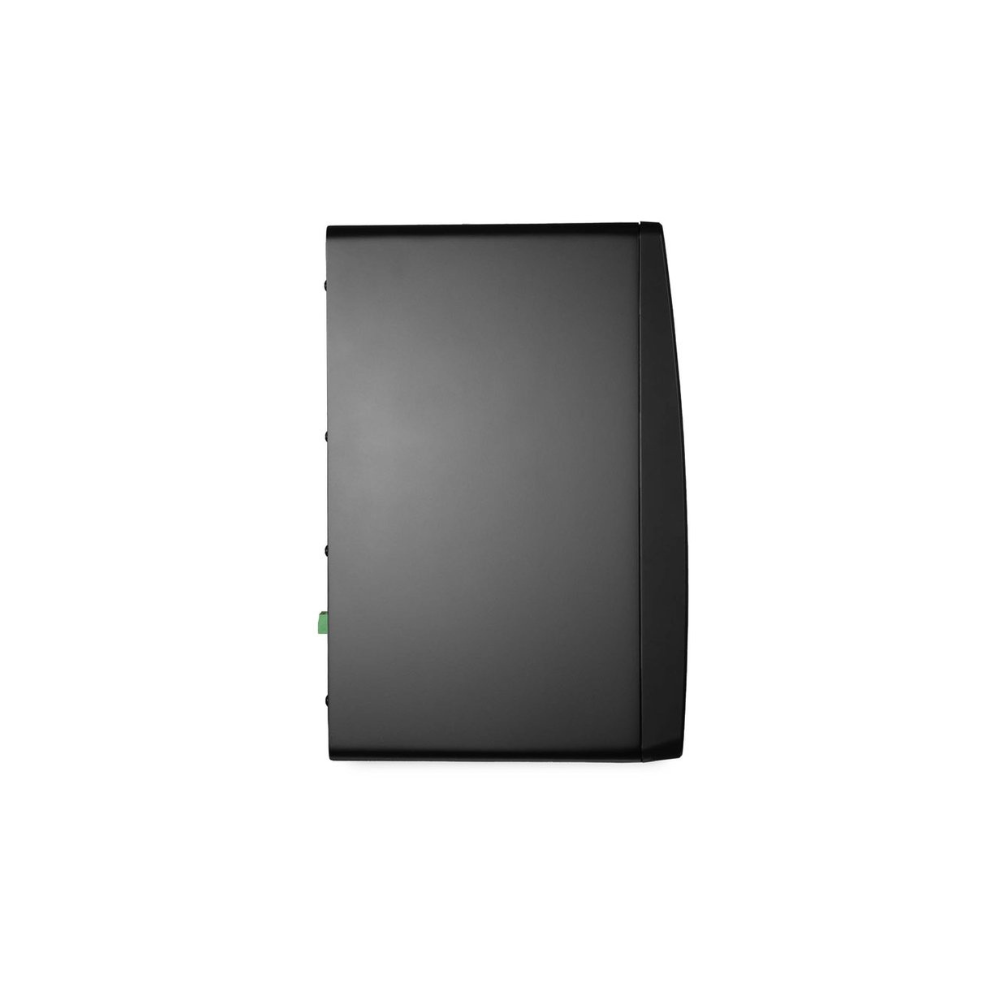

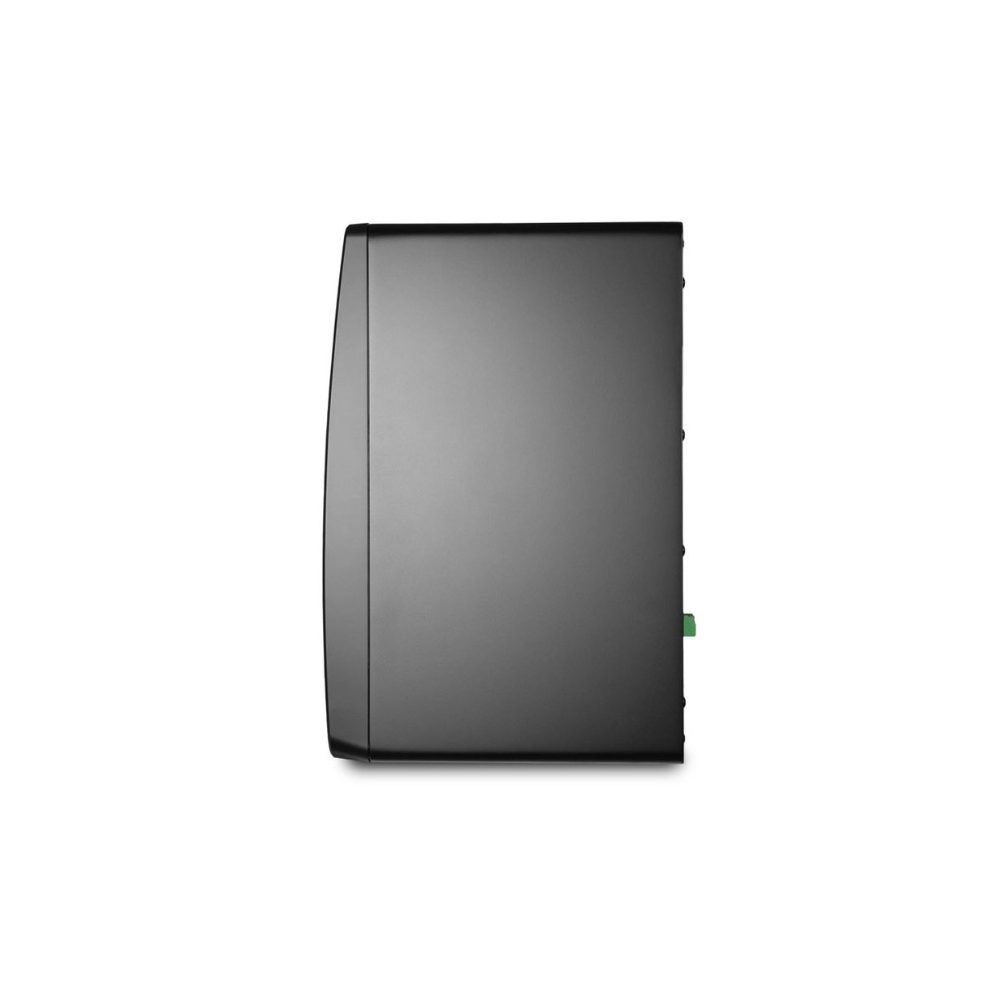

Overview of Kali Audio SM5C Santa Monica 3 way coincident passive speaker
The SM-Series is Kali's top-of-the-line speaker that utilizes a 3-way architecture and premium components to provide unparalleled accuracy, imaging, and detail for critical applications.
Kali's Ultimate Speaker is designed to provide the best possible product for its price, combining accuracy, translation, and ease of use. The SM-Series takes this to the next level by incorporating top-quality materials, components, and manufacturing for a high-performance studio monitor that excels in demanding mixing and mastering applications.
The SM-Series features a 3-way coincident architecture, combining the lifelike imaging of a coaxial speaker with the low distortion and midrange clarity of a 3-way speaker. Its midrange and tweeter are physically time-aligned and phase-coherent from all angles, resulting in a seamless transition and an engrossing stereo image with lifelike and crisp details. The SM-Series speakers are acoustic point sources and designed to deliver high performance for demanding mixing and mastering applications.
The low-diffraction baffle of the SM-Series follows the shape of the midrange driver, resulting in a seamless blend from the driver edge to the cabinet and eliminating diffraction artifacts in the frequency response. This reinforces the speaker's excellent imaging characteristics. The SM-5-C features a low-noise port tube, which utilizes fluid dynamics to ensure all the air leaves the tube at the same velocity, eliminating the "chuffing" noise caused by turbulence. This design provides a clean, tight, and detailed low-end response, without adding to the noise floor.
The SM-5-C speakers require a power amplifier with at least 100W per channel. Kali recommends using an LEA amplifier and bi-amplifying the speakers. The LEA Connect 164 160W per channel 4-channel amplifier is the minimum choice for a pair of SM-5-Cs. If using a different amplifier, it must deliver 20VRMS into a 3 Ohm load and include a peak limiter. Using the SM-5-Cs without a peak limiter will void the warranty. The SM-5-C loudspeaker has mounting holes on the top and bottom. Kali suggests using a Triad-Orbit U-bracket or any speaker mount with a 4.25 x 2-Inch bolt pattern that can hold the speaker's 21 lbs weight.
Accessory Options: BS300, BS402, BS536
Specifications
Self-Powered: No
Amp Options: Single Wire, Bi-Amped (Woofer, Midrange+Tweeter)
MR+HF Power Handling: 20VRMS into 3 Ohm (100W at 4 Ohm)
LF Power Handling: 20VRMS into 3 Ohm (100W at 4 Ohm)
Single Wire Power Handling: 20VRMS into 3 Ohm (100W at 4 Ohm)
HF Driver: 1-Inch Metal Dome Tweeter
Midrange Driver: 4-Inch Optimized Profile Paper Cone
LF Driver: 5-Inch Optimized Paper Woofer
LF-to-Midrange Crossover: 280 Hz
Midrange-to-HF Crossover: 2800 Hz
Frequency Response: (-10 dB): 39 Hz - 28 kHz
Frequency Range: (+/-3 dB): 47 Hz - 21kHz
Recommended Listening Distance: 4 Meters
Max SPL: (Peak at 1 meter) 117 dB
Loudspeaker THD: (90dB SPL at 1M) <1%

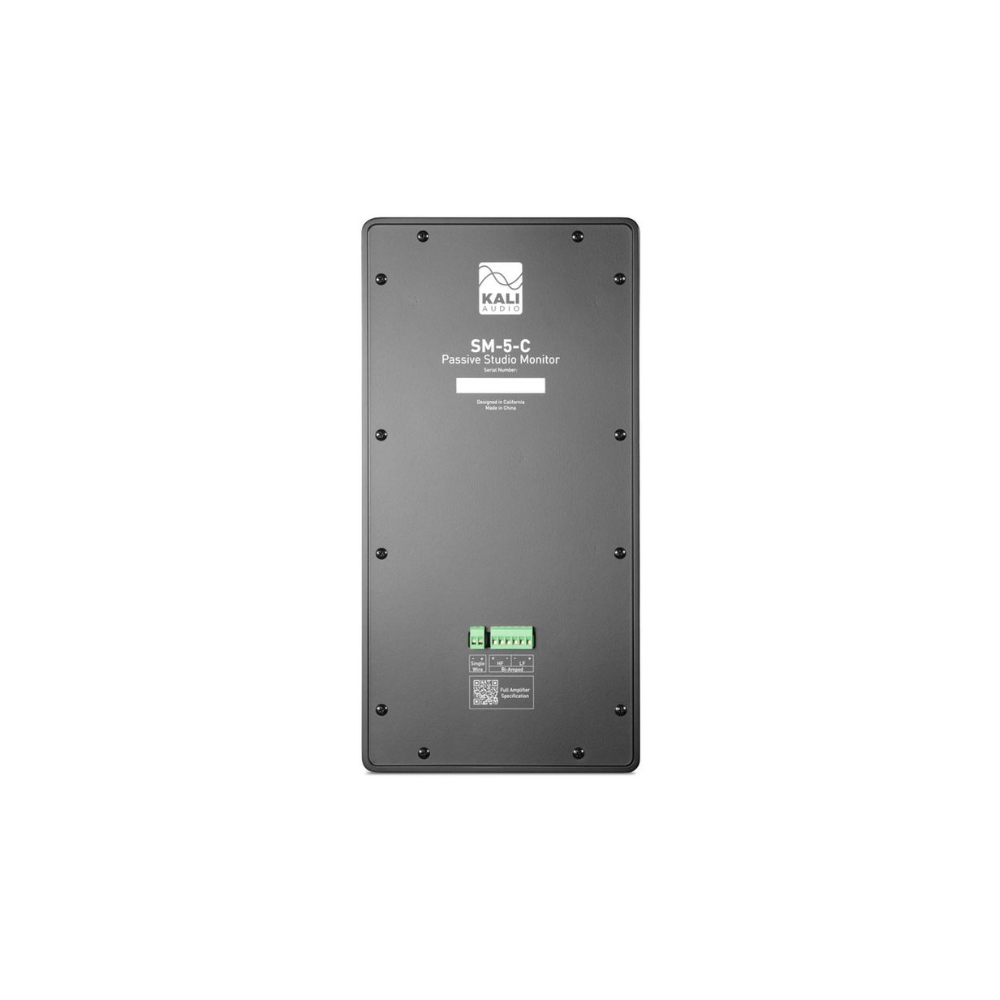

Inputs: Single Wire Phoenix Connector
Bi-Wire Phoenix Connector
Enclosure: Front Ported
Product Height: 15.6 Inches (39.6 cm)
Product Depth: 9.8 Inches (24.8 cm)
Product Width: 7.9 Inches (20 cm)
Product Weight: 21 lbs (9.5 kg)
