Schatten BB-04 Self contained stereo volume control unit plugs into endpin jack
210000111559
Regular price$71.96
In Stock
Available at our store, typically ships within 2 days
Available Online
Ready to ship
Payment plans from Affirm, learn more
- Schatten
- Shipping Calculated at checkout, most in stock products ship same day

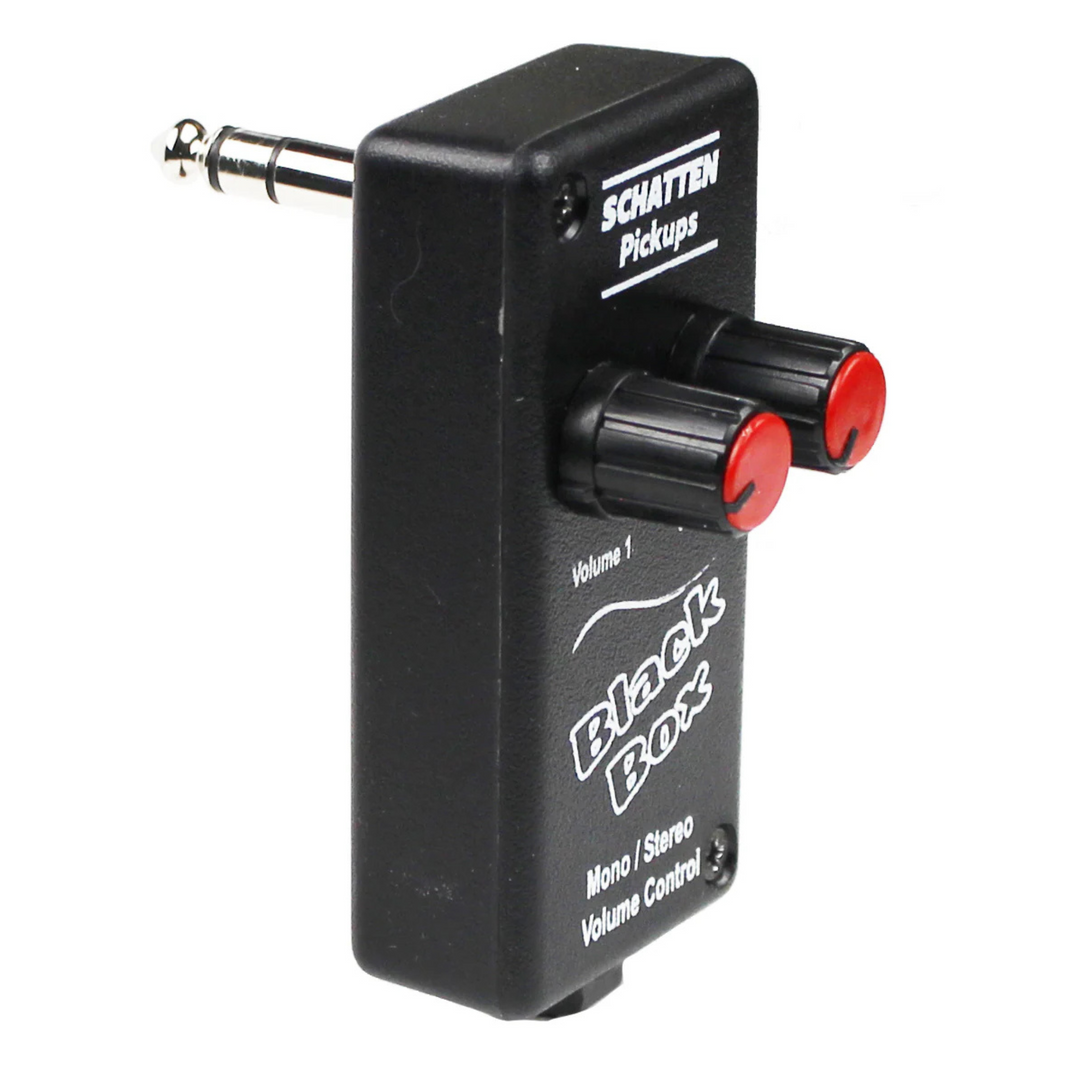

This "Black Box" is a small lightweight 2 channel passive volume control unit that simply plugs right into the endpin jack or output jack of your guitar. It is designed to work with virtually any acoustic or electric instrument that has a pickup system, but lacks volume controls.
The BB-04 provides volume controls for two separate input signals and the choice of either stereo or mono output from the unit.
Specifications:
- Two separate inputs via a 1/4" stereo TRS plug
- Select either stereo output of the two signals or mono output of the two signals with a small slide switch located on the circuit board within the unit.
- The signals feed out of the unit through one 1/4" jack.
- The volume controls are 500k audio taper pots
- Housed in a rugged ABS box measuring only 3" x 1 1/2" x 3/4" (80 x 40 x 18 mm)
- Weight: 2 ounces (55 grams).
