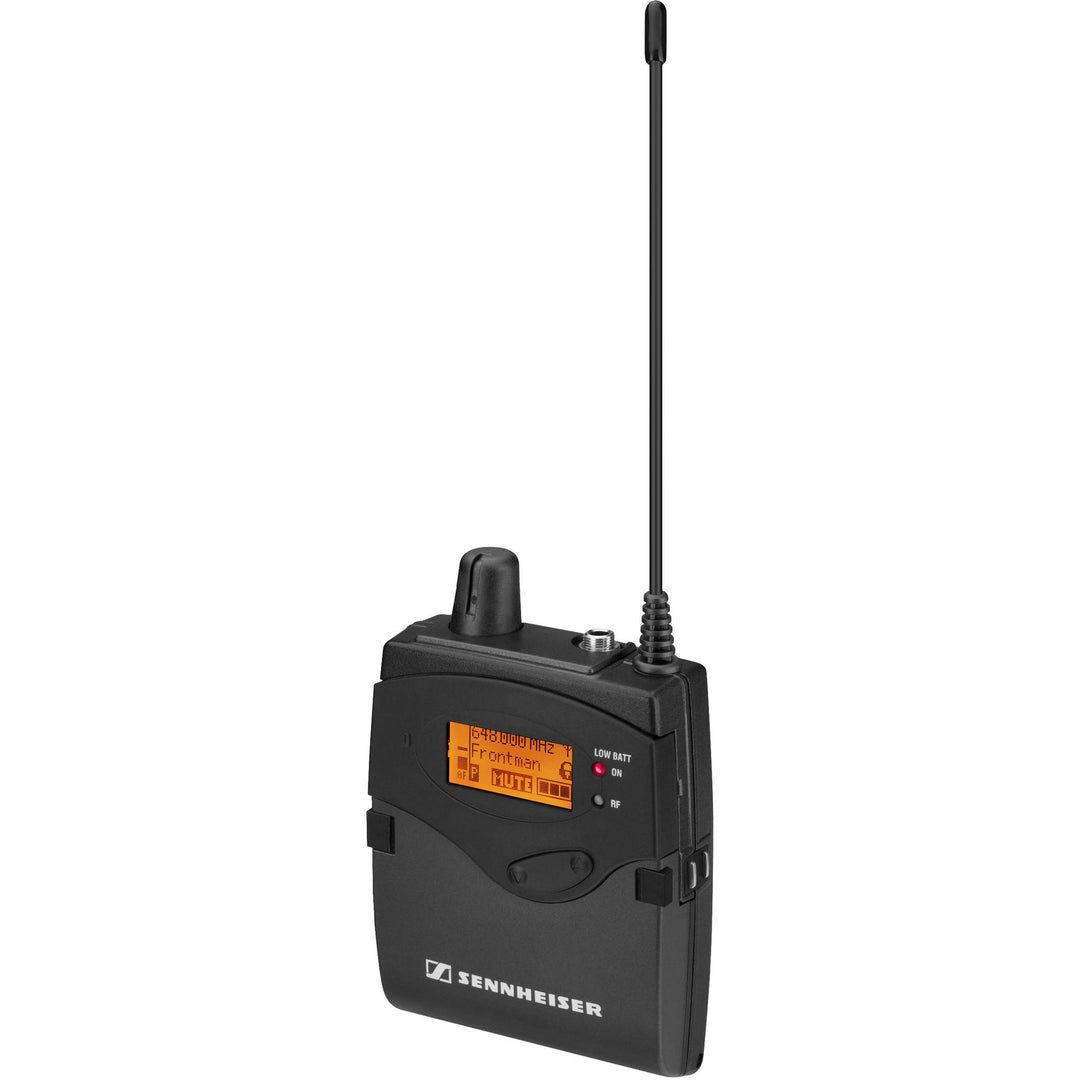

Sennheiser EK 2000 IEM-AW+ Bodypack Receiver (A+)

This wireless monitoring set's receiver uses adaptive-diversity technology. The earphone cable serves as a second antenna, which considerably reduces the number of drop-outs. Combined with IE 4 ear-canal phones for precise sound reproduction, EK 2000 IEM conveys an authentic acoustic pattern of live sound and allows you to monitor your own performance perfectly.

Features:

• Sturdy all-metal housing
• Up to 3000 frequencies in up to 75 MHz switching bandwidth
• 20 fixed frequency banks with up to 32 compatible presets
• 6 banks with up to 32 tunable channels
• Adaptive-diversity technology for high reliability
• Pilot tone squelch can be set in 2 dB steps for interference-free reception
• Frequency scan feature searches for available reception frequencies
• Wireless synchronization of receiver parameters from transmitter
• User-friendly menu interface with a backlit graphic display
• HDX compander for crystal clear sound
• Enhanced AF frequency response
• Backlit graphic display
• 4-stage battery status display
• Charging contacts for recharging BA2015
• Auto-lock feature to prevent settings from being changed accidentally
• Hi Boost, adjustable limiter, stereo/focus mode, selectable balance on receiver
• Wide range of accessories for virtually any use

Specifications:

• Frequency range: 516 ... 558 MHz / Europe626 ... 698 MHz / Europe718 ... 790 MHz / Europe790 ... 865 MHz / Europe558 ... 626 MHz / Europe606 ... 678 MHz / UK516 ... 558 MHz / US626 ... 698 MHz718 ... 790 MHz790 ... 865 MHz558 ... 608 MHz / US
• Dimensions: 82 x 64 x 24 mm
• Presets: max. 32
• Frequency response: 25 - 15000 Hz
• Jack plug" 3,5 mm Jack
• Weight: 200 g
• Signal-to-noise ratio: > 90 dB(A)
• RF frequency range: 516 ... 865 MHz
• Switching bandwidth: max. 75 MHz
• Operating time: 4 - 6 h
• Modulation: FM, MPX-stereo
• Carrier frequencies: max. 3000
• Squelch threshold: off, 5 ... 25 dBμV in 2 dB steps
• Audio-Output-Power: 100 mW @32 Ω
• Operating voltage (stand alone): 2 x 1,5V AA
• What's in the Box
  • 1 EK 2000 IEM diversity receiver
  • 1 IE 4 earphones
  • 1 instruction manual
  • 1 supplementary frequency sheet
