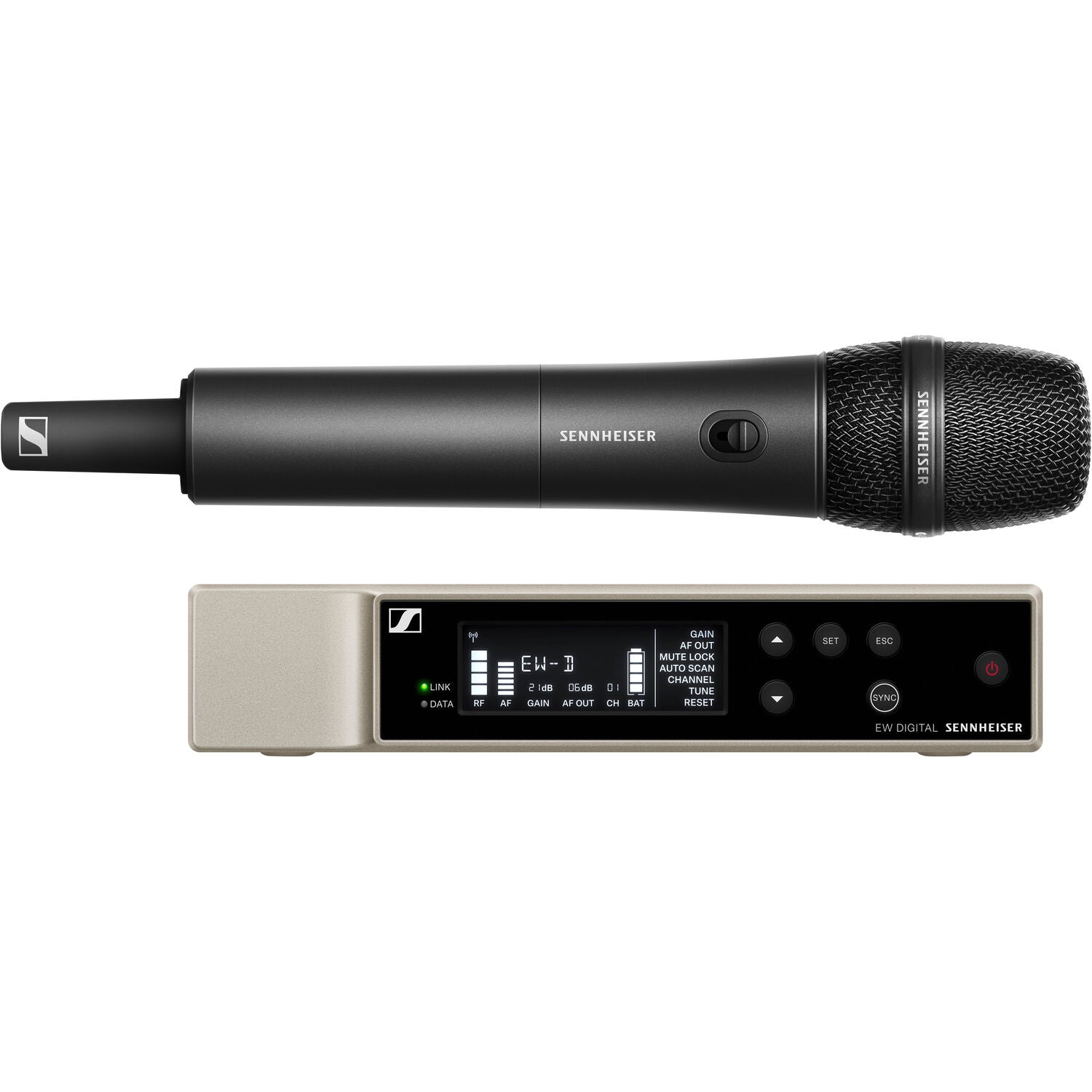

Sennheiser EW-D 835-S SET Digital Wireless Handheld Microphone System with MMD 835 Capsule (Q1-6: 470 to 526 MHz)

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound featuring Sennheiser‘s renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch.

Features:

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
• Auto scan creates reliable connections with minimal time and effort
• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
• 2,240 selectable frequencies allow for fine tuning
• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Specifications:

• Frequency range470.2 - 526 MHz
• THD, total harmonic distortion≤ -60 dB for 1 kHz @ -3 dBfs input level
• Operating temperature-10 °C - +55 °C (14 °F - 131 °F)
• Operating relative humidity5 - 95 % (non-condensing)
• Audio frequency response20 Hz - 20 kHz (-3 dB) @ 3 dBfs
• System Latency1.9 ms

EW-D EM:

• Dimensions: 212 x 44 x 189 mm
• Weight: approx. 1000 g (without antennas and power supply)
• Current consumption≤ 300 mA
• Input voltage range11 - 13 V ⎓
• Audio output level18 dBu max.
• Transmission powerBLE: max. 10 mW EIRP
• MMD 835 (Microphone Module)
• Dimensions: 405 x 350 x 73 mm
• Sound pressure level (SPL)154 dB
• Transducer principle: dynamic
• Weight: 3.1 kg
• Pick-up pattern: cardioid
• Sensitivity: 2.1 mV/Pa

EW-D SKM-S

• Weight: approx. 304 g (incl. MMD 835 microphone module) approx. 195 g (without microphone module)

• Power supply: 2 AA batteries 1.5 V (alkaline manganese)or BA 70 rechargeable battery pack

• Current consumption< 300 mA

• Input voltage range2.0 - 4.35 V

• Transmission power Audio link: 10 m WERP (Range Y1-3): 12 mW ERPBLE: max. 10 mW EIRP

• Dimensions 50 x 268 mm (incl. MMD 835 microphone module)40 x 200 mm (without microphone module)
