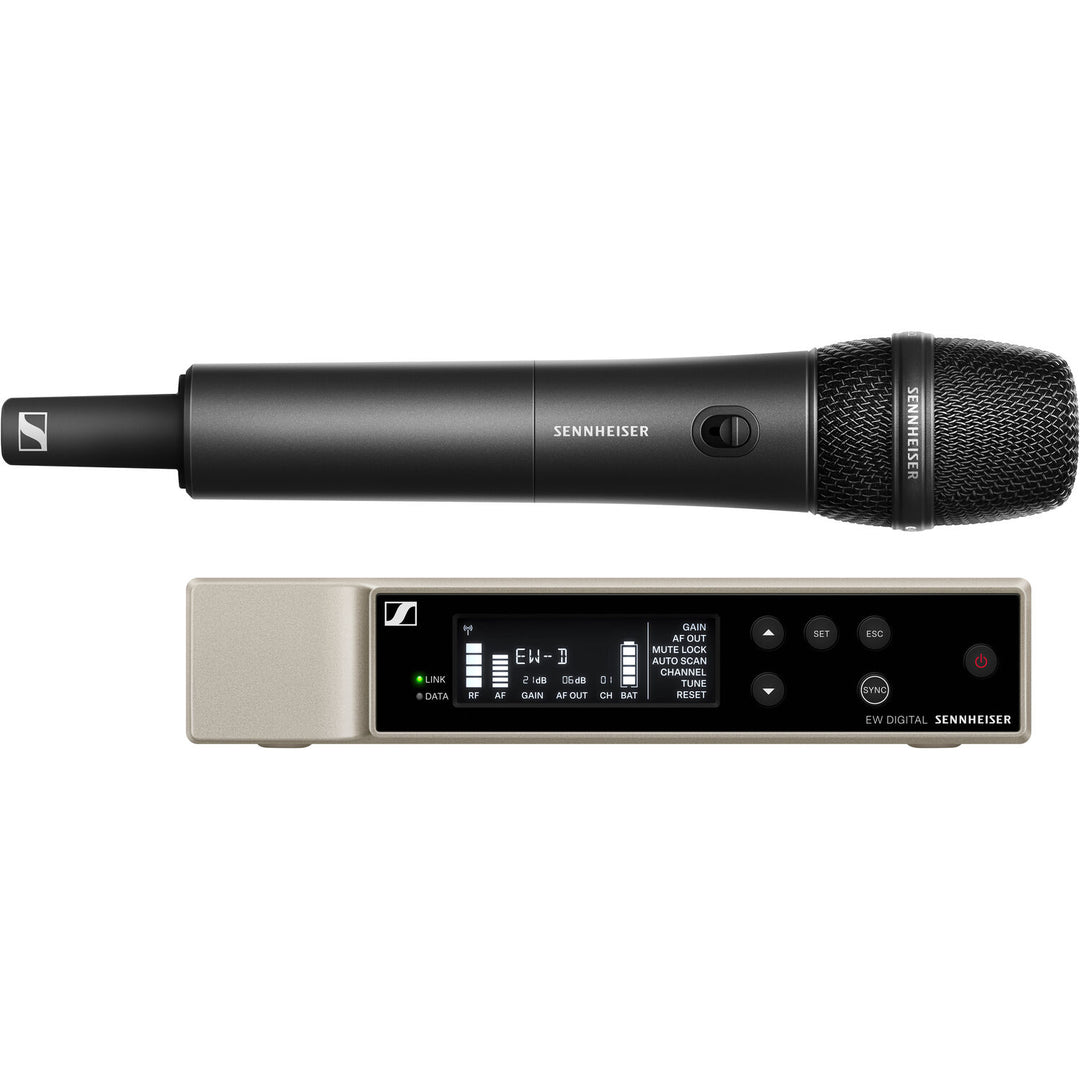

Sennheiser EW-D 835-S SET Digital Wireless Handheld Microphone System with MMD 835 Capsule (R4-9: 552 to 607 MHz)

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound featuring Sennheiser‘s renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch.

Features:

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability

• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance

• Auto scan creates reliable connections with minimal time and effort

• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail

• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart

• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels

• 2,240 selectable frequencies allow for fine-tuning

• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Specifications

• Frequency range: 552 - 607.8 MHz

• THD, total harmonic distortion ≤ -60 dB for 1 kHz @ -3 dBfs input level

• Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)

• Operating relative humidity: 5 - 95 % (non-condensing)

• Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs

• System Latency: 1.9 ms

EW-D EM

• Dimensions: 212 x 44 x 189 mm

• Weight: approx. 1000 g (without antennas and power supply)

• Current consumption: ≤ 300 mA

• Input voltage range: 11 - 13 V ⎓

• Audio output level: 18 dBu max.

• Transmission powerBLE: max. 10 mW EIRP

MMD 835 (Microphone Module)

• Dimensions: 405 x 350 x 73 mm

• Sound pressure level (SPL): 154 dB

• Transducer principle: dynamic

• Weight: 3.1 kg

• Pick-up pattern: cardioid

• Sensitivity: 2.1 mV/Pa

EW-D SKM-S

• Weight: approx. 304 g (incl. MMD 835 microphone module)approx. 195 g (without microphone module)

• Power supply: 2 AA batteries 1.5 V (alkaline manganese)or BA 70 rechargeable battery pack

• Current consumption: < 300 mA

• Input voltage range: 2.0 - 4.35 V

• Transmission power: Audio link: 10 mWERP (Range Y1-3): 12 mW ERPBLE: max. 10 mW EIRP

• Dimensions: 50 x 268 mm (incl. MMD 835 microphone module)40 x 200 mm (without microphone module)

What's in the Box

• EW-D EM rack receiver
• EW-D SKM-S handheld transmitter
• MMD 835 microphone module
• MZQ 1 microphone clamp
• 2 rod antennas
• power supply with country adapters
• rackmount set
• 4 rubber feet
• quick guide
• safety guide
• manufacturer declaration sheet
