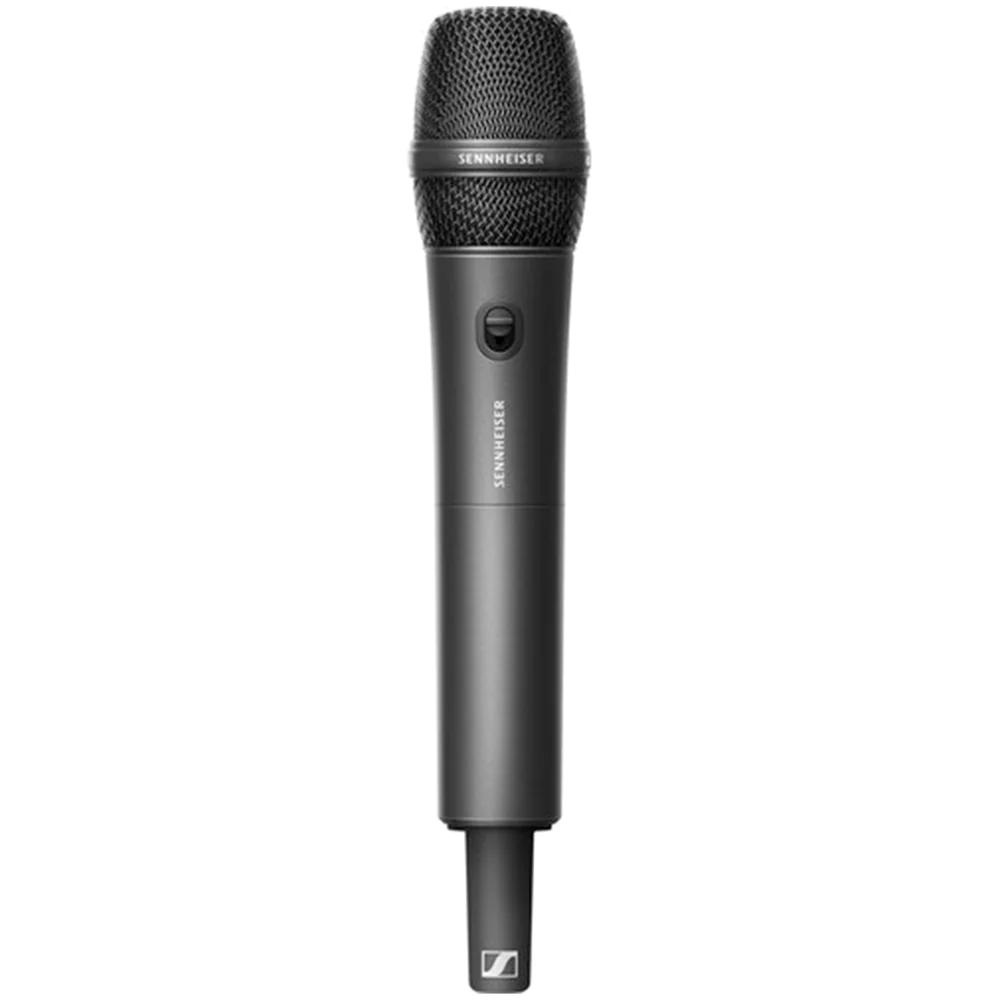

Sennheiser EW-DX SKM-S Digital Wireless Handheld Transmitter with MMD 835 Capsule & Mute Switch - Q1-9: 470 to 550 MHz

Overview of Sennheiser EW-DX SKM-S Digital Wireless Handheld Transmitter with MMD 835 Capsule & Mute Switch - Q1-9: 470 to 550 MHz

EW-DX SKM-S (Q1-9)

Overview

Digital wireless handheld transmitter with switch compatible with Evolution Wireless Digital systems. Rugged metal housing with standard capsule interface for a wide range of Sennheiser and Neumann microphone modules. Up to 12 hours of runtime, persistent E-Ink display, and charging contacts for in-device charging.

Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live productions benefit from a network-ready system that is designed to integrate seamlessly. The system quickly assesses your environment and uses equidistant channel spacing to deploy frequencies while tools like Sennheiser’s Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely. In-device charging, 12-hour battery operation, and switching bandwidth up to 88 MHz are only a few more of the many features that make EW-DX the right tool for the job.

Features

• 134 dB input dynamic range - no need to set the gain on your wireless transmitters at all, thanks to the proprietary Sennheiser Performance Audio Codec (SePAC)
• 10mW fixed RF power for up to 100 m/328 ft of range
• Charging contacts for in-device charging with CHG 70N charger (sold separately)
• Persistent E-Ink display for "always on" information - parameters visible on-screen even when taking out batteries
• Up to 12 hours of operation time with a rechargeable lithium-ion battery BA 70 (sold separately)
• Programmable mute switch (AF Mute, RF Mute, no function)
• Function buttons - control all the transmitter settings directly from the handheld including the button lock function
• Digital audio trim
• Test tone generator
• Switchable LED configuration (On/Off)
• Switchable low cut (Off, 30 ,60, 80, 100, 120 Hz)
• Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station (Availability in 2023)
• Sennheiser Standard Capsule Interface - compatible with a wide range of Sennheiser and Neumann capsules (sold separately)
• Metal housing
• Worldwide usage (specific frequencies subject to local RF regulations)
• Note: All components of the Evolution Wireless Digital Family are designed to interoperate. Please be aware of restrictions of features linked to the respective series, such as switching bandwidth and use of Link Density mode.

Top SpecsRead More

• Dimensions 50 x 268 mm (incl. MMD 835 microphone module) 40 x 200 mm (without microphone module)
• Weight  (g) 450

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

An engineer in your pocket

The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.
