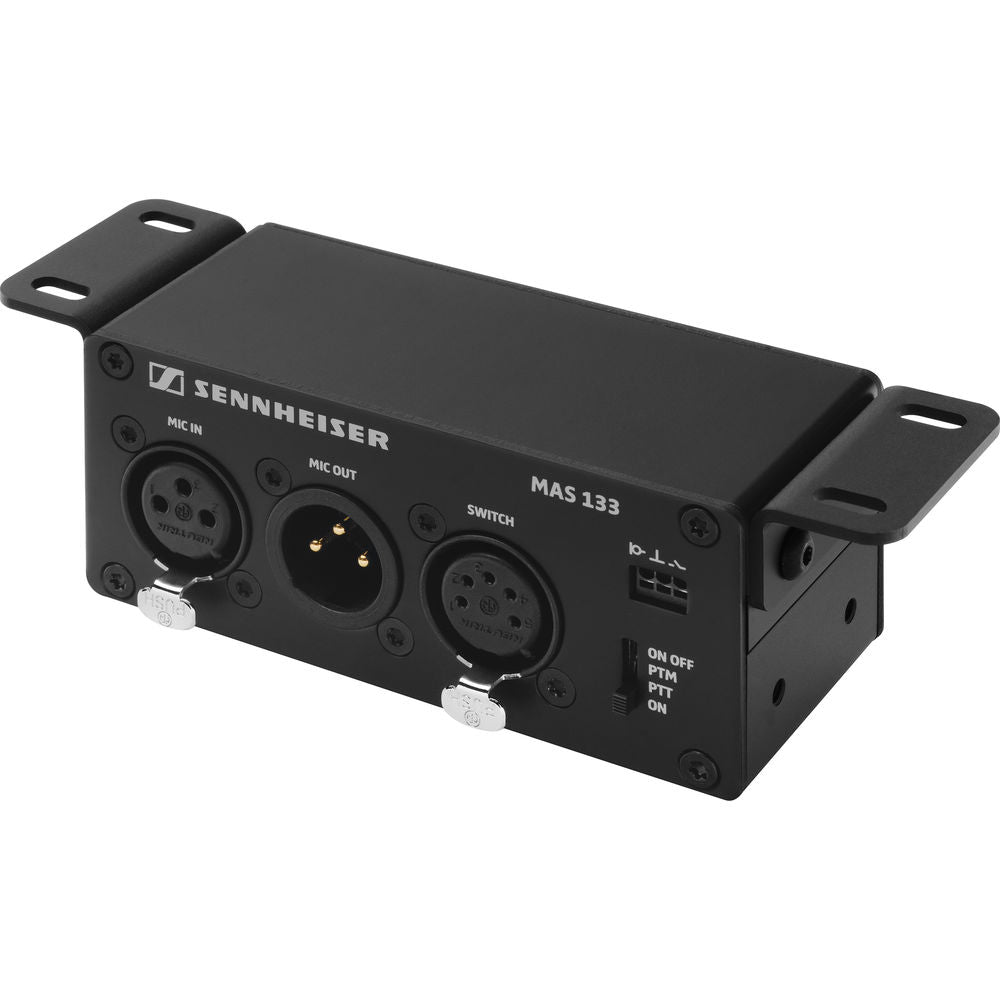

Sennheiser MAS 133
MAS 133
Regular price$269.00
Out of Stock
Get in Touch →
Available to Order
Arrival times vary. Get in Touch for timing.
Payment plans from Affirm, learn more
- Sennheiser
- Shipping Calculated at checkout, most in stock products ship same day
The MAS 133 is a versatile XLR inline switch box for integrated microphone solutions. Attached between the mic and mixing console, it powers the MAS 1 microphone button. It is able to control any XLR-attached microphone using switchable microphone activation modes (PTT, PTM, toggle ON/off, permanent on). Furthermore, the MAS 133 features a TTL logic, enabling the user to trigger e.g. camera or media control systems for various purposes.
Features:
- Toggle on/off
- Push to mute
- Push to talk
- permanent on
Specifications:
- Dimensions: 150 x 44 x 44 mm (WxDxH)
- Connector: Mic in: XLR-3F
- Connector: Mic out: XLR-3M Pin assignment: 1 = gnd, 2 = +, 3 = −
- Connector: Switch in: XLR-5F Steckerbelegung: 1 = gnd, 2 = Switch, 3 = LED rot −, 4 = LED grün −, 5 = LEDs + 12 V out
- Weight: 212 g
- Phantom powering: P 48
- Operating temperature: −10 °C - +50 °C
- Current consumption: 4.5 mA
- Output voltage: High level: > 2.4 V
- Output voltageLow level: < 0.4 V
- What's in the box:
- MAS 133
- Mounting material
- Quickguide
