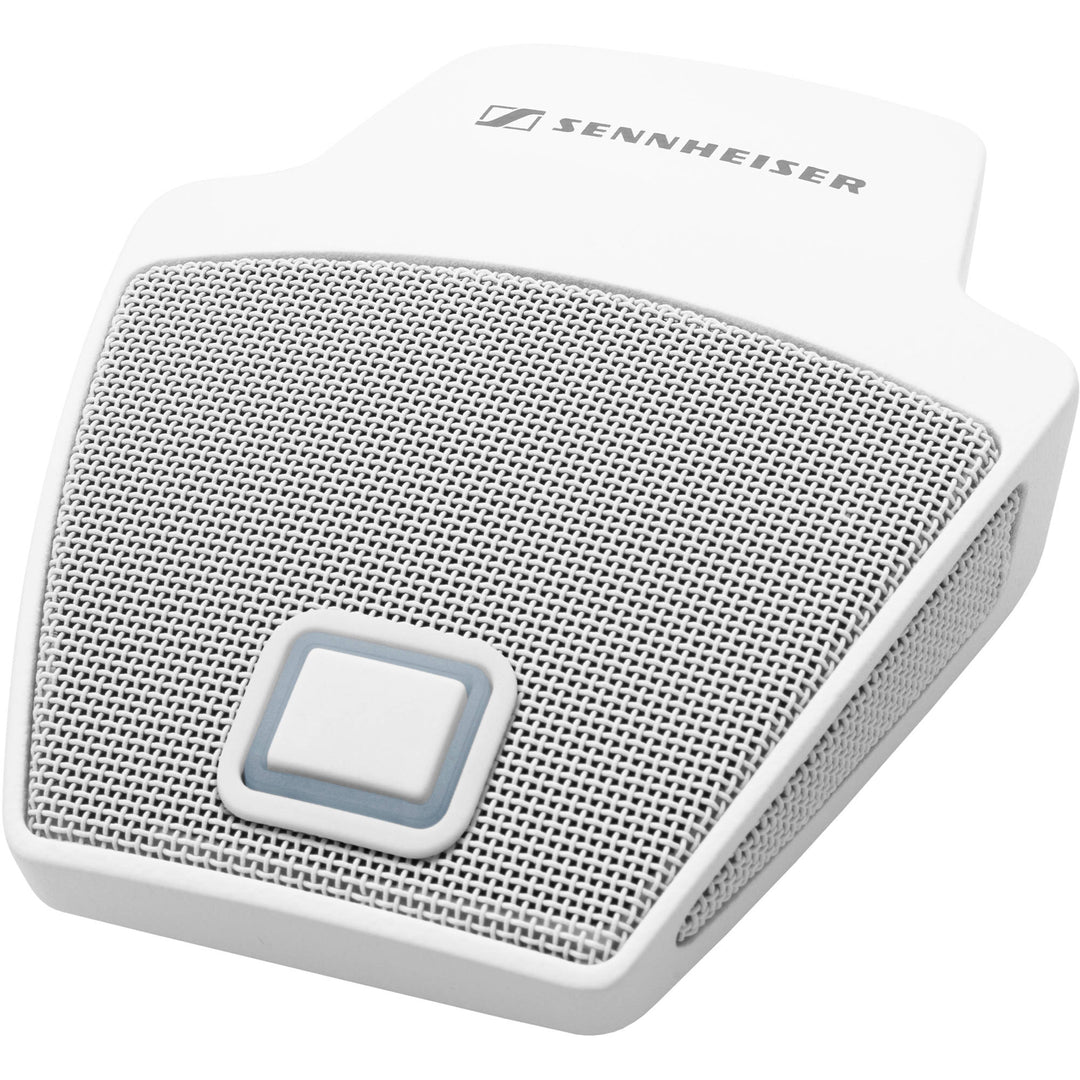

Sennheiser MEB 114-S W

The sturdy on-table boundary layer microphone MEB 114 constitutes an improvement for any conferencing system. In its –S version it additionally features a programmable microphone button (PTT, PTM, toggle ON/off, permanent on), and a bi-color LED ring for status indication. A camera or media control system can be triggered via the TTL logic out on the bottom side. Thanks to its rugged housing and its high-quality microphone capsule the MEB 114 ensures the best speech intelligibility.

Features:

• Toggle on/off
• Push to mute
• Push to talk
• permanent on (external LED control)

Specifications:

• Color: white, LED light ring: red / green
• Dimensions: 85 x 100 x 25 mm (WxDxH)
• Connector: clip contact, trigger signal at the logic connector: Logic in (LED control), GND, Logic out (switch signal)
• Frequency response: 40 Hz – 20 kHz
• Max. sound pressure level: 140 dB
• Transducer principle: pre-polarized condenser microphone
• Weight: 291 g
• Pick-up pattern: cardioid
• Nominal impedance: 200 Ω
• Phantom powering: P 24 - P 48
• Operating temperature: -10 ° … +50 °C
• Equivalent noise level: 29 dB (A)
• Equivalent noise level weighted as per CCIR 468-3: 39 dB (CCIR)
• Current consumption: 5.3 mA
• Output voltage: Logic out: High level output voltage > 2.4 V, low level output voltage < 0.4 V
• Output voltage: Logic in: High level input voltage > 2.0 V, Low level input voltage < 0.8 V
• Acoustics: boundary layer microphone
• Dynamic range: 111 dB (A)
• Sensitivity: 10 mV/Pa
• What's in the box:
  • MEB 114 Microphone
  • Quickguide
  • Cable
