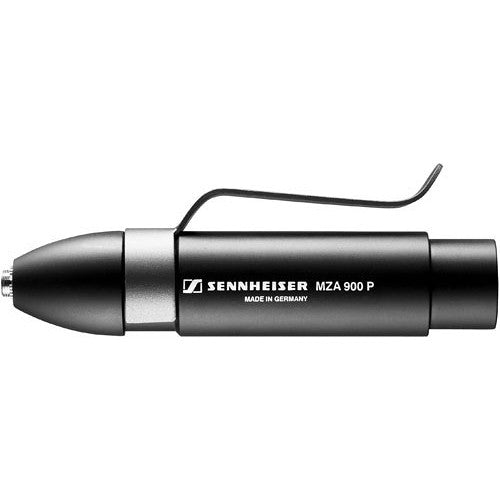

Sennheiser MZA 900 P

The MZA 900 P phantom power adaptor is used to connect pre-polarized condenser microphones with a 3.5mm jack plug to microphone inputs with 10 - 52 V phantom powering (P12 - P48). The connected microphone is supplied via the adaptor. The phantom power adaptor is available in two different versions: MZA 900 P with lockable 3.5 mm jack socket (as evolution wireless) MZA 900 P-4 with lockable 3-pin special socket The adaptor is also a quick and flexible solution if a microphone is to be used for both wired and wireless applications. One and the same microphone can be used together with the MZA 900 P(-4) for wired applications (e.g. in the studio) or with a transmitter of the evolution series for wireless applications. The MZA 900 P can also be used as a cable tester for XLR microphone cables.

Features:

• Robust metall chassis
• Switchable gain (0/-12dB)
• Switchable roll-off filter (125 Hz (-3 dB), 12 dB/oct)
• Two-colour control LED (phantom power, audio peak)
• Input 3,5mm stereo jack socket, lockable
• Output XLR-3M

Specifications:

• Gain: 0/-12 dB
• Output Voltage: 1,8V (P48), 0,6V (P12) @ 0dB gain
• Phantom powering: P12 - P48, 10 - 52V, 2,6 - 2,8mA
• Output impedance: 100 Ω
• Dimensions: Ø 19/22 mm, L 100 mm
• Weight: 60 g
• Nominal impedance: 100 Ω
• Operating temperature: -20.....+60 °C
• Gain: 0/-12 dB
• What's in the box:
  • MZA 900 P with belt clip
  • Instructions for use
  • Warranty certificatee
