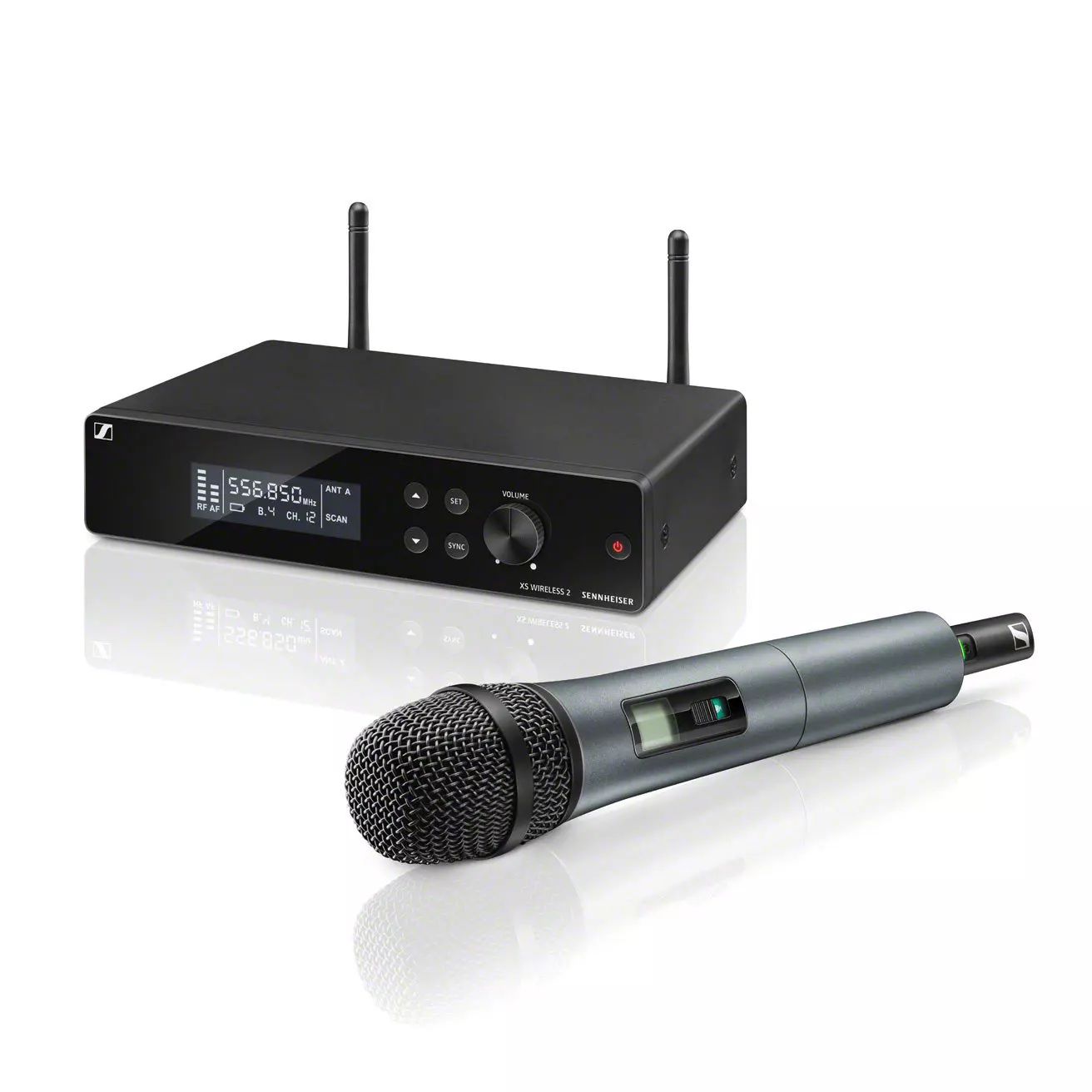

Sennheiser XSW 2-865-A Wireless Handheld Microphone System with e865 Capsule (A: 548 to 572 MHz)

Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions. The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e865 (condenser, super-cardioid) to capture every detail. True Diversity receiver in a metal housing and rackmount kit included.

Features:

• Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
• True diversity receiver with metal housing
• External antennas
• Automatic frequency management and synchronization via
• remote channel for easy setup
• Fully tunable over a wide range of UHF frequencies
• Rackmount kit included
• Up to 12 compatible channels

Specifications:

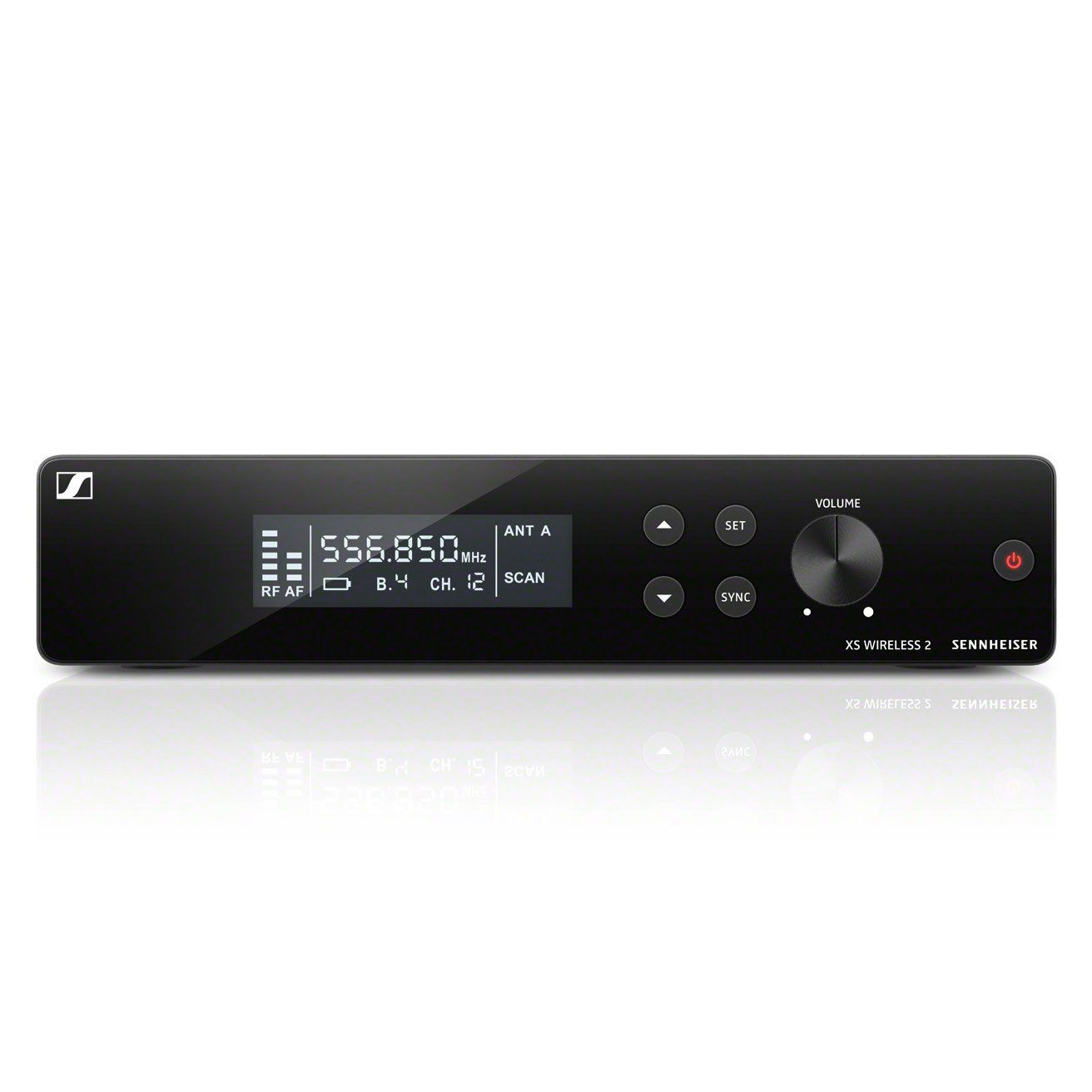

Receivers:

• Dimensions: approx. 200 x 42 x 127 mm
• Weight: approx. 680g
• Power supply: 12 V DC nom. / 300 mA
• Housing: metal, microphone: robust ABS
• AF frequency response: 50 to 16,000 Hz (–3 dB)

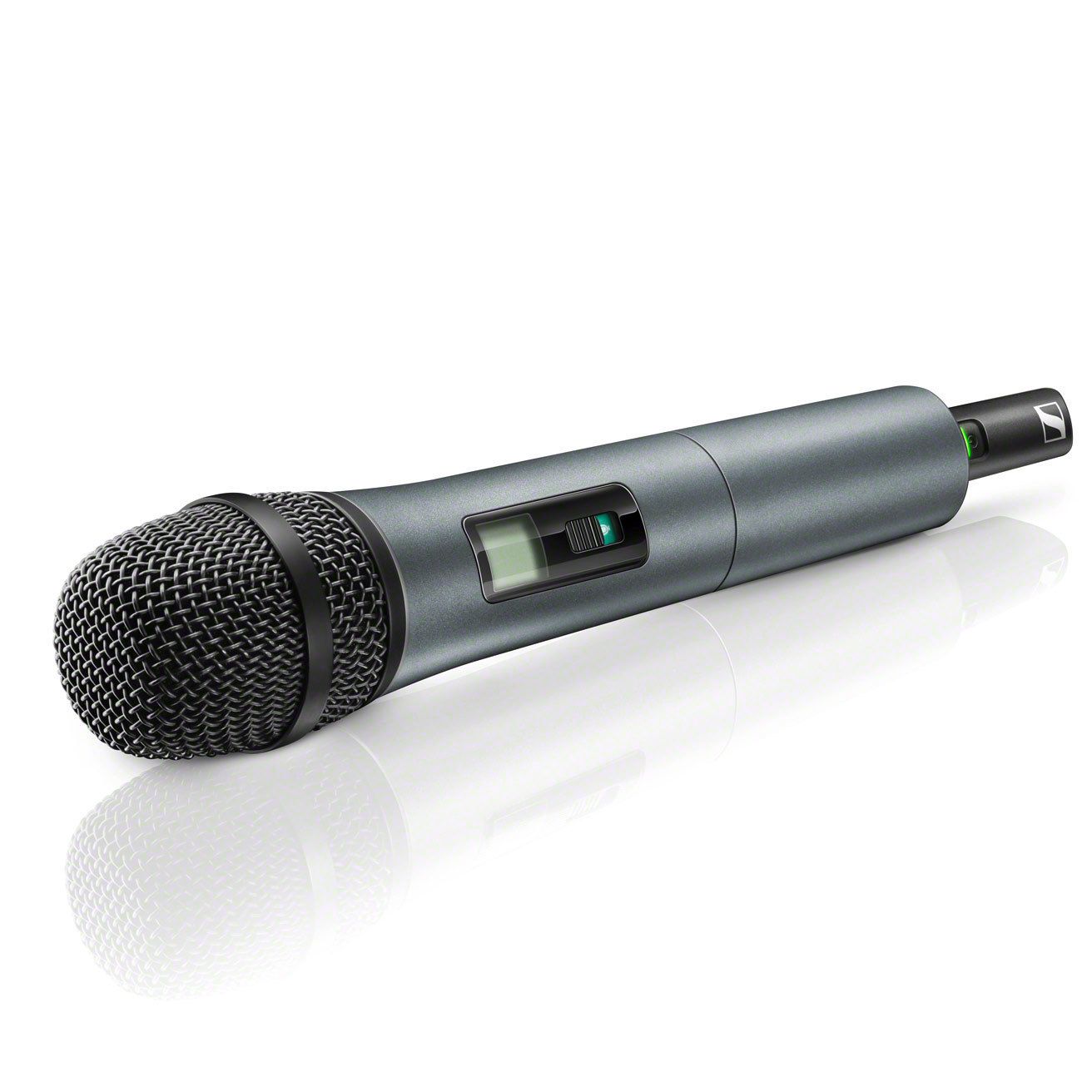

Microphone:

• Dimensions: approx. 260 x 50 mm
• Weight: approx. 245g
• Operating time: approx. 10 hrs
• Power supply: 2 AA size batteries, 1.5 V
• AF frequency response: 80-16,000 Hz
• Microphone: condenser
• Frequency response: 50 to 16,000 Hz (–3 dB)
• THD, total harmonic distortion: ≤ 0.9%
• Pick-up pattern: super-cardioid
• Signal-to-noise ratio: ≥ 103 dBA
• RF output power: 10 mW
• Switching bandwidth: up to 24 MHz
• Modulation: wideband FM

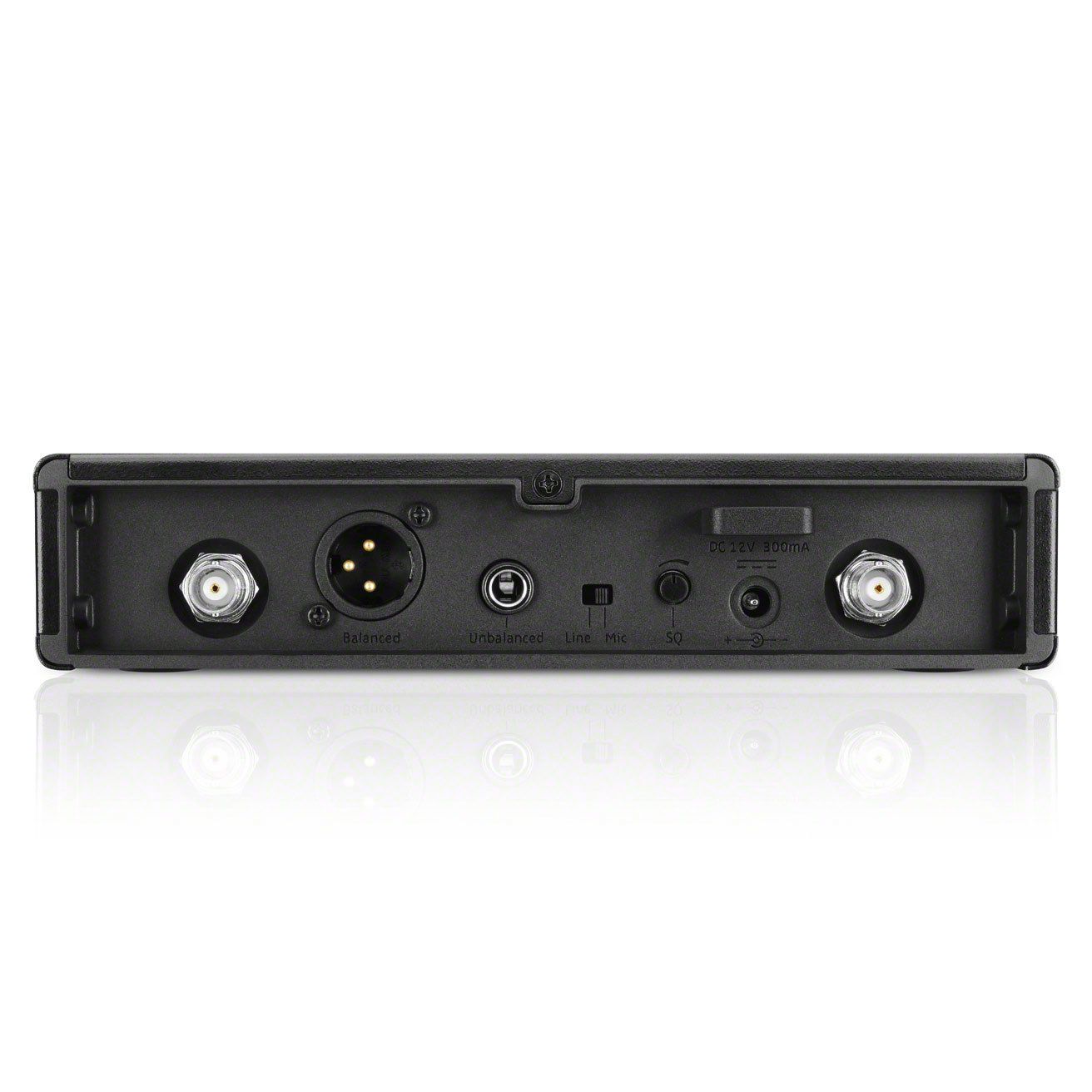

• Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Frequency: 8 frequency banks, each with up to 12 factory-preset channels
• Frequency range: A: 548-572 MHzGB: 606-630 MHz, B: 614-638 MHz, C: 766-790 MHz, D: 794-806 MHz, E: 821-832 MHz, 863-865 MHz, K: 925-937.5 MHz
• Sensitivity: < 3 μV at 52 dB(A)rms S/N
• Squelch: switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input sensitivity: 1.8 mV / Pa
• Adjustment Range Transmitter: 0到-30分贝，以10分贝为步进调节
• Audio adjustment range: 40 dB, adjustable in 5-dB steps
• Line / Mic level: 20 dB, switchable
• Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C
• Receiver Principle: double superheterodyne
• Diversity principle: True Diversity

What's in the Box:

• 1 receiver EM-XSW 2
• 1 handheld transmitter SKM 865-XSW
• 1 microphone clamp MZQ 1
• 1 power supply NT 12-5 CW
• 2 AA batteries
• 1 rackmount kit
• 1 pouch
• user manual
