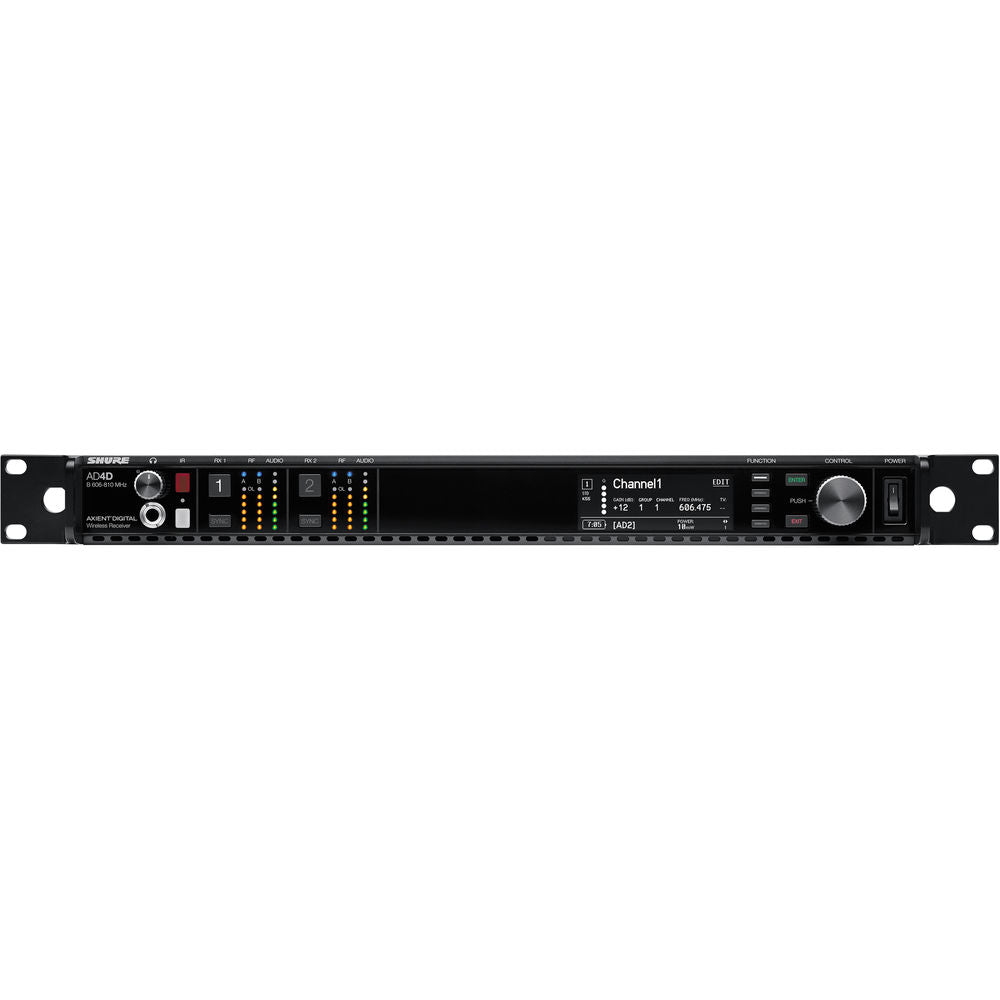

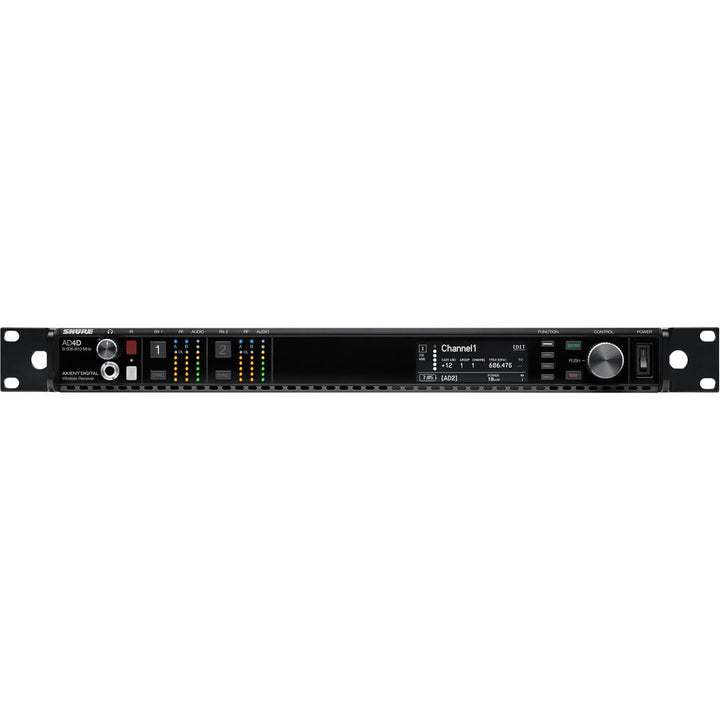

Overview of Shure AD4D Two-Channel Digital Receiver for Axient Digital Wireless Systems (A: 470 to 636 MHz) No Accessories
The AD4DUS-A Axient Dual-Channel Wireless Receiver with Power and RF Accessories fromShure offers true digital diversity reception per channel for drop-out resistance, and a wide tuning range of up to 184 MHz. It can be used when paired with compatible Shure AD and ADX transmitters (sold separately) to deliver professional digital audio for live stage, theater, houses of worship, or other sound reinforcement applications. The receiver is built with a front-panel headphone jack that enables Dante Cue and Dante Browse monitoring. Each channel features switchable AES3 and XLR outputs with a 1/4" TRS output also available. A channel quality meter displays RF signal-to-noise information so you can always know the status of your output signal. Some other features include locking AC connectors, and a configurable Ethernet switch for redundant Dante digital output. In addition, Shure's Wireless Workbench app offers total control with an enhanced interface, access to RF spectrum and timeline plotting, frequency coordination, and live performance monitoring. Control and monitor options can be extended to a mobile device with the ShurePlus Channels iOS app. Finally, the AD4DUS-A Axient Dual-Channel Wireless Receiver with power and RF accessories opens the gateway to a full range of features, from high-performance RF and transparent digital audio to software control.
- Wide tuning range up to 184 MHz
- True digital diversity reception per channel for drop-out resistance
- Networked control with Wireless Workbench® software and ShurePlus™ Channels iOS app
- Front panel headphone jack enables Dante™ Cue and Dante™ Browse monitoring
- Configurable Ethernet switch for redundant Dante or AES67 digital output
- AES3 output
- Channel Quality meter displays RF signal-to-noise
- Locking AC connectors
- DC module version available to support redundant power
Music City Canada is an authorized reseller for Shure products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
