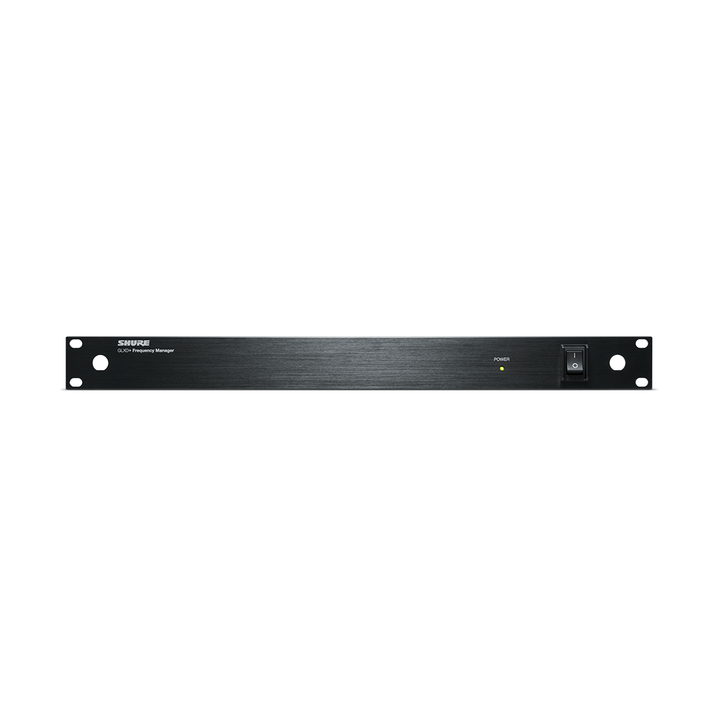

Shure GLXD+ Dual Band Frequency Manager
GLXD+FMZ3/LC
Payment plans from Affirm, learn more
- Shure
- Shipping Calculated at checkout, most in stock products ship same day
Power Requirements: 15 VDC
DC Output: 15 VDC (×6)
Output Current Combined total from all DC outputs: 3.8 A, maximum
Operating Temperature Range: −18 °C to 63 °C (0 °F to 145 °F)
Dimensions: 45 × 483 × 192 mm (1.8 × 19 × 7.6 in) H × W × D
Net Weight: 1.63 kg (3.6 lbs)
RF INPUT:
Connector Type: Reverse SMA
RF Frequency Range: 2400 to 5850 MH
Receiver Port Isolation: 35 dB, typical
Impedance: 50 Ω
Maximum Antenna Input Power: −10 dBm
Maximum Receiver Port Input Power: +15 dBm
RF OUTPUT:
Connector Type: Reverse SMA
RF Frequency Range: 2400 to 5850MHz
Output Intercept Point (OIP3): 48 dBm, typical
Impedance: 50 Ω
Reverse Isolation Output to Input: 35 dB, typical
Gain Input to any output port: −3 to 0 dB
* The GLX-D+ Dual Band and GLX-D wireless system components, including rechargeable batteries, are not compatible with each other. A GLX-D+ Dual Band transmitter will not work with a GLX-D receiver, nor vice versa.
