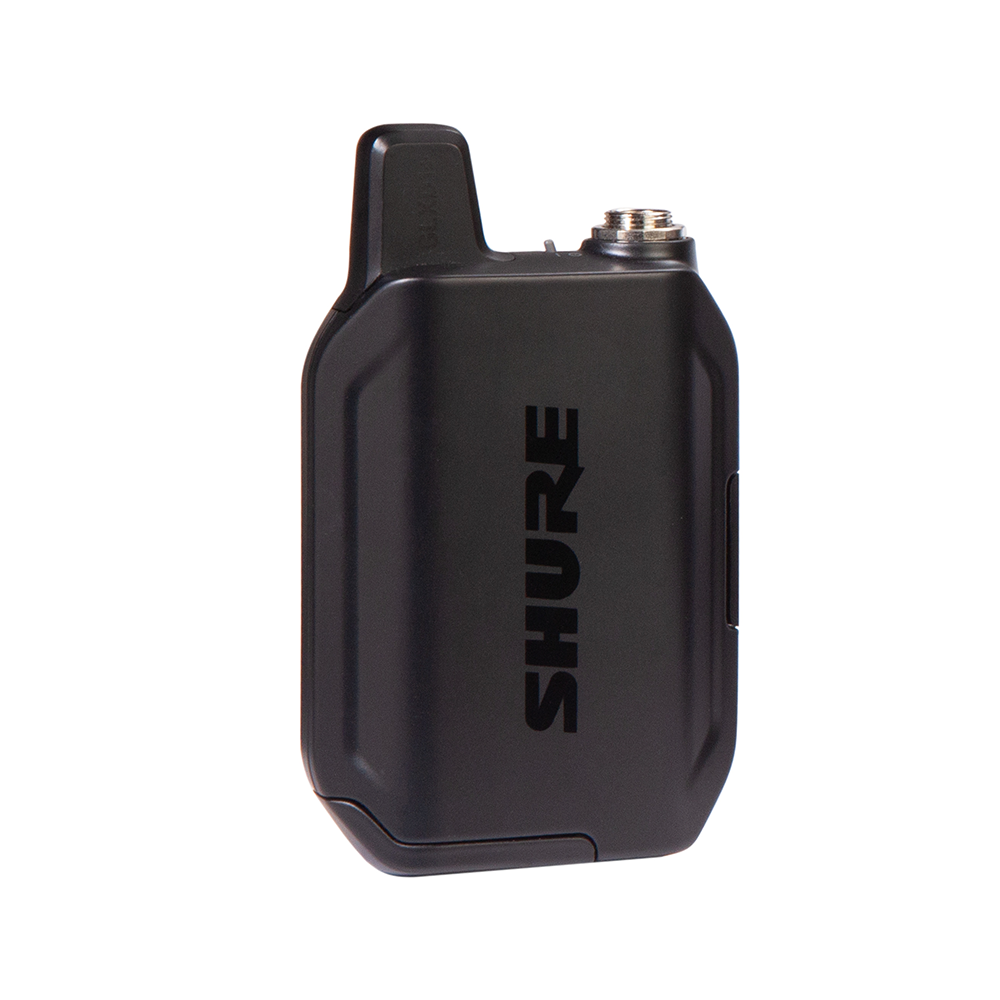

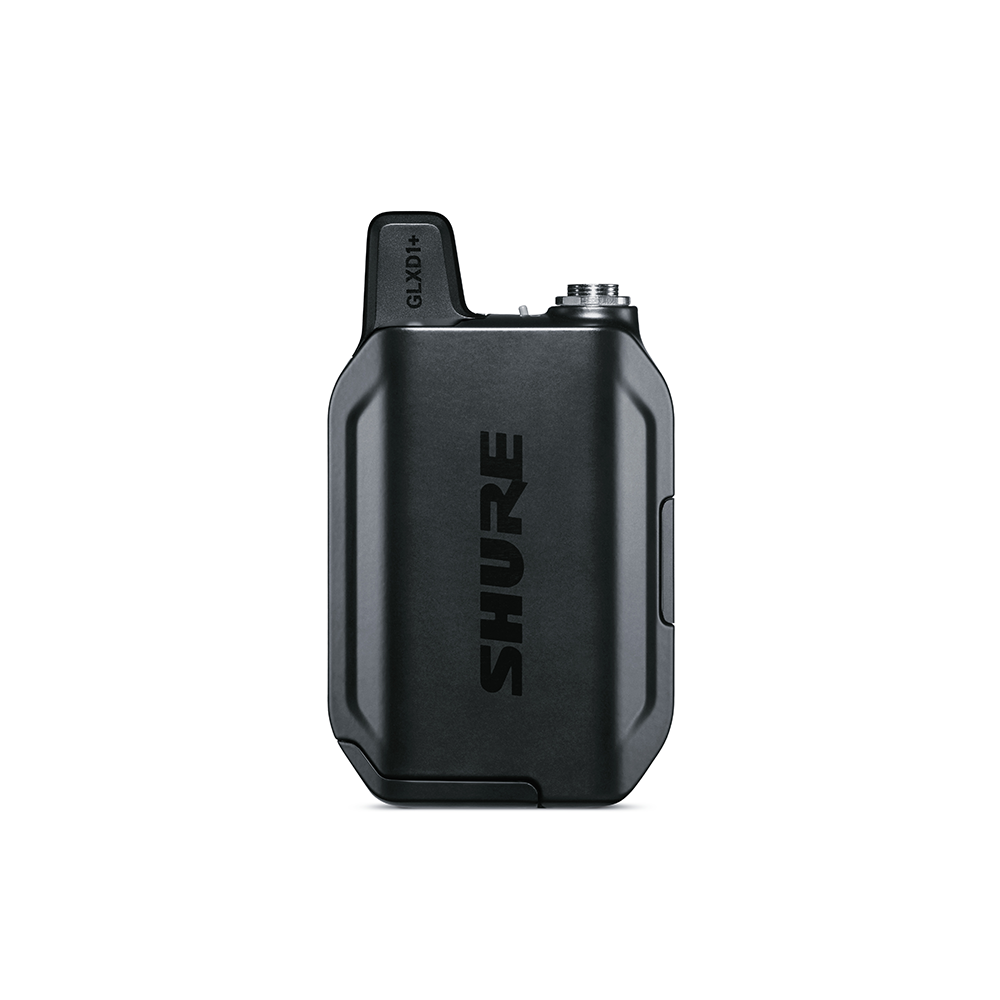

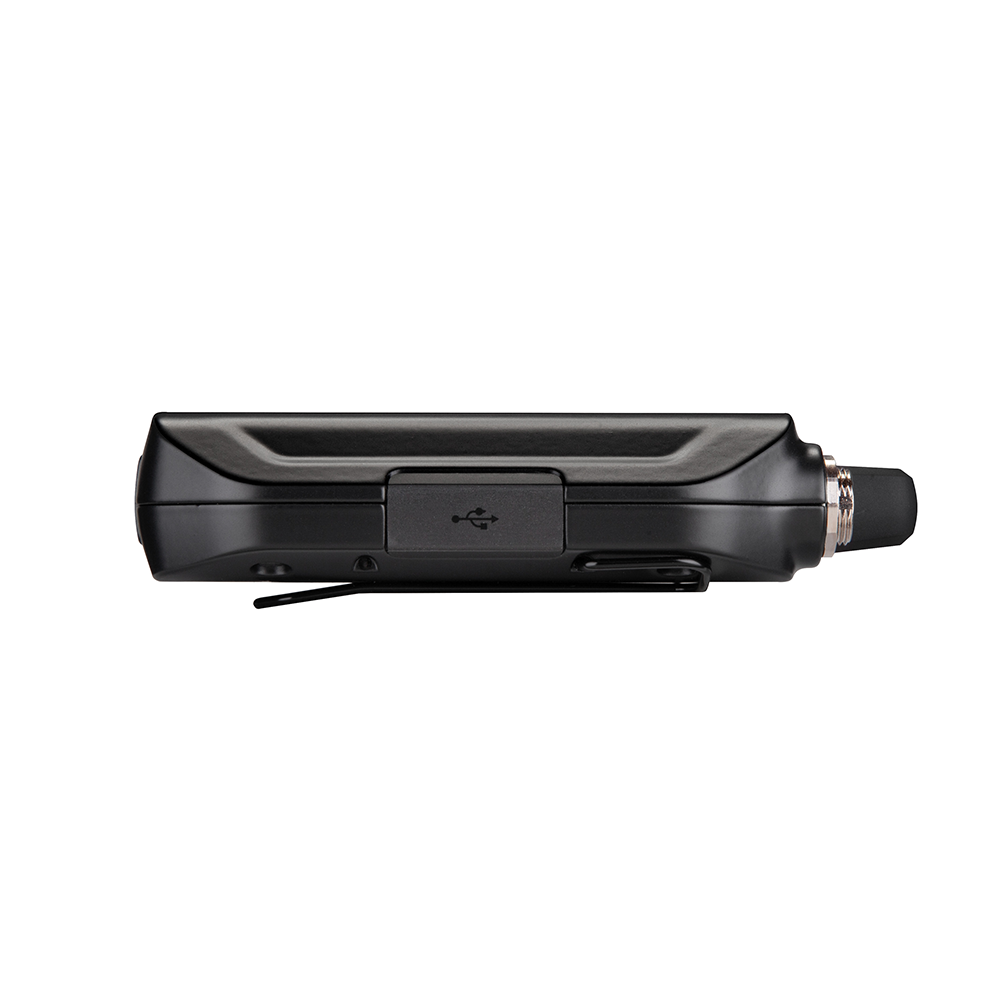

Shure GLXD1+ Bodypack Transmitter (Z3)
GLXD1+-Z3
Payment plans from Affirm, learn more
- Shure
- Shipping Calculated at checkout, most in stock products ship same day
The GLXD1+ Dual Band Bodypack Transmitter has rugged, metal construction with ergonomic design and reversible belt clip to fit comfortably and snugly in various positions. Compatible with instrument cable, and a variety of headset and lavalier microphone options.
Dimensions: 4.5 x 2.6 x 1.1 in. (115 x 66.94 x 28.51 mm), (H x W x D), without antenna
Weight: 5.4 oz (153.1 g), without battery
Power Requirements: 3.7 V Rechargeable Li-Ion
Housing: Cast Metal, Black Powdercoat
Input Impedance: 900 kΩ
RF Output Power: 10 mW E.I.R.P. max
TRANSMITTER INPUT
Connector: 4-Pin male mini connector (TA4M)
Configuration: Unbalanced
Maximum Input Level (1 kHz at 1% THD): +8.4 dBV (7.5 Vp-p)
Antenna Type: Dual Band Internal Monopole
Pin Assignments TA4M:
- 1: Ground (cable shield)
- 2: + 5 V Bias3: Audio
- 4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)
Includes:
- 1 SB904 Lithium-Ion Rechargeable Battery
* The GLX-D+ Dual Band and GLX-D wireless system components, including rechargeable batteries, are not compatible with each other. A GLX-D+ Dual Band transmitter will not work with a GLX-D receiver, nor vice versa.
