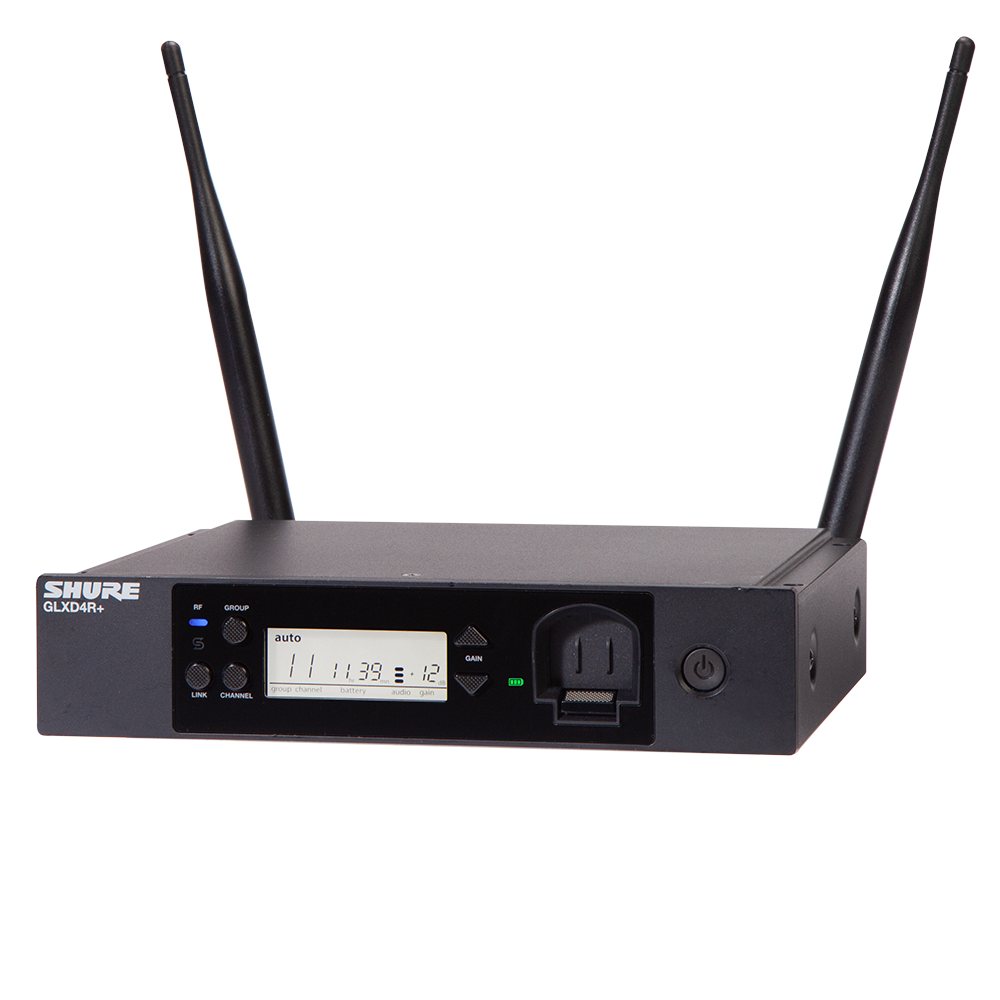

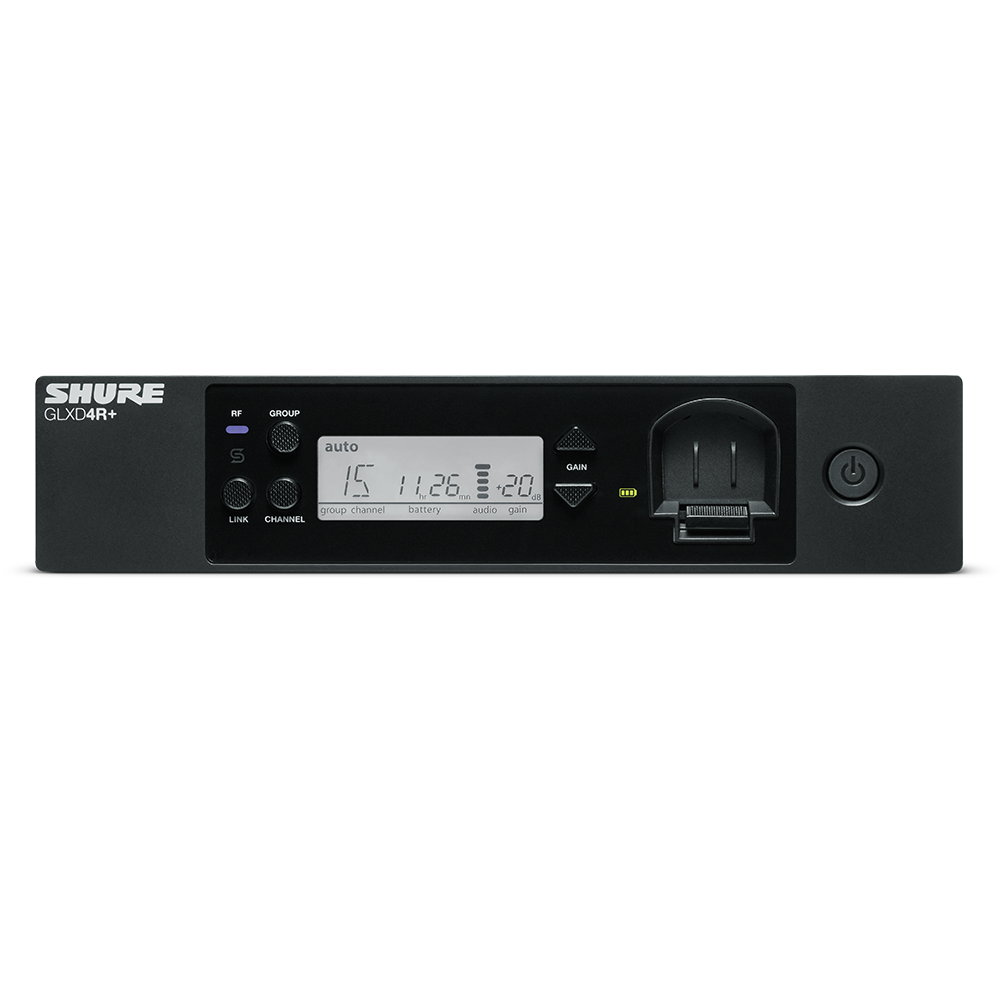

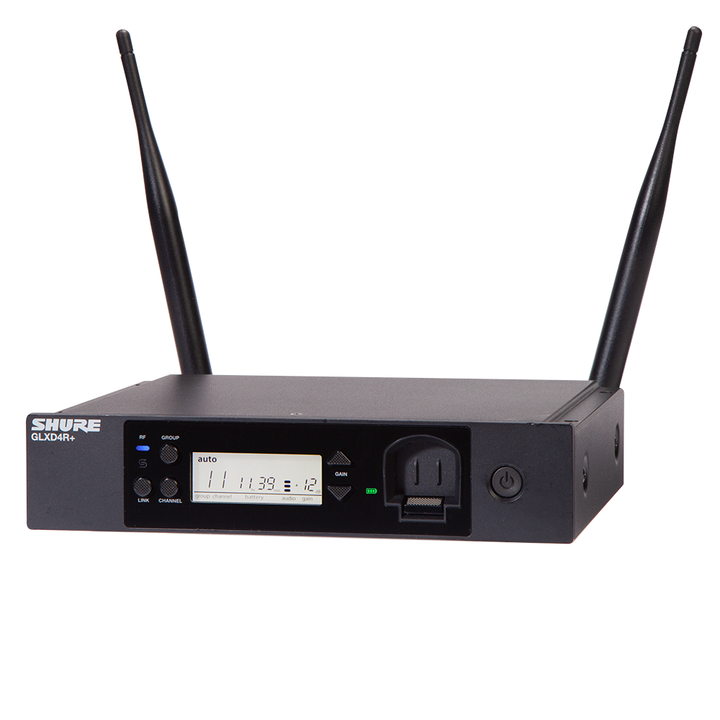

Shure GLXD4R+ Dual Band Wireless Rack Receiver
GLXD4R+-Z3
Payment plans from Affirm, learn more
- Shure
- Shipping Calculated at checkout, most in stock products ship same day
GLXD4R+ DUAL BAND RACK RECEIVER
Dimensions: 7.7 x 6.4 x 1.6 in. (196.8 x 162.97 x 41.8 mm), without antenna
Weight: 30.5 oz (866 g) without batteries
Housing: Steel
Power Requirements: 14.5 V - 17 V, 600mA
Spurious Rejection: >35 dB, typical
Gain Adjustment Range: −18 to 42 dB in 1 dB steps
Phantom Power Protection: Yes
AUDIO OUTPUT
Configuration:
XLR Output: Balanced
6.35 mm (1/4") output: Impedance balanced
Impedance:
XLR Output: 100 Ω
6.35 mm (1/4") output: 100 Ω (50 Ω, Unbalanced)
Full-Scale Output:
XLR: LINE setting= +18 dBV, MIC setting= −12 dBV
6.35 mm (1/4"): +12 dBV

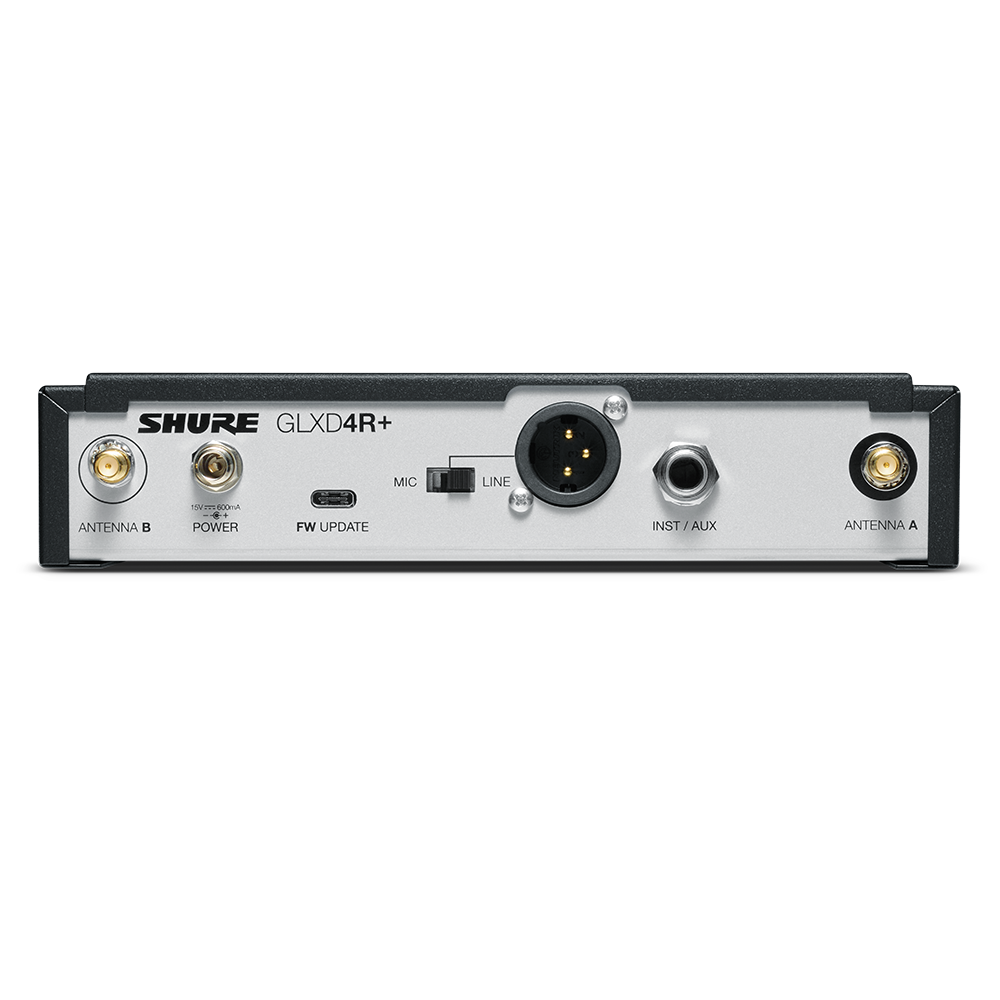

Pin Assignments:
XLR Output: 1=ground, 2=hot, 3=cold
6.35 mm (1/4") connector: Tip=audio, Ring=no audio, Sleeve=ground
Mic/Line Switch: 30 dB Pad
RECEIVER ANTENNA INPUT
Impedance: 50 Ω
Antenna Type: Dual Band 1/2 WaveSleeve Dipole
Maximum Input Level: −20 dBm
* The GLX-D+ Dual Band and GLX-D wireless system components, including rechargeable batteries, are not compatible with each other. A GLX-D+ Dual Band transmitter will not work with a GLX-D receiver, nor vice versa.
