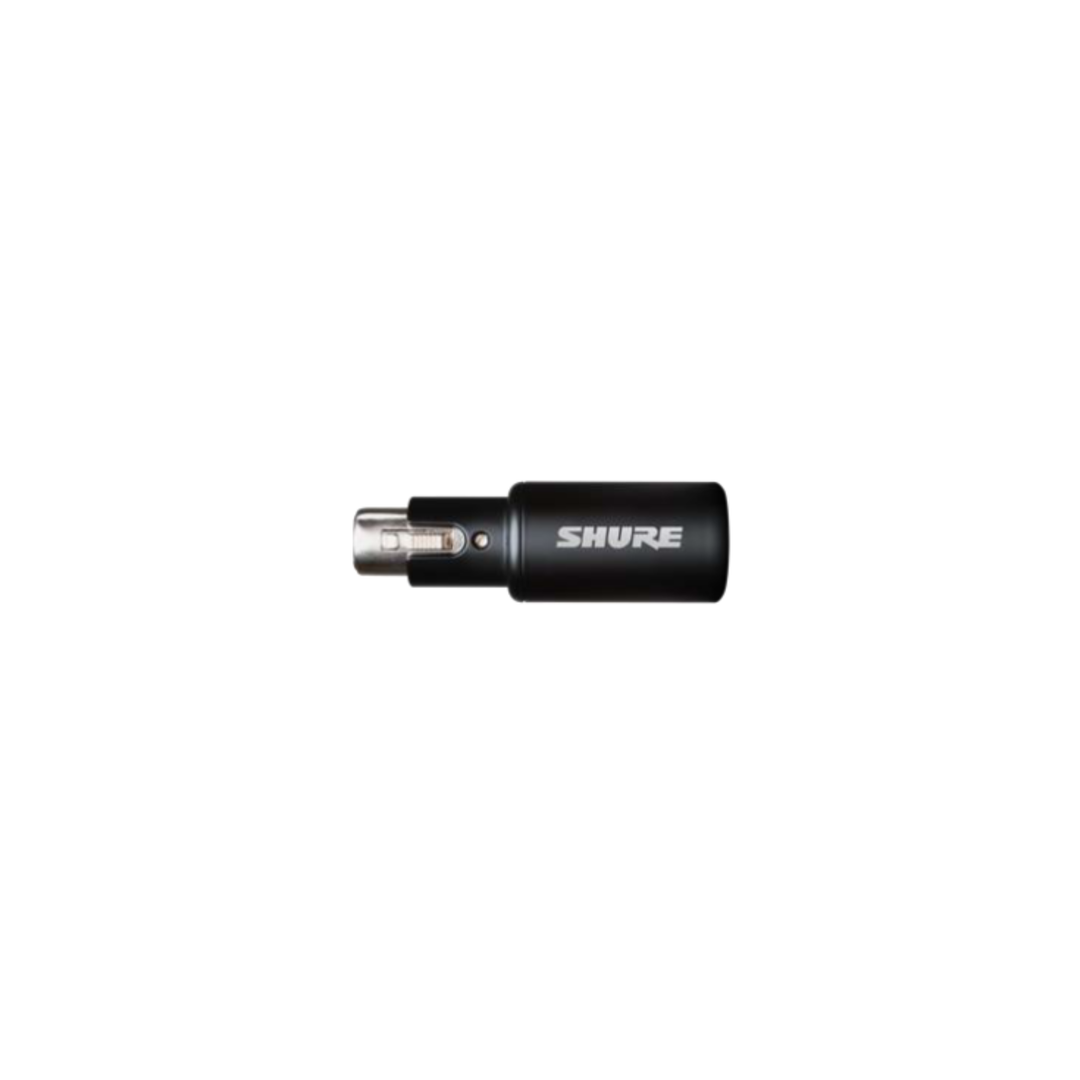

Shure MVX2UG2 Single-Channel Digital Audio Interface XLR to USB - Black

MVX2U Gen 2
Digital Audio Interface

Single-Channel XLR-to-USB Interface with Headphone Output

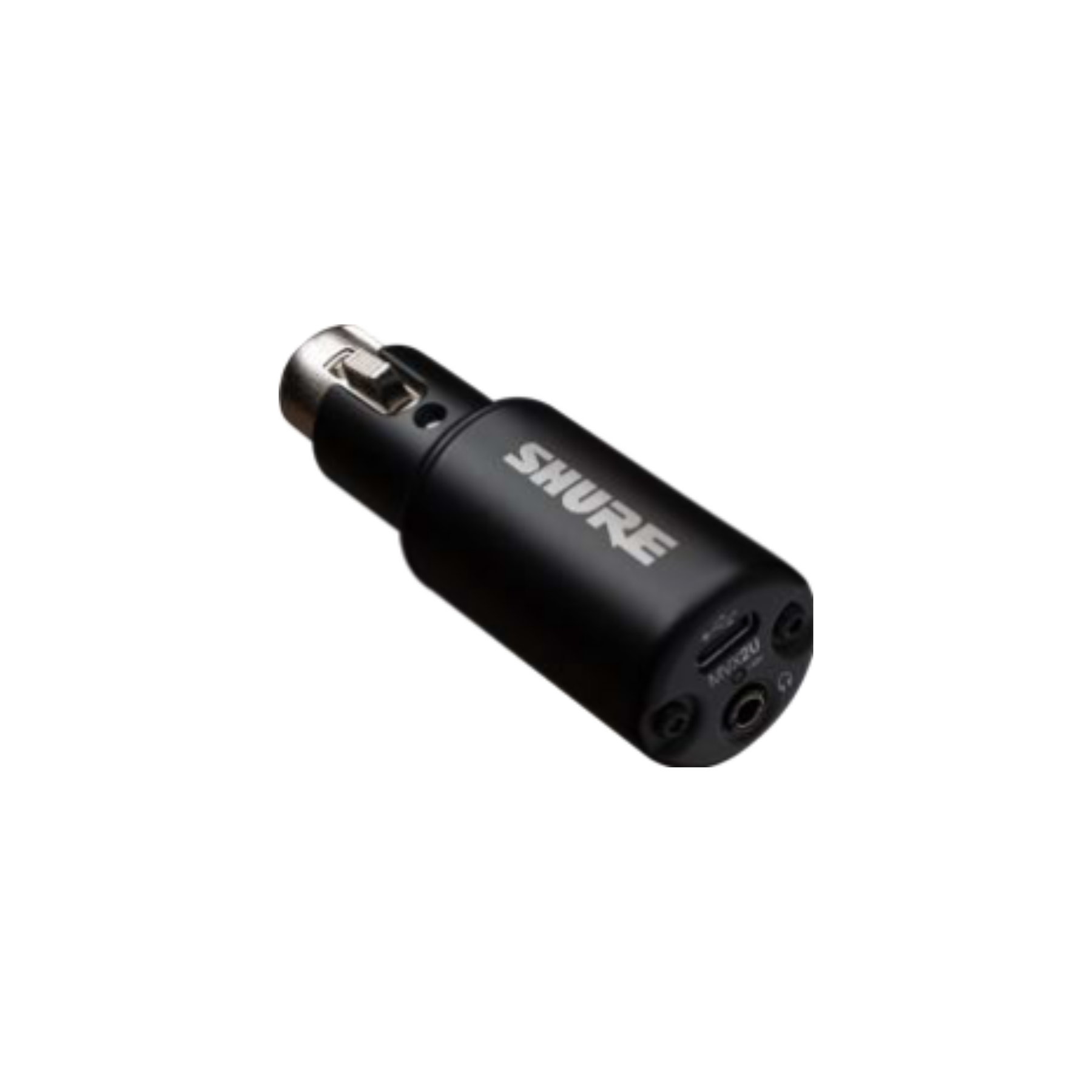

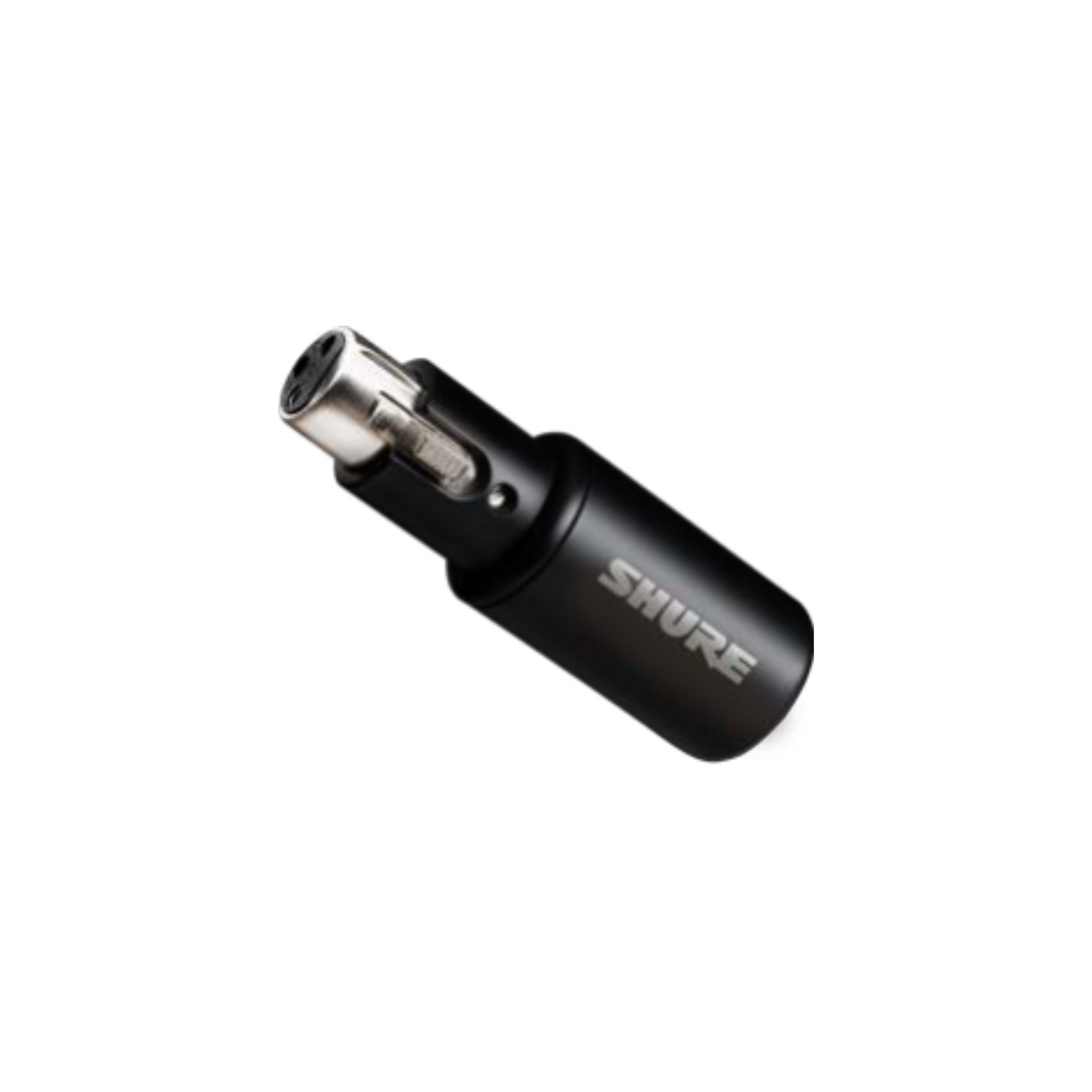

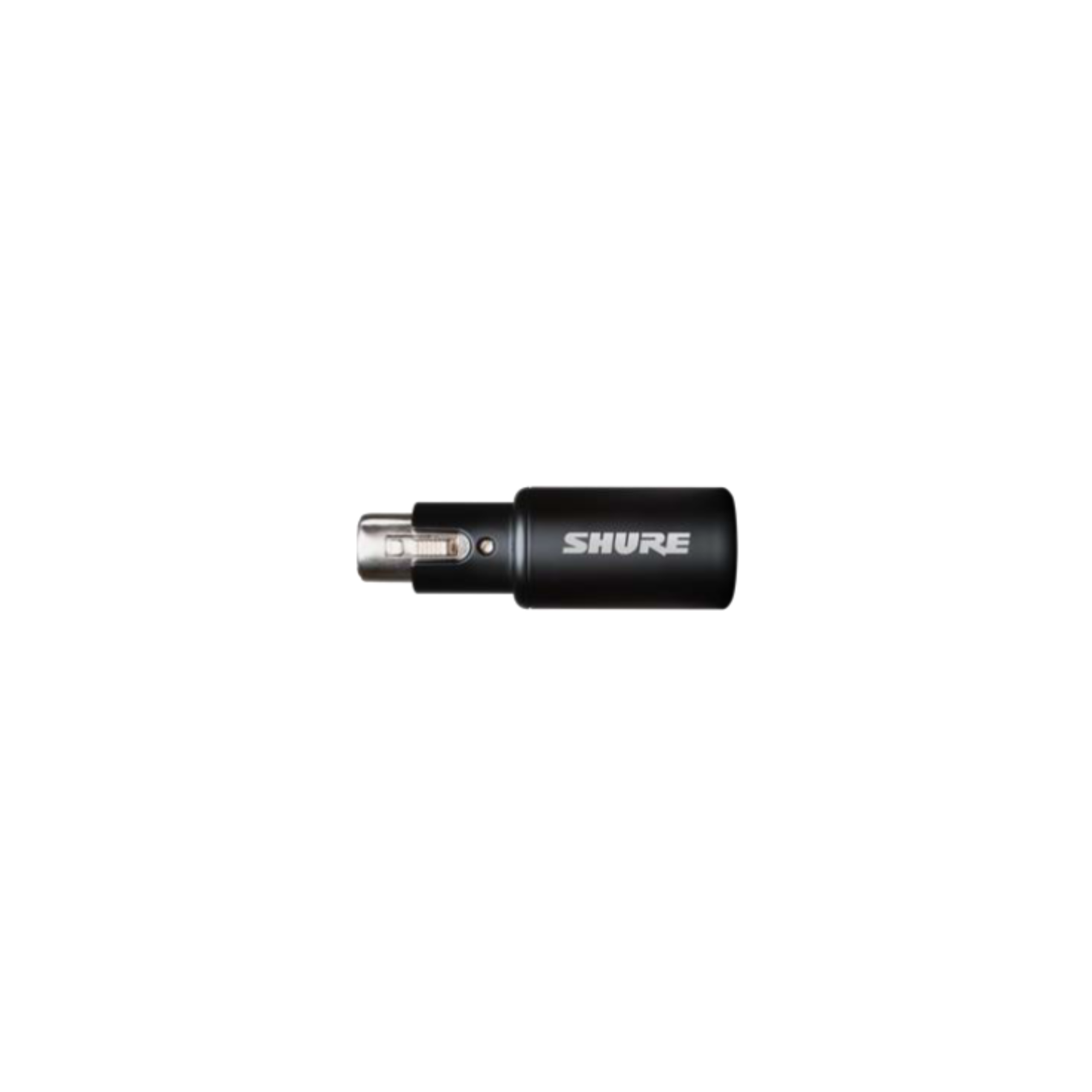

The MVX2U Gen 2 is a high-performance, single-channel XLR-to-USB-C interface designed to streamline recording and streaming setups on desktop, tablet, or smartphone. It combines advanced digital audio processing with a compact design, delivering clean, consistent audio with any connected XLR microphone.

Powered via USB-C to minimize cable clutter, the MVX2U Gen 2’s pocket-sized form factor supports direct plug-on connection to XLR microphones or inline use with an XLR cable. It provides up to +60 dB of gain and 48V phantom power for dynamic and condenser microphones, and includes a 3.5 mm headphone jack for zero-latency monitoring.

The MVX2U Gen 2 integrates MOTIV voice isolation technologies — including Auto Level Mode, Real-Time Denoiser, and Digital Popper Stopper™ — bringing cutting-edge audio processing features to any XLR microphone. This ensures clean, consistent capture even in less-than-ideal acoustic environments.

Users can manage settings on desktop, smartphone, or tablet via USB-C using the MOTIV Mix, MOTIV Audio, and MOTIV Video apps. You can activate audio processing and customize tone, EQ, compression, and limiter settings to suit professional or enthusiast needs.

FEATURES

• Onboard Shure Digital Audio Processing — including Auto Level Mode, Real-Time Denoiser, and Digital Popper Stopper™ — runs with zero latency on any XLR microphone. Essential DSP features (EQ, compression, limiter, and high-pass filter) are configurable via Shure MOTIV apps. The MVX2U Gen 2 stores your latest processing settings so your sound stays consistent across devices.

• Auto Level Mode automatically adjusts gain in real time with intelligent onboard DSP for consistent output. Select your preferred tone from Dark, Natural, or Bright.

• Real-Time Denoiser removes unwanted background noise from speech. Turn off for singing or acoustic instruments.

• Digital Popper Stopper™ mitigates plosives. Optimized for speech and best turned off for instruments.

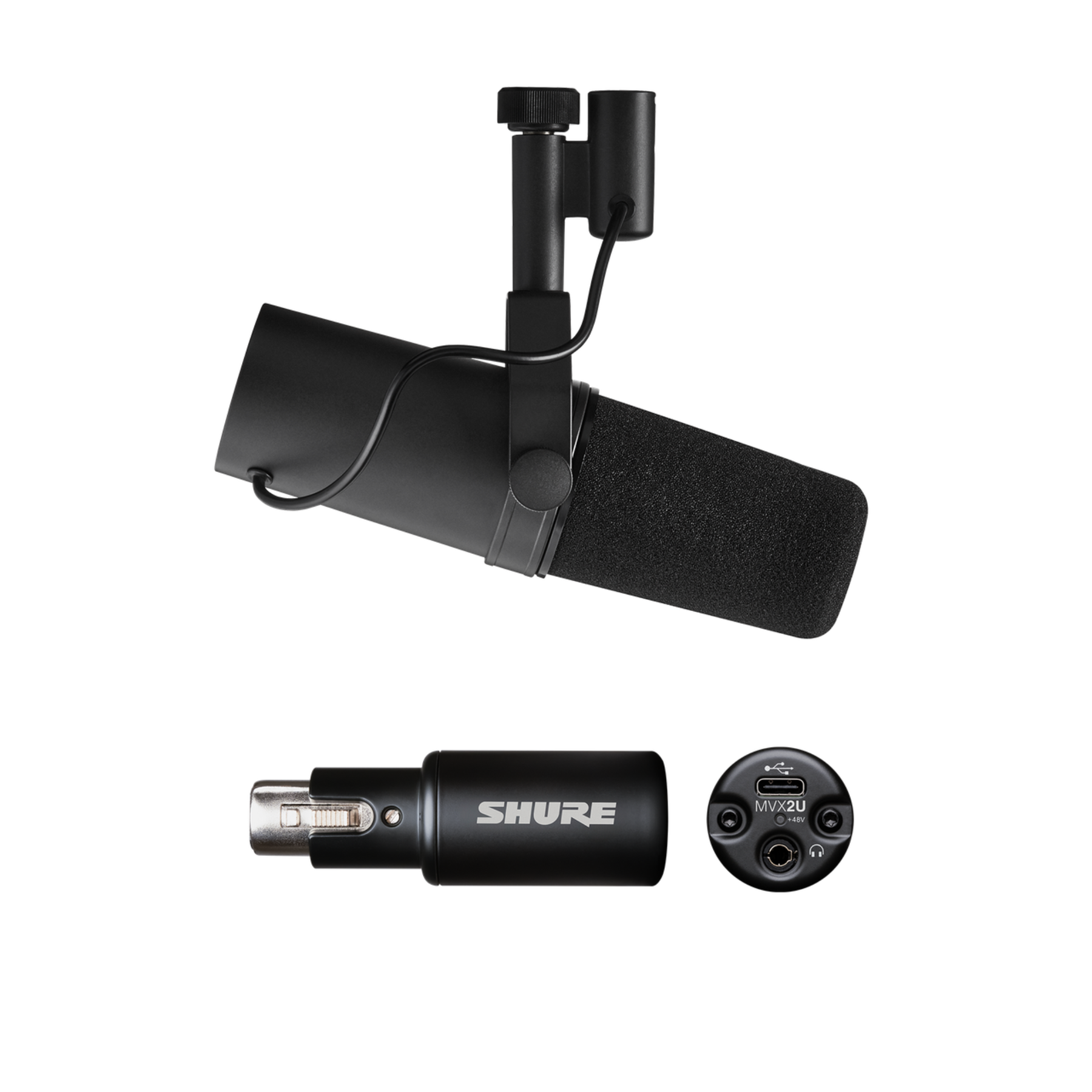

• Plug-and-play recording or streaming with an XLR microphone. Instantly convert any dynamic or condenser XLR mic for professional podcasting or livestreaming. Provides up to +60 dB of clean gain and 48V phantom power — ample gain for low-sensitivity mics like the SM7B and phantom power for condenser microphones.

• Mobile- and tablet-friendly design allows you to move your work in progress across devices and create on tablet or phone.

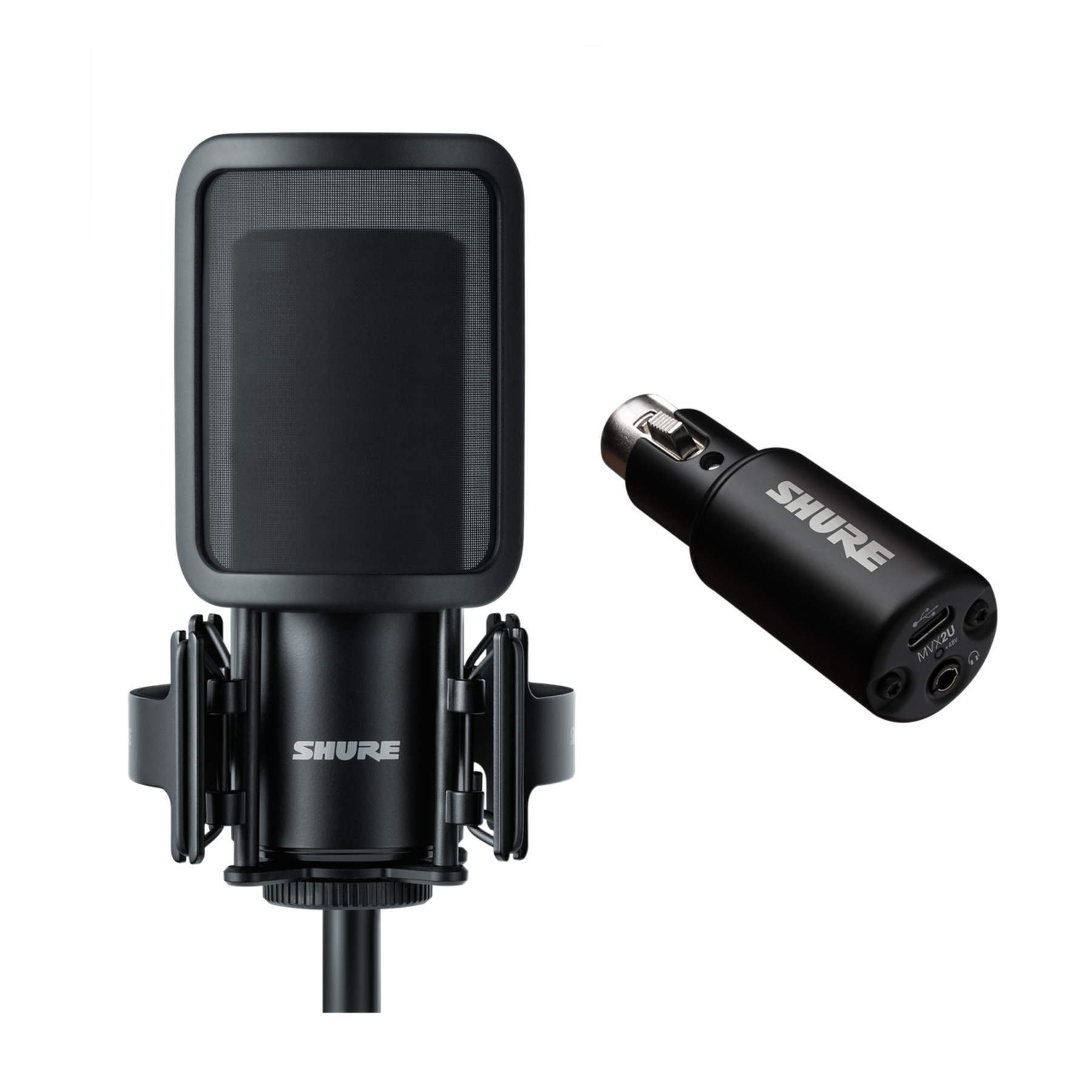

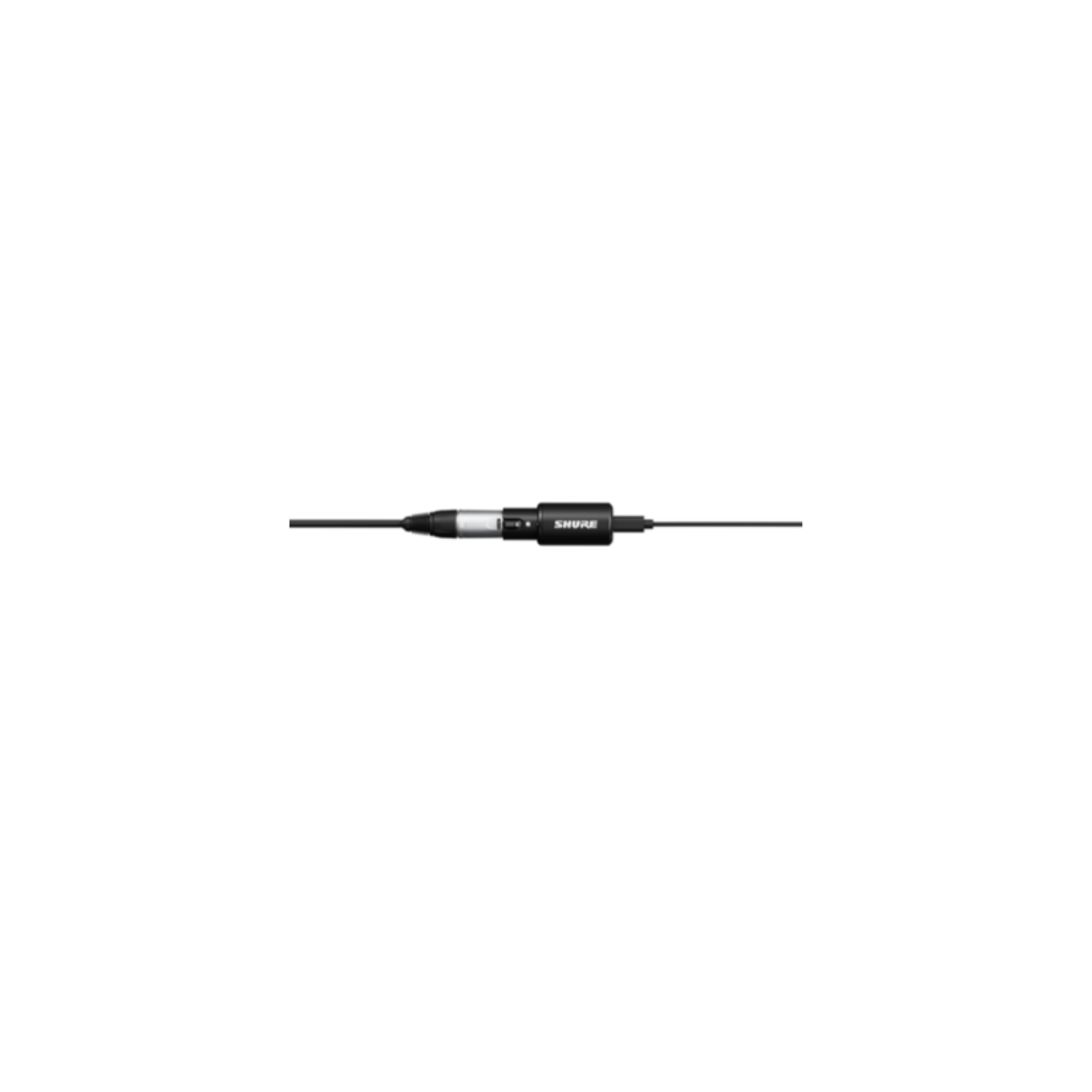

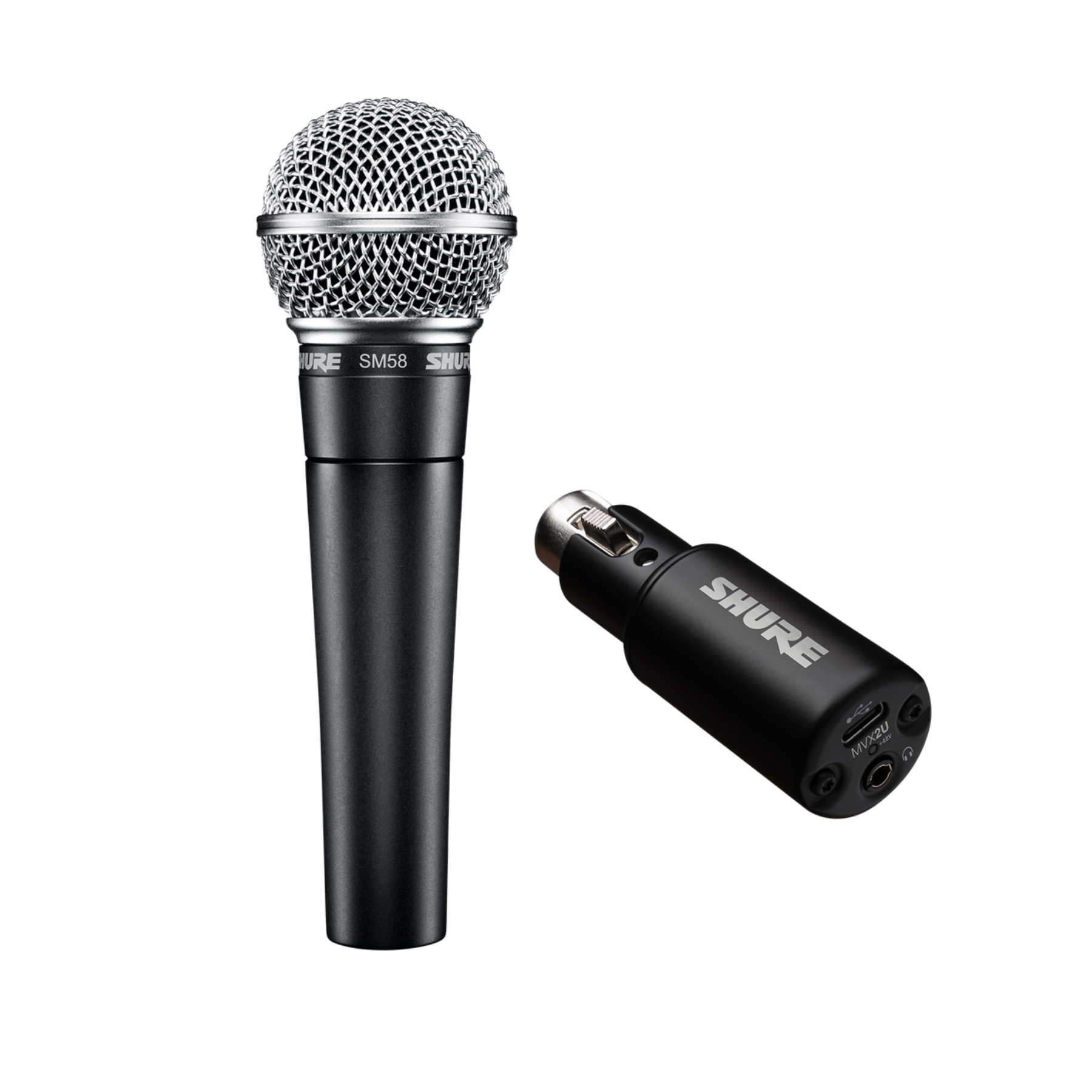

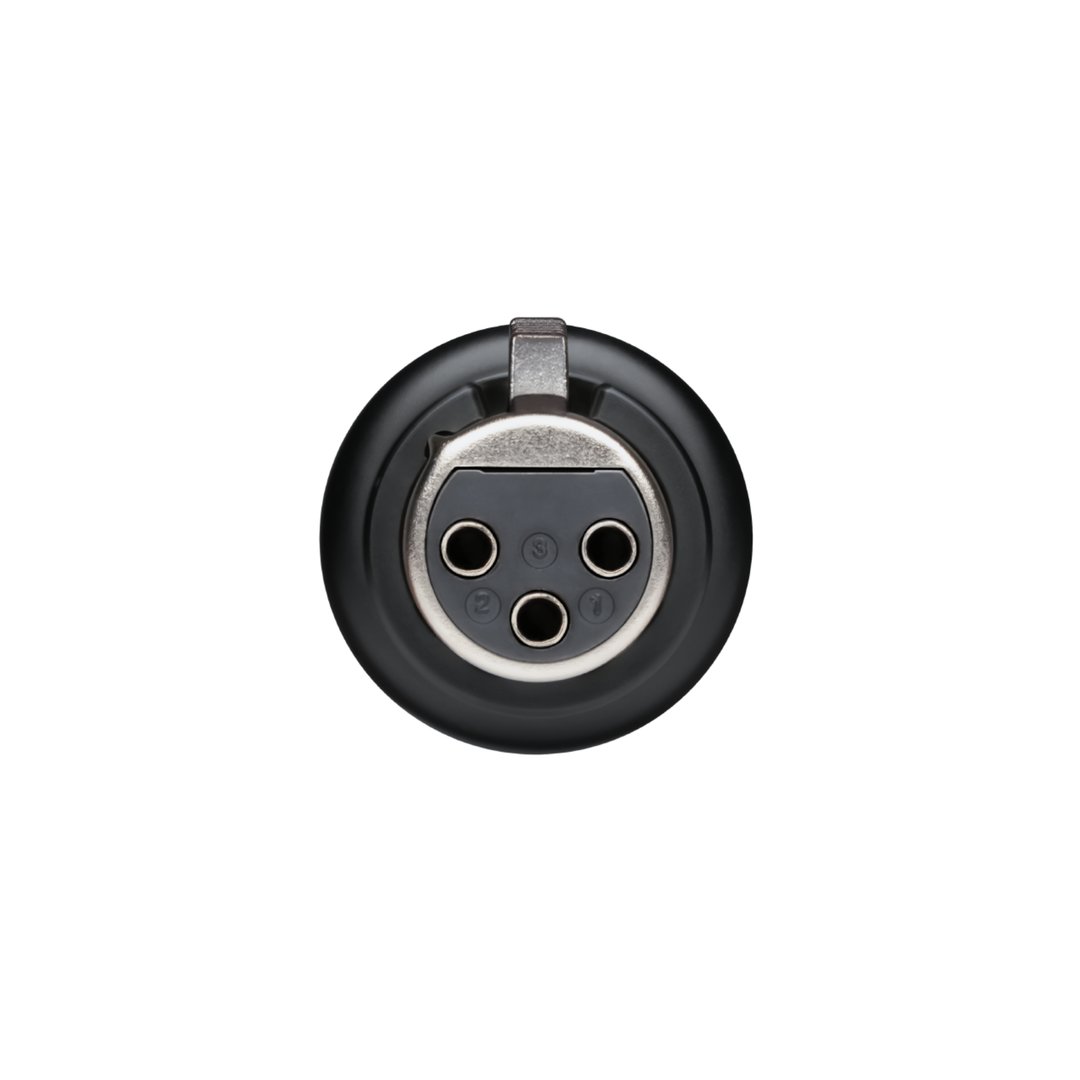

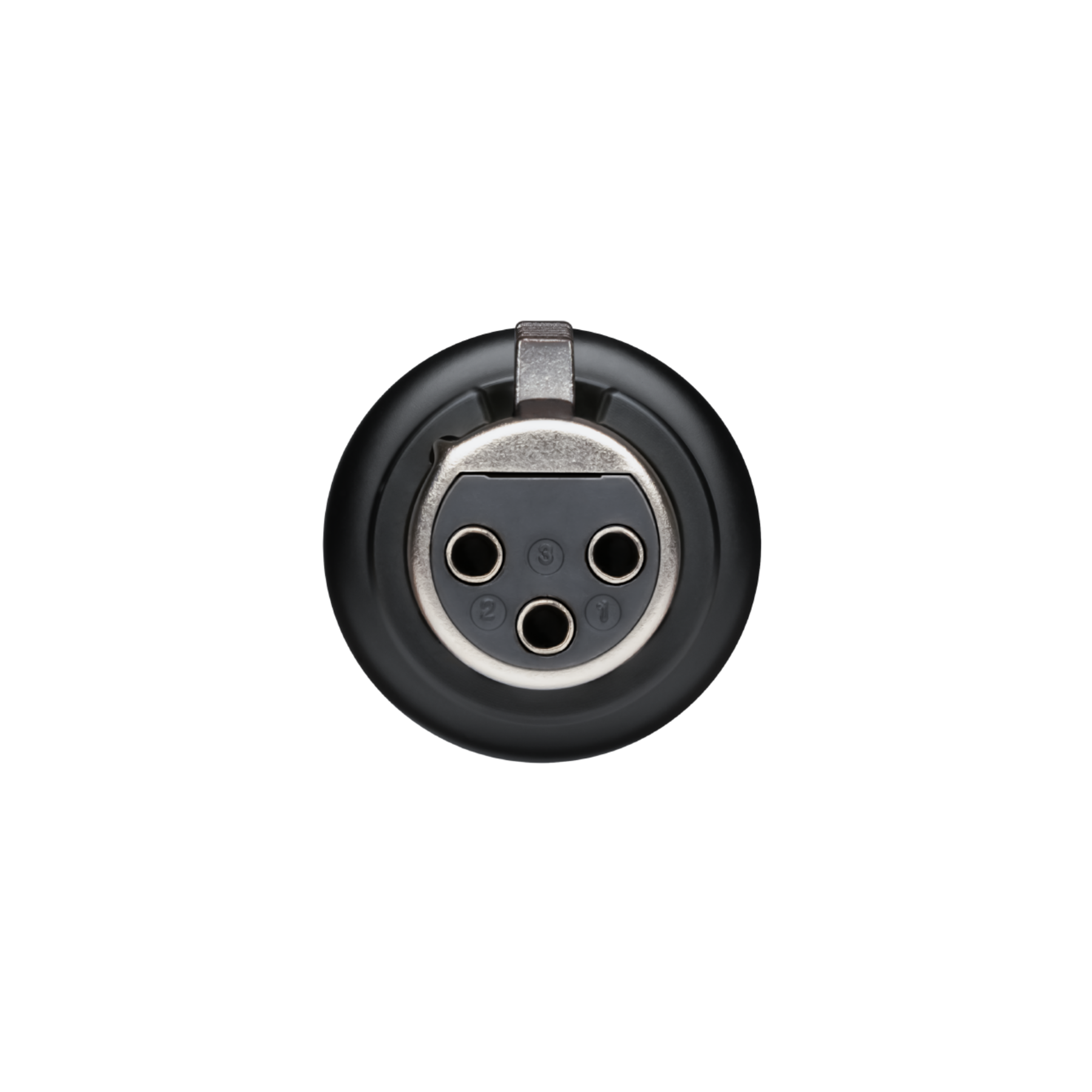

• Plug-on or inline connection options enable flexible setups with minimal cable clutter when connecting an XLR mic to supported devices.

• Pocket-friendly interface: compact and only 100 g. Requires just a USB-C cable to operate — no external batteries or AC adapters needed.

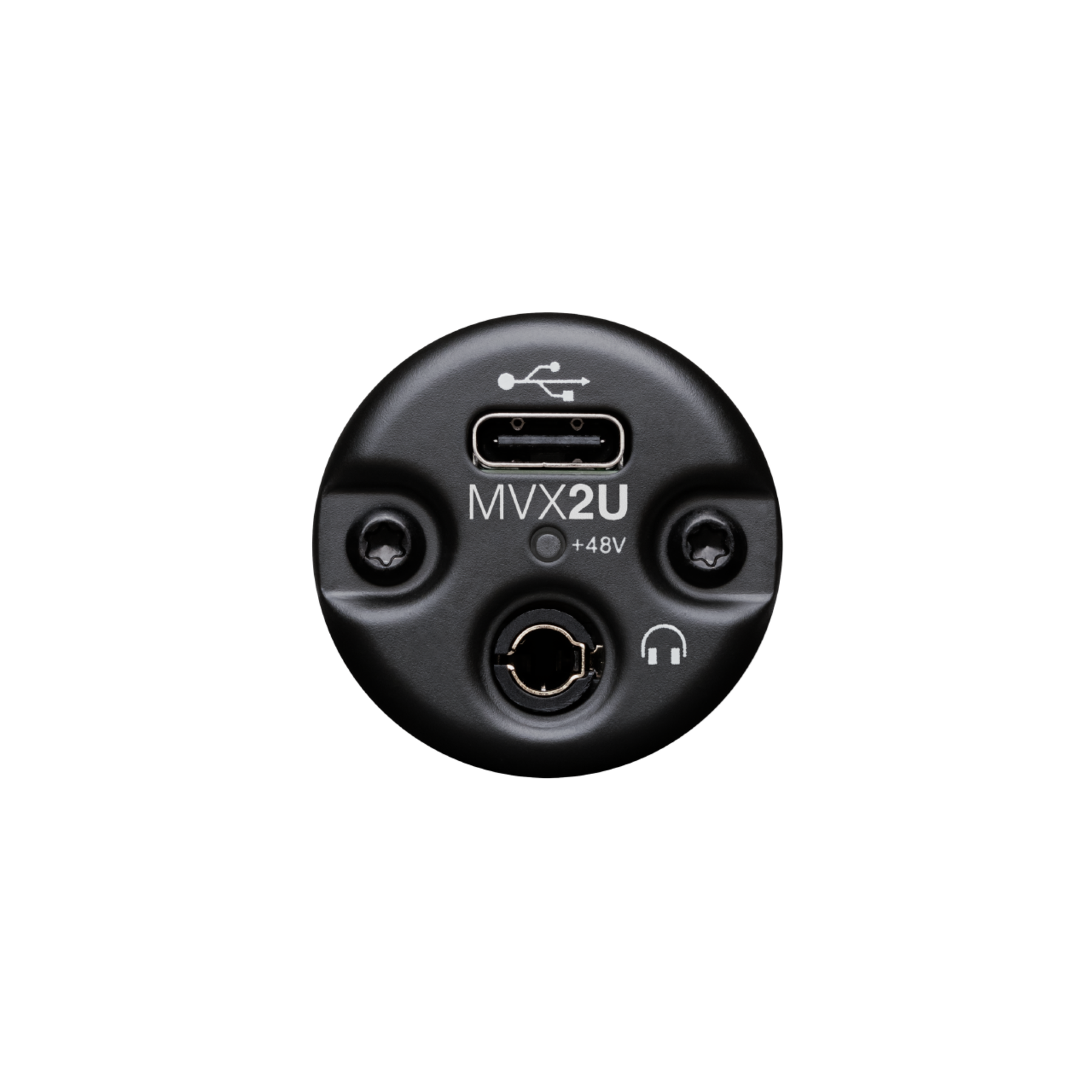

• Built-in 3.5 mm headphone jack with zero-latency monitoring lets you hear exactly what you’re capturing. Set your preferred blend of monitoring and playback with Monitor Mix via MOTIV apps.

• Compatible with Mac and Windows desktops, and iOS and Android smartphones/tablets. MFi certified for iPad and iPhone. Includes a 1 m USB-C to USB-C cable for direct connection.

• Tri-color LED indicator displays device status at a glance.

• In-app firmware updates deliver new features and improvements to keep your device up to date.

• Compatible with both Mac and Windows. Connect your XLR microphone directly to your computer with the included 1 m USB-C to USB-C cable.

SPECIFICATIONS

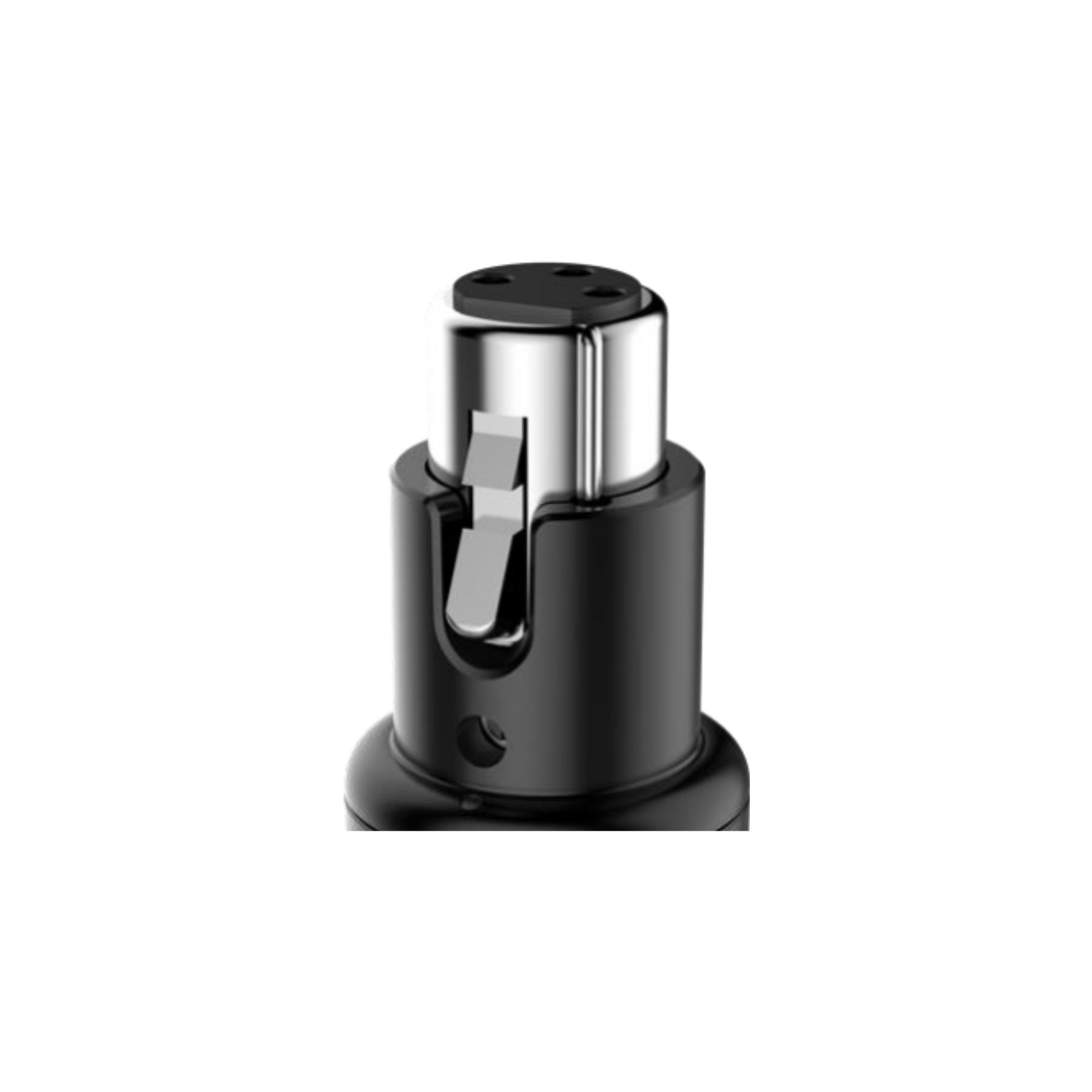

Input: XLR

Input Impedance: 5.8 kΩ

Bit Depth: 16-bit / 24-bit

Sampling Rate: 48 kHz

Frequency Response: 20 Hz to 20,000 Hz

Adjustable Gain Range: 0 to +60 dB

Power Requirements: Powered through USB-C

Phantom Power: +48 VDC

Digital Noise Floor (20 Hz to 20 kHz, A-weighted): –117 dBFS

LED Indicator (Tri-Color):
Green = Ready
Amber = Error
Red = Mute

Housing: All-metal construction

Net Weight: 100 g (3.5 oz)

Dimensions (H × W × D): 44 × 140 × 158 mm

Headphone Output: 3.5 mm (1/8"), 20 mW @ 32 Ω

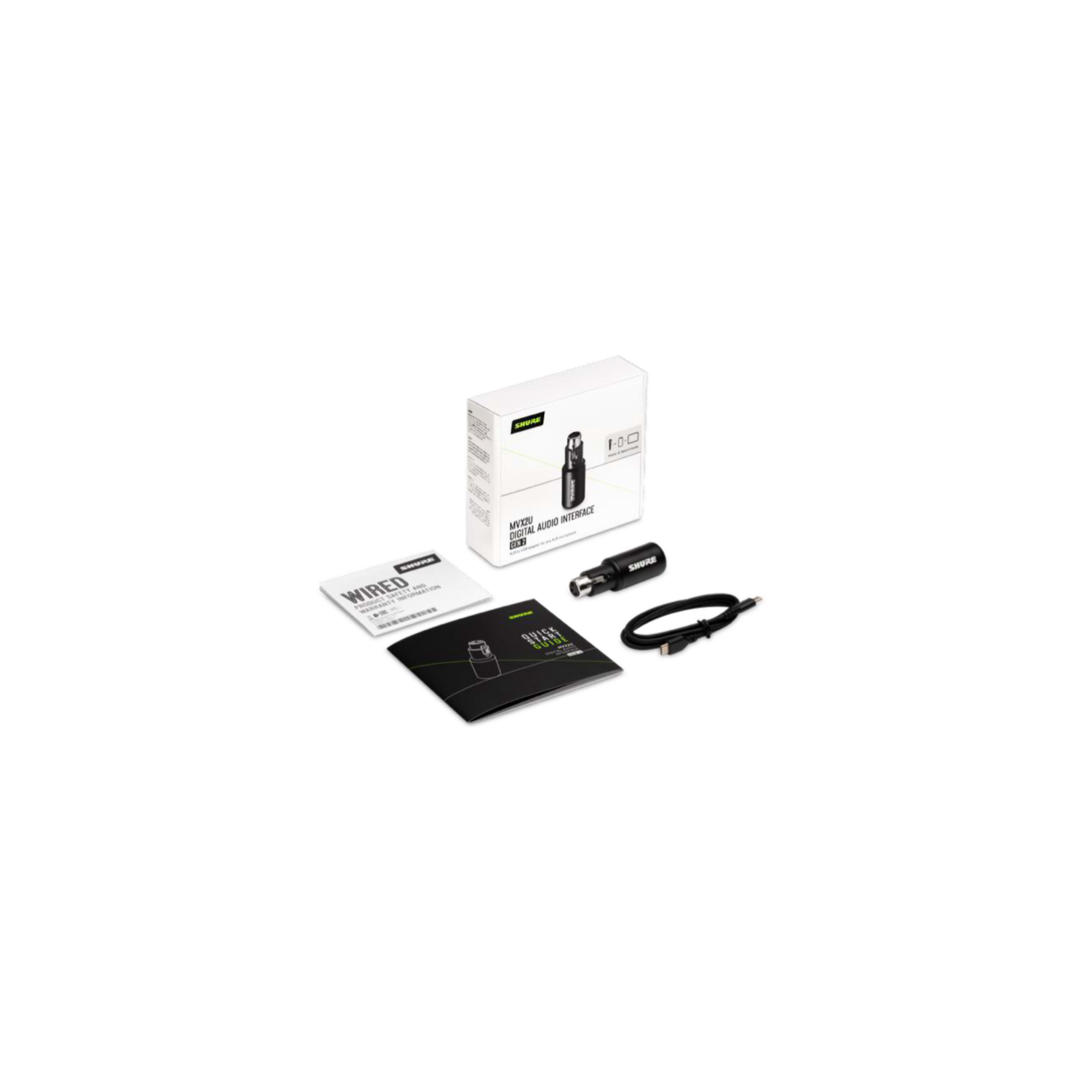

Included Cable: 1 m USB-C to USB-C cable

SYSTEM REQUIREMENTS

USB: USB 2.0

RAM: 64 MB minimum

Operating Systems:
macOS 14 or later (64-bit), Minimum 2 GB RAM, Minimum 500 MB available hard disk space
Windows 10 or later (64-bit), Minimum 2 GB RAM, Minimum 500 MB available hard disk space
iOS 17 or later
Android 14 or later

AVAILABLE SKUs

MVX2UG2: Single-Channel Digital Audio Interface, XLR to USB

MVX2UG2-CHN: Single-Channel Digital Audio Interface, XLR to USB

ACCESSORIES AND REPLACEMENT PARTS

95D52640: 1 m USB-C to USB-C cable
