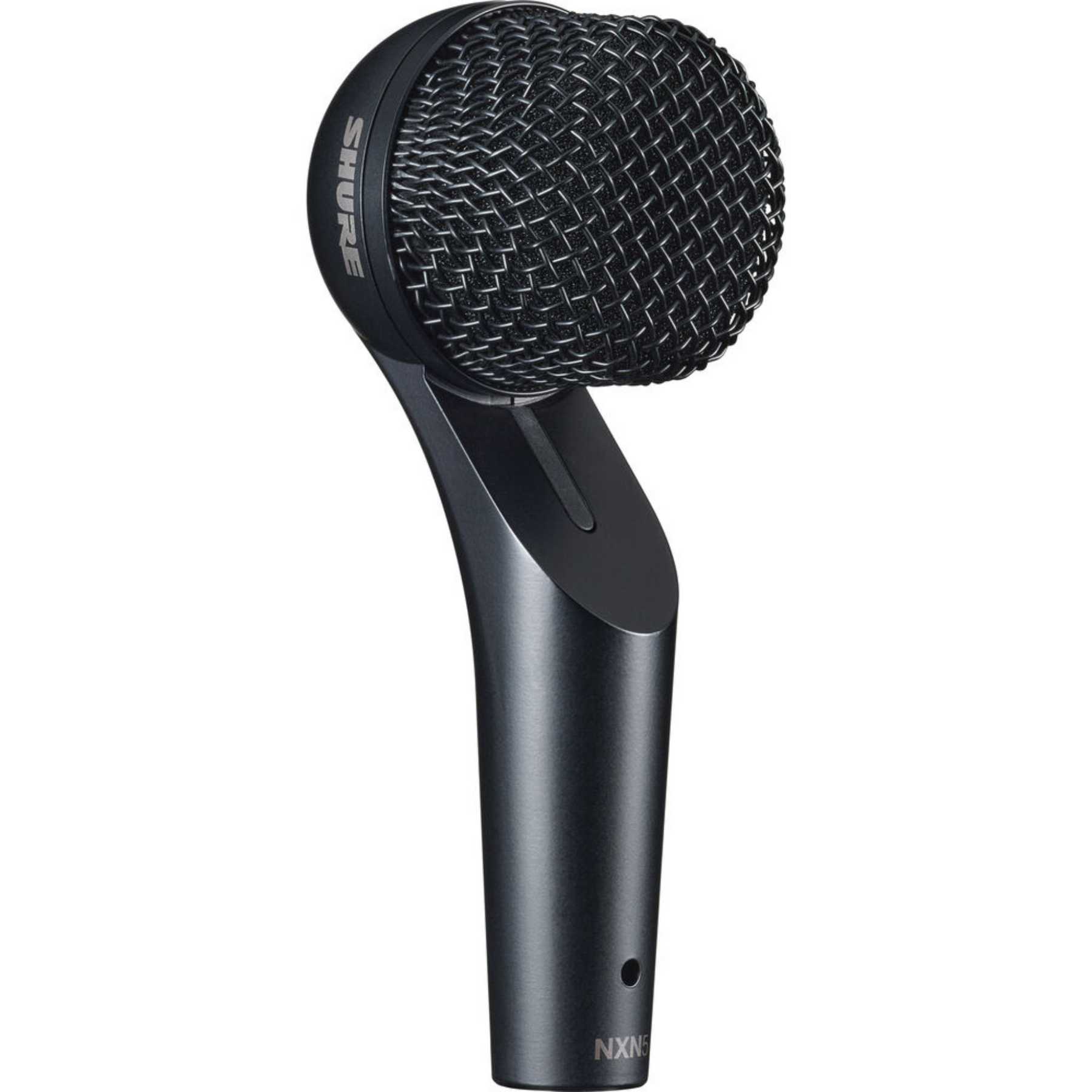

Overview of Shure NXN5 Nexadyne 5 Supercardioid Dynamic Guitar Amp Microphone
The Nexadyne™ 5 Dynamic Guitar Amp Microphone is a supercardioid dynamic side-address microphone for professional touring and performance. Nexadyne Instrument Microphones feature patented Shure Revonic™ dual-engine transducer technology, with two precisely calibrated transducers working together to achieve optimal performance. The result is a high-performing microphone line that combines state-of-the-art acoustic signal processing and exceptional supercardioid polar pattern linearity. Built with the industry standard of consistency, durability, and performance that only Shure can provide, the Nexadyne 5 makes sure the full range of guitar tones is ready for the mix - every time.
FEATURES
• Acoustic signal processing of the dual engine design enables exceptional signal clarity, reducing the need for typical corrective EQ
• Industry-leading Shure reliability standards provides innovation with confidence
• Dent-resistant hardened grille
• XLR connection with black finish
Specifications
Type: Dynamic (moving coil) with secondary vibration-cancelling dynamic transducer
Polar Pattern: Supercardioid
Frequency Response: 50 Hz16 kHz
Output Impedance @1 kHz: 335 Ω
Sensitivity (Open circuit voltage @1 kHz, typical): 61.0 dBV/Pa (0.9 mV/Pa), 1 Pa = 94 dB SPL
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Weight: 295 g (0.65 lbs.)
Connector: Three-pin professional audio (XLR), male
Housing: Die-cast aluminum with black paint
Music City Canada is an authorized reseller for Shure products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
