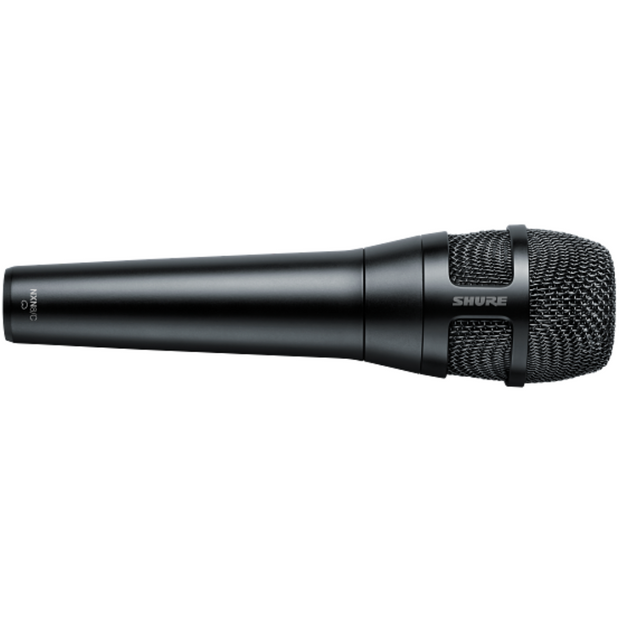

Overview of Shure NEXADYNE 8/C Cardioid Revonic Handheld Vocal Microphone (Black)
NEXADYNE™ 8/C CARDIOID HANDHELD VOCAL MICROPHONE WITH REVONIC™ TECHNOLOGY
OVERVIEW

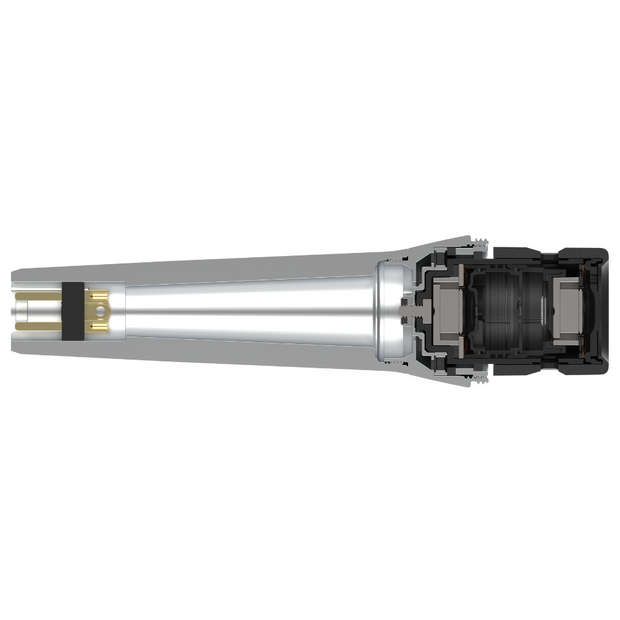

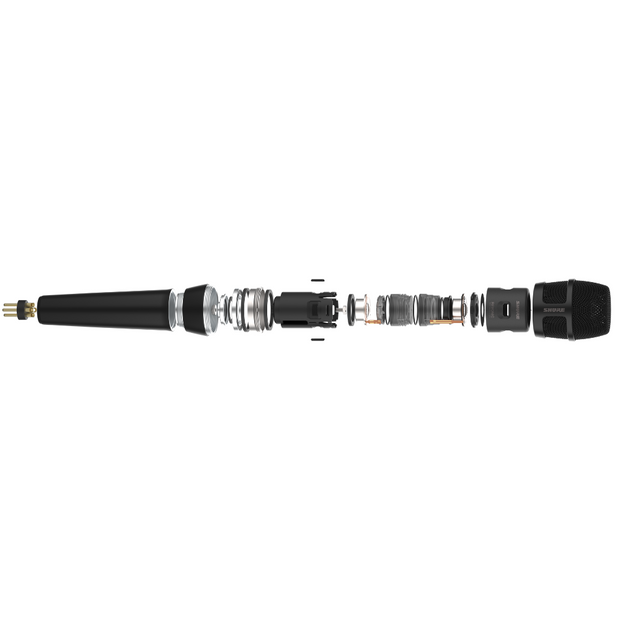

The Nexadyne™ 8/C Dynamic Vocal Microphone is a cardioid dynamic microphone for professional vocal performance. Nexadyne 8 microphones feature patented Shure Revonic ™ dual-engine technology, with two precisely calibrated transducers working together to achieve optimal performance. The result is a high-performing microphone line that combines state-of-the-art acoustic signal processing and exceptional cardioid polar pattern linearity.
The clean and natural cardioid pattern of the Nexadyne 8/C allows vocals to easily reach every corner of the venue. Built with the industry-standard of consistency, durability, and performance that only Shure can provide.
FEATURES
•Acoustic signal processing of the dual engine design enables exceptional signal clarity, reducing the need for typical corrective EQ
•Industry-leading Shure reliability standards provide innovation with confidence
•Dent-resistant hardened grille

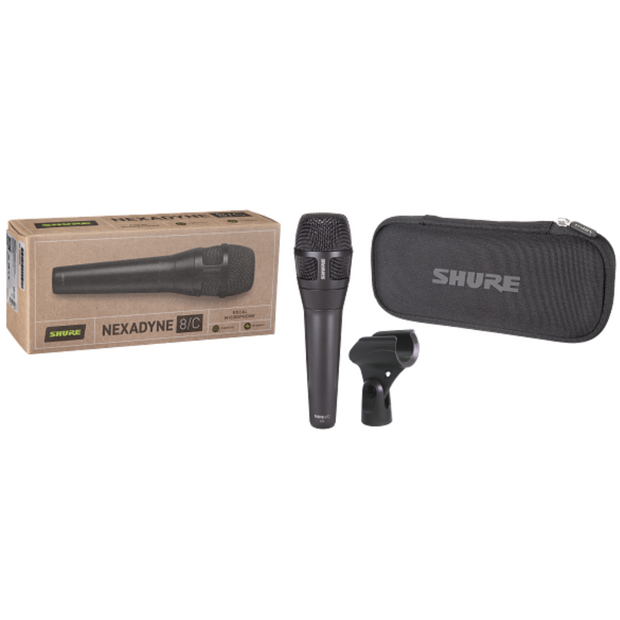

•Ships with protective zipper case, mic clip, and brass stand adapter
•XLR connection with black finish
•Wireless head versions available in black or nickel finish, compatible with all Shure handheld transmitters with interchangeable microphone capsules
SPECIFICATIONS
Type Dynamic (moving coil)

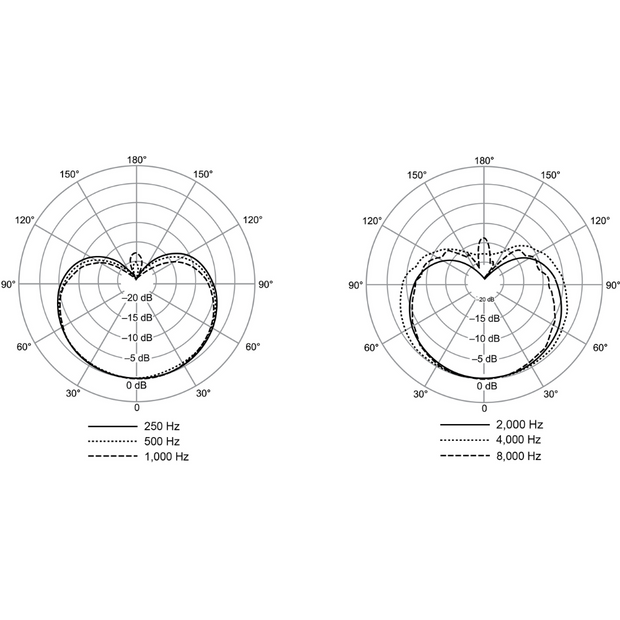

Polar Pattern Cardioid

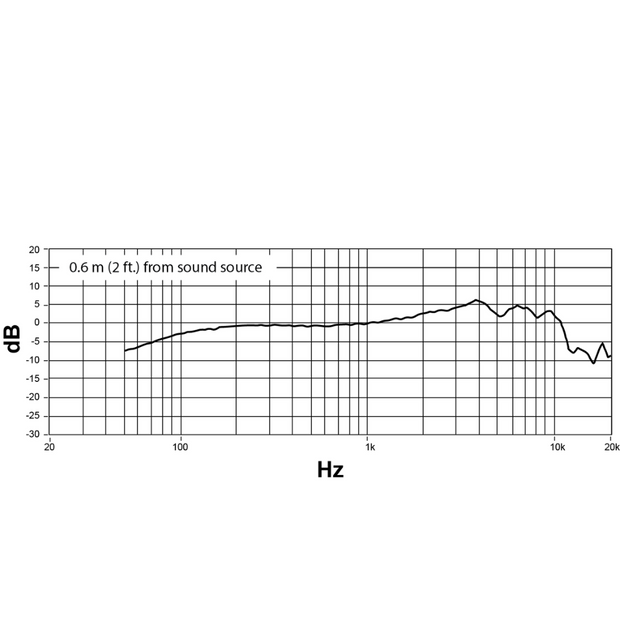

Frequency Response 50 to 20,000 Hz
Output Impedance 300 Ω
Sensitivity
Open circuit voltage
@1 kHz, typical
–54.0 dBV/Pa (2.00 mV)
1 Pa = 94 dB SPL
Polarity
Positive pressure on diaphragm
produces positive voltage on pin 2
with respect to pin 3
Weight 9.10 oz (258 g)
Connector Three-pin professional
audio (XLR), male
Housing Die-cast aluminum with black paint
AVAILABLE MODELS
NXN8/C Nexadyne XLR Microphone, Cardioid
RPW200
Nexadyne 8/C Cardioid Dynamic
Wireless Capsule for Shure
Handheld Transmitters (Black)
RPW204
Nexadyne 8/C Cardioid Dynamic
Wireless Capsule for Shure
Handheld Transmitters (Nickel)
FURNISHED ACCESSORIES
A25E Mic Clip/Swivel Adapter
ANXNC Zipper case for Nexadyne 8 Vocal
Microphones (XLR)
31B1856 Brass adapter
Music City Canada is an authorized reseller for Shure products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
