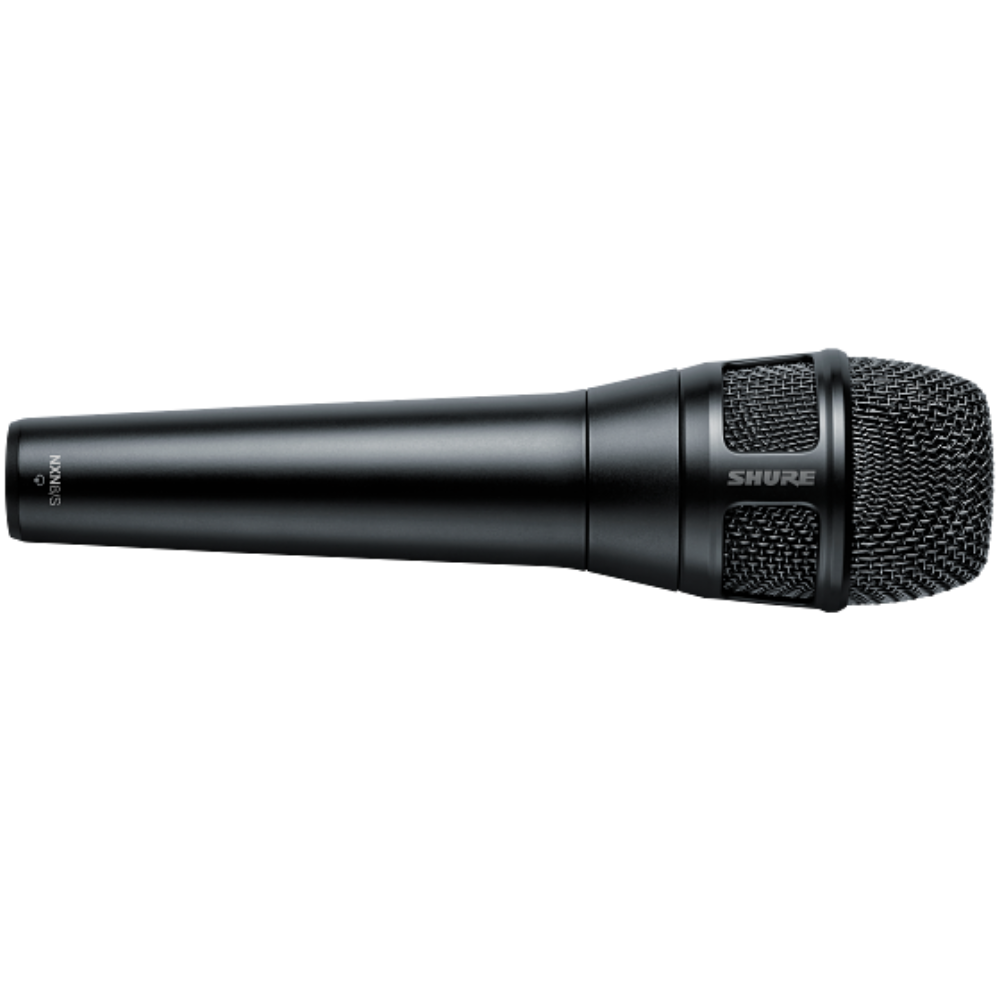

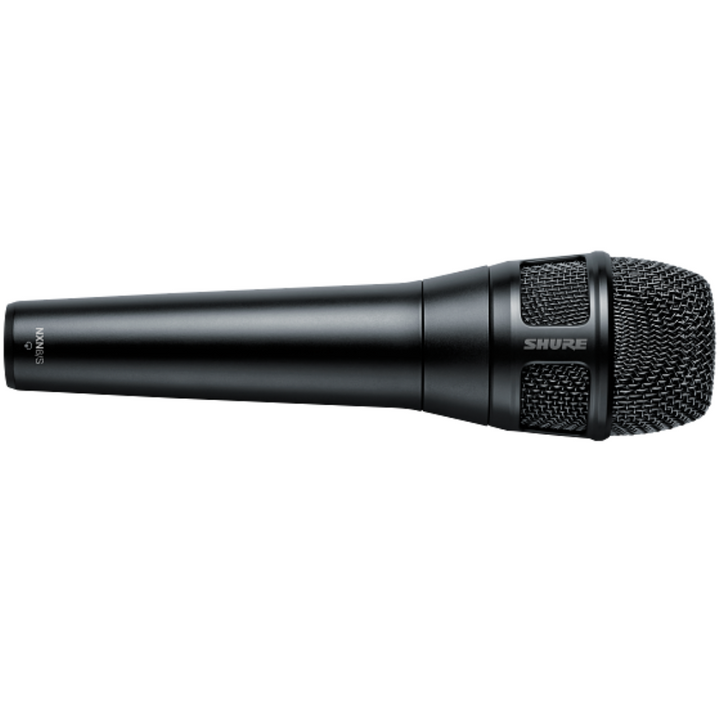

Shure NEXADYNE 8/S Supercardioid Revonic Handheld Vocal Microphone (Black)

Overview of Shure NEXADYNE 8/S Supercardioid Revonic Handheld Vocal Microphone (Black)

NEXADYNE™ 8/S SUPERCARDIOID HANDHELD VOCAL MICROPHONE WITH REVONIC™ TECHNOLOGY

OVERVIEW

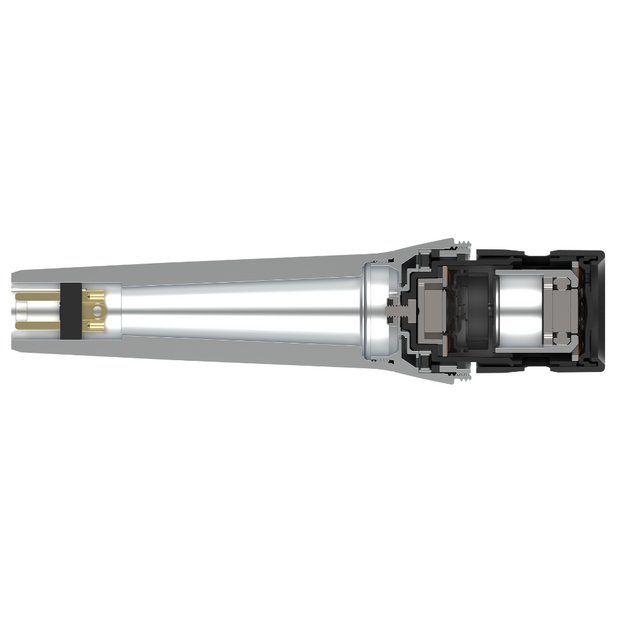

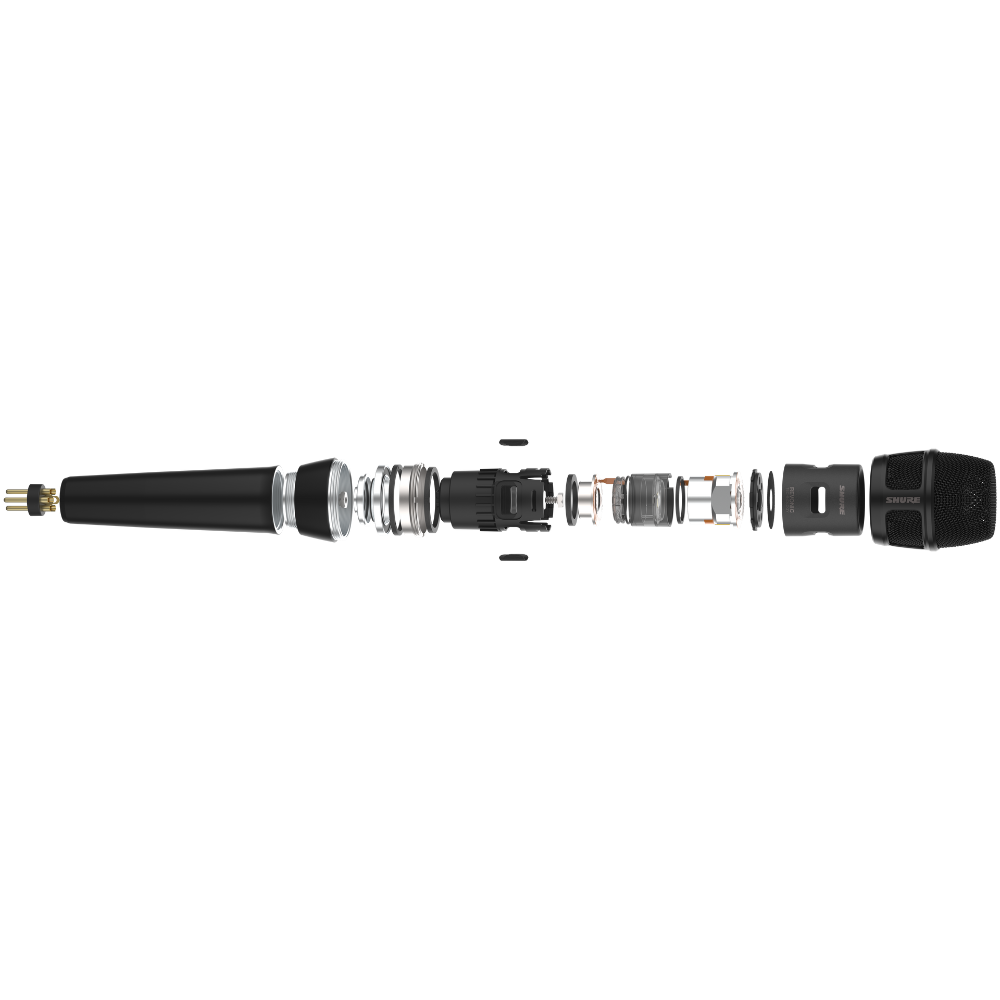

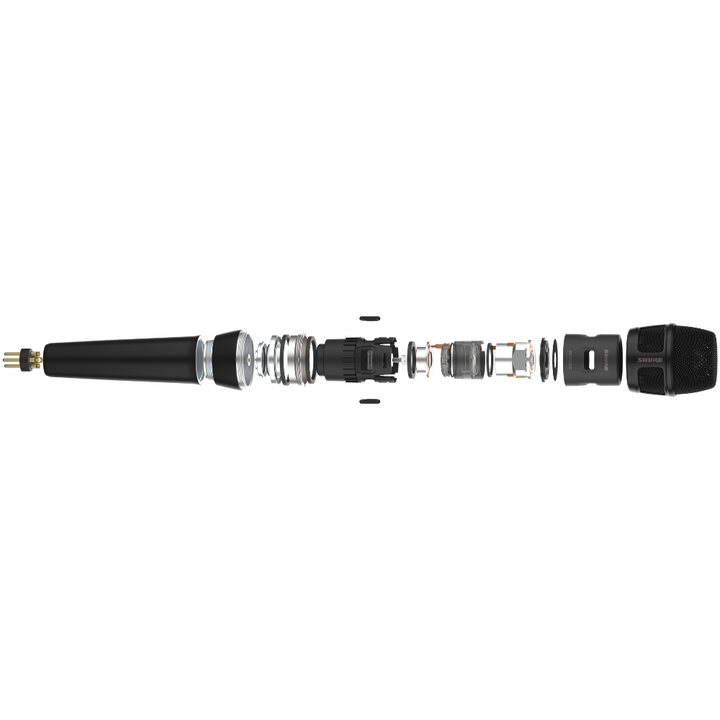

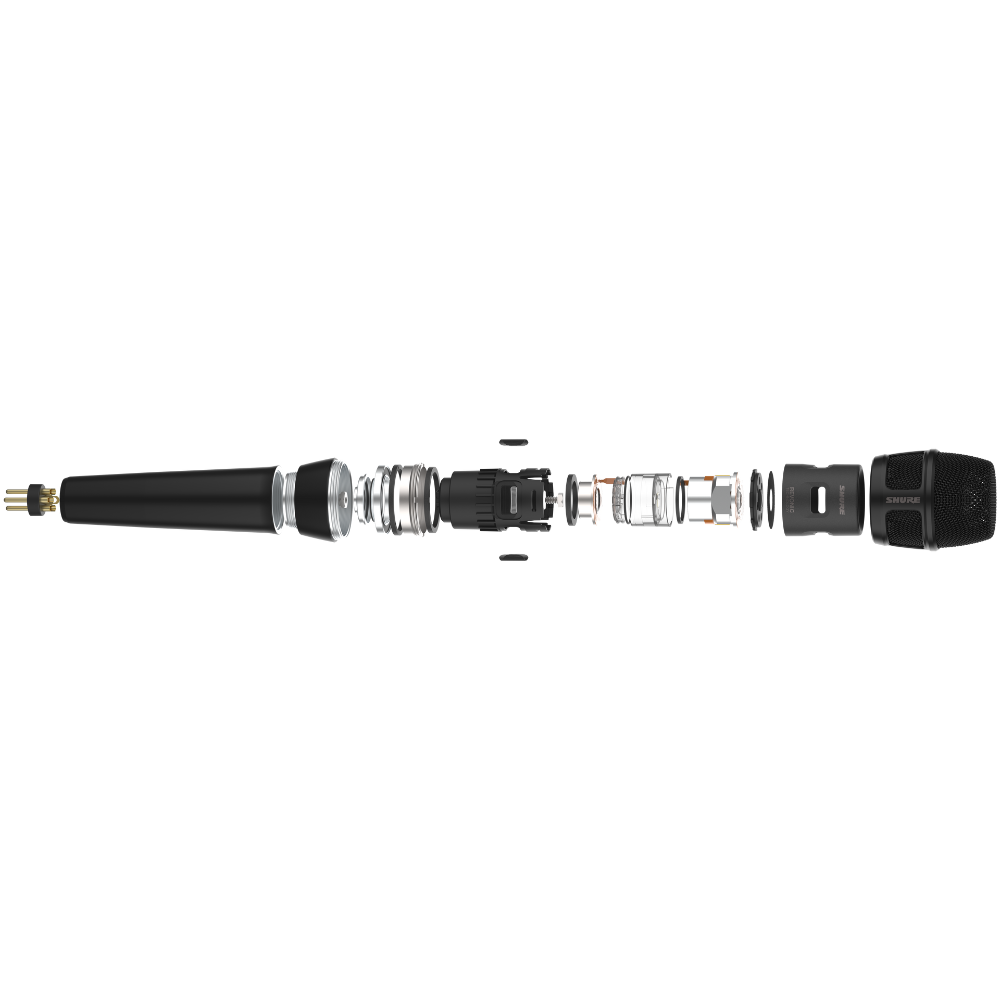

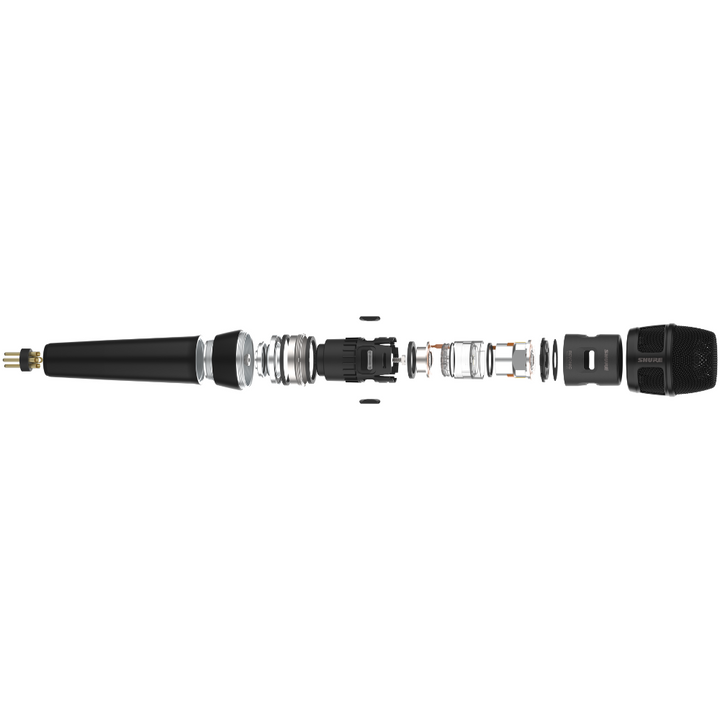

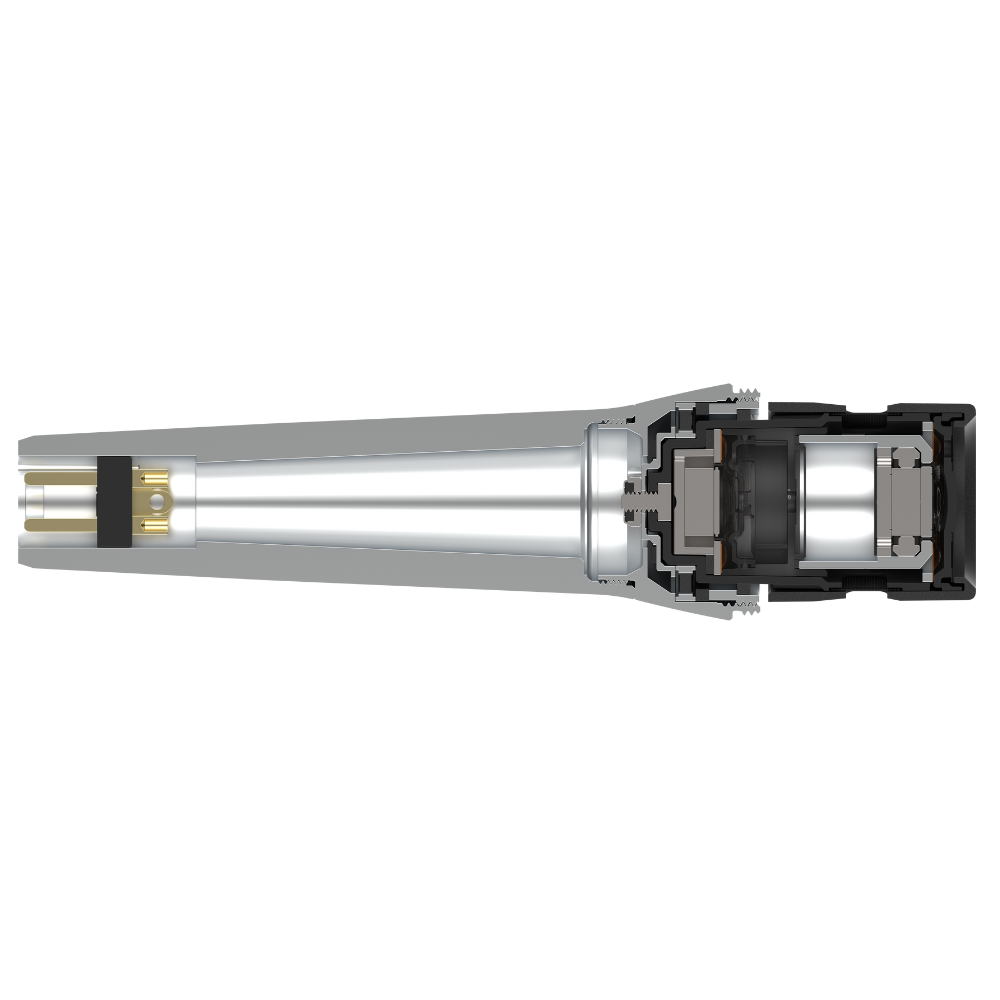

The Nexadyne™ 8/S Dynamic Vocal Microphone is a supercardioid dynamic microphone for professional vocal performance. Nexadyne 8 microphones feature patented Shure Revonic™ dual-engine technology, with two precisely calibrated transducers working together to achieve optimal performance. The result is a high-performing microphone line that combines state-of-the-art acoustic signal processing and exceptional supercardioid polar pattern linearity. The focused and natural Nexadyne 8/S ensures that vocals cut through to the very last row. Built with the industry standard of consistency, durability, and performance that only Shure can provide.

FEATURES
• Acoustic signal processing of the dual engine design enables exceptional signal clarity, reducing the need for typical corrective EQ
• Industry-leading Shure reliability standards provides innovation with confidence
•Dent-resistant hardened grille

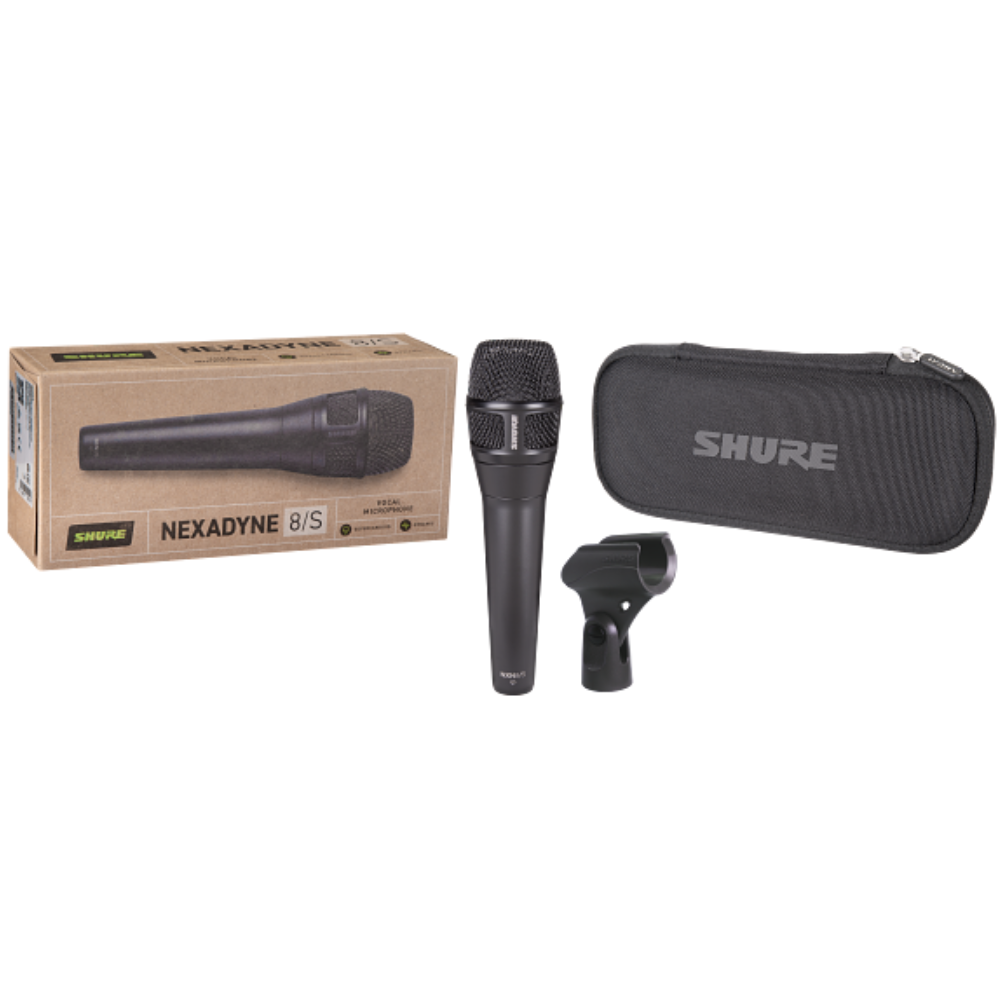

•Ships with protective zipper case, mic clip, and brass stand adapter
•XLR connection with black finish
•Wireless head versions available in black or nickel finish, compatible with all Shure handheld transmitters with interchangeable microphone capsules

SPECIFICATIONS
Type Dynamic (moving coil)

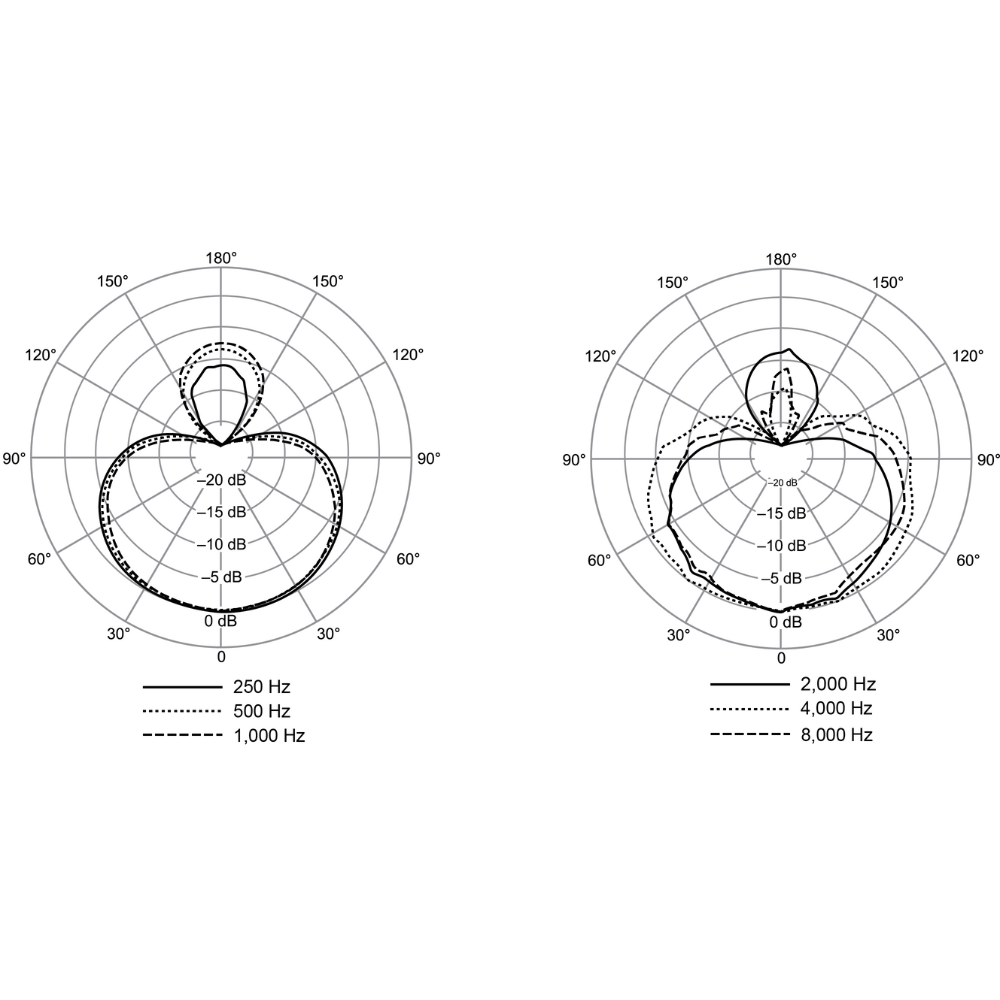

Polar Pattern Supercardioid

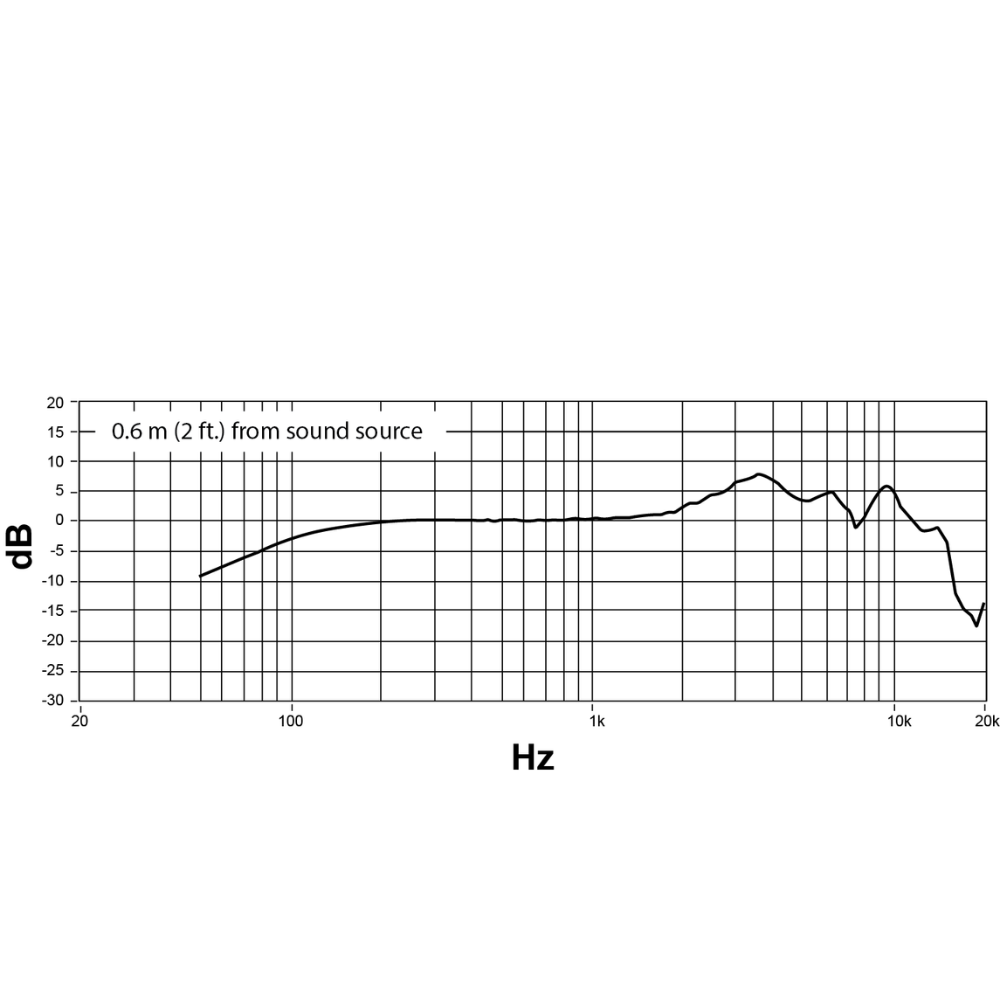

Frequency Response 50 to 20,000 Hz
Output Impedance 450 Ω
Sensitivity
Open circuit voltage
@1 kHz, typical
–51.0 dBV/Pa (2.81 mV)
1 Pa = 94 dB SPL
Polarity
Positive pressure on diaphragm
produces positive voltage on pin 2
with respect to pin 3
Weight 10.3 oz (294 g)
Connector Three-pin professional
audio (XLR), male
Housing Die-cast aluminum with black paint

AVAILABLE MODELS
NXN8/S Nexadyne XLR Microphone,
Supercardioid
RPW202
Nexadyne 8/S Supercardioid
Dynamic Wireless Capsule for Shure
Handheld Transmitters (Black)
RPW206
Nexadyne 8/S Supercardioid
Dynamic Wireless Capsule for Shure
Handheld Transmitters (Nickel)

FURNISHED ACCESSORIES
A25E Mic Clip/Swivel Adapter
ANXNC Zipper case for Nexadyne 8 Vocal
Microphones (XLR)
31B1856 Brass adapter
