Overview of Shure PASSIVE DIRECTIONAL ANTENNA 2.4& 5.8GHZ

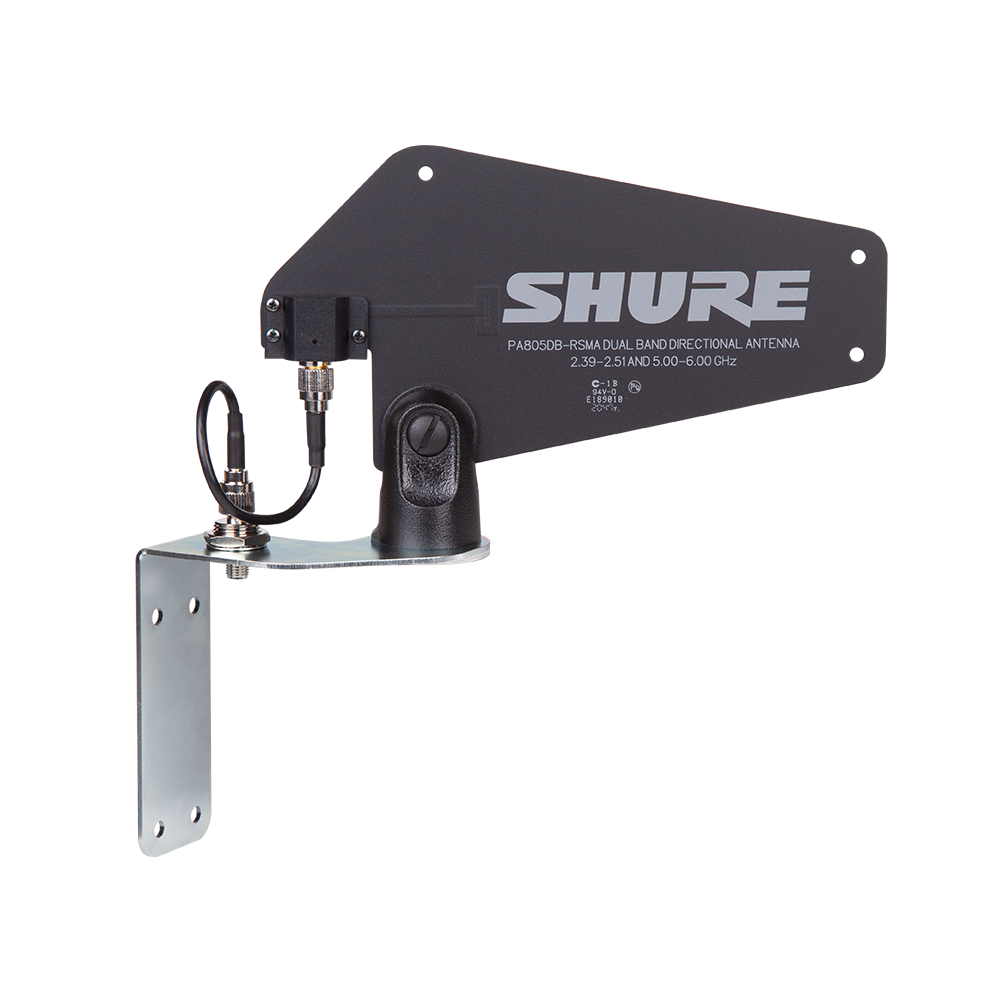

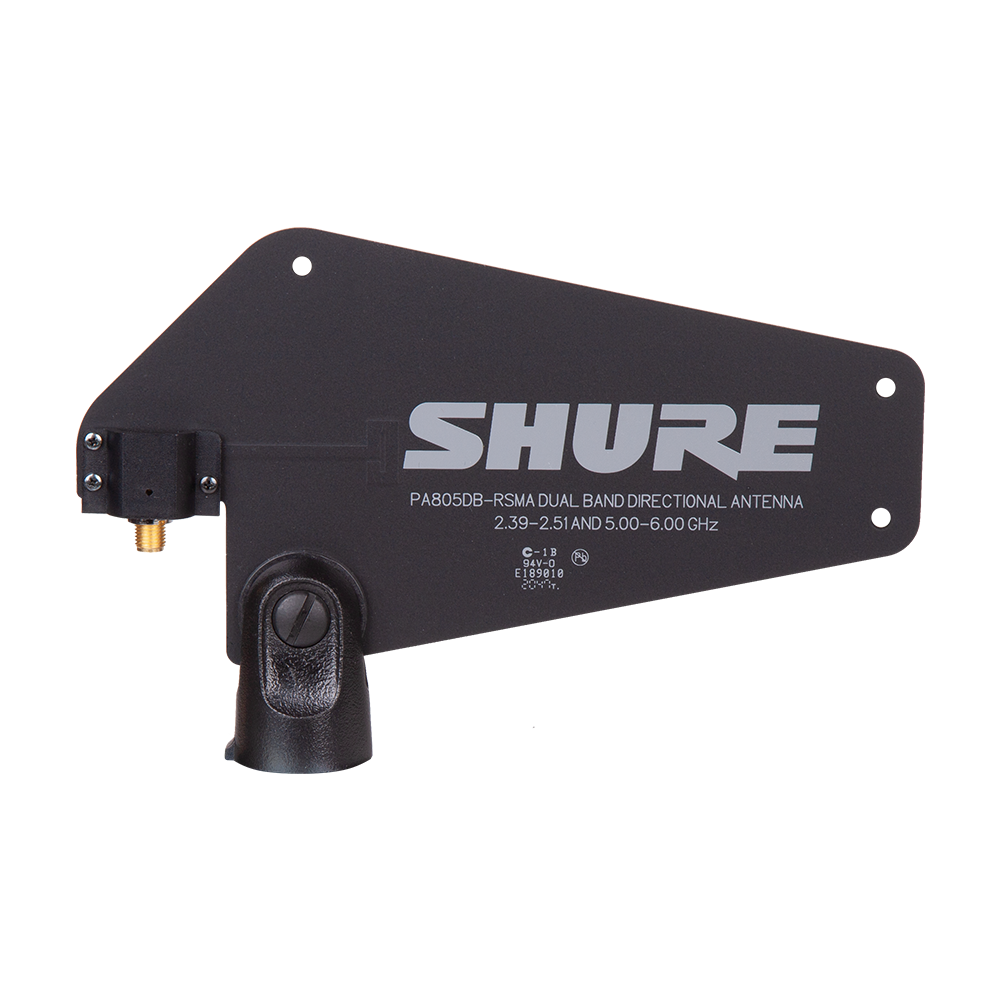

The PA805DB-RSMA Dual Band Passive Directional Antenna improves in up to 8dB the reception of half-rack GLXD4R+ receivers and of the GLXD+FMDB Dual Band Frequency Manager. Improved filtering of interference from 2.4 and 5.8GHz sources deliver 24dB front-to-back rejection ratio of off-axis signals.
Frequency Range <2:1 Voltage Standing Wave Ration (VSWR): 2050 to 5850 MHz
Antenna Gain @ 2.45 GHz, typical: 8 dBi3 dB Horizontal Beam Width100 degrees
Efficiency @ 2.45 GHz, typical: 89%
Impedance: 50 Ω
Polarization: Linear
Front-to-back ratio @ 2.45 GHz, typical: 24 dB
Connector Type: Reverse SMA
Dimensions: 105 × 164 × 27.5 mm (4.1 × 6.5 × 1.1 in.) H × W × D
Net Weight: 2.5 oz. (70 g)
