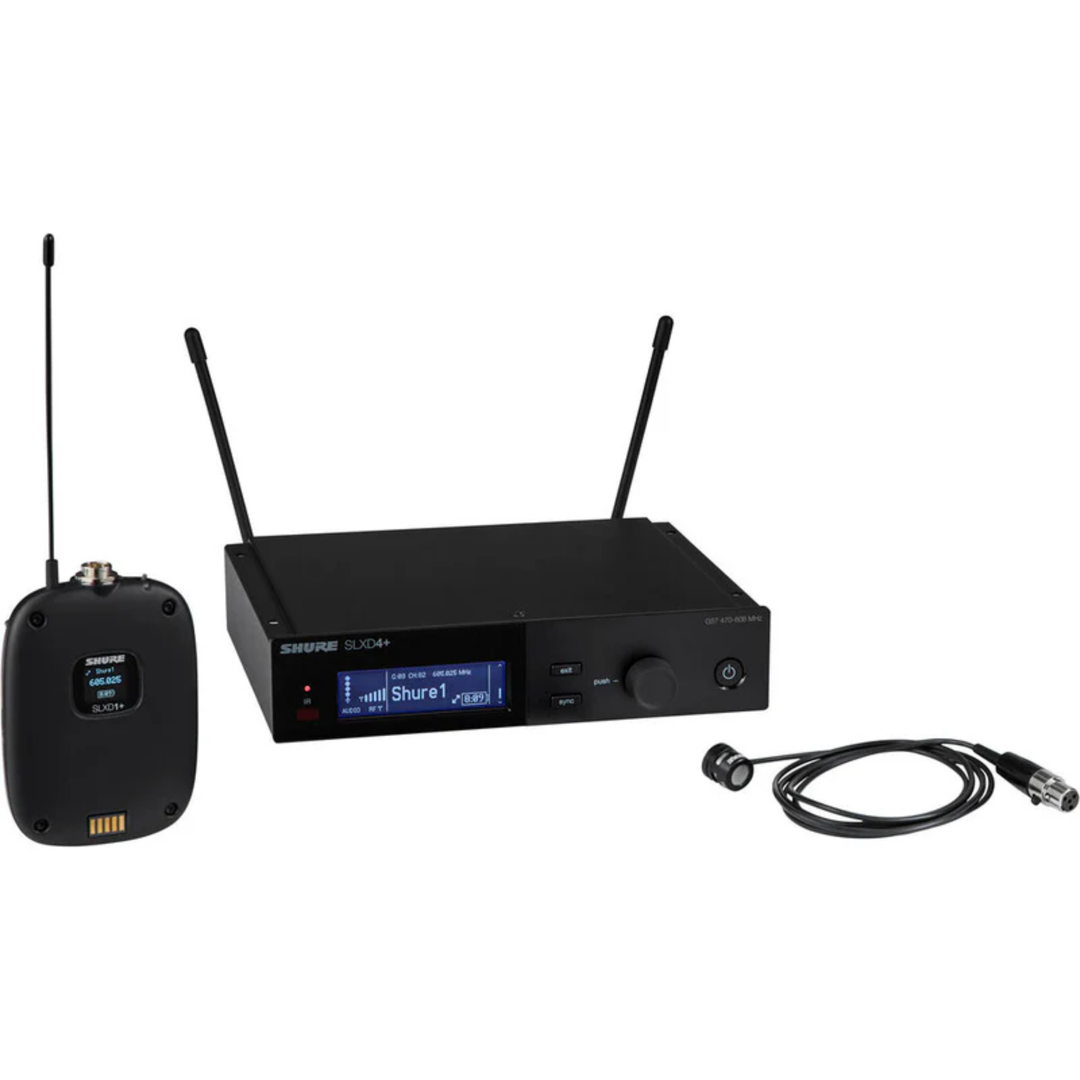

Shure SLXD14+/85M Digital Wireless Low-Profile Cardioid Lavalier Microphone System (G57: 470 to 608 MHz)

The Shure SLXD14+/85M is a professional digital wireless lavalier microphone system designed for live performance, installed sound, and houses of worship. Built on the SLX-D+ platform, it combines transparent digital audio with expanded frequency coverage, automated wireless management, and hands-free system control for confident operation in demanding RF environments. This configuration includes a single-channel tabletop receiver in a rugged steel chassis—with rackmounting hardware included—along with a bodypack transmitter and low-profile lavalier microphone.

Lightweight Bodypack Transmitter with WL185m Cardioid Lavalier Mic
The included WL185m electret-condenser lavalier microphone features a cardioid polar pattern that focuses audio capture on the talent, helping to reduce unwanted background sounds and feedback issues when sound reinforcement gear is used on stage. Its low-profile design allows it to remain discreet in presentation, theatrical, and broadcast applications. The microphone connects via a locking TA4F connector to the compact SLXD1+ bodypack transmitter, which includes a belt clip and LCD display for essential system status information.

Transparent Digital Audio and Expanded RF Performance
SLX-D+ delivers transparent 24-bit digital audio with greater than 118 dB of dynamic range for clear, accurate sound reproduction. An expanded wide tuning frequency range of up to 138 MHz (regionally dependent) provides greater geographical coverage and simplified frequency coordination. The system supports up to 11 simultaneous systems per 6 MHz TV band and up to 14 systems per 8 MHz TV band, making it well suited for scalable multi-channel deployments.

ShowLink Ease Automated Wireless Management
ShowLink Ease provides real-time two-way communication between paired SLX-D+ receivers and transmitters using BLE transmission. Once linked, transmitters automatically follow receivers across power cycles and RF changes. Engineers can remotely change transmitter frequency, adjust RF power, lock or unlock controls, apply interference mitigation, and perform over-air firmware updates—without touching the transmitter or requiring an IP network.

Wireless Workbench Desktop and Mobile Control
SLX-D+ systems integrate with Shure Wireless Workbench desktop software and the Wireless Workbench Mobile app, enabling monitoring and control over Wi-Fi or Bluetooth. Multiple mobile devices can associate with SLX-D+ receivers, with primary and backup control support. System setup, group scanning, transmitter management via ShowLink Ease, and interference monitoring can all be handled from a centralized interface.

Integrated Digital Feedback Reduction
Patented Shure Digital Feedback Reduction (DFR) software automatically detects and suppresses audio feedback using dynamic notch filters. Integrated directly into the SLX-D+ platform, DFR enhances clarity and stability in live sound environments where microphone placement and room acoustics may be less predictable.

Secure Operation and Flexible Power Options
SLX-D+ systems feature AES-256 encryption for secure wireless transmission. The bodypack transmitter operates for up to 8 hours on two AA batteries, with optional SB903 lithium-ion rechargeable batteries, providing precise runtime readouts in hours and minutes when used with compatible Shure charging accessories (available separately).

Items Included

• Shure SLXD14+/85M Digital Wireless Low-Profile Cardioid Lavalier Microphone System (G57: 470 to 608 MHz)
• Shure SLXD4+ Digital Wireless Rackmount Receiver (G57: 470 to 608 MHz)
• Shure SLXD1+ Digital Wireless Bodypack Transmitter (G57: 470 to 608 MHz)
• Shure WL185m Low-Profile Cardioid Lavalier Microphone with TA4F Connector (Black)
• Carrying Bag
• Limited 2-Year Manufacturer Warranty

Specifications

System

Wireless Technology:
Digital UHF

Diversity:
Yes

RF Frequency Band:
470 to 608 MHz

Number of RF Channel Frequencies:
5520

Max Operating Range:
328.1' / 100 m

Max Transmitters per Band:
14

Dynamic Range:
118 dB

Latency:
2.8 ms

Encryption:
AES 256

Built-In Recorder:
No

Timecode Support:
No

Mobile App Compatible:
Yes: Android & iOS

Receiver

Receiver Type:
1x Tabletop/Rack-Mountable

Mounting Options:
Rackmount (with Included Hardware, 1 U Half-Rack)

Antenna:
2x Removable

Number of Audio Channels:
1

Audio I/O:
1x XLR 3-Pin Balanced Mic/Line Output
1x 1/4" TS Unbalanced Output

Network I/O:
1x RJ45

USB/Lightning Connectivity:
No

Gain Range:
-18 to +42 dB

Display:
Backlit LCD

Power Requirements:
AC Input

Transmitters

Included Transmitters:
1x Bodypack

RF Output Power:
1 / 10 mW

Antenna:
Fixed 1/4 Wave

Input Level:
Microphone / Instrument

Audio I/O:
1x TA4M/Mini-XLR 4-Pin Male Input

Bias/Plug-In & Phantom Power:
Has Bias/Plug-In Power: Voltage is Unspecified
No Phantom Support

USB I/O:
No

Muting:
Off/On Switch

Auto-Level/Gain:
No

Sync Method:
IR

Display:
Backlit LCD

Microphones

Microphone Type:
1x Lavalier

Polar Pattern:
Cardioid

Frequency Response:
70 Hz to 20 kHz

Maximum SPL:
140.5 dB

Sensitivity:
-43 dBV/Pa

Output Connector:
1x TA4F/Mini-XLR 4-Pin Female

Cable Length:
4' / 1.2 m

Color:
Black

Power

Transmitter Battery Type:
2x AA (Included)
1x Shure SB903 (Not Included)

Transmitter Battery Life:
8 Hours

Included Charging Case:
No

AC/DC Power Adapter:
15 VDC (Included)

Physical

Environmental Resistance:
No

Housing:
Steel (Receiver)
ABS (Bodypack Transmitter)

Dimensions:
Receiver: 7.8 x 6 x 1.7" / 197 x 152 x 42 mm
Bodypack Transmitter: 3.9 x 2.7 x 1" / 98 x 68 x 25.5 mm

Weight:
Receiver: 2 lb / 900 g (without Antennas)
Bodypack Transmitter: 3.1 oz / 89 g
