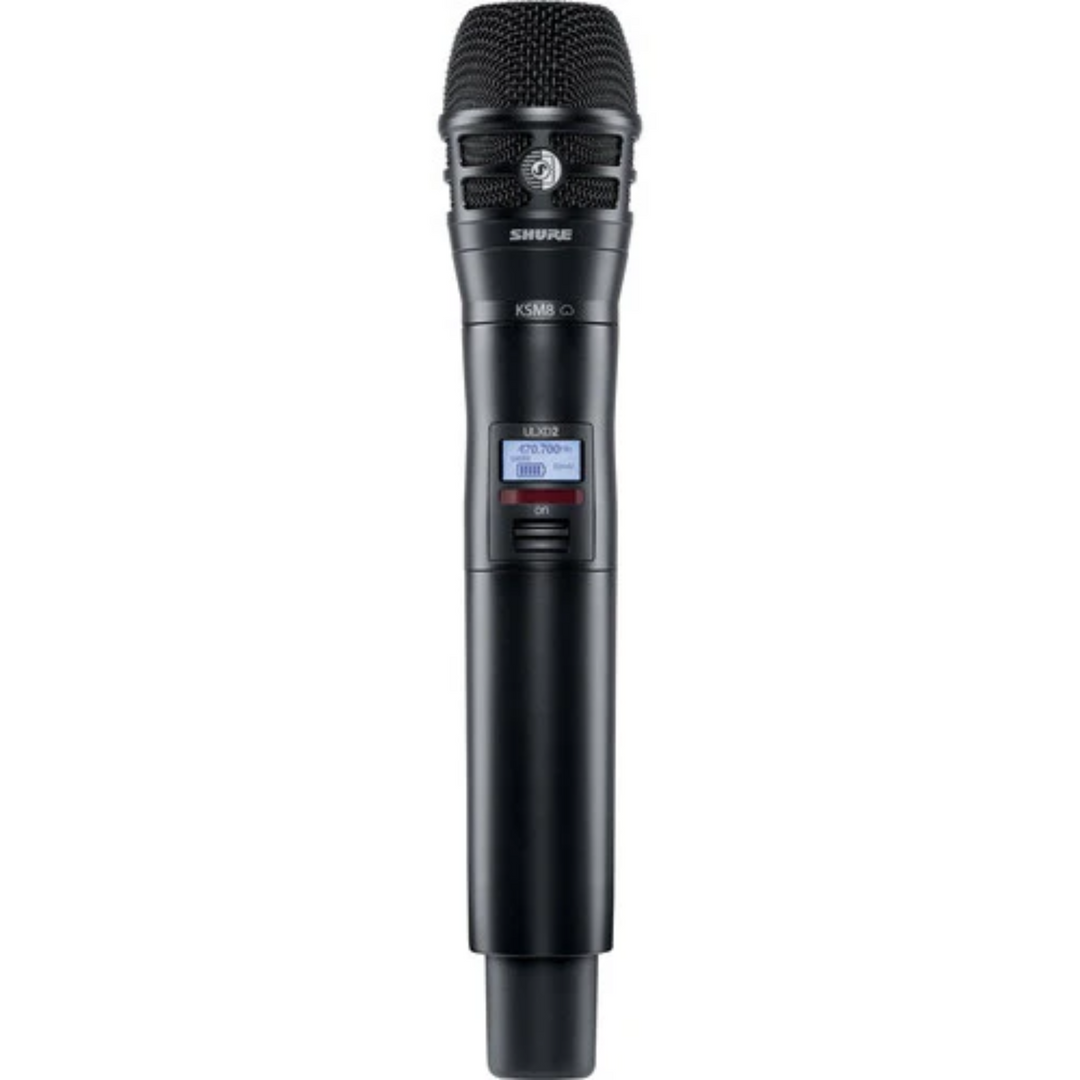

Shure ULXD2/K8B Digital Handheld Wireless Microphone Transmitter with KSM8 Capsule (G57: 470 to 608 MHz)

The black Shure ULXD2/K8 is a digital handheld wireless microphone transmitter compatible with ULX-D receivers. It comes equipped with a KSM8 dual-diaphragm dynamic capsule that minimizes proximity effect, delivering a consistent sound, even when the distance between the mic and the sound source varies. The cardioid polar pattern provides a clean, richly detailed signal with reduced feedback, great for speech and vocals in live venues.

With a rugged, yet lightweight aluminum housing, the ULXD2/K8 transmitter delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound-reinforcement applications.

Clear, Accurate Audio with Interchangeable Capsule

The unit delivers clear, reliable 24-bit/48 kHz digital audio over its entire 330' range, great for live performances and presentations in music venues, houses of worship, and conference spaces.

The KSM8's hardened, dent-resistant grille is lined with hydrophobic woven fabric, which rejects moisture as well as plosives.

The interchangeable capsule design allows you to replace the KSM8 capsule with a Shure capsule that’s ideal for your application and simply screw it onto the transmitter—including KSM9, SM58, SM86, SM87A, Beta 58A, Beta 87A, Beta 87C capsules, and more.

User-Friendly Features in a Rugged Housing

The transmitter offers an ultrawide 138 MHz tuning range from 470 to 608 MHz, allowing you to use it across a wide geographical range with a compatible ULX-D receiver.

The unit quickly syncs with a wireless receiver via infrared at the touch of a button.

Shure Proprietary Gain Ranging automatically adjusts the mic input level, eliminating the need for transmitter gain adjustments.

The power button conveniently doubles as mute switch, while preserving RF lock.

Frequency and power lockout functions prevent accidental or unauthorized changes during events.

A backlit LCD with easy-to-navigate menu and controls lets you quickly access frequency, group, and channel settings, along with mute and lock status, RF output, and remaining battery life.

1/10/20mW selectable RF output power allows you to increase either the transmitter's range or the number of mics operating simultaneously.

Convenient Power Management Options

Operates for up to 11 hours on two AA batteries.

Optional Shure SB900B lithium-ion rechargeable battery pack offers intelligent power management with over 8 hours of battery life, precision metering in hours and minutes, and zero memory effect.

External charging contacts allow for docked battery charging with the SBC200 dual-docking charger (available separately).

The networkable SBC220 charger (available separately) allows for remote power monitoring via Shure’s Wireless Workbench software.

Features

• For ULX-D Digital Systems
• KSM8 Dynamic Cardioid Mic, Black
• Dual-Diaphragm Capsule
• Ultrawide 138 MHz Tuning Range
• Interchangeable Capsule Design
• Automatic Gain Adjustment
• 1/10/20mW RF Output Power
• Mute Mode, Backlit LCD
• Secure AES-256 Encryption
• 8.5 Hr with SB900B Rechargeable Battery

Specifications

System
Wireless Technology: Digital UHF
Diversity: Yes
RF Frequency Band: G57: 470 to 608 MHz
Number of RF Channel Frequencies: 5520
RF Channel Scanning: Auto-Scan
Max Operating Range: 328.1' / 100 m
Max Transmitters per Band: 47
Latency: < 2.9 ms
Encryption: AES 256
Built-In Recorder: No
Timecode Support No
Mobile App Compatible No

Transmitters
Included Transmitters: 1x Handheld
RF Output Power: 1 / 10 / 20 mW Selectable
Antenna: Internal Single-Band Helical
Input Level: Microphone
Audio I/O: No
USB I/O: No
Muting: Off/On Switch
Gain Range: 0 to 21 dB (3 dB Steps)
Auto-Level/Gain: Yes
Frequency Response: 30 Hz to 20 kHz (Dependent on Mic)
Sync Method: IR
Display: Backlit LCD

Microphones
Microphone Type: 1x Handheld with Interchangeable Capsule (KSM8 Included)
Polar Pattern: Cardioid
Frequency Response: 40 Hz to 16 kHz
Sensitivity: -51.5 dBV/Pa (at 1 kHz)
Color:     Black

Power
Transmitter Battery Type: 2x AA (Included) or
                          1 x Shure SB900B - 750 mAh (Not Included)
Transmitter Battery Life: Med.: 11 Hours (Alkaline)
                          Med.: 8.5 Hours (Lithium Rechargeable)
AC/DC Power Adapter: No

Physical
Environmental Resistance: No
Housing: Aluminum (Transmitter)
Dimensions: 10.1 x 2" / 256 x 51 mm
Weight: 12 oz / 340 g (without Batteries)
