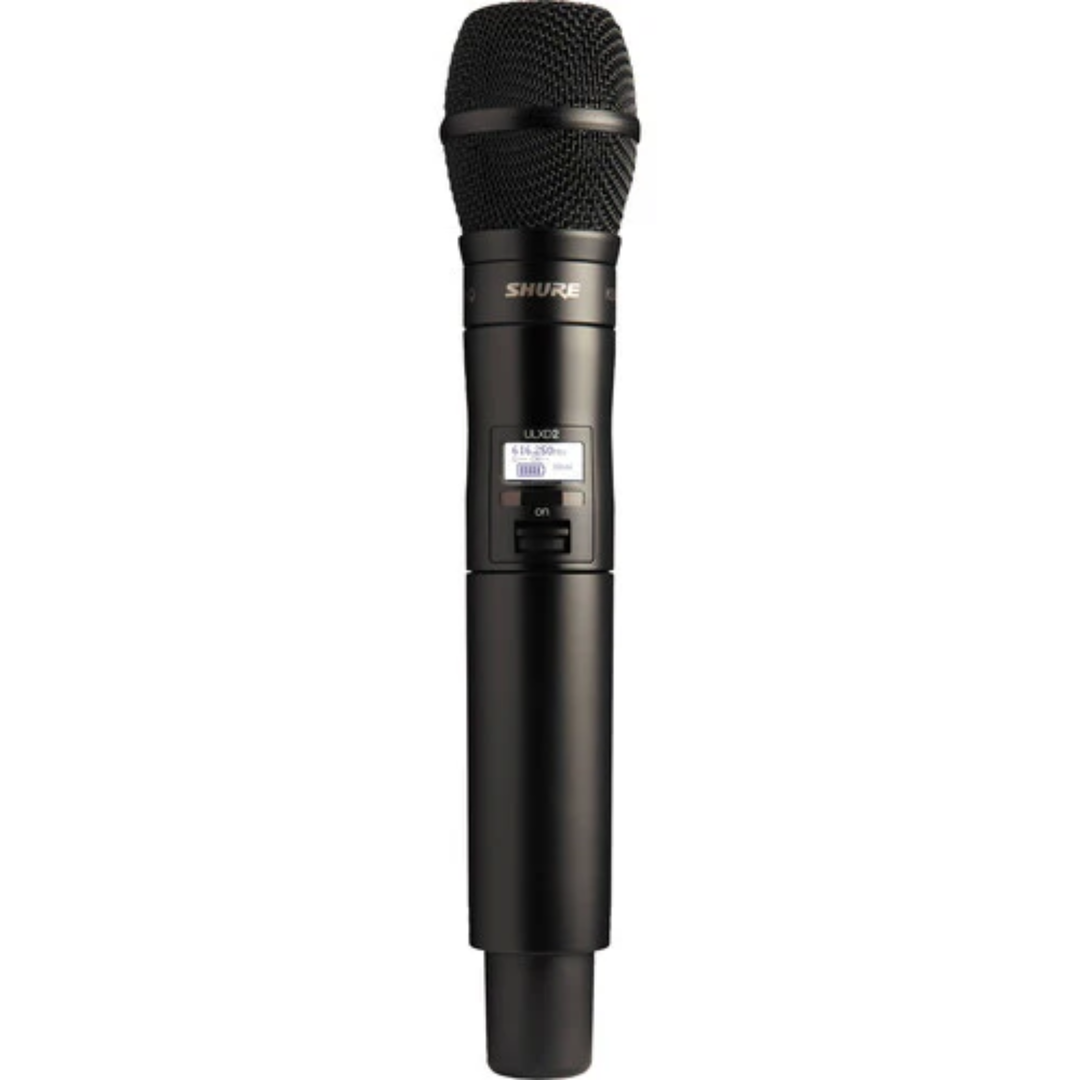

Shure ULXD2/KSM9 Digital Handheld Wireless Microphone Transmitter with KSM9 Capsule (G57: 470 to 608 MHz)

The Shure ULXD2/KSM9 is a digital handheld wireless microphone transmitter compatible with ULX-D receivers. It comes equipped with a dual-diaphragm KSM9 condenser capsule that captures sonic nuances with superior detail, delivering precise vocal reproduction for high-end live performance.

The black KSM9 capsule offers two switchable polar patterns to provide FOH engineers with more choices in dealing with varying environments or the microphone techniques of different performers. The cardioid pattern offers solid gain before feedback, with minimal off-axis coloration, for a warm, full sound. The supercardioid pattern offers increased sound isolation and gain before feedback, an ideal choice for applications where there are high levels of ambient noise, or where multiple instruments or vocalists are close together.

With rugged, yet lightweight aluminum housing, the ULXD2/KSM9 transmitter delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound-reinforcement applications.

Clear, Accurate Audio with Interchangeable Capsule

The unit delivers clear, reliable 24-bit/48 kHz digital audio over its entire 330' range, great for live performances and presentations in music venues, houses of worship, and conference spaces.

The KSM9 capsule with dual 3/4” gold-layered, low-mass Mylar diaphragms provides a consistent frequency response.

The mic features Class-A, discrete transformerless preamplifier for transparency, extremely fast transient response, and no crossover distortion.

The integrated three-stage "pop" protection grille reduces plosives, wind, and other breath noise.

The interchangeable capsule design allows you to replace the KSM9 capsule with a Shure capsule that’s ideal for your application and simply screw it onto the transmitter—including KSM9HS, SM58, SM86, SM87A, Beta 58A, Beta 87A, Beta 87C capsules, and more.

User-Friendly Features in a Rugged Housing

The transmitter offers an ultrawide 138 MHz tuning range from 470 to 608 MHz, allowing you to use it across a wide geographical range with a compatible ULX-D receiver.

The unit quickly syncs with a wireless receiver via infrared at the touch of a button.

Shure Proprietary Gain Ranging automatically adjusts the mic input level, eliminating the need for transmitter gain adjustments.

The power button conveniently doubles as mute switch, while preserving RF lock.

Frequency and power lockout functions prevent accidental or unauthorized changes during events.

A backlit LCD with easy-to-navigate menu and controls lets you quickly access frequency, group, and channel settings, along with mute and lock status, RF output, and remaining battery life.

1/10/20mW selectable RF output power allows you to increase either the transmitter's range or the number of mics operating simultaneously.

Convenient Power Management Options

Operates for up to 11 hours on two AA batteries.

Optional Shure SB900B lithium-ion rechargeable battery pack offers intelligent power management with over 8 hours of battery life, precision metering in hours and minutes, and zero memory effect.

External charging contacts allow for docked battery charging with the SBC200 dual-docking charger (available separately).

The networkable SBC220 charger (available separately) allows for remote power monitoring via Shure’s Wireless Workbench software.

Features

• For ULX-D Digital Systems
• KSM9 Condenser Mic Capsule
• Supercardioid/Cardioid Polar Pattern
• Ultrawide 138 MHz Tuning Range
• Interchangeable Capsule Design
• Automatic Gain Adjustment
• 1/10/20mW RF Output Power
• Mute Mode, Backlit LCD
• Secure AES-256 Encryption
• 8.5 Hr with SB900B Rechargeable Battery

Specifications

System

• Wireless Technology: Digital UHF

• Diversity: Yes

• RF Frequency Band: G57: 470 to 608 MHz

• Number of RF Channel Frequencies: 5520

• RF Channel Scanning: Auto-Scan

• Max Operating Range: 328.1' / 100 m

• Max Transmitters per Band: 47

• Latency: < 2.9 ms

• Encryption: AES 256

• Built-In Recorder: No

• Timecode Support: No

• Mobile App Compatible: No

Transmitters

• Included Transmitters: 1x Handheld

• RF Output Power: 1 / 10 / 20 mW (Selectable)

• Antenna: Fixed Single-Band Helical

• Input Level: Microphone

• Audio I/O: No

• USB I/O: No

• Muting: Off/On Switch

• Gain Range: 0 to 21 dB (3 dB Steps)

• Auto-Level/Gain: Yes

• Sync Method: IR

• Display: Backlit LCD

Microphones

• Microphone Type: 1x Handheld with Interchangeable Capsule (KSM9 Included)

• Polar Pattern: Cardioid / Supercardioid

• Frequency Response: 50 Hz to 20 kHz

• Maximum SPL: 152 dB

• Sensitivity: -51 dBV/Pa (at 1 kHz)

• Color: Black

Power

• Transmitter Battery Type: 2x AA (Included) or 1x Shure SB900B - 750 mAh (Not Included)

• Transmitter Battery Life:

  • Medium: 11 Hours (Alkaline)

  • Medium: 8.5 Hours (Lithium Rechargeable)

• AC/DC Power Adapter: No

Physical

• Environmental Resistance: No

• Housing: Aluminum (Transmitter)

• Dimensions: 10.1 x 2" / 256 x 51 mm

• Weight: 12 oz / 340 g (without batteries)
