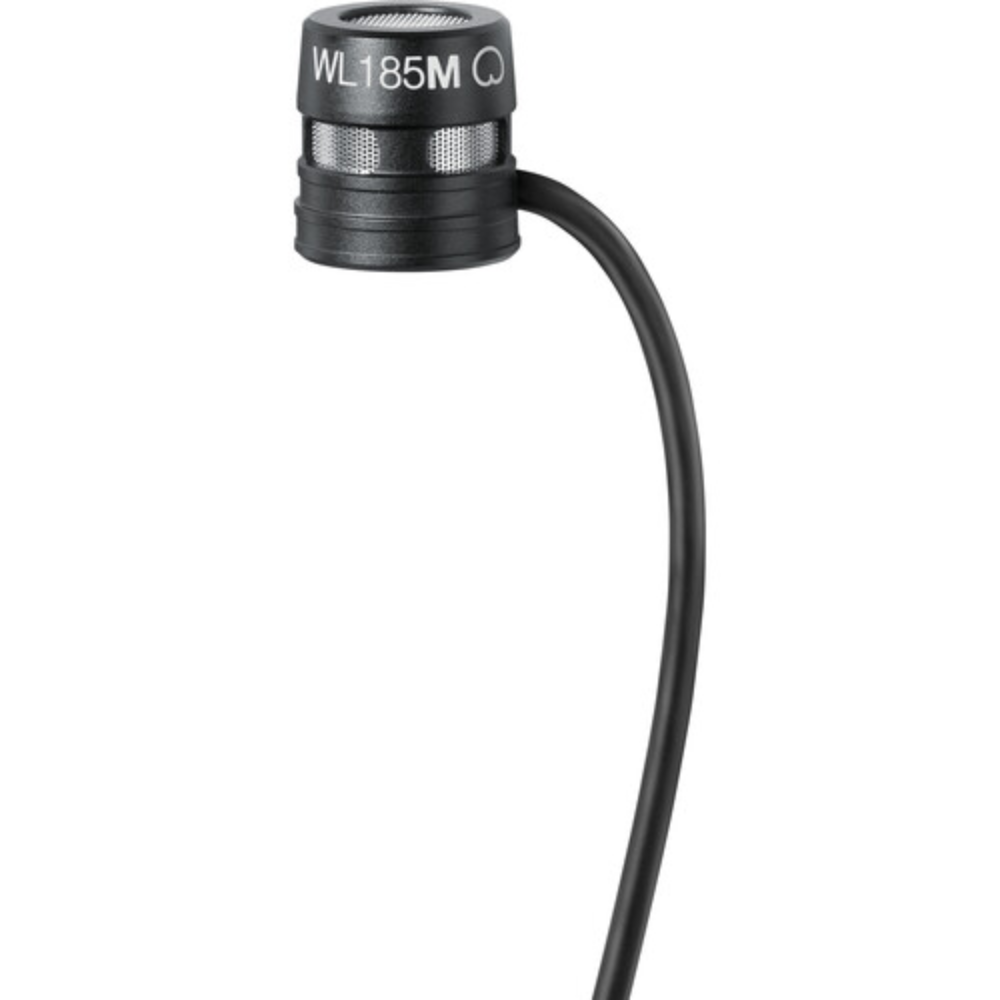

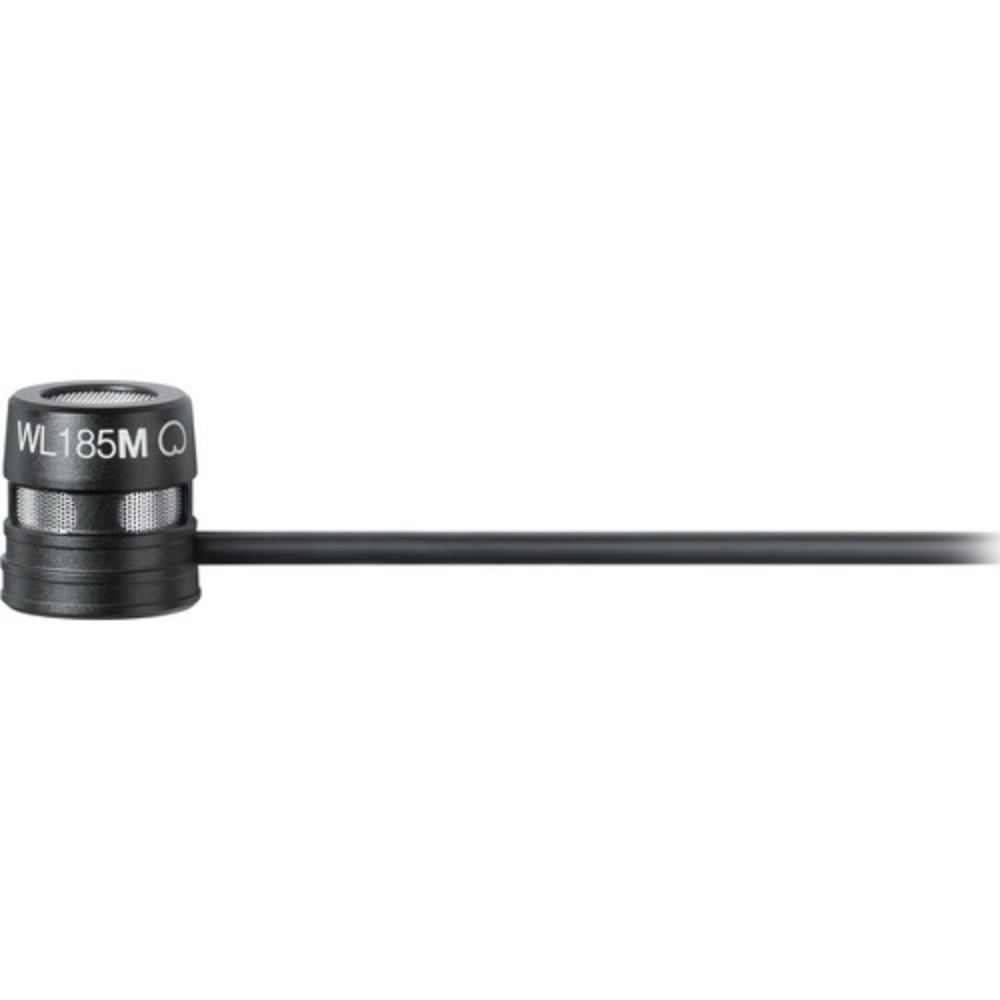

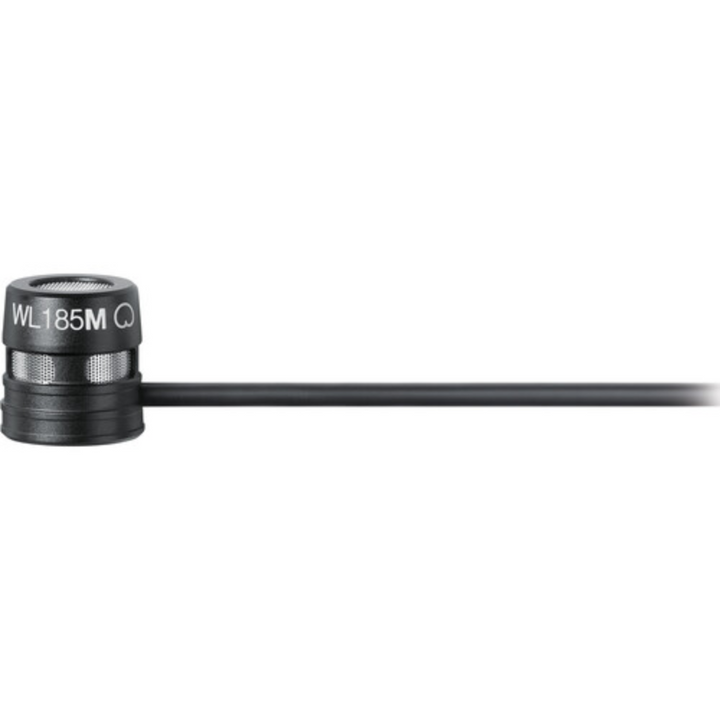

Shure WL185MB/C-TQG Low-Profile Cardioid Lavalier Microphone with TA4F Connector (Black)

Overview of Shure WL185MB/C-TQG Low-Profile Cardioid Lavalier Microphone with TA4F Connector (Black)

SOUND PRESENTATION.
QUALITY PERFORMANCE.

PROFESSIONAL LOW-PROFILE LAVALIER MICROPHONES

Shure WL185m, WL184m, and WL183m are professional low-profile Lavalier microphones for use with compatible wireless bodypack transmitters. 8 mm shorter than their predecessors, the WL185m, WL184m, and WL183m lavaliers deliver full and accurate sound quality with an improved presence response that reproduces crystal clear vocals. For flexible placement on speakers, presenters, and performers, each lavalier is available in either black or white with LEMO or TA4F connector options, and the innovative tie clip can be rotated in 90° intervals for accurate positioning. Shure WL185m, WL184m, and WL183m professional lavaliers include a snap-fit windscreen, single tie clip, and zippered bag for storage and transport.

FEATURES:
•Professional low-profile Lavalier condenser microphones
•Cardioid (WL185m), Supercardioid (WL184m), and Omnidirectional (WL183m) polar pattern options
•8 mm shorter than the original WL18X series
•Higher dynamic range with improved max SPL, self-noise, and general sound quality when compared to the original WL18X series
•Available in either black or white colors to suit various situations
•Available in either TA4F or LEMO connector options

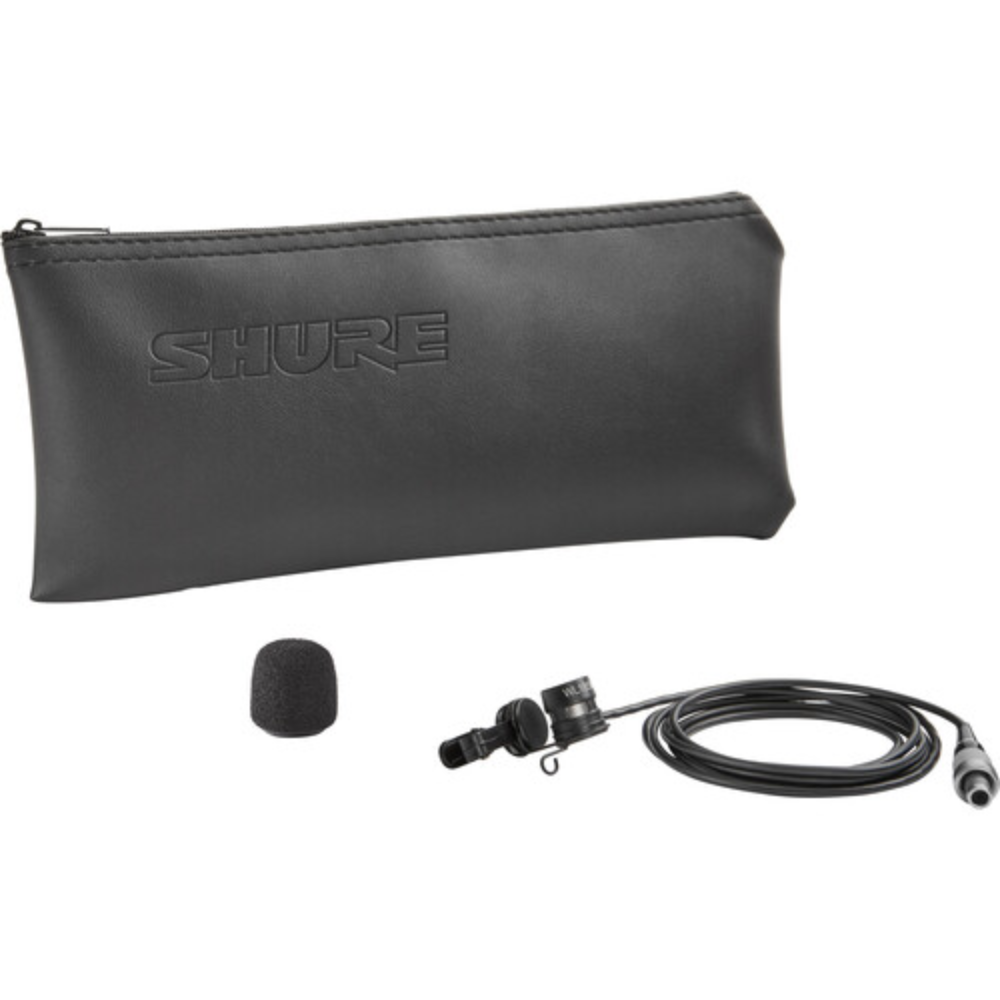

•Ships with lavalier, tie clip, snap-fit foam windscreen, and zippered storage bag

The black Shure WL185m is a discreet, low-profile cardioid lavalier microphone well suited to a wide variety of interview, presentation, broadcast, and film/video applications. The mic features a TA4F connector compatible with select Shure wireless transmitters. Not only does the lav offer a profile that is 8mm shorter than previous models, but the WL185m delivers better audio quality with an improved presence response, higher dynamic range, and lower self-noise for crystal clear speech and vocals.

The electret condenser capsule filters out unwanted low frequencies below 70 Hz and delivers a high-end response up to 20 kHz to provide clear, intelligible speech for instructors, journalists, and presenters doing interviews, voiceovers, and dialog. The diaphragm can handle SPL levels up to 140.5 dB, while the cardioid pickup pattern focuses audio capture on the talent wearing the mic, picking up less audio from surrounding sources and helping to reduce feedback from sound-reinforcement equipment.

Optimized for a 5 VDC plug-in power source, the mic features a 4' cable terminating in a TA4F connector for use with a compatible Shure wireless bodypack transmitter or similar device. A snap-fit windscreen and adjustable lapel clip that offers 90° rotation for optimal mic placement are included. A zippered storage pouch is also supplied.

TA4F Connector

Compatible Wireless Transmitters

• Shure: works with Shure transmitters equipped with a TA4M connector, including the following models: AD1, ADX1, AXT100TA4F, BLX1, GLXD1, MXW1, PGXD1, QLXD1, SLX1, SLXD1, ULX1, and ULXD1
• Third-party devices: the WL185m will work with third-party wireless transmitters that are equipped to supply 5 VDC through a TA4M connector

A Discreet and Dependable Cardioid Lavalier

Cardioid Polar Pattern

The cardioid polar pattern focuses on sound capture in front of the mic, helping to reduce background noise and loudspeaker feedback.

Headroom for Speech and Vocals

This TA4F version of the WL185m offers a 120.5 dB dynamic range and a very low self-noise of only 20 dB SPL; it can also handle up to 140.5 dB SPL with only 1% total harmonic distortion (THD), providing headroom for broadcast-quality interviews, speech, and dialog.

Frequency Response Tailored for Speech

With a frequency range from 70 Hz to 20 kHz, the mic filters out unnecessary low frequencies and provides an extended high-end range for accurate and transparent speech reproduction.

Low-Profile Appearance

Compared to the original, the durable aluminum alloy housing on the WL185m is 8mm shorter and features a smaller snap-on windscreen, providing a more discreet appearance for presenters, performers, and on-camera talent.

Specifications

Form Factor
Lavalier

Compatible Transmitters
Shure:  Axient AD1, Axient ADX1, Axient AXT100, BLX1, GLXD1, MXW1, PGXD1, QLXD1, SLX1, SLXD1, ULX1, ULXD1

Polar Pattern
Cardioid

Frequency Range
70 Hz to 20 kHz

Maximum SPL
140.5 dB SPL (1% THD)

Output Connector
1x TA4F/Mini-XLR 4-Pin Female

Power Sources
Plug-In Power

Color
Black

Microphone

Form Factor
Lavalier

Compatible Transmitters
Shure: Axient AD1, Axient ADX1, Axient AXT100, BLX1, GLXD1, MXW1, PGXD1, QLXD1, SLX1, SLXD1, ULX1, ULXD1

Intended Sound Sources
Vocals, Speech/Voice-Over

Sound Field
Mono

Element Type
1x Electret Condenser

Polar Pattern
Cardioid

Included Tone Caps
No

Performance

Frequency Range
70 Hz to 20 kHz

Maximum SPL
140.5 dB SPL (1% THD)

Sensitivity
-43 dBV/Pa

Dynamic Range
120.5 dB

Signal-to-Noise Ratio
74 dB

Connectivity

Output Connector
1x TA4F/Mini-XLR 4-Pin Female

Cable Length
4' / 1.22 m

Power

Power Sources
Plug-In Power

Operating Voltage
5 V (Plug-In Power)

Physical

Color
Black

Construction Material
Aluminum

Dimensions
ø: 0.5 x L: 0.53" / ø: 12.74 x L: 13.55 mm

Weight
0.7 oz / 20 g (with Cable)

Packaging Info

Package Weight
0.375 lb
Box Dimensions (LxWxH)
6.9 x 5.6 x 1.6"
