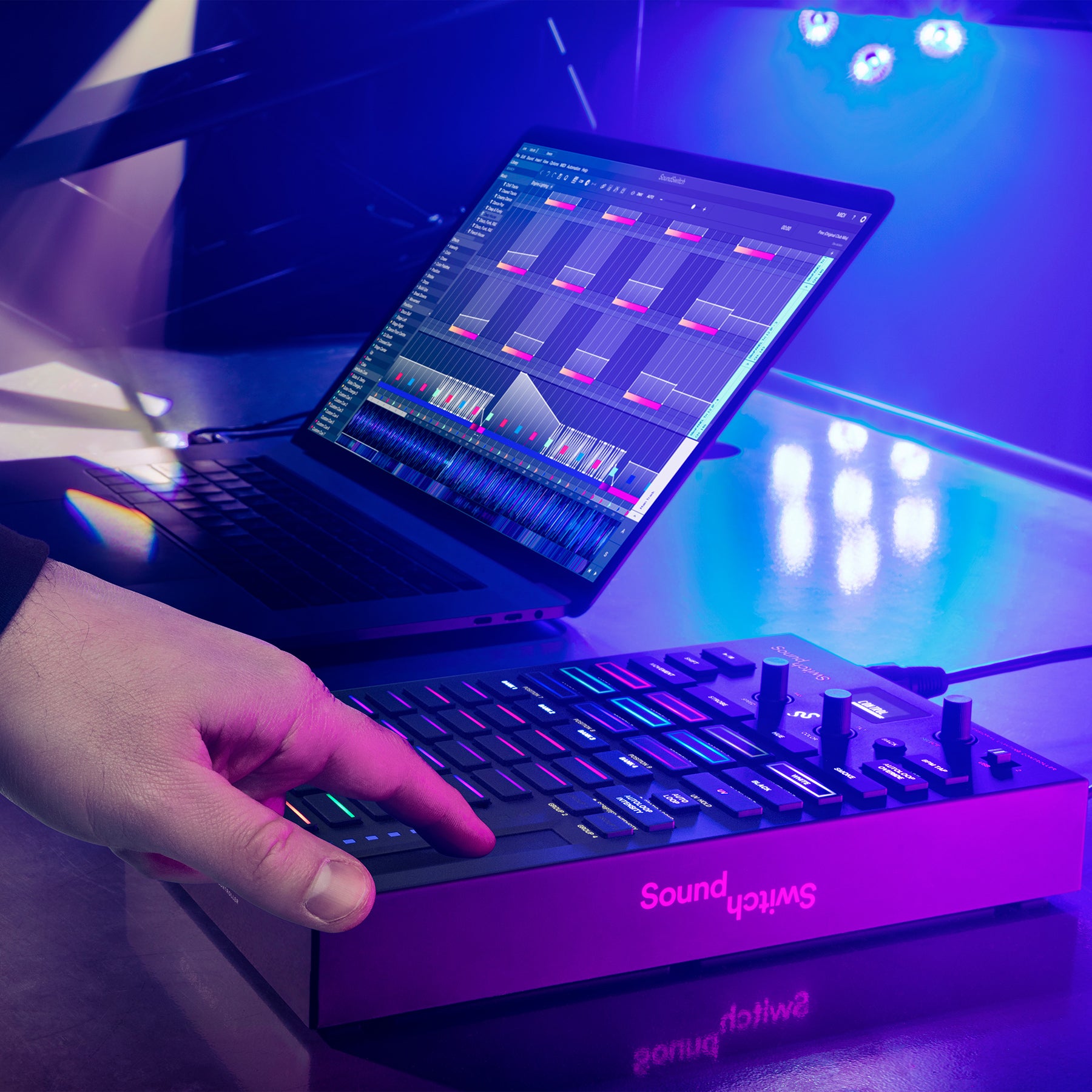

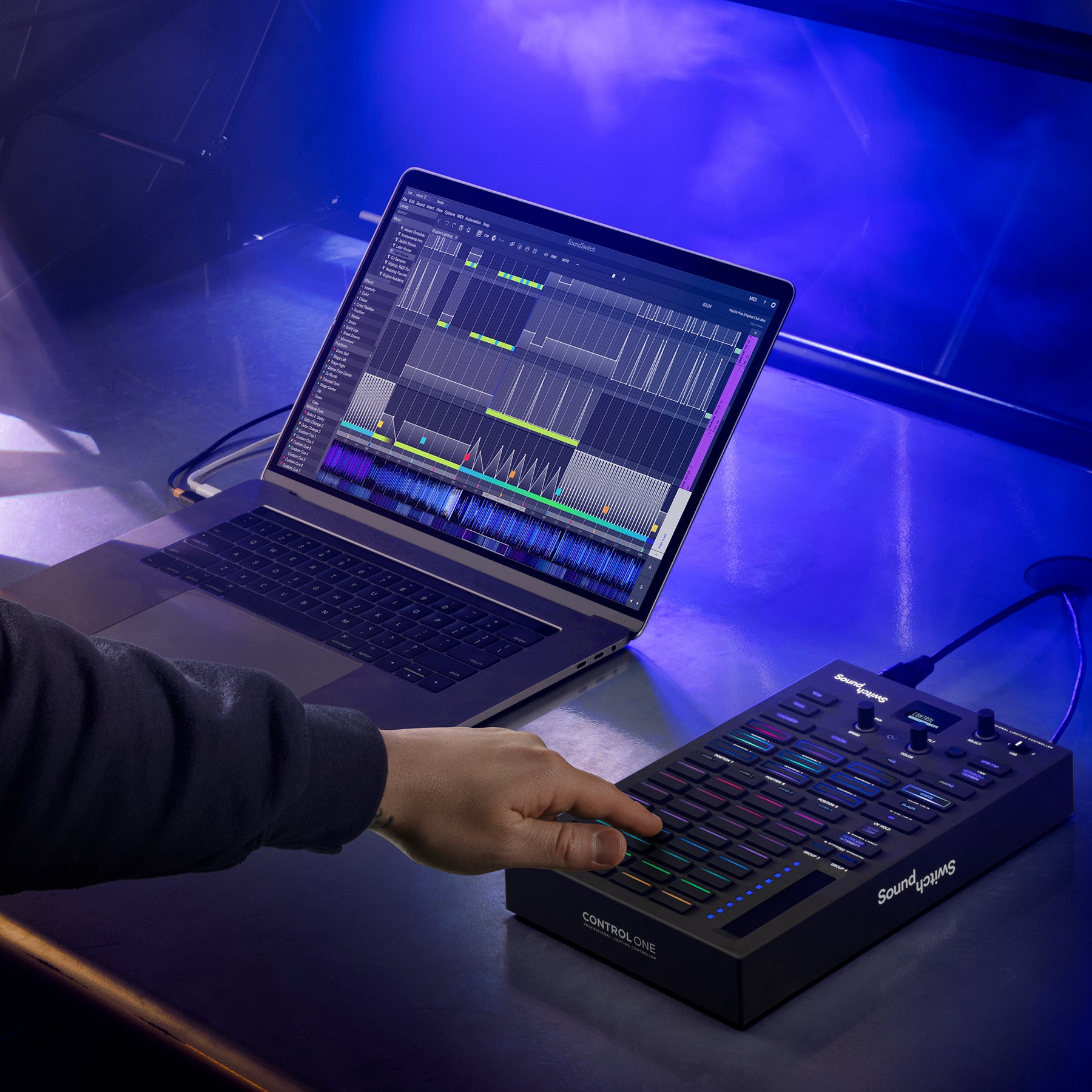

SoundSwitch Control One Professional Lighting Controller

SoundSwitch is the world’s most advanced lighting automation software. With the release of the Control One, DJs and lighting designers have more control over the powerful SoundSwitch software features. SoundSwitch supports both DMX and Philips HUE lighting hardware. Users can be as creative as they like in the Digital Lighting Workstation (DLW) or let the software do the work via the automation features or pre-built lighting scenes. Combining the SoundSwitch software with the Control One hardware allows DJs and lighting designers to sync lighting visuals with live audio seamlessly and easily.

With the SoundSwitch Control One, users can connect two DMX universe outputs + connect two incoming DMX universe allowing for integration with larger and installed lighting setups. The one-to-one mapped hardware controls makes it easier than ever to control lighting effects on the fly in combination with the auto generated lighting displays created in the SoundSwitch software providing a complete hardware and software lighting solution. From the get-go, the SoundSwitch Control One doesn’t disappoint with 3 months free SoundSwitch software access so you can jump right in and create automatic light show with beat grids. SoundSwitch and Control One are compatible with Engine DJ, Serato DJ, Virtual DJ, Ableton LINK and MIDI Clock.

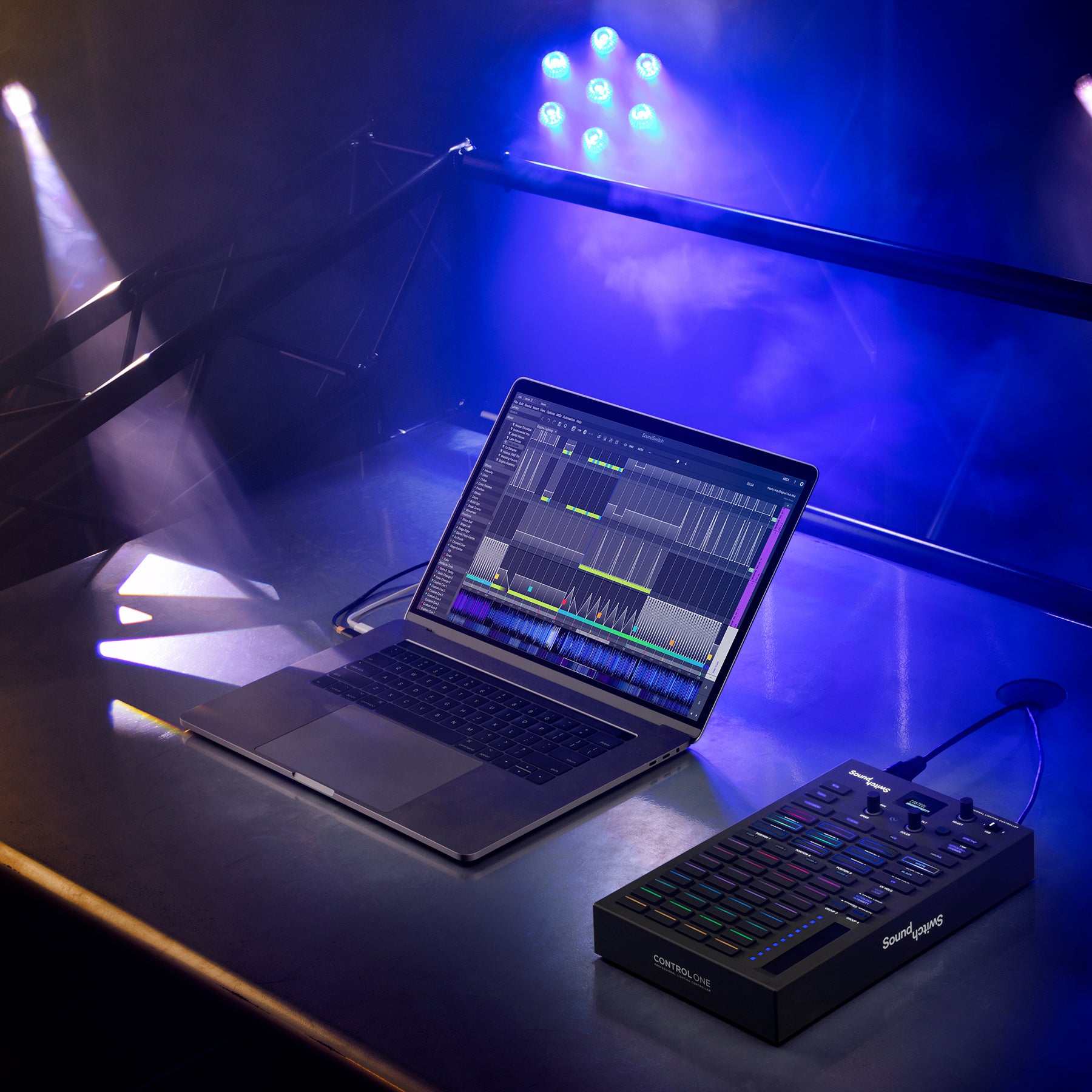

SoundSwitch’s Edit Mode is where users can be as custom or automated as they like. Users can work in the Digital Lighting Workstation (DLW) to edit their preset light scenes or build and customize their own lighting displays. The work low and user interface has been designed to be similar to audio editing and music production software providing a familiar look and feel for DJs.

SoundSwitch allows for full customization and lighting control. Users can control every feature of their lighting hardware including color, brightness, strobe, movement, gobos, prism and more.

The Autoloops feature automatically syncs lighting scenes with audio iles that don’t have scripted light shows as the DJ performs. The software ships with 32 pre-built Autoloops which are all customizable and will always cue perfectly on the beat when needed.

Batch analyse audio files, playlists, collections and crates for Automated lightshow creation.

Static Looks provide users with an easy way to create lighting scenes; a common tool in the mobile DJ field. These static scenes can be created to light speeches, the dinner service or provide ambient lighting at any event. Static Looks can also be MIDI mapped allowing for complete touch control.

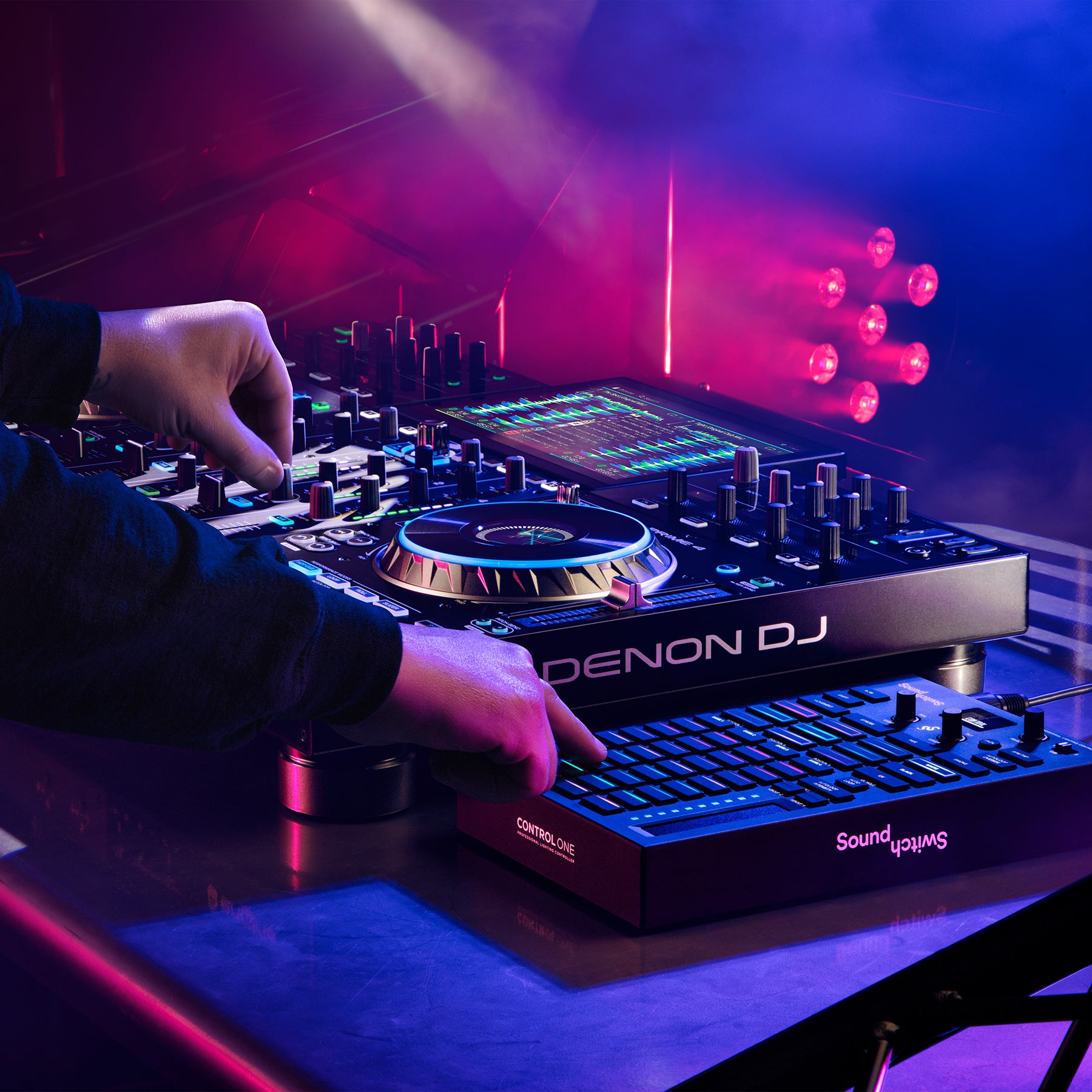

SoundSwitch connects with the following DJ software and hardware providing precision timing and synchronization while the DJ performs. Connect Control One directly to Engine DJ hardware for a standalone audio and lighting experience - no laptop required.

• Denon DJ / Engine DJ | PRIME 4, PRIME 2, PRIME GO, SC6000/M, SC5000/M, X1800, X1850

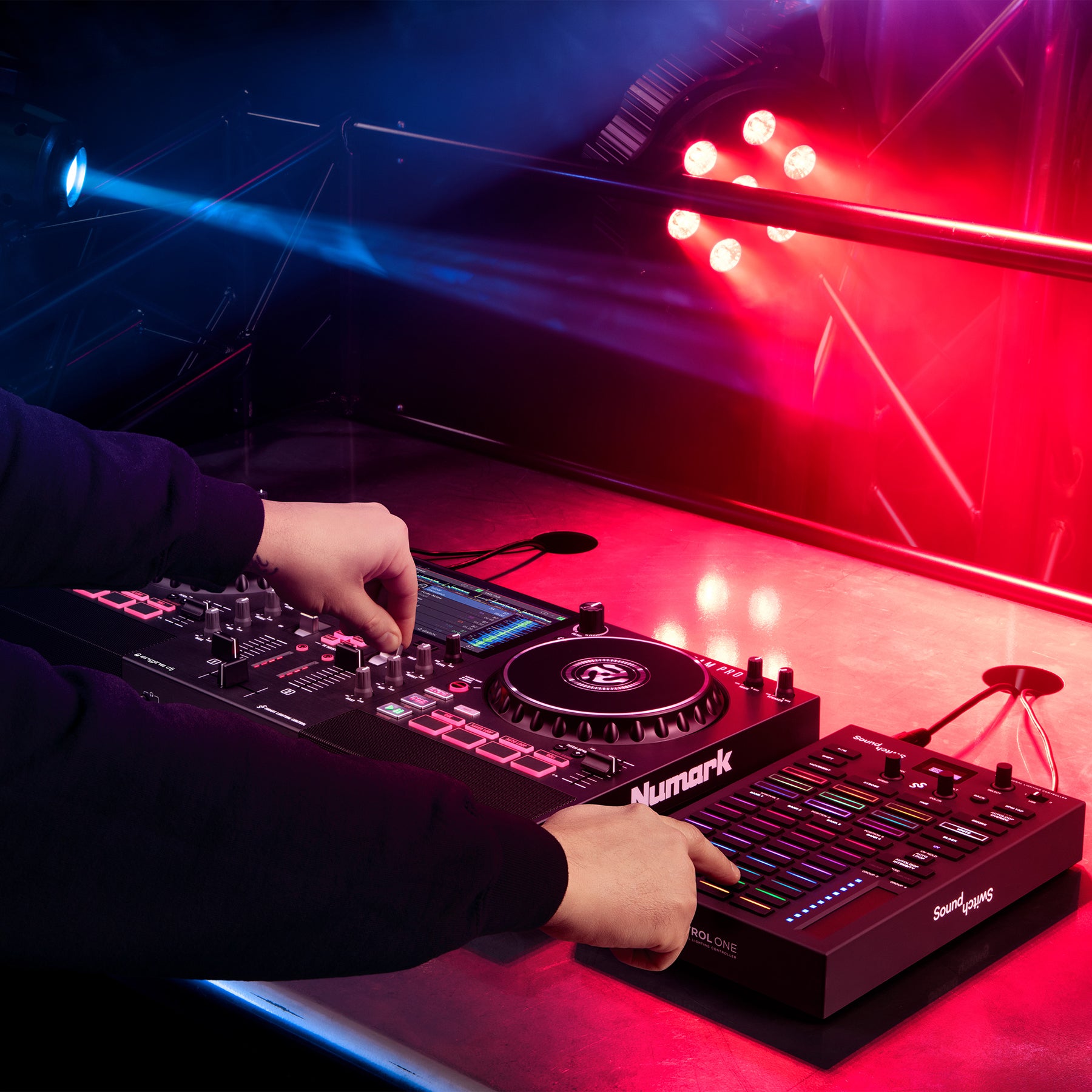

• Numark / Engine DJ | MixStream Pro
• Serato DJ Pro
• Virtual DJ
• Ableton LINK + MIDI Clock and MIDI Time Code

In Standalone Mode, SoundSwitch users can control lighting effects for other DJs and performers such as bands and live acts. Easily tap in the tempo with TAP button. The OLED display provides real time BPM feedback.

SoundSwitch includes a number of presets and effects which users can edit to their liking, saving time and effort.

The software includes MIDI mapping functionality to allow users to map and control lighting effects with any standard controller, mixer or MIDI device and all software features are pre-mapped to the Control One.

SoundSwitch supports two DMX Universes with 1024 DMX channels, allowing for control over both small and professional sized lighting rigs.

Features:

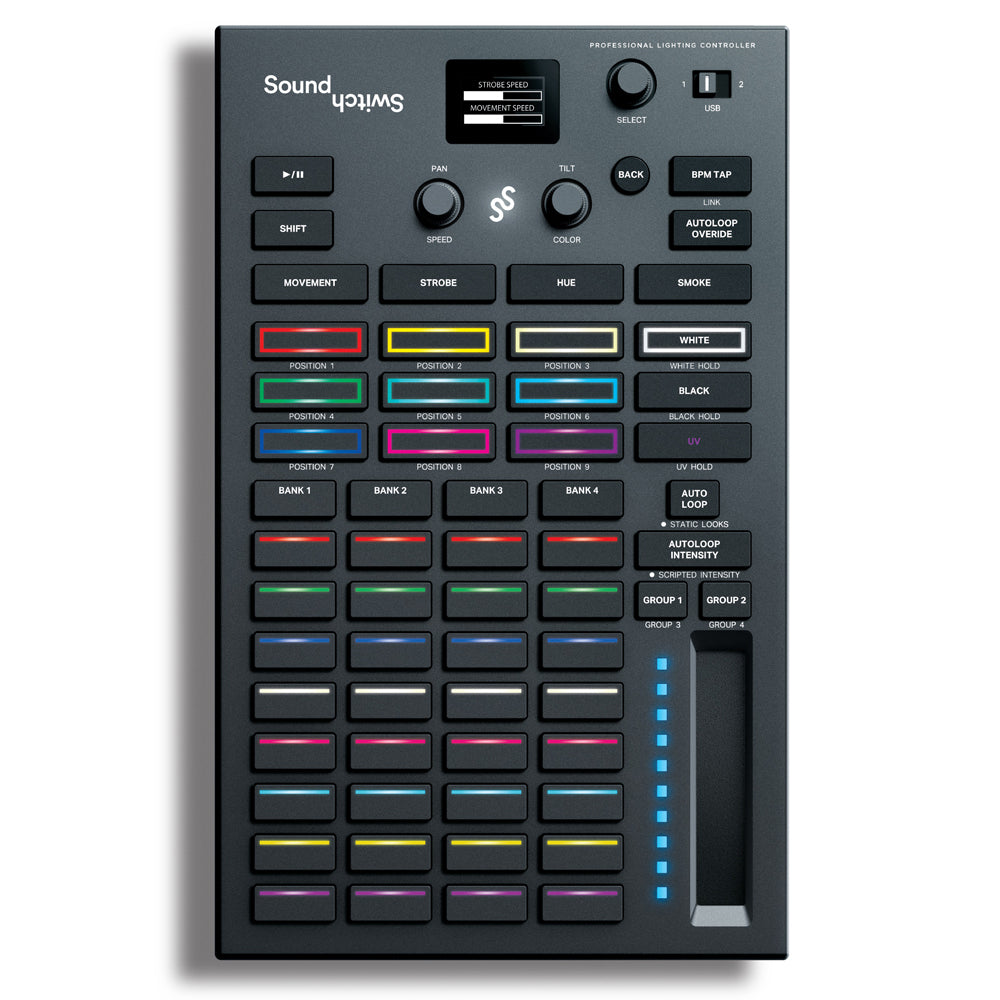

• 1:1 Hardware Control for SoundSwitch Software
• Plug and Play with Engine DJ Hardware (Engine Lighting)
• Automatic Light Shows Synced with Beat Grids
• On-board Memory for Storing Light Patch and Settings

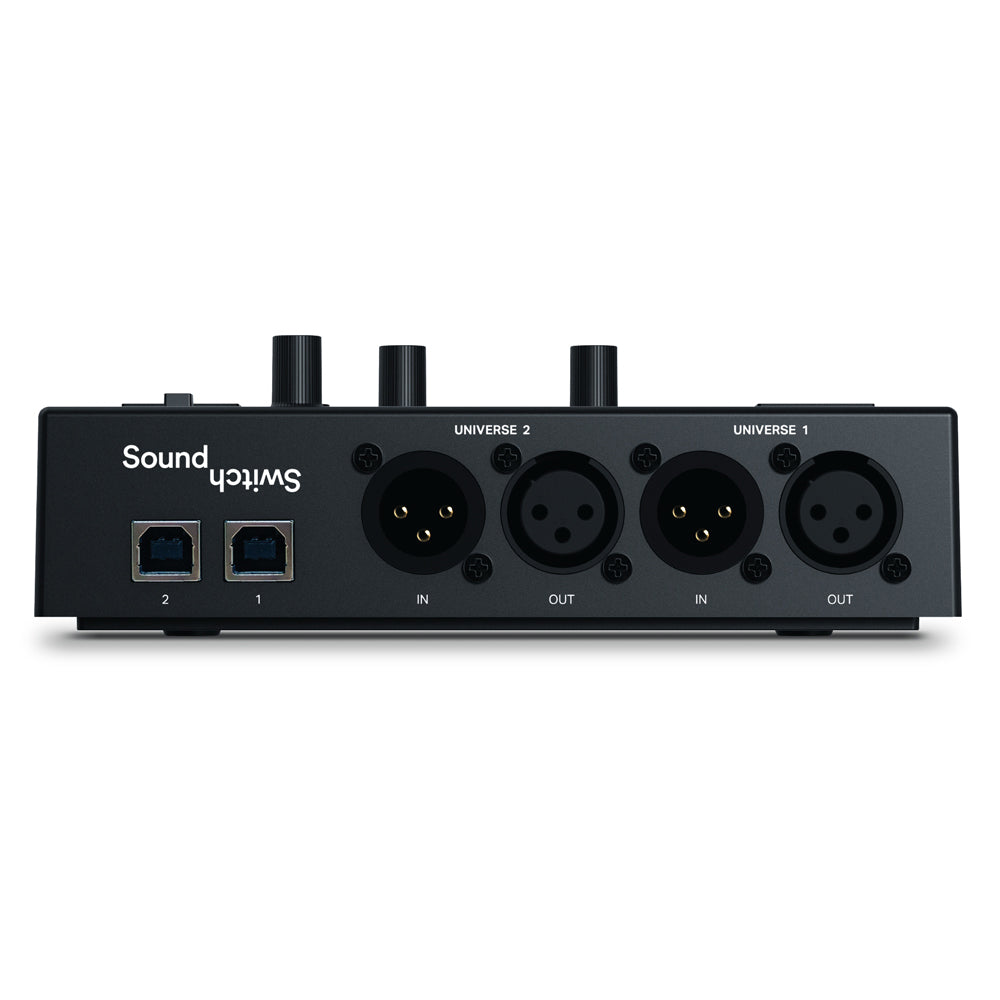

• (4) Pro-grade DMX Connections for 2 DMX Universes
• DMX Input for Merging with Install Lighting Systems
• Dual USB for Seamless DJ Transitions
• Built-in OLED Display for Heads Up Info
• Performance Pads with Customizable RGB
• Pan, Tilt, and Intensity Controls
• 3 Months Free SoundSwitch Software Access
• Support for both DMX & Philips HUE Lighting
• Automatic Light Shows Synced with Beat Grids
• Compatible with DJ and DAW software
• Create Custom Light Shows
• MIDI Mapping and Control of Lighting Effects

Specifications:

• Type: 2 X USB to DMX (3-pin) Connection
• Power: USB powered
• Refresh Rate: 37 Hz
• DMX Universe: 2
• Dimensions: 20.7 x 16.5 x 4.5
• Weight: 0.778 kg
