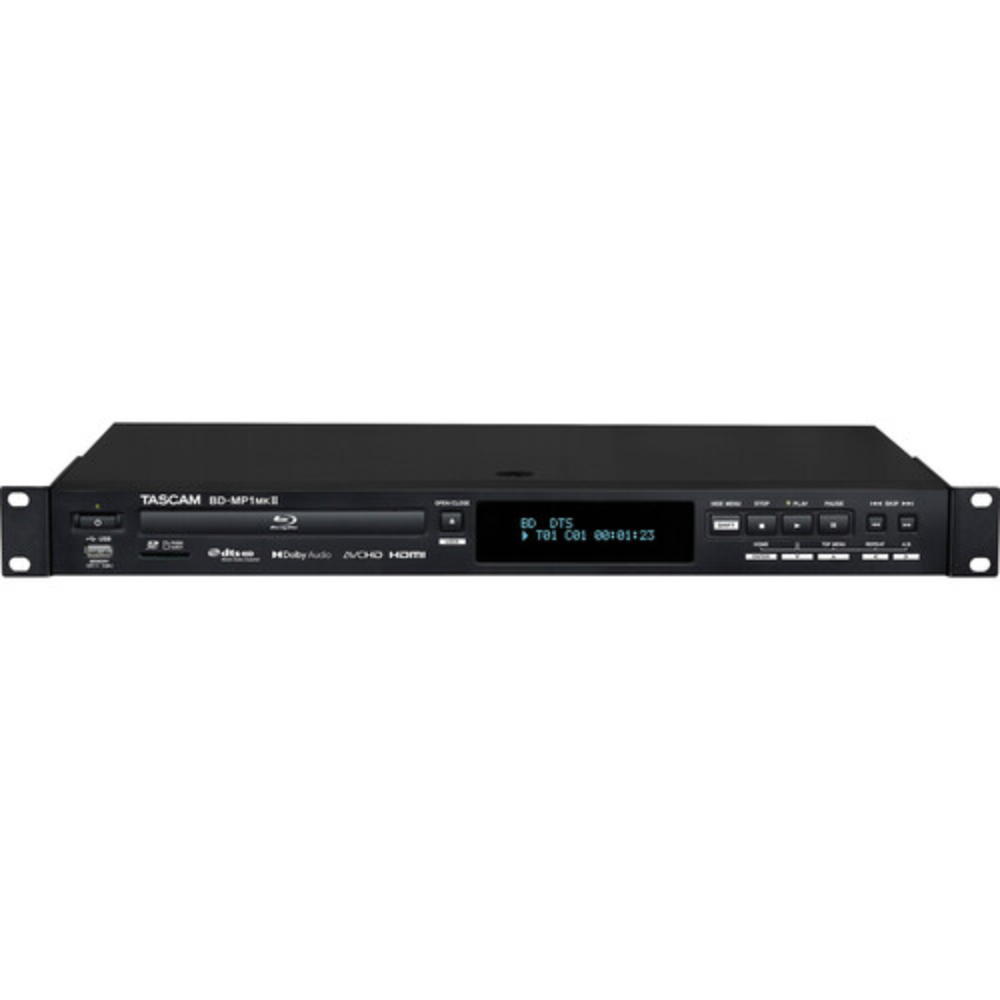

Tascam BD-MP1MKII Blu-Ray Player with SD and USB Playback (1 RU)

TASCAM BD-MP1 MK II

The BP-MP1MKII from Tascam is a compact multi-format Blu-ray, DVD, and CD player with SD and USB flash support up to 512GB. Sporting a plethora of analog audio outputs as well as a fully featured HDMI port that supports Dolby Atmos, this player is ideal for wide-ranging commercial, home theatre, public, entertainment, and educational applications.

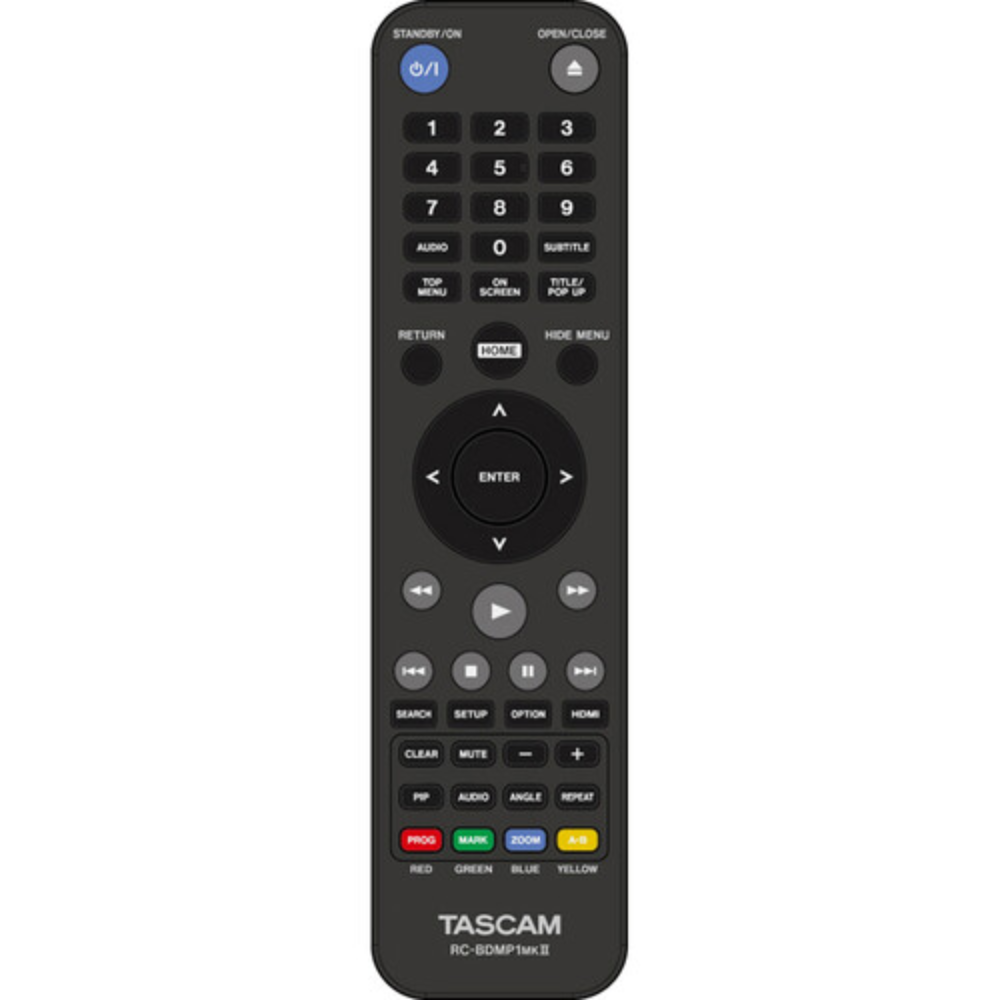

You can playback media on most disc formats and external memory devices, including stills, video (up to 1080p), and a wide range of audio formats. The device includes balanced XLR audio outputs, RCA for stereo, 7.1 surround, and S/PDIF digital output, and both Ethernet and D-SUB RS-232C connections for external remote control. This 1 RU rack-mounted player includes a wireless remote control, batteries, a power cord, and a set of rack screws.

Supports a Wide Range of Disc Formats

The BD-MP1MKII eliminates the need for discrete audio/video playback devices in an installation, offering single-source playback for a wide range of media and file formats, including:

• Blu-ray (BD25, BD50, BD-ROM, BD-R, and BD-RE)
• DVD (DVD-ROM, DVD-R, DVD-RW, DVD+R, and DBD+RW)
• CD (CD-DA, CD-R, and CD-RW)

Versatile File Format Playback Support

The BD-MP1MKII is the ideal single-source playback solution for commercial and residential installations, supporting an extensive range of file formats, including:

• Video (ASF, MPEG, AV1, 3GP, DAT, MKV, MOV, M2TS, OGM, TP, TS, MP4, and WMV)
• Image (JPEG, GIF, and PNG)
• Audio (WAV, MP3, WMA, AAC, FLAC, and APE)

Power-On Play and Repeat Mode

The unique Power-on Play feature allows the BD-MP1MKII to start playing desired content immediately on power-up, without having to engage the Play feature first. With Repeat Mode set to on, content will automatically start, loop, and play continuously until power is turned off.

Panel Lock for Secure Operation

Panel lock, IR, and tray lock functions prevent accidental or user-error operation or alteration of pre-set controls in commercial installations, helping ensure consistent and reliable performance in any installation.

Hide Menu Function for Elegant Power-Up Display Sequence

The monitor display can be set to show a black screen during start-up rather than the manufacturer's standard factory setup and source select menus, creating an elegant and non-distracting visual start-up environment each time the system is turned on.

Dual USB Memory Ports

Two USB Memory Ports, one front panel and one back panel, allow fixed or interchangeable access to USB memory data for playback versatility.

HDMI Output

A standard rear panel HDMI output connection provides an easy, reliable plug-and-play connection to any HDMI-compatible monitor display or television. In addition to HD video, Dolby Atmos audio can also be output.

Versatile I/O

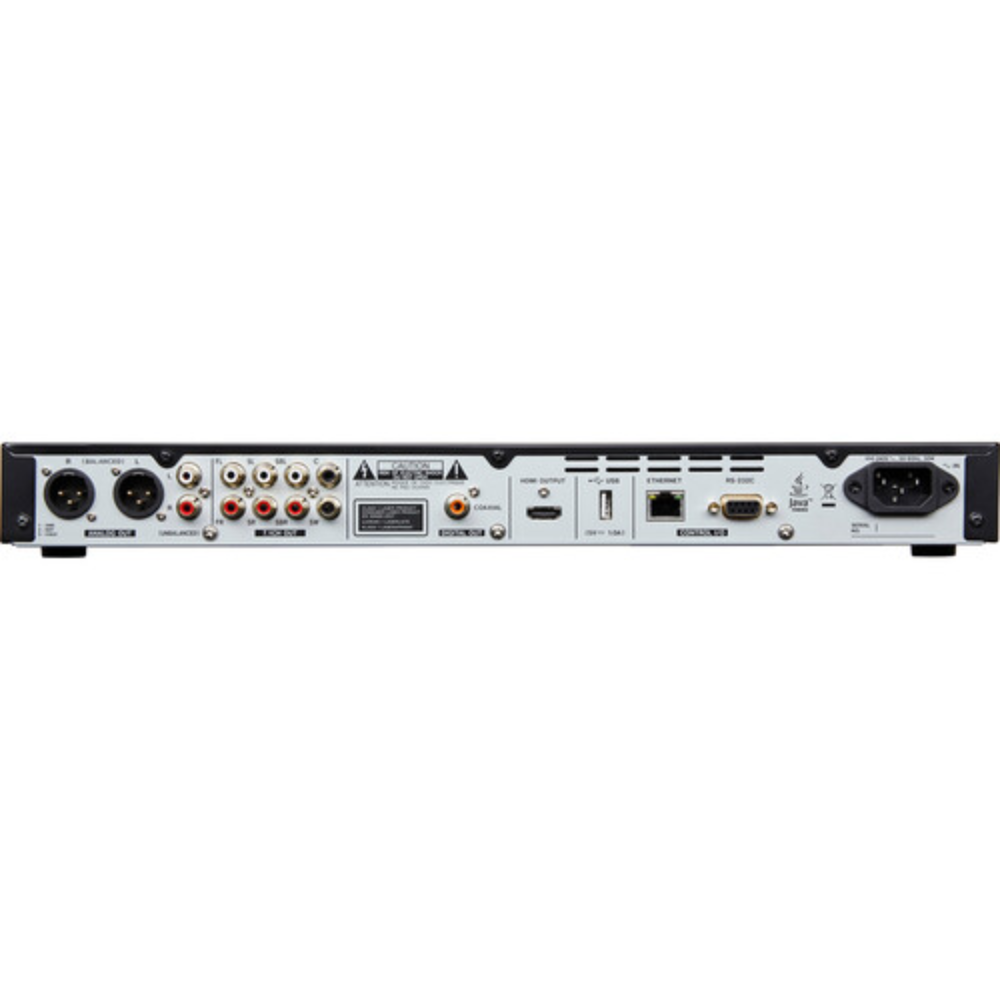

Highlighting its appeal to commercial installation environments, the BD-MP1MKII offers professional-grade XLR balanced stereo analog outputs as well as RCA unbalanced stereo outputs for versatility in audio routing, connection, and setup. The BD-MP1MKII provides support for professional-grade digital audio output formats, including Dolby Audio, DTS, and others via back-panel Coaxial and Digital Audio output connections. Playback of 2 channel linear PCM is also supported. Finally, you get RCA outputs for 7.1 surround sound systems, including left and right, center, side left and right, surround back and right, and subwoofer.

IP and RS-232C Ports for External Remote Control

Seamless, reliable two-way device status feedback and control is offered for professional installations via back panel RS-232C and Ethernet connections, enabling the BD-MP1MKII to be integrated into more sophisticated AV setups.

Specs

Audio

I/O1x HDMI Female Output
2x XLR 3-Pin Male Balanced Line Output
2x RCA Female Unbalanced Line Output
8x RCA Female Balanced/Unbalanced Speaker/Subwoofer Output
1x RCA Female S/PDIF Output

Video

I/O1x HDMI Output

Network

I/O1x RJ45 (Control) Input

Supported Disc Types

BD-R, BD-RE, BD-ROM, BD25, BD50, CD-DA, CD-R, CD-RW, DVD-R, DVD-ROM, DVD-RW

Audio File Formats

AAC, APE, FLAC, MP3, WAV, WMA

Max Supported Storage Capacity

SD: 512 GB

Digital Media Slot

SD, SDHC, SDXC

Power Consumption

30 W

Performance

Frequency Response

20 Hz to 20 kHz ± 0.5 dB

Dynamic Range

96 dB

Max Output Level

20 dBu (Balanced)
6 dBV (Unbalanced)

I/O Impedance

XLR Line Output:
200 Ohms (Balanced)
RCA Output:
75 Ohms (Stereo)
210 Ohms (Mono)

Signal to Noise Ratio

96 dB

Maximum Sampling Rate

192 kHz / 24-Bit (PCM)

Total Harmonic Distortion (THD)

0.03%Bit Depth16 / 24-Bit

Bit Rates

112 to 320 kb/s (MP3)

Broadcast System

NTSC/PAL

Connectivity

Audio I/O

1x HDMI Female Output
2x XLR 3-Pin Male Balanced Line Output
2x RCA Female Unbalanced Line Output
8x RCA Female Balanced/Unbalanced Speaker/Subwoofer Output
1x RCA Female S/PDIF Output

Video I/O

1x HDMI Output

USBI/O

1x USB-A (External Memory)

Network I/O

1x RJ45 (Control) Input

Control I/O

1x DE-9/DB-9RS-232C (Remote)

Bluetooth

No

Compatibility

Supported Disc Types

BD-R, BD-RE, BD-ROM, BD25, BD50, CD-DA, CD-R, CD-RW, DVD-R, DVD-ROM, DVD-RW

Audio File Formats

AAC, APE, FLAC, MP3, WAV, WMA

Max Supported Storage Capacity

SD: 512 GB

Supported File Systems

FAT16, FAT32, NTFS, exFAT

Multi-Channel Audio Decoding

Dolby Digital, DTS

Digital Media Slot

SD, SDHC, SDXC

General

Power Consumption 30 W

Input Power 100 to 240 VAC, 50 / 60 Hz

Operating Temperature 41 to 95°F / 5 to 35°C

Dimensions 19.0 x 1.7 x 11.1" / 48.3 x 4.4 x 28.1 cm

Weight 5.82 lb / 2.64 kg

Packaging Info

Package Weight

9.675 lb

Box Dimensions (LxWxH)

20.9 x 16.1 x 4.6"
