Tascam CA-AK1-C Conversion Adapter for CA-XLR2d and Canon Multi-Accessory Shoe Tascam logo
CA-AK1-C
Payment plans from Affirm, learn more
- Tascam
- Shipping Calculated at checkout, most in stock products ship same day
Key Features
- Attach Mic Adapter to Canon Digital Shoe
- Cable-Free Digital Audio Connection
- Power XLR Adapter from Compatible Camera

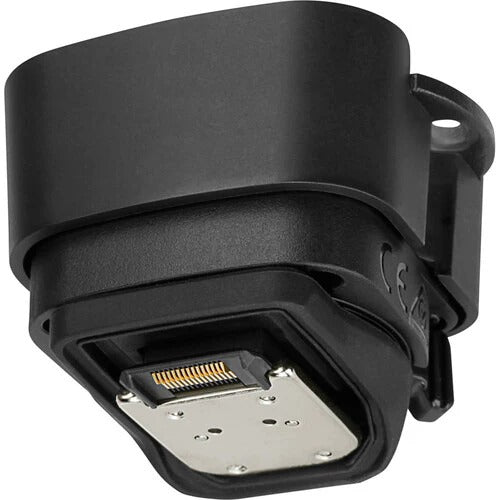

The Tascam CA-AK1-C is a conversion adapter that allows you to use the CA-XLR2d adapter for XLR microphones with Canon's multi-accessory hot shoe. Owners of the CA-XLR2d-AN mic adapter for cameras with 3.5mm inputs or the CA-XLR2d-F mic adapter for FUJIFILM cameras can use this adapter to take advantage of the multi-accessory shoe's power and cable-free digital audio connections on compatible Canon models.
Supported Canon Models with Multi-Accessory ShoeEOS R3
- Maximum current limitation rated at 9mA for phantom power. It is recommended that you use battery-power from the battery box if you need more power
- There is a 4 second mute when switching between camera power and battery power
- Does not support OL (overload) indicators
EOS R5 C
- Maximum current limitation rated at 9mA for phantom power. It is recommended that you use battery-power from the battery box if you need more power
- There is a 4 second mute when switching between camera power and battery power
- Does not support OL (overload) indicators
EOS R7
- Maximum current limitation rated at 9mA for phantom power. It is recommended that you use battery-power from the battery box if you need more power
- There is a 4 second mute when switching between camera power and battery power
- Does not support OL (overload) indicators
EOS R10
- Does not supported battery power from camera, can only be powered by battery box
- Does not support OL (overload) indicators
XF605
- Does not support battery power using battery box
- Does not support OL (overload) indicators
TASCAM CA-AK1 SpecsGeneralCompatibilityTascam CA-XLR2d
Canon EOS R3
Canon EOS R5 C
Canon EOS R7
Canon EOS R10
Canon XF605PhysicalDimensionsNot Specified by ManufacturerWeightNot Specified by ManufacturerPackaging InfoPackage Weight0.27 lbBox Dimensions (LxWxH)5.5 x 3.5 x 3"
