Tascam MA-BT240 240W Mixing Amplifier with Bluetooth Extension
MA-BT240
Payment plans from Affirm, learn more
- Tascam
- Shipping Calculated at checkout, most in stock products ship same day
TASCAM MA-BT240
Features
- For Commercial Spaces and Institutions
- Efficient Class-D Amplifier
- 120W x 2 Channels or 240W x 1 Channel
- Low-Impedance 4- or 8-Ohm Outputs
- High-Impedance 100 and 70V Taps
- Mic/Line Input with Switchable Ducking
- 2 RCA Stereo Line Inputs
- Front-Panel Knob Mixing for all Inputs
- Compact 1 RU Half-Rack Design
- Includes Block Cables and Power Cable
Ideal for commercial spaces, institutions, waiting rooms, and more, the MA-BT240 from Tascam is a versatile combo audio mixer and amplifier with 120W for two channels or 240W for one channel. With comprehensive front-panel mixing, reliable onboard Bluetooth, and both low- and high-impedance I/O, the MA-BT240 wears many hats.
Ready for Low- and High-Impedance Speaker Systems
The MA-BT240 supports both high-impedance and low-impedance speaker connections. With the ability to support 70 or 100V systems as well as pro-audio speaker equipment, the MA-BT240 is ideal for practically any small-format commercial amplification application.
Reliable Class-D Amplification
Highly efficient Class-D amplification gives the MA-BT240 high output for its compact size. Delivering an impressive output of 120W on 2 channels at 4 or 8 ohms for low-impedance systems, and 240W on 1 channel at 100/70V for high-impedance systems, the MA-BT240 delivers plenty of power for moderate commercial spaces.
Onboard Bluetooth Receiver
The MA-BT240 makes it simple to stream music wirelessly with its built-in Bluetooth receiver. The Bluetooth antenna is mounted on the front panel for stable wireless reception. You can also extend the antenna with commercially available RP-SMA wire, allowing you to place it in the optimal position for your specific space.
Built-In Mixer with Mic and Line Inputs
In addition to Bluetooth connectivity, the MA-BT240 is equipped with a switchable mic/line input with ducking function as well as two additional line inputs for external audio players. Each input can be mixed with dedicated knobs on the front panel, with signal and peak indicator lights to help you optimize signal levels at a glance.
EQ and High-Pass Filter on Output
The MA-BT240 makes it easy to optimize your audio for the acoustics of your space. The output features a dedicated high-pass filter to avoid distortion with high-impedance systems as well as treble and bass boost/cut controls to fine-tune the sonic response of your system. Output can also be switched between stereo and mono operation to adapt to your speaker system configuration.

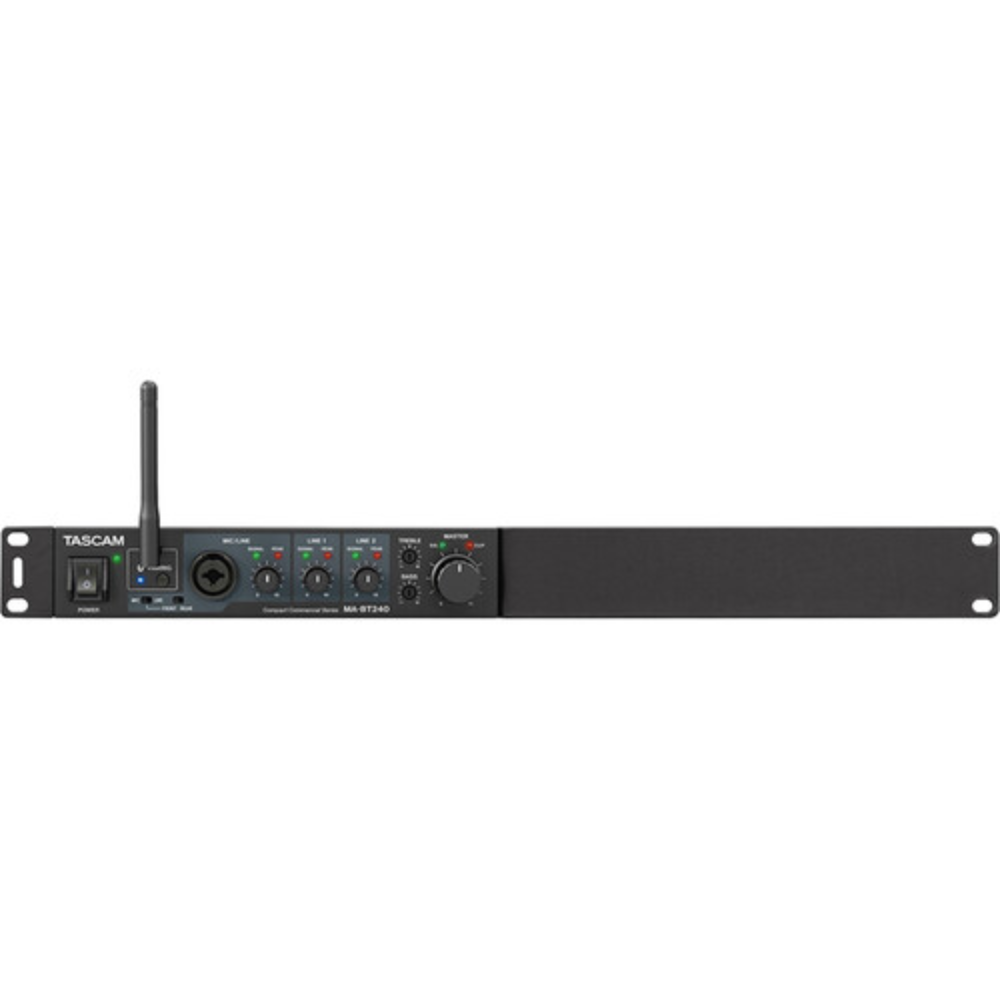

Compact 1 RU Half-Rack Size
With its compact half-rack size, the MA-BT240 is space efficient, even when simply placed on a desktop. The optional AK-RM05 or AK-RS1 rack kit (sold separately) allows you to mount the MA-BT240 in any standard equipment rack.
Additional Features
- The MA-BT240 is easy to install in commercial spaces wherever it's practical, with support for external volume controllers to put system control where you need it.
- The MA-BT240 is ideal for schools and facilities that require broadcast calls and business communications. The mic/line input features a paging function that mutes all other inputs during announcements.
- An RCA line output makes it easy to create additional zones for your system by cascading the MA-BT240 to other amplifiers.
Specs
Number of Channels 3 Input / 2 Output
Amplifier Power Rating 70 V / 100 V:
1x 240 W One Channel Driven
4 Ohms / 8 Ohms:
2x 120 W Both Channels Driven
Load Impedance / Voltage 4 / 8 Ohms per Channel
70 / 100 V
DSP Yes
Audio I/O 1x Combo XLR-1/4" 3-Pin Balanced Line/Mic Input (Front Panel)
1x Block 4-Pin Balanced Line/Mic Input (Detachable)
2x Stereo RCA Coaxial Unbalanced Line Input
1x Stereo RCA Coaxial Unbalanced Line Output
Digital Audio I/O No
Network I/O No
USB I/O No
Rackmount Size1 RU (1/2-Rack)
Amplifier
Form Factor/Type Tabletop (Rack-Mountable with Optional Hardware)
Number of Channels 3 Input / 2 Output
Number of Zones 2
Amplifier Power Rating 70 V / 100 V:
1x 240 W One Channel Driven
4 Ohms / 8 Ohms:
2x 120 W Both Channels Driven
Amplifier Class Class-D
Load Impedance / Voltage 4 / 8 Ohms per Channel
70 / 100 V
Performance
Frequency Response 20 Hz to 20 kHz (Line In 1 to Speaker Out, Treble/Bass Flat)
I/O Impedance Mic Input:
≥ 2 Kilohms (Balanced)
Line Input:
≥ 10 Kilohms
Line Output:
200 Ohms (Unbalanced)
Input Level Mic:
-30 dBu (Max)
Line:
+20 dBu (Max)
RCA Line:
+6 dBV (Unbalanced, Max)
Output Level RCA Line Output:
+6 dBV Max (Unbalanced)
VCA Control Yes
SNR ≥ 92 dB (at 1 kHz)
Distortion ≤ 0.05% (at 1 kHz)
Crosstalk ≥ 70 dB
Signal Processing
DSP Yes
EQ 2-Band Shelving EQ
Compressor Yes
Limiting Yes
Connectivity
Audio I/O
1x Combo XLR-1/4" 3-Pin Balanced Line/Mic Input (Front Panel)
1x Block 4-Pin Balanced Line/Mic Input (Detachable)
2x Stereo RCA Coaxial Unbalanced Line Input
1x Stereo RCA Coaxial Unbalanced Line Output
Digital Audio I/O
No
Network I/O
No
Other I/O
1x Block 3-Pin Remote Input
Speaker Outputs
1x Block 4-Pin 4-Ohm/8-Ohm
1x Block 2-Pin 70 V/100 V
Number of Module Slots
No
USB I/O
No
Mobile App Compatible
No
Wireless
Bluetooth 5.1
*Built-In
Bluetooth Profiles
A2DP, AVRCP
Wireless Range
32.8' / 10 m
Media/Memory Card Slot
No
Power
AC Input Power
Factory Set:
100 to 120 VAC, 50 / 60 Hz
AC Power Connector
1x IEC
Power Consumption
58 W (1/8 Power)
18 W (Idle)
AC Outlet
No
Physical
Display & Indicators
Front Panel:
1x Green LED (Power)
1x Green LED (Signal, per Channel)
1x Red LED (Peak, per Channel)
1x Red LED (Clip)
Rackmount Size
1 RU (1/2-Rack)
Cooling
Convection
Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
5 to 85%
Dimensions
8.4 x 1.7 x 11.7" / 21.4 x 4.4 x 29.8 cm
Weight
5.5 lb / 2.5 kg
Packaging Info
Package Weight
7.56 lb
Box Dimensions (LxWxH)
17.1 x 11.8 x 4.3"
