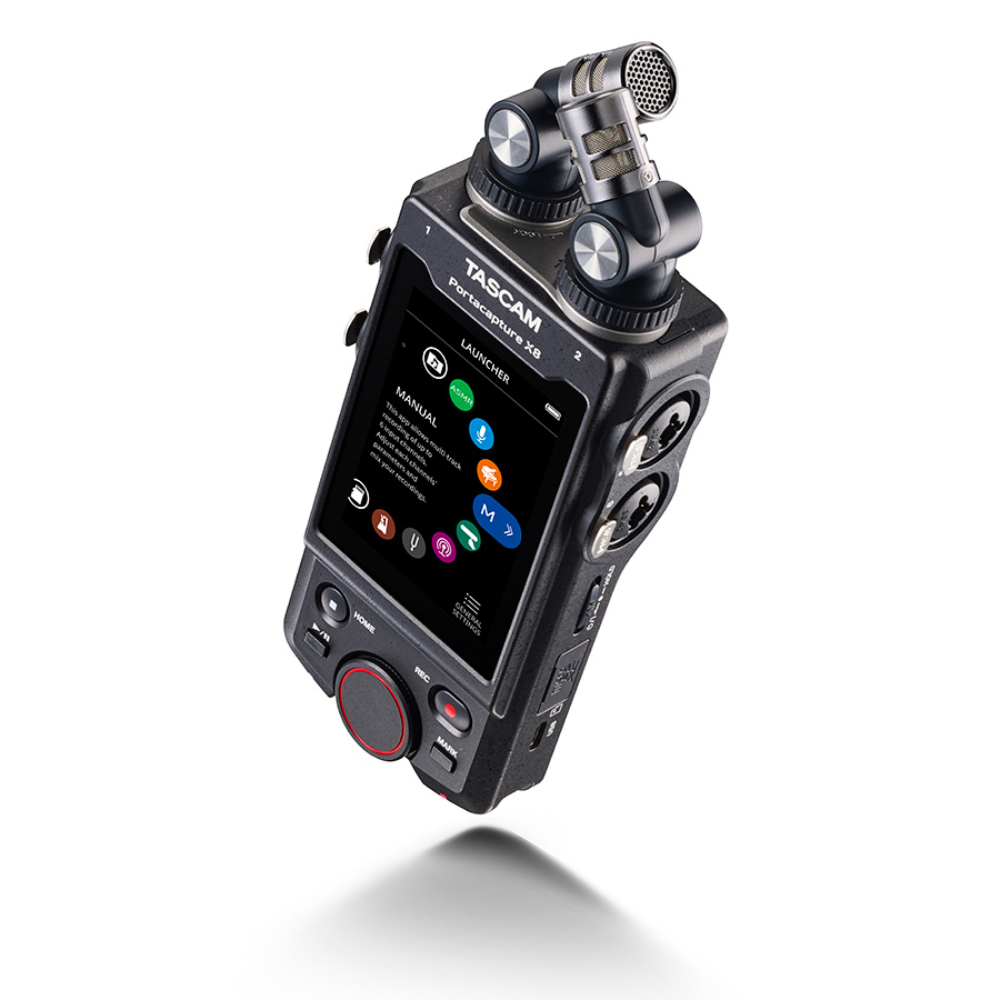

Tascam Portacapture X8 6-Input / 6-Track Handheld Adaptive Multitrack Recorder

With its large touchscreen, 32-bit float resolution to avoid clipping, and tailored modes for music, field, podcast, and voice recording applications, the Tascam Portacapture X8 portable handheld multitrack recorder makes it incredibly easy to capture up to six individual tracks (plus a stereo mix) of detailed, high-resolution audio for common production scenarios. Its detachable condenser mics can be set for a wide or tight stereo image, and may be used simultaneously with the mic/line combo inputs. Equally adept as a handheld device or when used in stand- or camera-mounted setups, the Portacapture X8 can handle anything from sampling sessions and interviews to podcasts, live concerts, and multi-mic setups.

Flexible powering methods—batteries, USB bus power, or an AC adapter—make the Portacapture X8 well suited to on-the-go recording, all-day video shoots, and computer-based audio production. Need to patch in external mics or an outboard mixer? The Portacapture X8's four balanced combo XLR-1/4" inputs accommodate mic- or line-level signals and can supply phantom power if needed. Whether you use the built-in mics or an external source, selectable modes such as dual recording, low-cut filtering, limiting, gating, and auto level give you options for achieving a clean, undistorted recording. Separate line and headphone outputs are provided for real-time monitoring while recording to a camera.

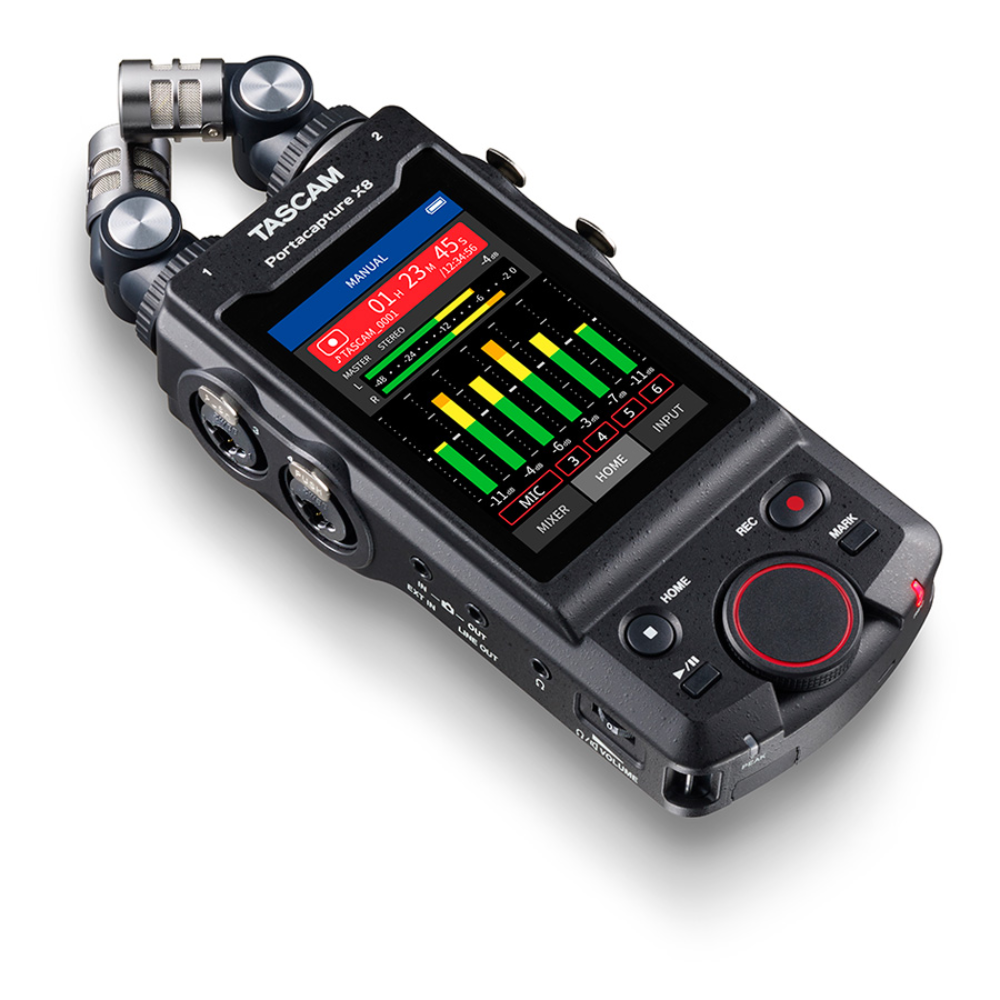

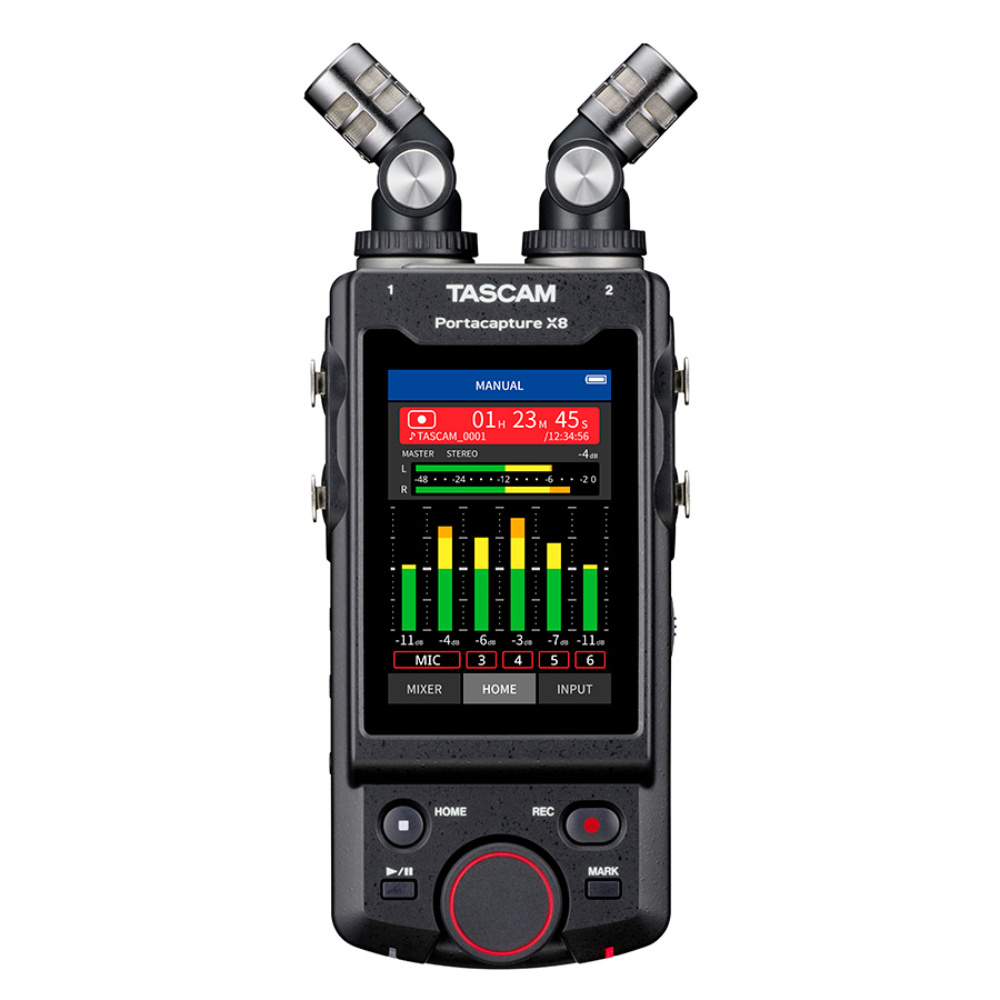

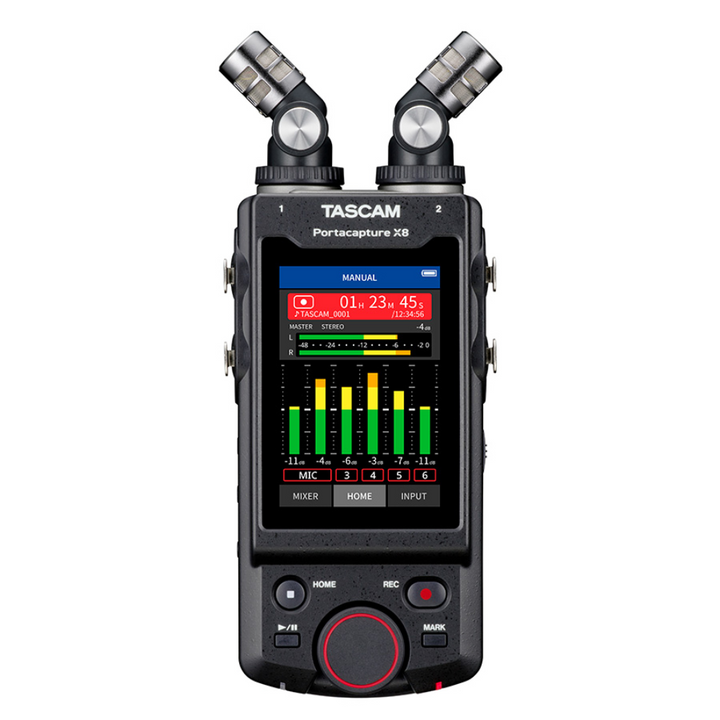

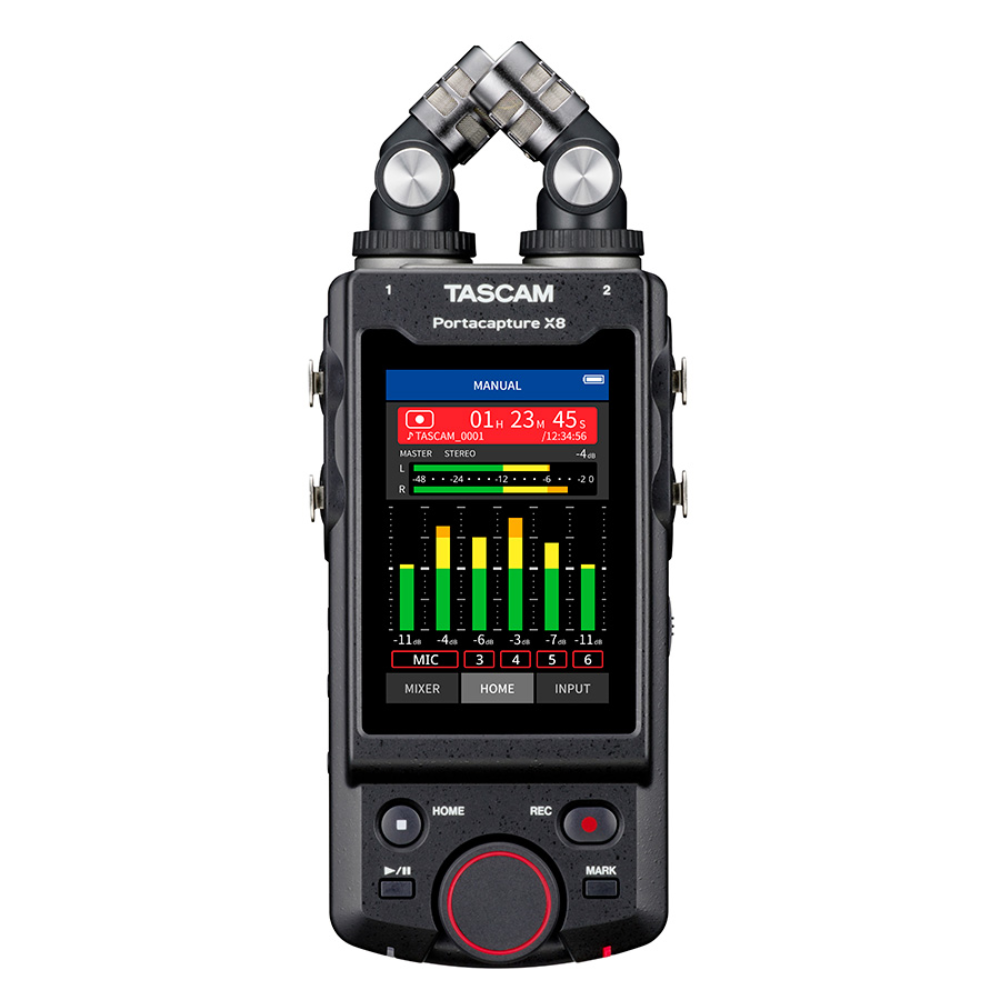

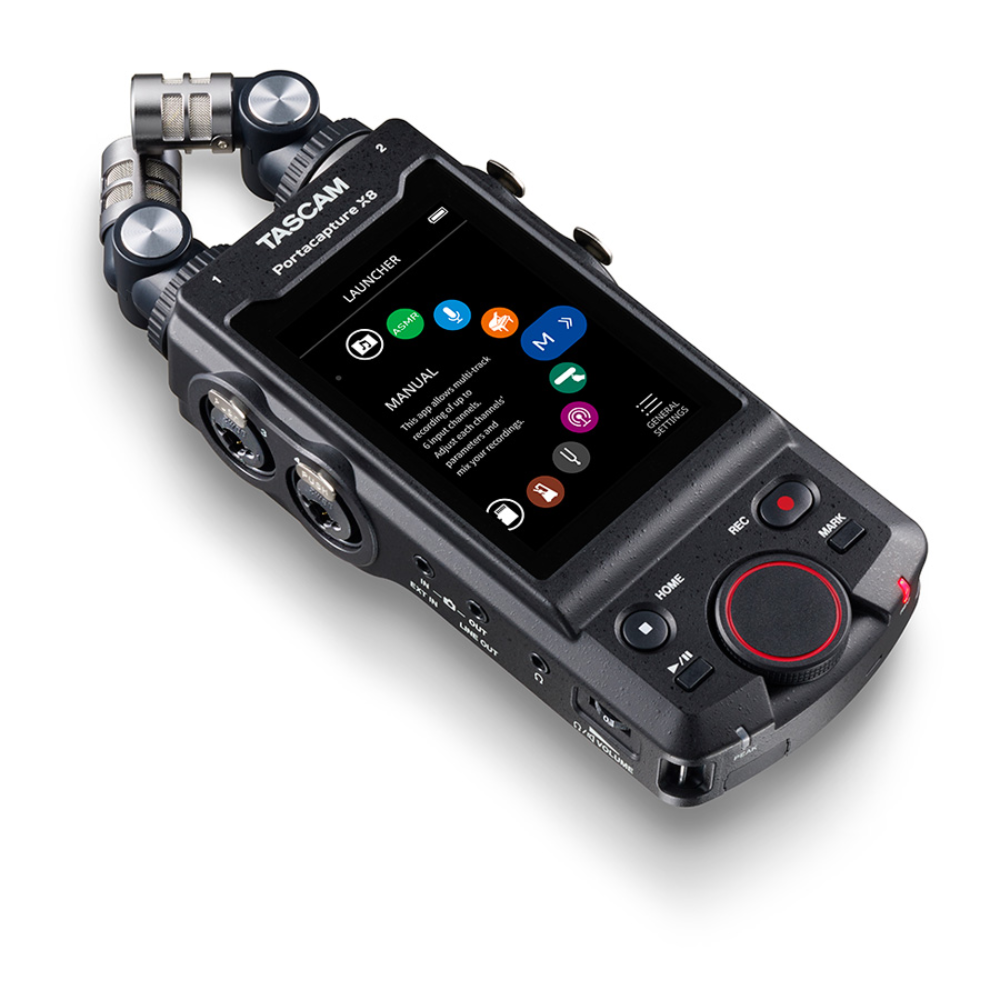

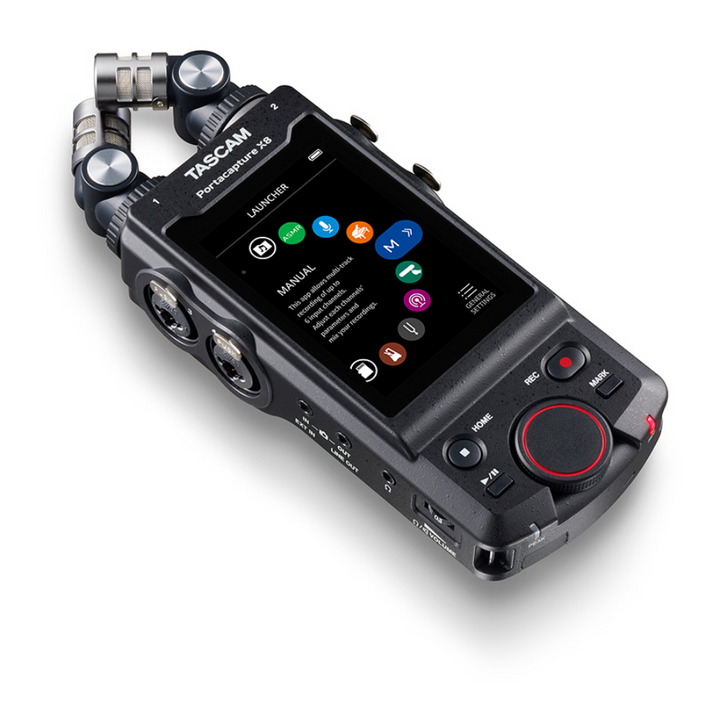

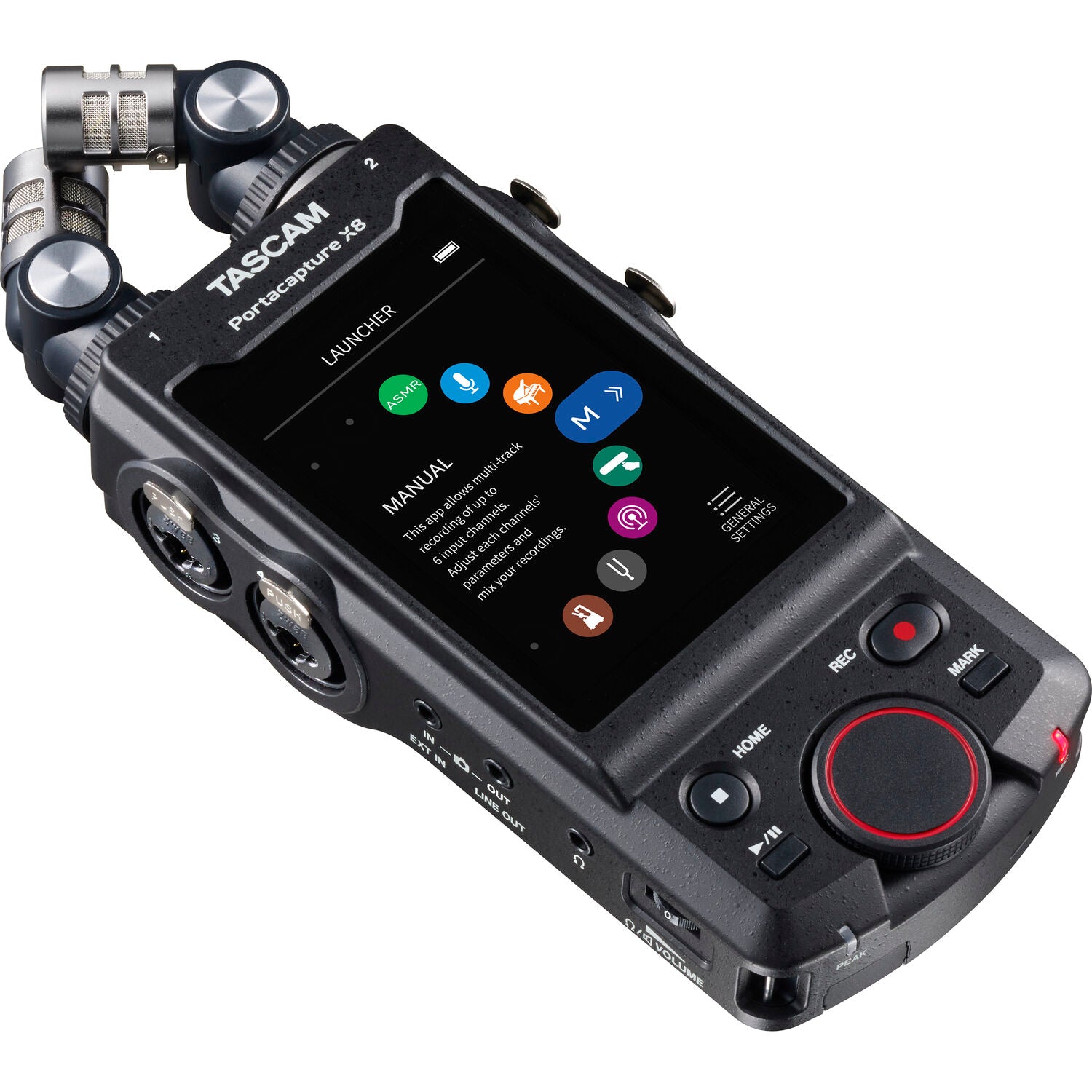

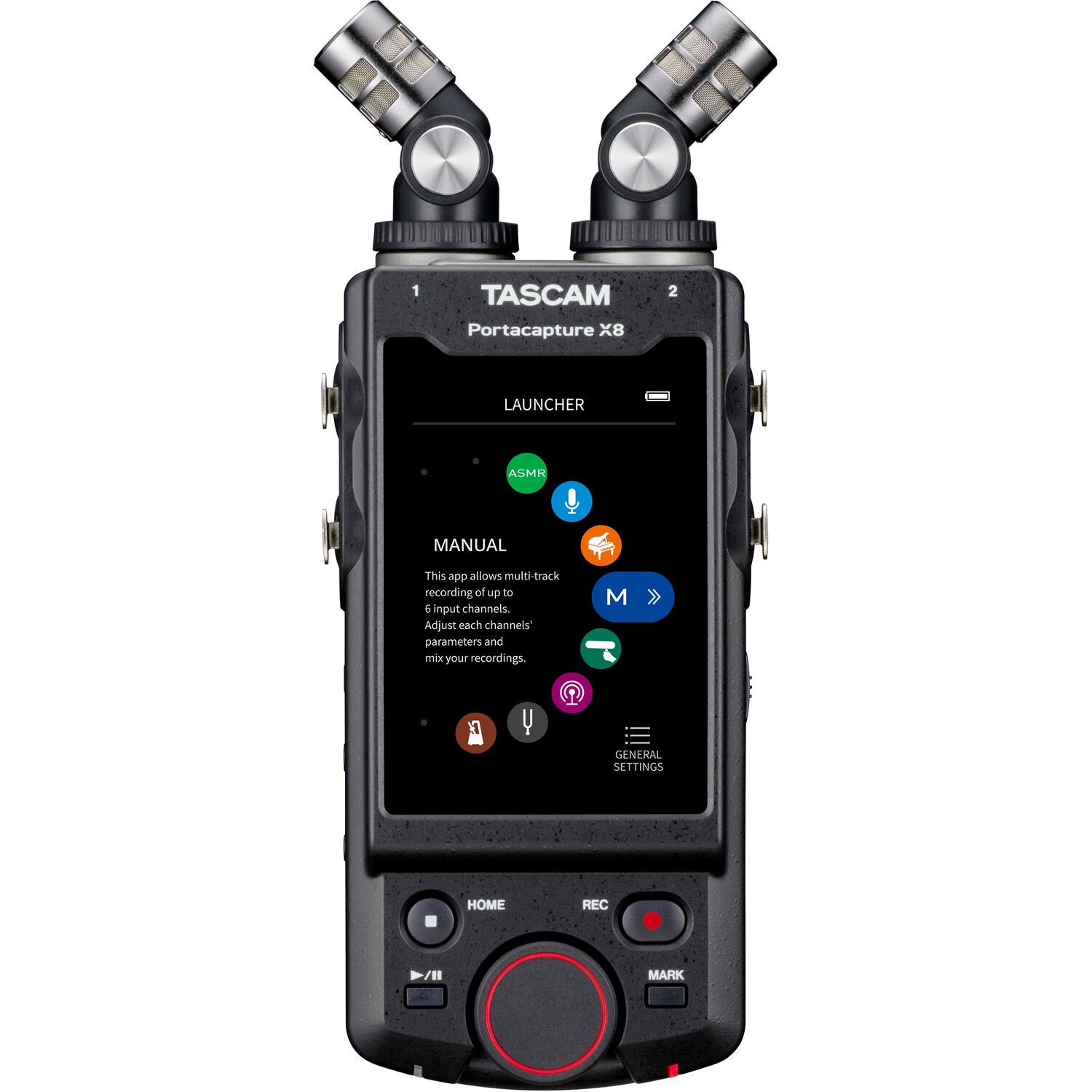

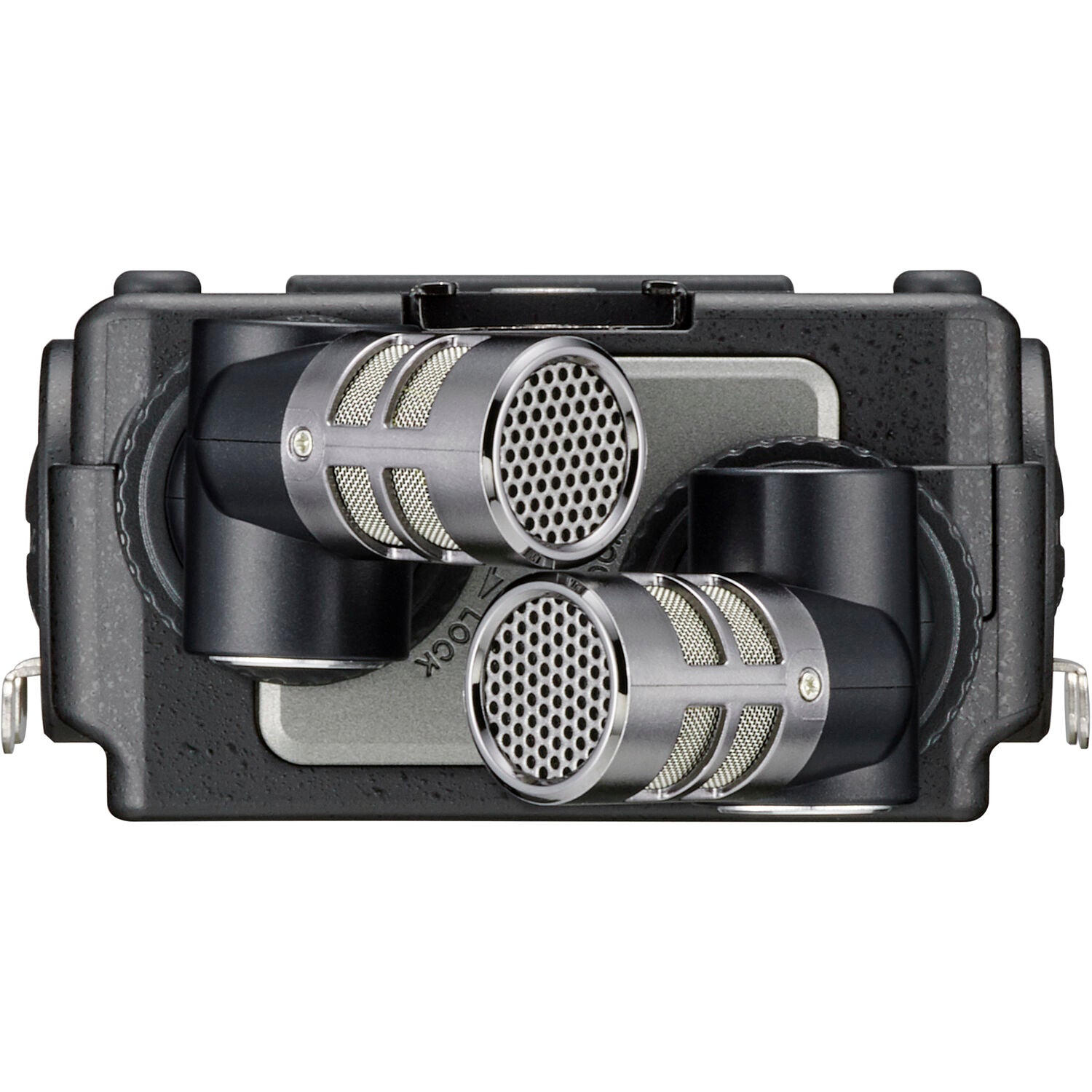

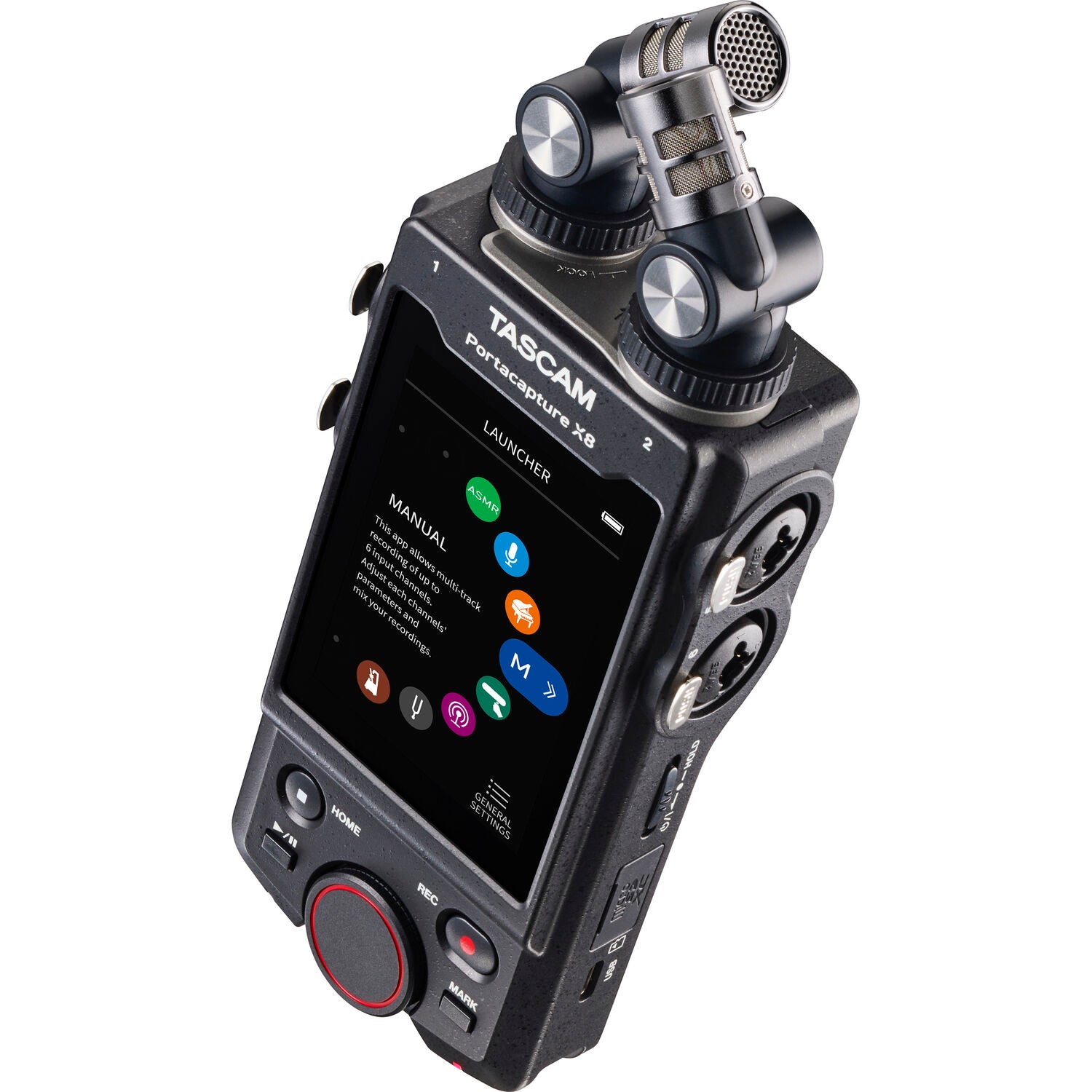

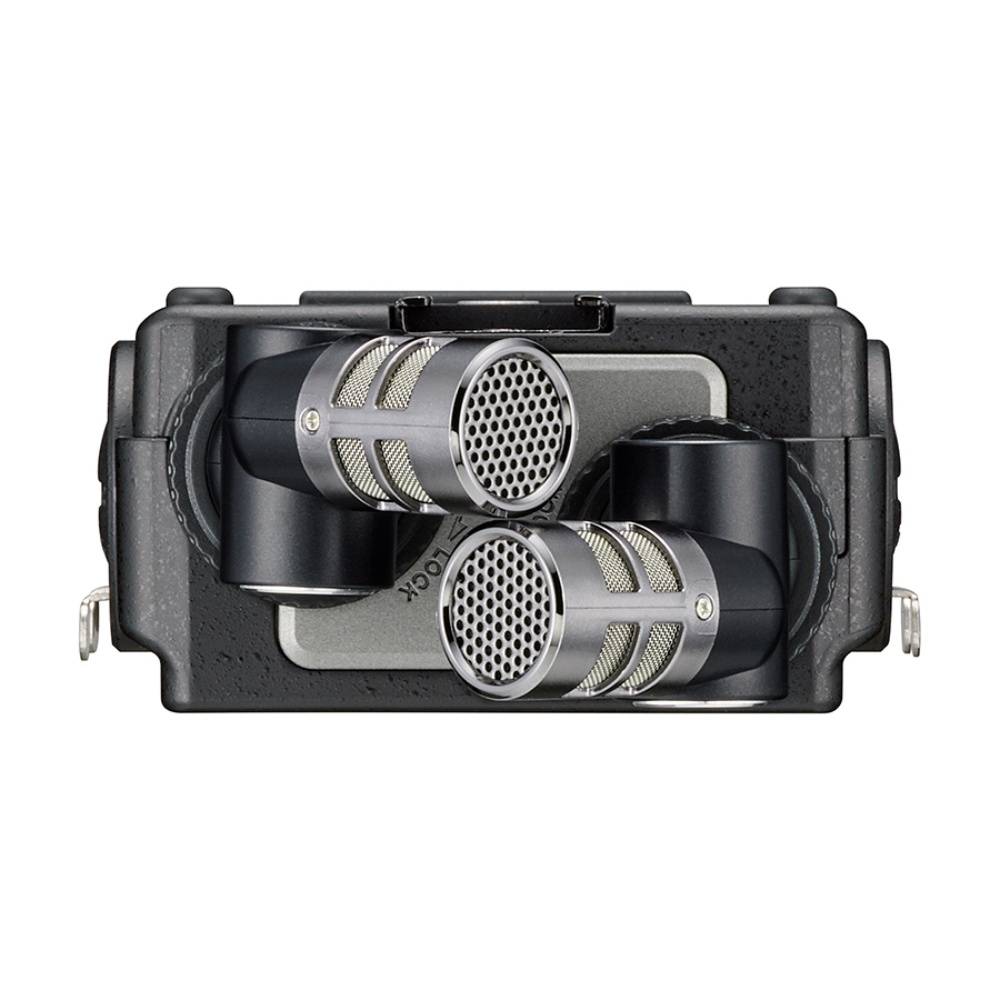

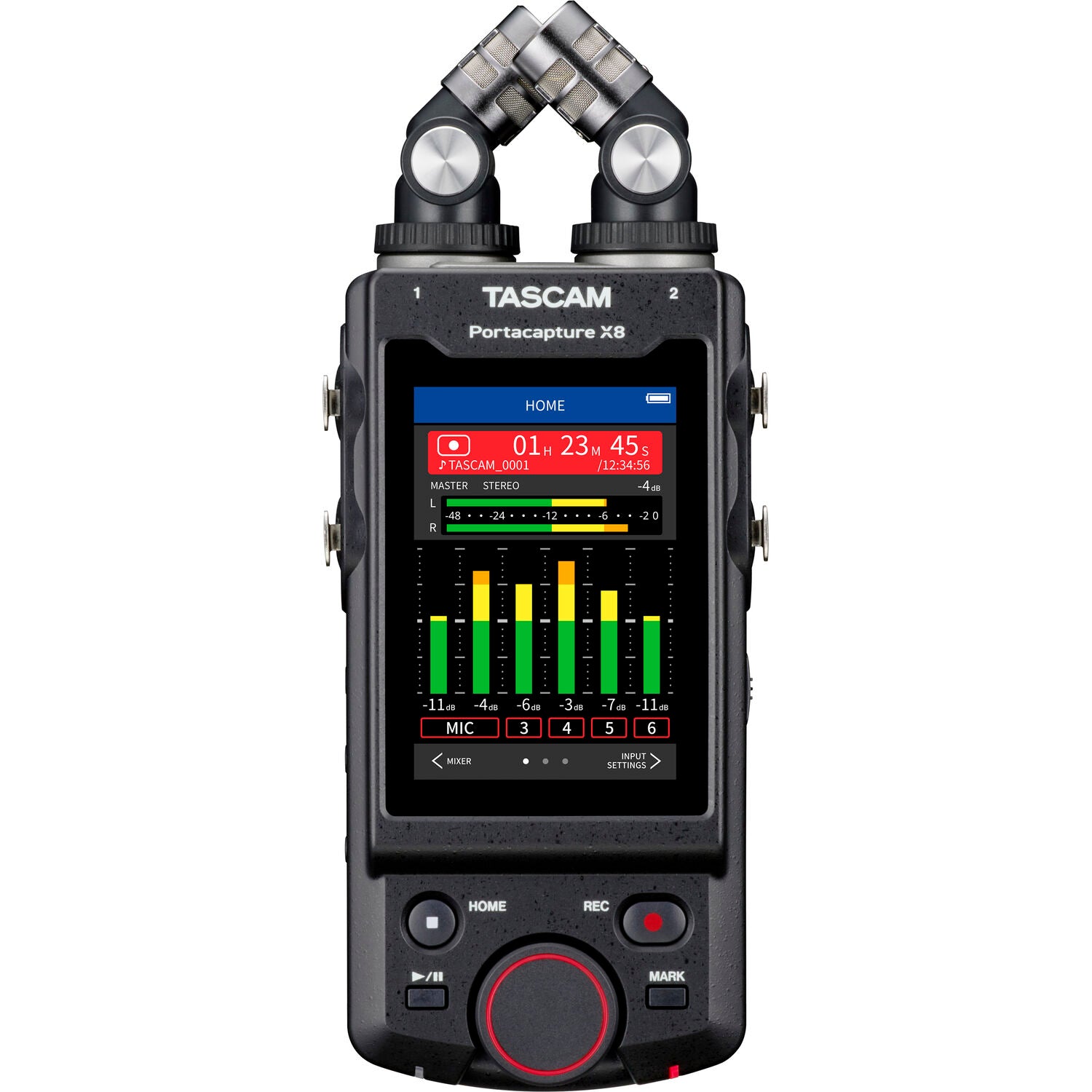

Touchscreen User InterfaceRather than requiring manual configuration to accommodate different scenarios, the Portacapture X8 offers presets that optimize the recorder for common applications such as basic multitrack recording, podcasts, music, voice (interviews, vlog, etc.), field recordings, ASMR, and more. The "Launcher" system makes these readily accessible via the large 3.5" color touchscreen.Detachable Condenser MicrophonesThe Portacapture X8's detachable 14.6mm large-diaphragm condenser microphones empower you with crisp stereo capture, even without external mics. Both mics can be detached/attached to form A-B or X/Y mic configurations. Use the A-B position (capsules facing outward) to produce a wide stereo image, or switch to the X-Y position (capsules facing inward) if you need a tighter stereo field with a strong center presence and fewer phase differences.

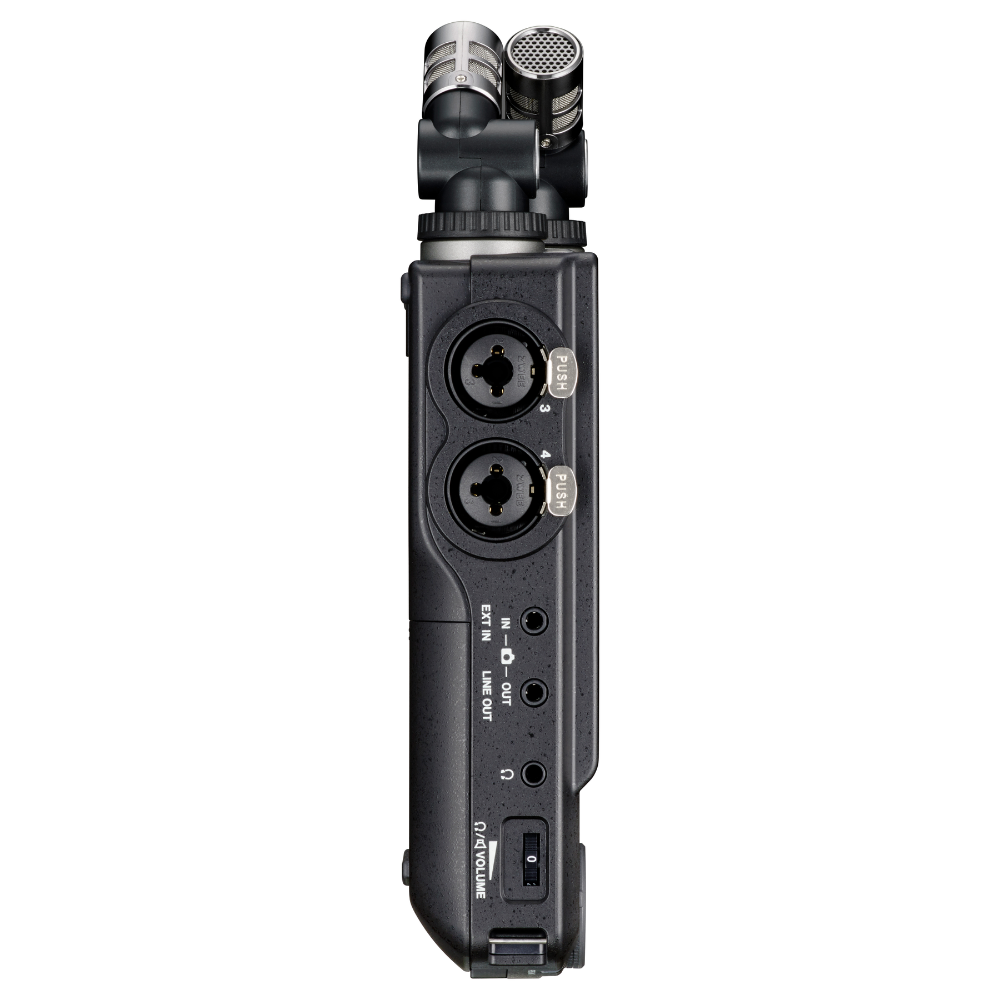

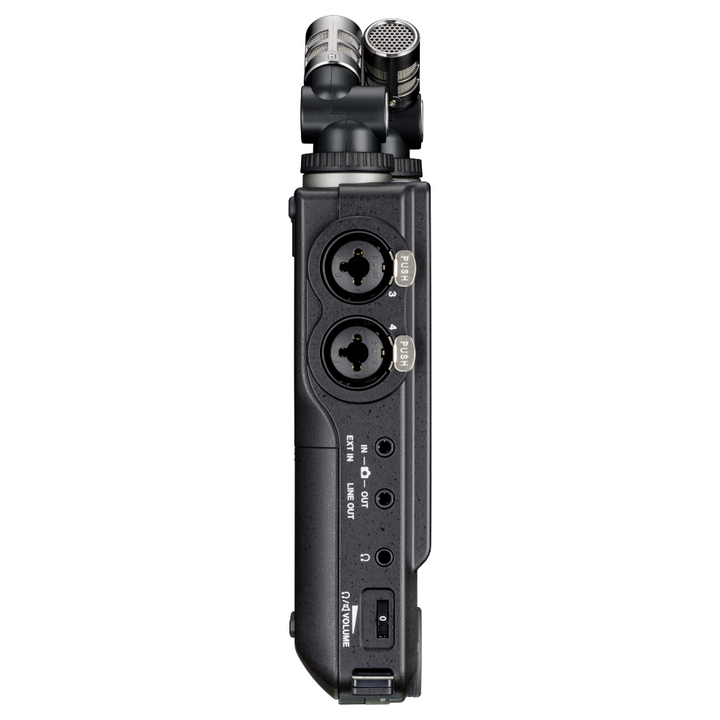

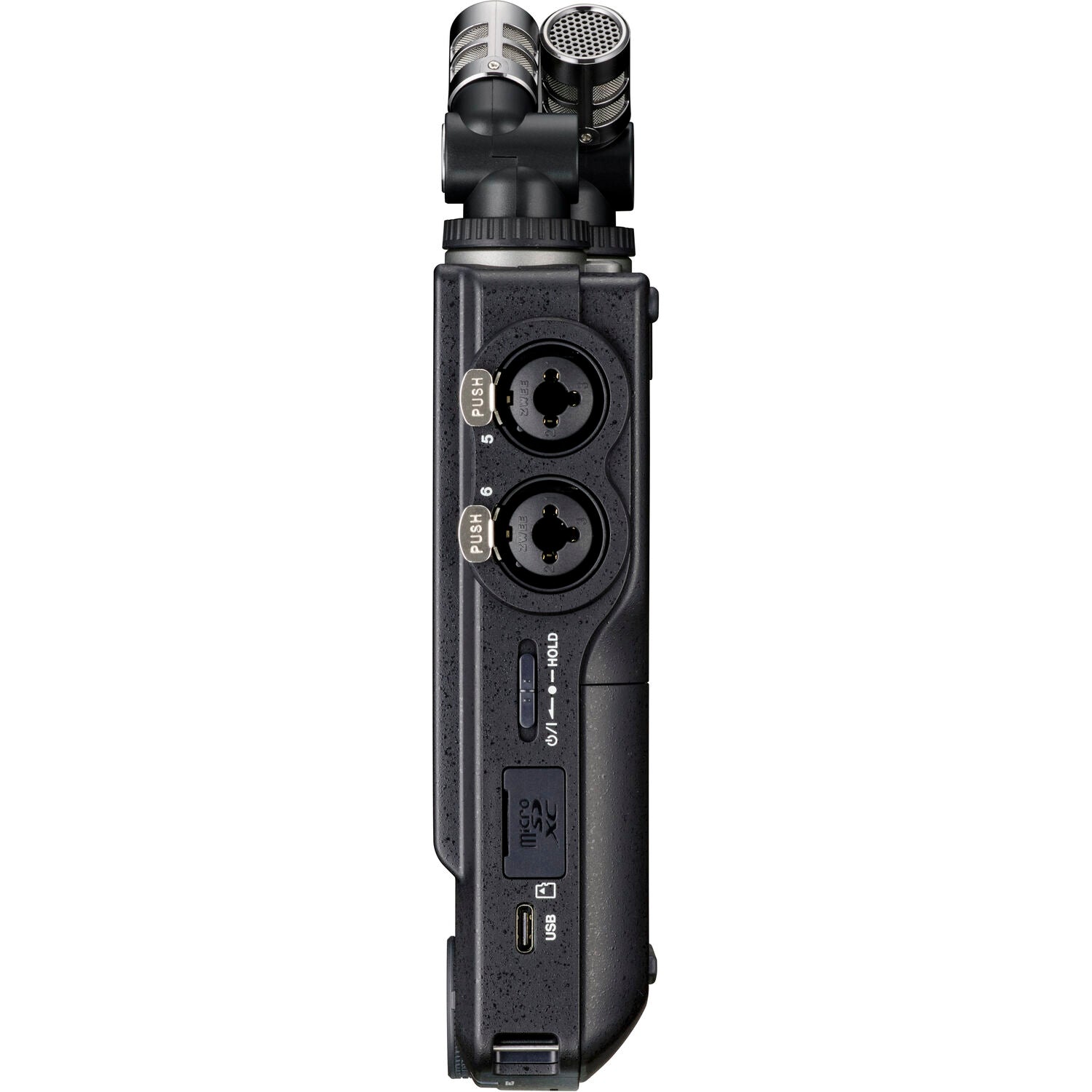

When the mics are not connected, input jacks 1 and 2 can be used to bring in lavalier mics with 3.5mm TRS plugs, even if they need plug-in power.Four Combo XLR-1/4" Mic/Line Inputs with Phantom PowerFour Neutrik XLR-1/4" TRS combo jacks support mic- and line-level sources, allowing you to record external microphones or balanced outputs from a mixer or FOH console. With switchable 24 or 48V phantom power, the HDDA (High-Definition Discrete Architecture) mic preamps can serve a variety of microphones such as dynamic or condenser types. Using the onboard microphones, you can capture the ambient sound of an audience while recording direct from an external console, which is ideal for live performances. Additionally, there is a 3.5mm mic input that can supply plug-in power for lavalier mics or compact shotgun mics, and a 3.5mm camera input for monitoring the return from a DSLR.High-Resolution CaptureThe Portacapture X8 can record in BWF-compliant WAV format at up to 192 kHz / 32-bit float resolution, and it supports multitrack recording up to eight tracks (six inputs plus a stereo mix). Also, dual recording mode enables each track to be recorded in a different file format.

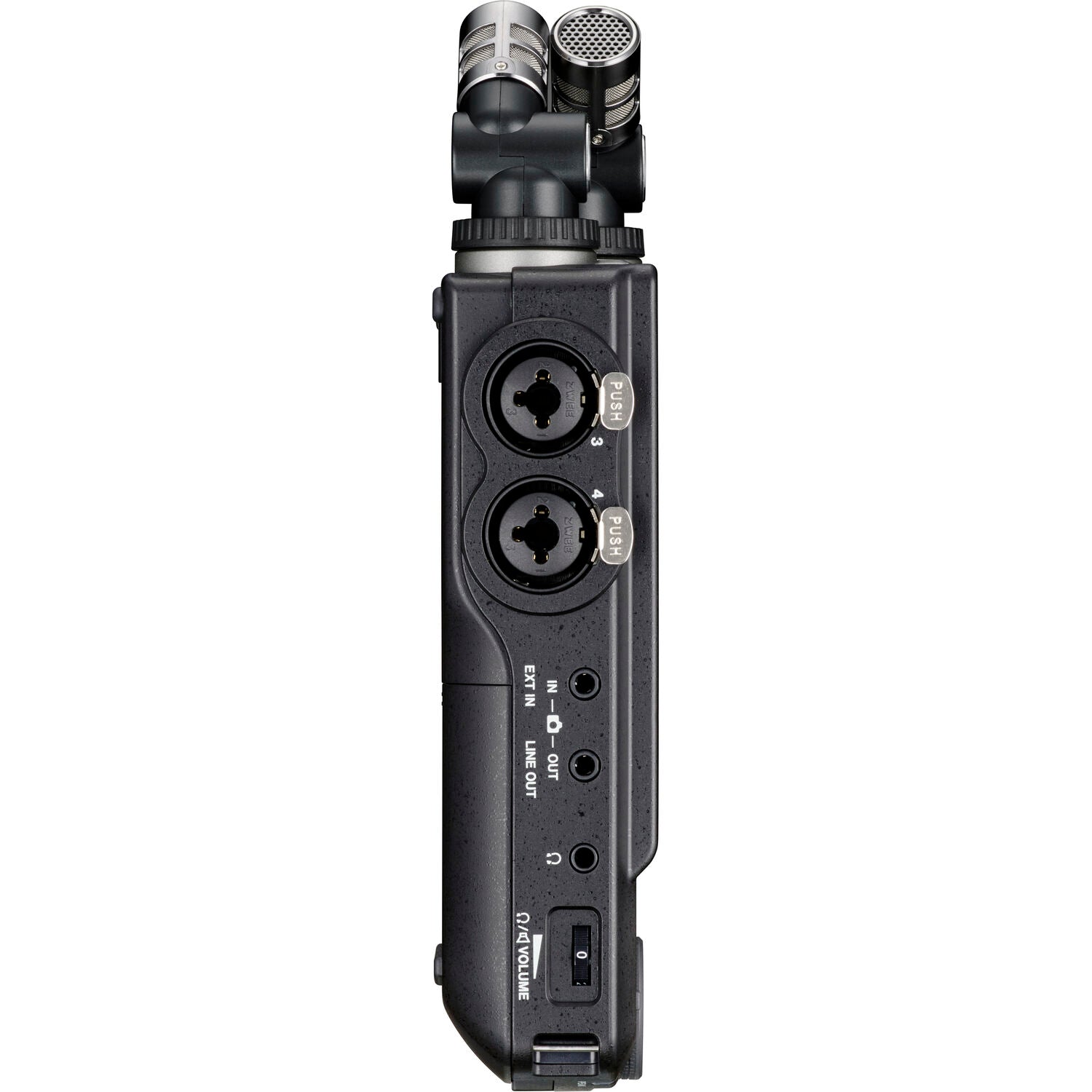

With premium dual A/D converters and 32-bit floating point recording technology, the X8 achieves a wide dynamic range, avoids clipping, and allows the audio level to be increased or decreased later without deteriorating the signal-to-noise ratio.Supports microSD Cards up to 512GBTo maximize compactness and portability, the Portacapture X8 records directly to media cards (available separately). microSD, microSDHC, and microSDXC cards (up to 512GB capacity) are supported for long recording times, even at high audio resolutions.3.5mm Line and Headphone OutputsWhen you want to record to your camera and the Portacapture X8, just connect the 3.5mm camera/line output from the Portacapture X8 into your camera's input. A separate 3.5mm output is provided to allow critical listening through headphones without disconnecting the camera feed. Quick monitor checks can be done through the Portacapture X8's built-in mono speaker.USB Microphone and Audio Interface FunctionalityEquipped with a USB Type-C port, the Portacapture X8 can be connected to your computer for real-time bidirectional audio routing and streaming. Utilizing plug-and-go driverless functionality, the Portacapture X8 can be used as a USB microphone or as an 8-in/2-out audio interface for your favorite audio software. For convenient file transfers, the Portacapture X8 can function as a card reader when connected via USB.Powered via AA Batteries, USB, or AC AdapterUsing the four included AA alkaline batteries, you can power the Portacapture X8 no matter where you are. For long-duration sessions that require extended recording time, the Portacapture X8 may be powered via a USB connection to a computer or mobile battery, or through the Tascam PS-P520U AC adapter (available separately).Ideal for Handheld or Camera-/Tripod-Mounted UseDesigned for optimal portability, the Portacapture X8 is both compact and light. The streamlined body lends itself to comfortable use when held in the hand. Utilize the 1/4"-20 threaded hole on the underside of the Portacapture X8 to mount it on a mic stand or tripod for stable, stationary positioning. Or attach the X8 directly to your camera via its integrated cold shoe mount.Built-In Level Modes and Signal Processing Enhance Audio QualityEnhance the sonic impact of your audio with the Portacapture X8's built-in level modes and signal processing. Engage automatic level control to increase or decrease the recording volume when the input sound is too quiet or loud, and switch on the compressor and limiter to compress the signal before it reaches the point of distortion.

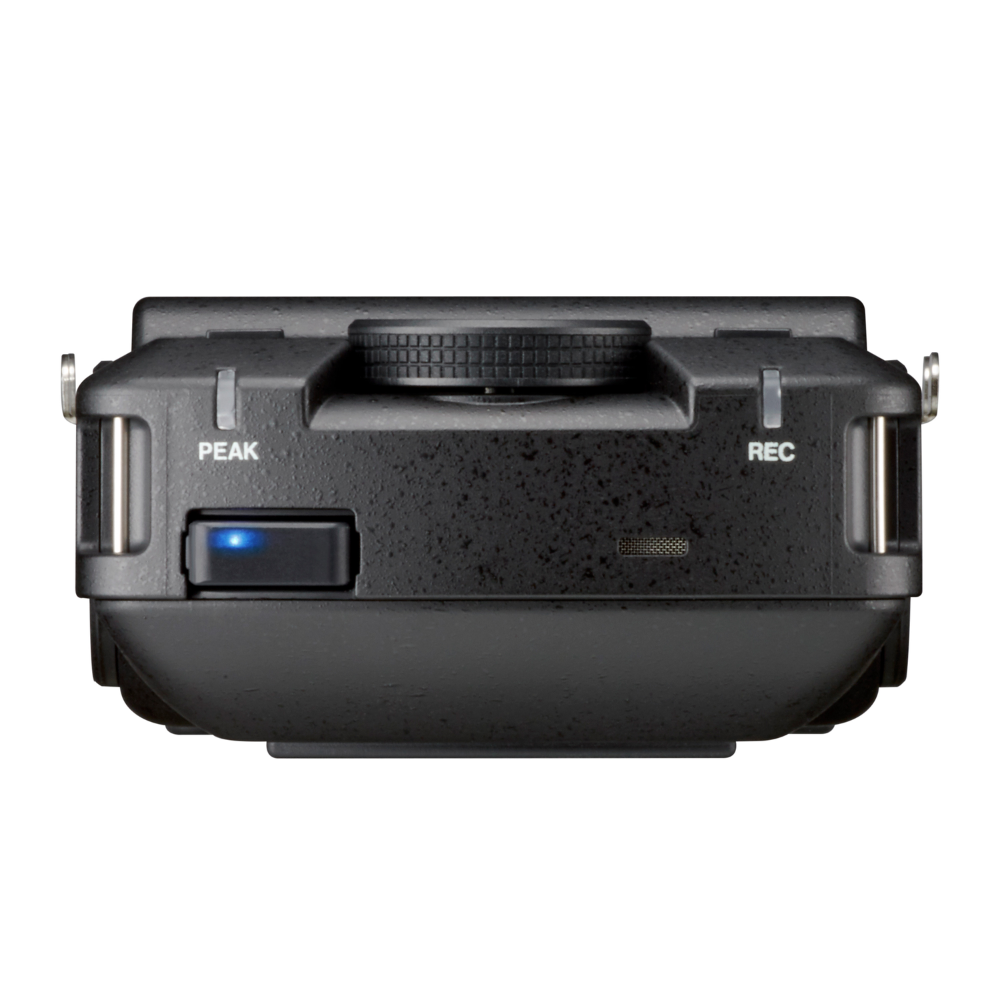

Mitigate wind noise and low-frequency rumble by selecting the low-cut filter, and cut background noise between performances with the noise gate. Reverb is also available for situations that call for some extra ambience.Tone Generator for Synchronizing FilesAn internal tone generator makes it easy to synchronize files recorded on the Portacapture X8 and your camera. When the Portacapture X8 is connected to a camera, use the slate tone function to send an audible tone to the camera and the Portacapture X8. The resulting tones can be used as guides when synchronizing your files in video editing software.Supports Wireless Remote ControlWireless control from a smartphone or tablet can be done using the separately available AK-BT1 Bluetooth dongle. Using the AK-BT1, timecode sync is also possible.

Portacapture X88-channel 32-bit float Portable Audio Field Recorder

The TASCAM Portacapture X8 allows you to record wherever your inspiration takes you. From field recording for sound design to audio for video production, or multi-track and one-take songwriting. The Portacapture X8 combines high-resolution sound quality with intuitive app-like control. 32-bit float point recording means you can capture the most dynamic sound sources without worrying about clipping, or indistinct audio from quiet sources.

*Note : Only use AK-BT1 adapter. This product not compatible with AK-BT2 adapter.

FEATURES

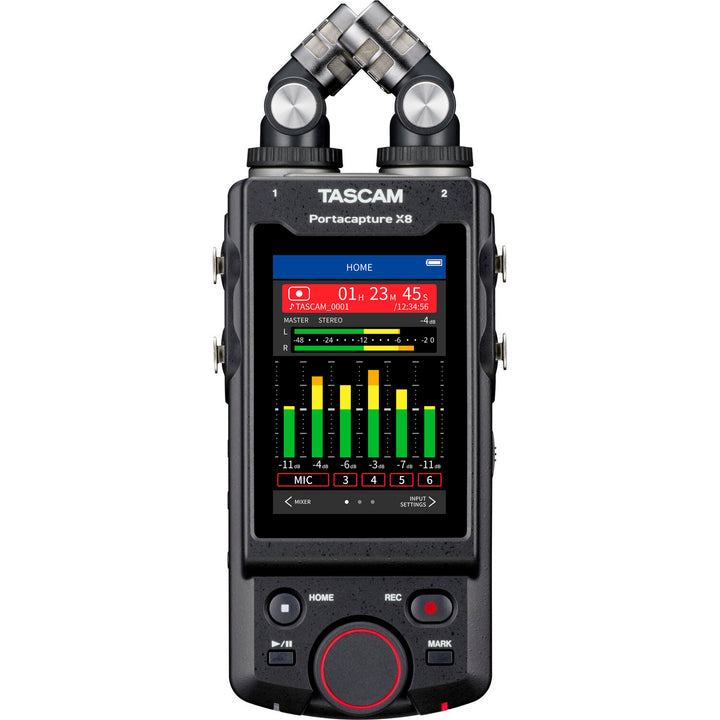

• Intuitive Launcher system using a 3.5-inch color touch panel display
• 4 mic/line inputs with individual phantom power accommodate practically any combination of sound sources, from microphones and line-level devices to instruments
• 32-bit floating point recording means you don't need to set input levels before recording, and you won't have to scrap audio that was recorded too loudly or quietly
• Detachable large-diaphragm condenser mics can be configured for A-B and X-Y stereo recording
• Driverless 8-in/2-out USB audio interface
• Record up to 8 tracks simultaneously (6 tracks + 2 mix)
• Wireless remote control via Portacapture Control app and optional AK-BT1 Bluetooth adapter

Always Capture the Best Takes, Thanks to 32-bit float Recording and Dual ADC
Whether you're recording from the onboard stereo microphones, external microphones, instruments, or line-level sources, the Portacapture X8's 32-bit float recording capability means you'll never have to scrap a recording due to incorrect audio levels. When recording at lower bit depths, loud sound sources can cause digital clipping that cannot be fixed during editing. With a 32-bit float point recording, you can reduce the file's level in your DAW or NLE software to an appropriate level with no trace of digital clipping or limiting. Likewise, by using dual analog-to-digital technology recordings are captured with greater dynamic range and detail than they would otherwise— you can increase the level of a mumbled phrase without creating a distracting change in tone or dynamics.

What is 32-bit Float Recording?
https://tascam.com/us/feature/32-bit_float

The Launcher Icon System Puts Application-specific Configurations at Your Fingertips

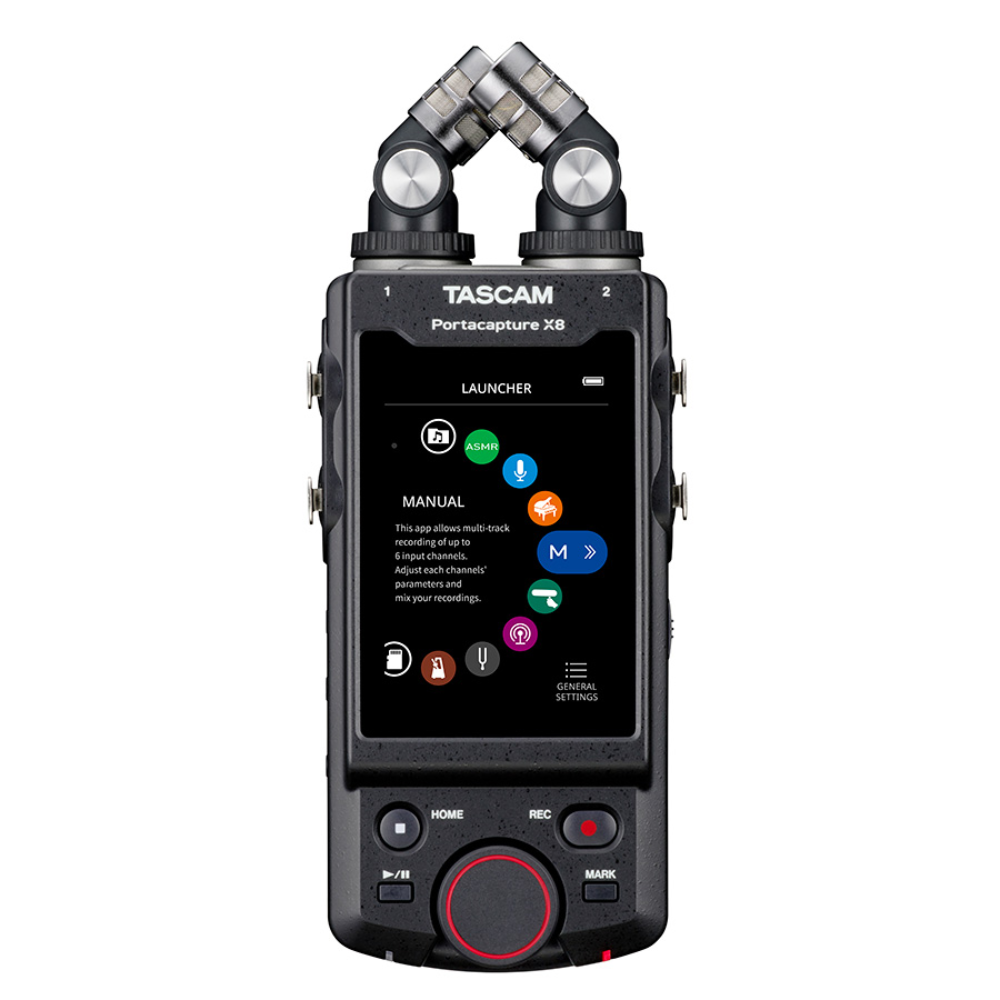

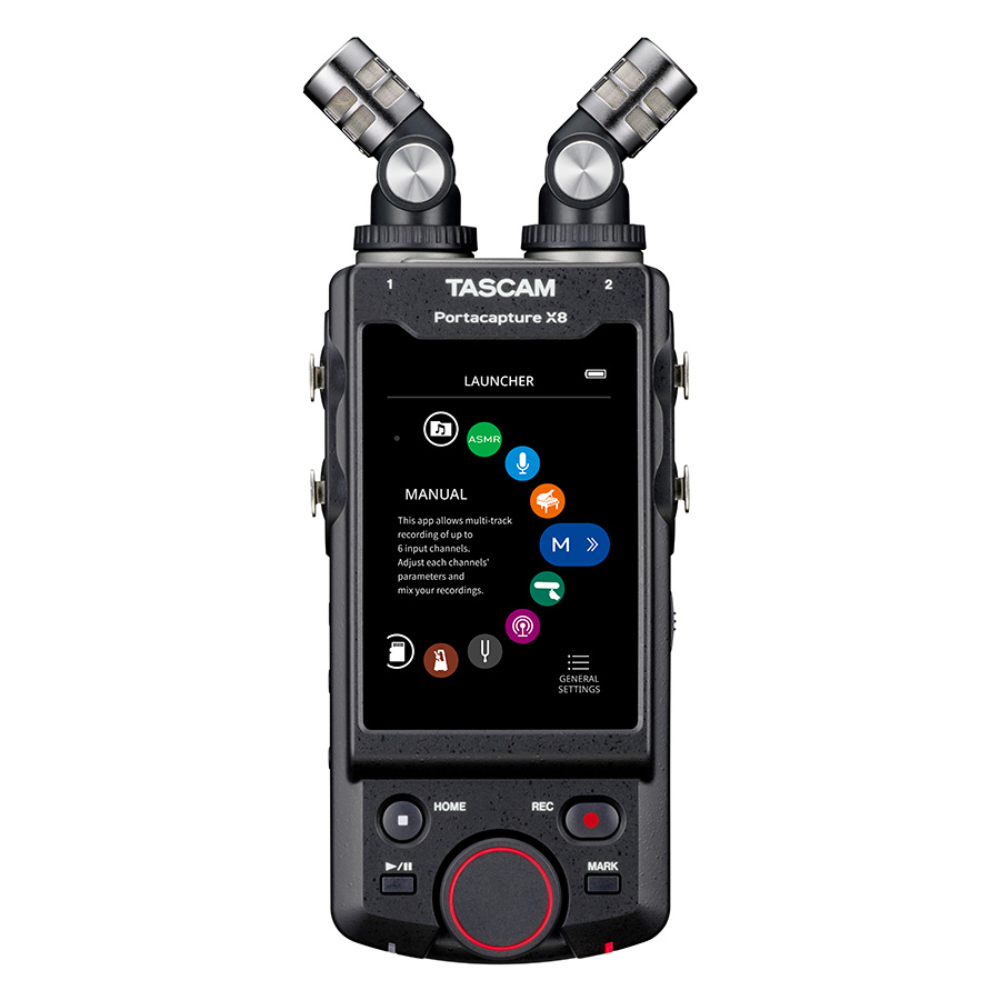

The Portacapture X8's Launcher system makes it easy to start recording fast. Use the touch screen to select optimized settings for podcasting, field recording, vocal recording, musical instruments, multi-track recording or ASMR. You can also create your own custom presets for instant recall from the Launcher.

V2.00: A POCKETSTUDIO app has been added.

SPECS

• Recording media: microSD cards (64MB - 2GB), microSDHC cards (4GB - 32GB), microSDXC cards (48GB - 512GB)
• Input channels: 6 channels maximum
• Recording tracks: 8 tracks maximum (6 tracks, stereo mix)
• Power: 4 AA batteries (Alkaline, Ni-MH, or Lithium-ion), USB bus power from a computer, TASCAM PS-P520U AC adapter (sold separately)
• Dimensions: 83 (W) × 205.6 (H) × 41.5 (D) mm (including protrusions)
• Weight: 472g / 381g (including battery / not including batteries)

What's in the box

• Portacapture X8 x 1
• Included mics x 1(left/right pair)
• AA alkaline batteries x 4
• Owner's Manual (including warranty)
• TASCAM ID registration guide
