TASCAM VIEW (Visual Interactive Ergonomic Workflow) 16 Input Digital Mixing System

Overview of TASCAM VIEW (Visual Interactive Ergonomic Workflow) 16 Input Digital Mixing System

Digital Recording and Mixing Console with Multi-environment Touch Screens

Next-Generation Multi-track Recording and Digital Mixer
The Sonicview 16XP offers 16 physical input channels with motorized faders and TASCAM’s top-of-the-line HDIA microphone preamps.

Built-in 32-track SD Recording

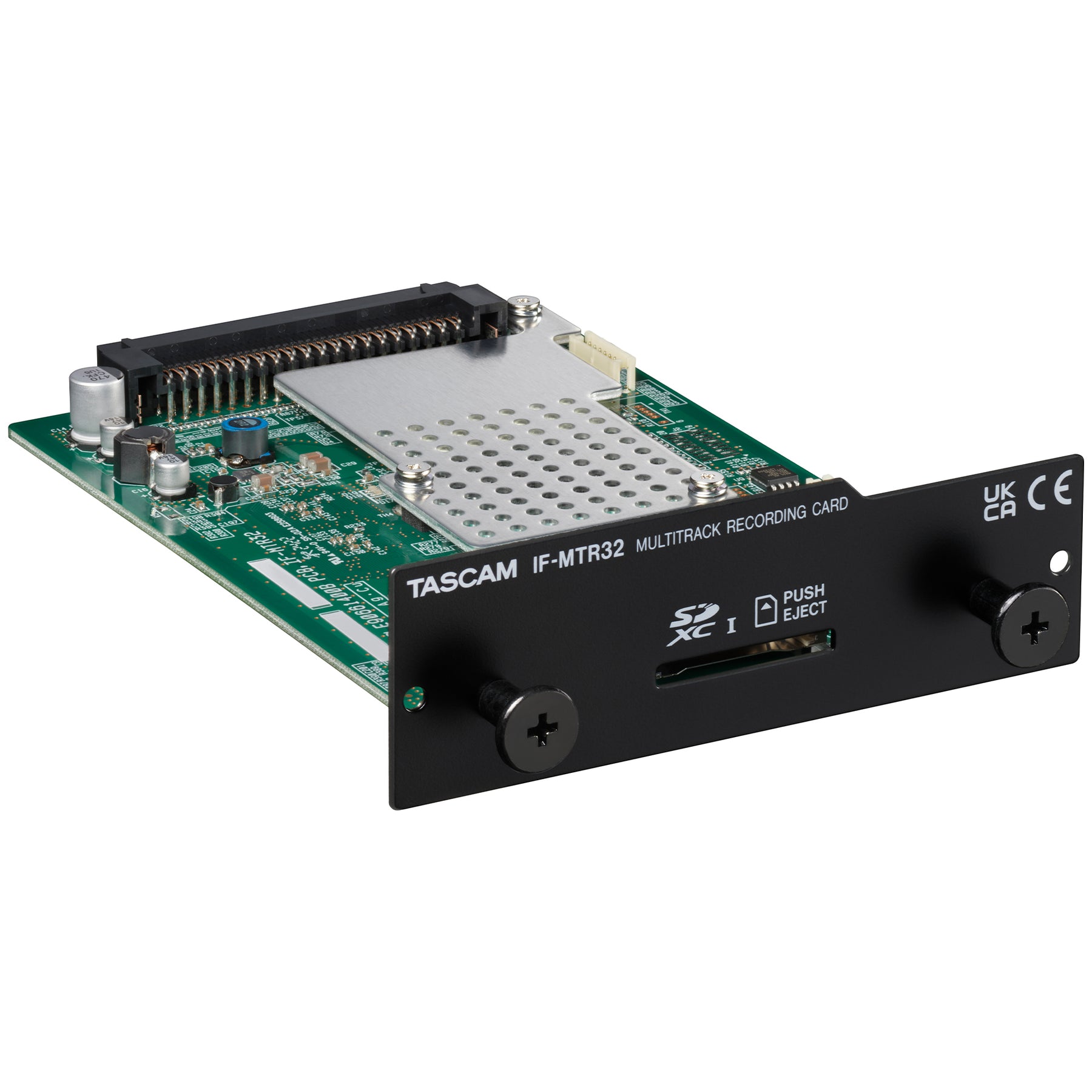

Sonicview 16XP offers multiple ways to record. In addition to its integrated audio interface, the Sonicview 16XP comes with an integrated IF-MTR32 multi-track recording card, enabling you to capture 32 channels directly to an SDXC card. The SD recorder supports simultaneous 32-channel punch-in/punch-out, pre-record, auto-record, and markers. Best of all, it automatically saves and closes the file every 60 seconds during recording to safeguard against data loss so you can let the recorder do it’s job worry-free while you focus on mixing.

Built-in USB Audio Interface and Stereo Recording

Sonicview’s integrated 32-in/32-out USB audio interface makes it a first-rate front end for recording and broadcast studios, as well as for capturing live events. Record your choice of channel direct outs, flex buses, and the L/R main bus to your favorite DAW at up to 96 kHz with the same 32-bit precision used throughout the Sonicview.

You can simultaneously capture the main mix directly to the onboard stereo SD recorder — handy when the band wants to listen to their performance at the hotel or on the bus. A top-panel port also lets you record in stereo to a USB flash drive.

Intuitive Operation at Your Fingertips

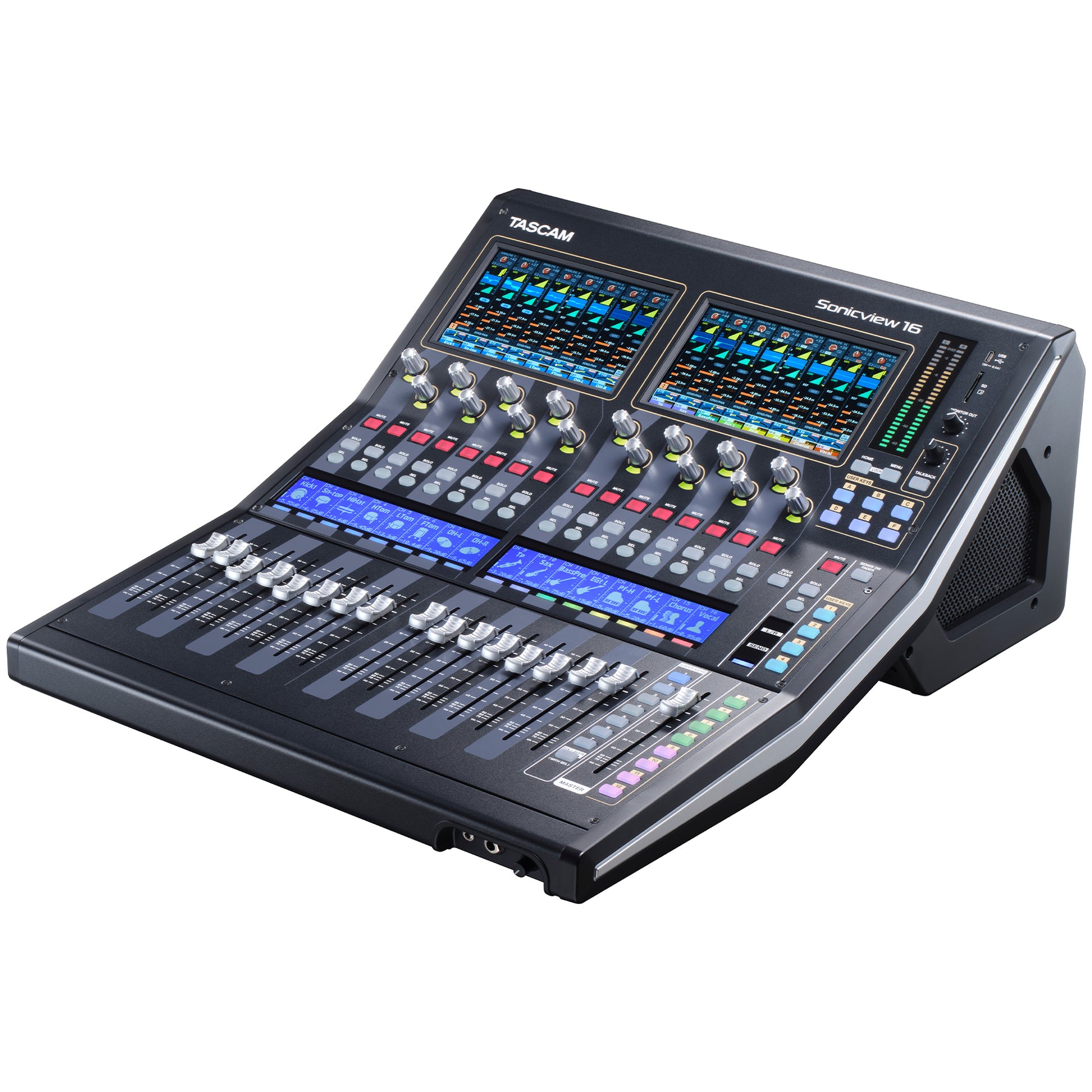

The Sonicview 16XP offers motorized channel faders in two banks of eight, plus a motorized stereo fader for the main bus. Above each bank of channel faders is a color touch panel that allows you to view entire mixer channels, or get down to details, controlling each parameter with your fingertip.

The Amazing VIEW
Truly the next generation in mixer user interfaces, the powerful intuitive TASCAM Visual Interactive Ergonomic Workflow (VIEW) system lets you quickly and easily configure the Sonicview 16XP’s two touch screens.

Thanks to the VIEW user interface, there are three different ways to view your settings, and each touch screen can be configured independently, so you can monitor and control any combination of settings you want, in whichever screens you want, whenever you want. For instance, you could monitor levels for eight channels of vocals on screen 1, while tweaking the parametric EQ on a drum submix on screen 2.

• To view the status of any eight adjacent channels at a glance, as you would see on vertical channel strips with an analog mixer, choose Channel Strip View.

• In Module View, you can monitor and control any two sets of parameters for one single channel, including the compressor, graphic EQ, effects send, and more.
• Individual View is the ultimate in customized displays. View any functions for any channel, group of channels, and more—all on different screens, simultaneously. For instance, you could simultaneously monitor the output bus meter on screen 1, and monitor levels on important input channels on screen 2.

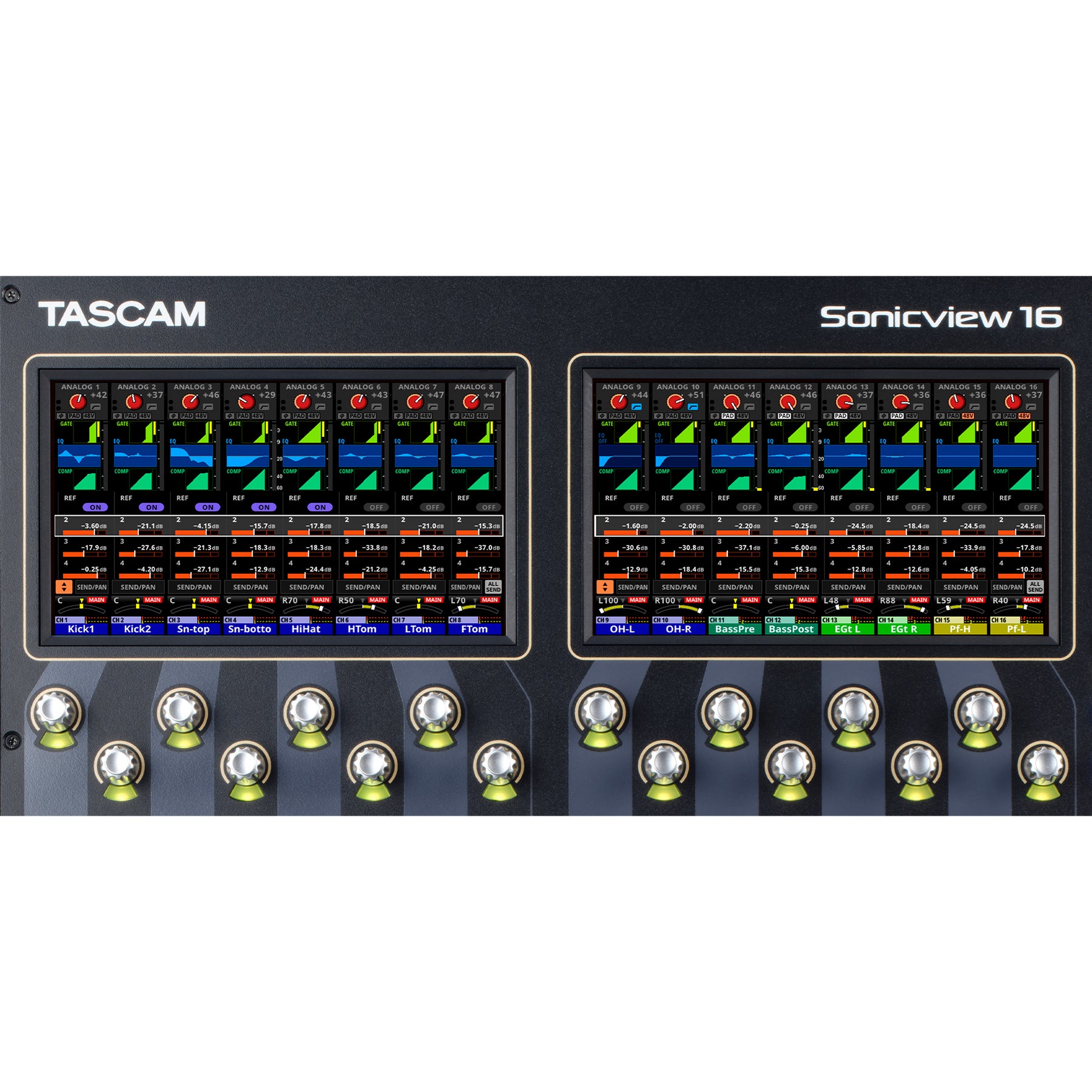

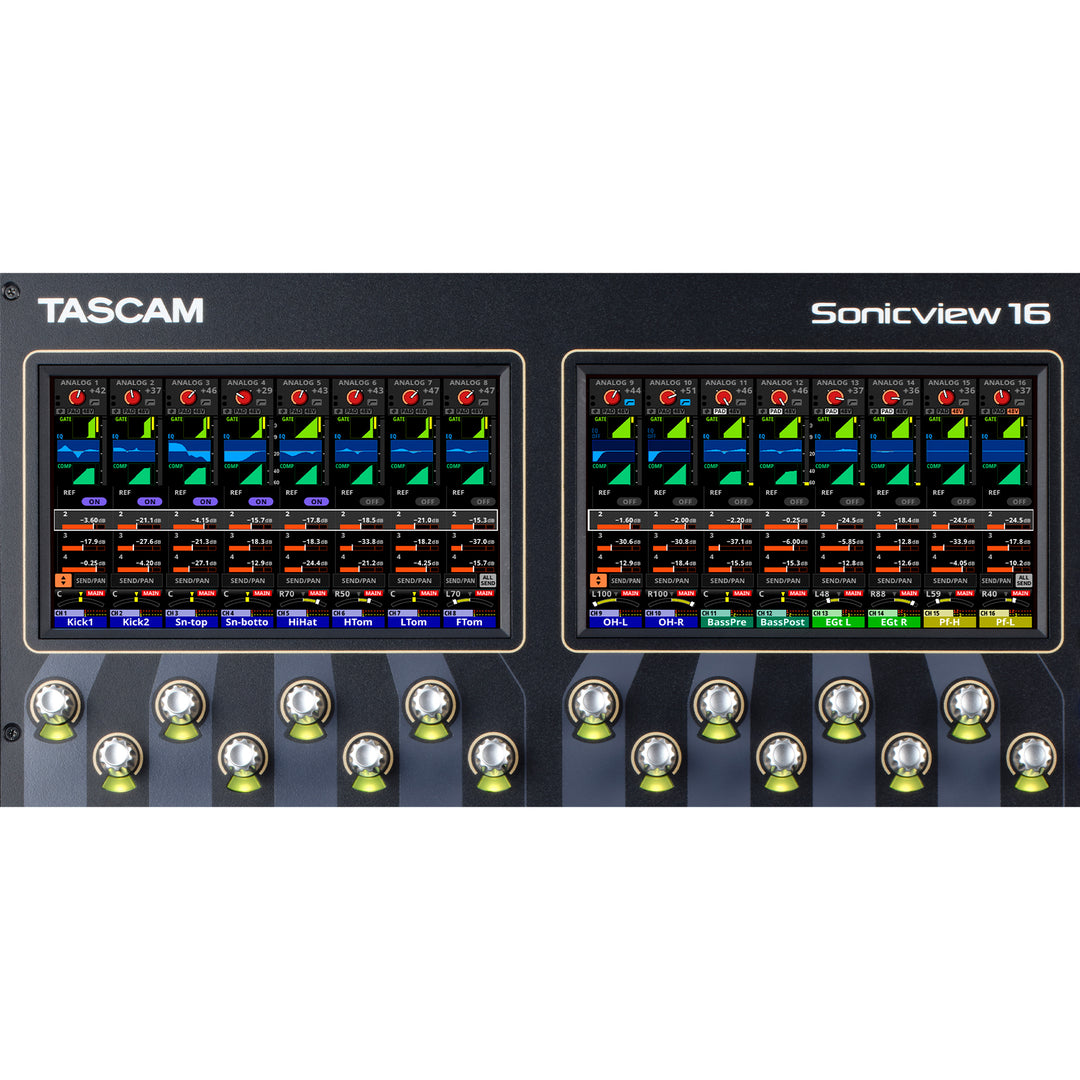

1. Channel Strip View lets you monitor and control eight adjacent channels, and view them as virtual channel strips like an analog mixer layout.

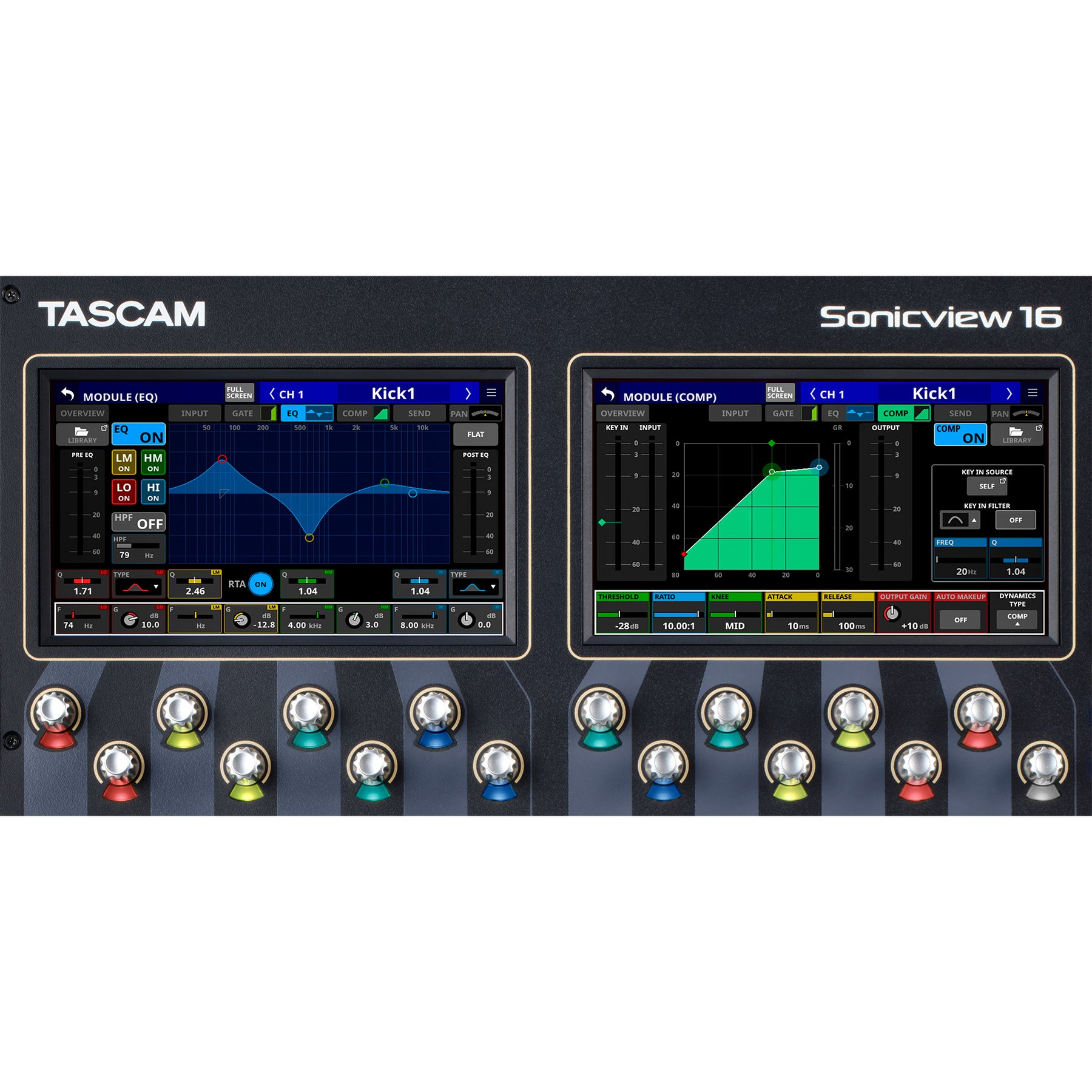

2. Module View lets you monitor and control any two sets of parameters simultaneously for one single channel.
3. Individual View lets you monitor and control a custom selection of functions for any channel or group of channels.

Key Features

• TASCAM VIEW (Visual Interactive Ergonomic Workflow) interface supports intuitive operation with three different view system
• Multiple displays with two 7-inch touch panels
• 44 input channels (or 40 mono input channels and 2 stereo input channels)
• 22 flexible output buses and main L/R bus with 31-band graphic EQ
• 96 kHz, 54-bit float-point FPGA mixing engine
• Ultra-low latency: 2 x samples (20.8μS) in mixing engine, 0.51 ms analog-to-analog
• 32-bit/96 kHz AD/DA conversion
• TASCAM Class 1 HDIA microphone preamplifiers
• 32-in/32-out, 32-bit/96 kHz USB audio interface
• Built-in 32-track SDXC recorder
• 64-in/64-out built-in Dante interface; supports redundancy and DDM, AES67 and SMPTE ST 2110 interoperability
• 16 mic/line inputs (up to +32 dBu), 16 XLR line outputs with flexible routing
• 4 multi-effects processors
• TASCAM Sonicview Control software for macOS/Windows/iPadOS enables remote control and off-line editing
• 2 TASCAM expansion slots

・ SDXC multi-track recording card preinstalled in one slot (“XP” US version only)

・ Optional MADI, Dante, AES/EBU, and analog outputs cards available for the second slot

Other Features

• Hardware mixing surface and mixing engine operating system are independent of each other for high stability and continuous audio flow
• Library: Snapshot/Effect/Module/Parametric EQ/Graphic EQ/Gate/Compressor
• 18 assignable user keys, 7 custom fader layers, 8 DCA groups
• 16+1 100mm motorized faders
• 16 encoder knobs with color LED
• 16 LCDs with color LED display channel name, input level, and gain reduction meter
• 2 channel internal recording/playback with SD card or USB flash drive

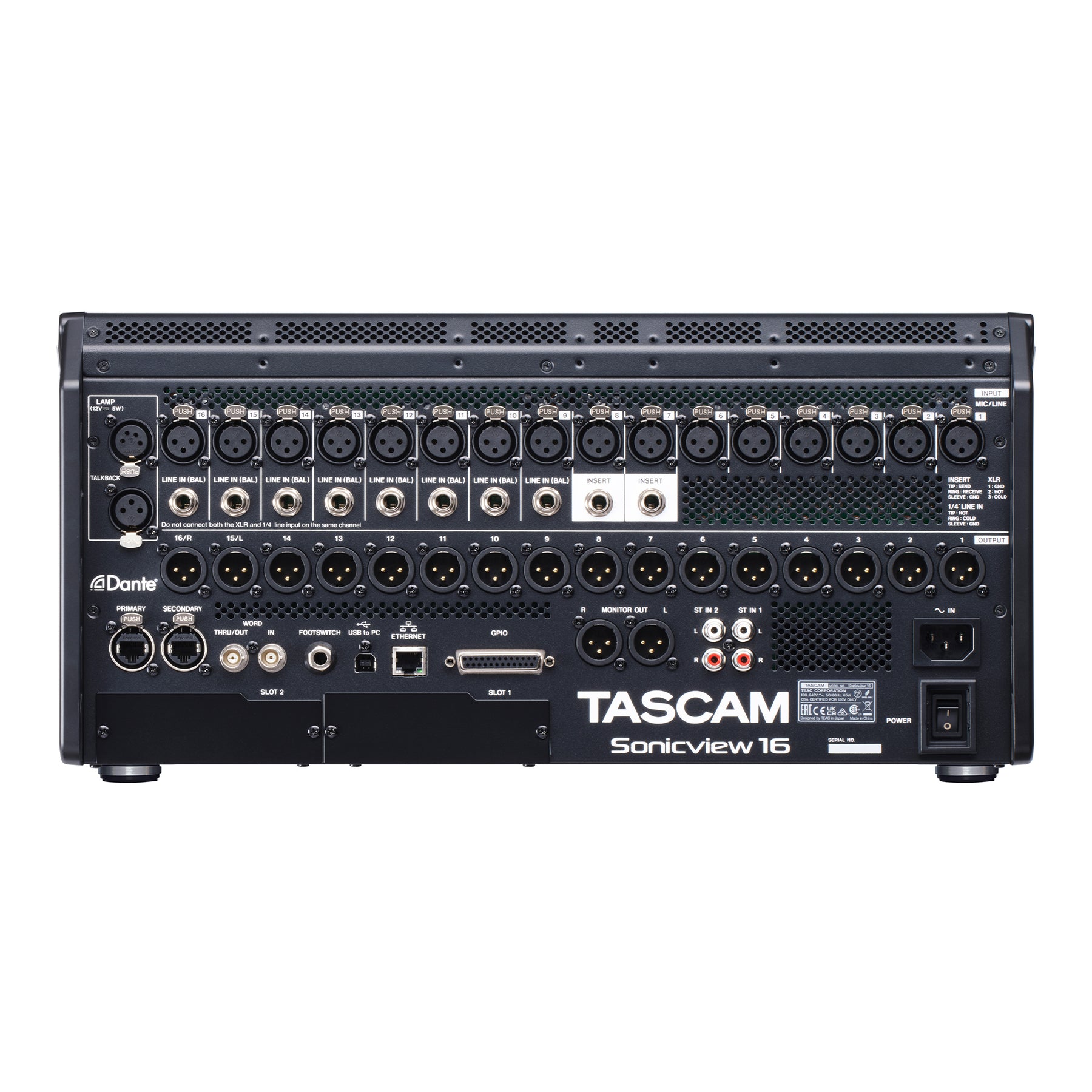

• 8 TRS line inputs, 2 RCA stereo input pairs, XLR talkback input
• XLR monitor outputs
• ¼-inch and ⅛-inch headphone outputs
• Word clock In and Out/Thru
• 1000BASE-T gigabit Ethernet
• 8-in/8-out GPIO on DB25
• TRS footswitch jack
• XLR 4-31 lamp connector
• Power switch with guard
• Optional SB-16D 16-in/16-out Dante-enabled stage box

Included Items

TASCAM Sonicview 16XP and IF-MTR32 preinstalled: 1

Power cord（JAPAN／USA／EUROPE／OCEANIA: 3

Owner’s Manual with Warranty: 1

TASCAM ID Registration Guide: 1
