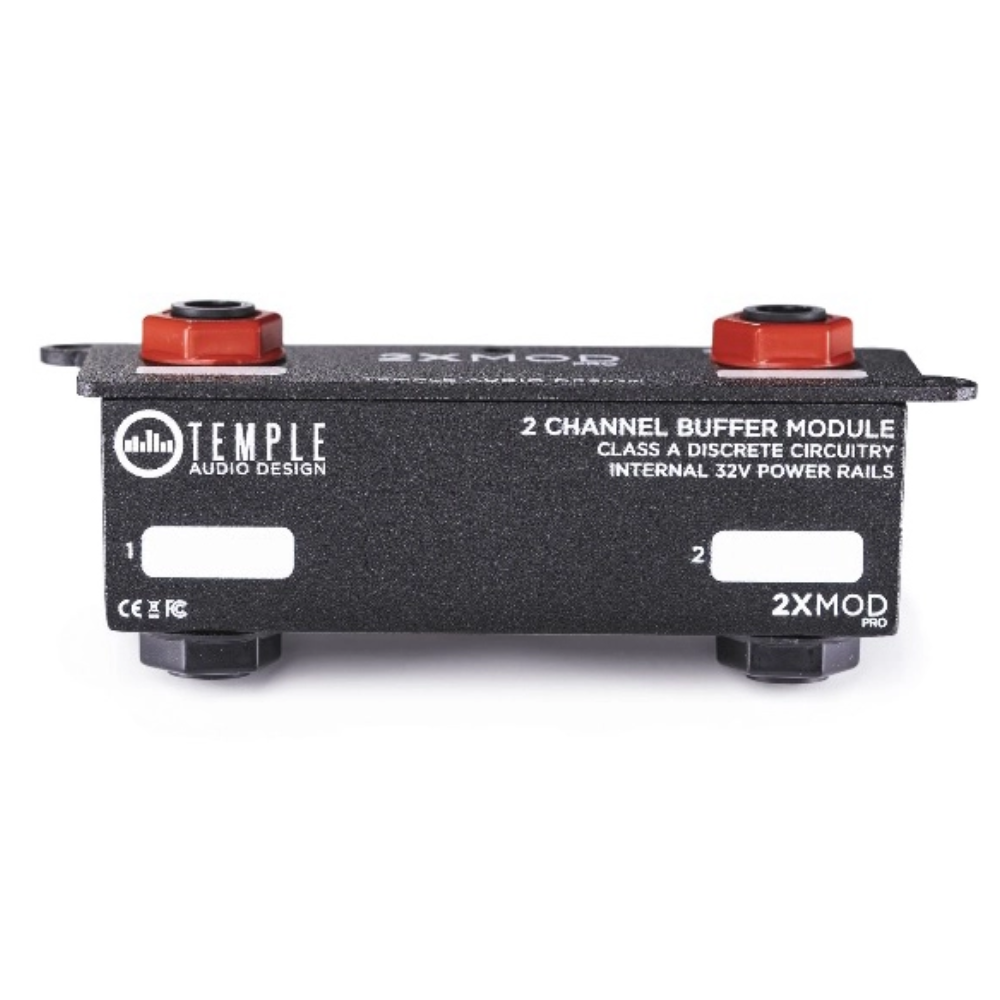

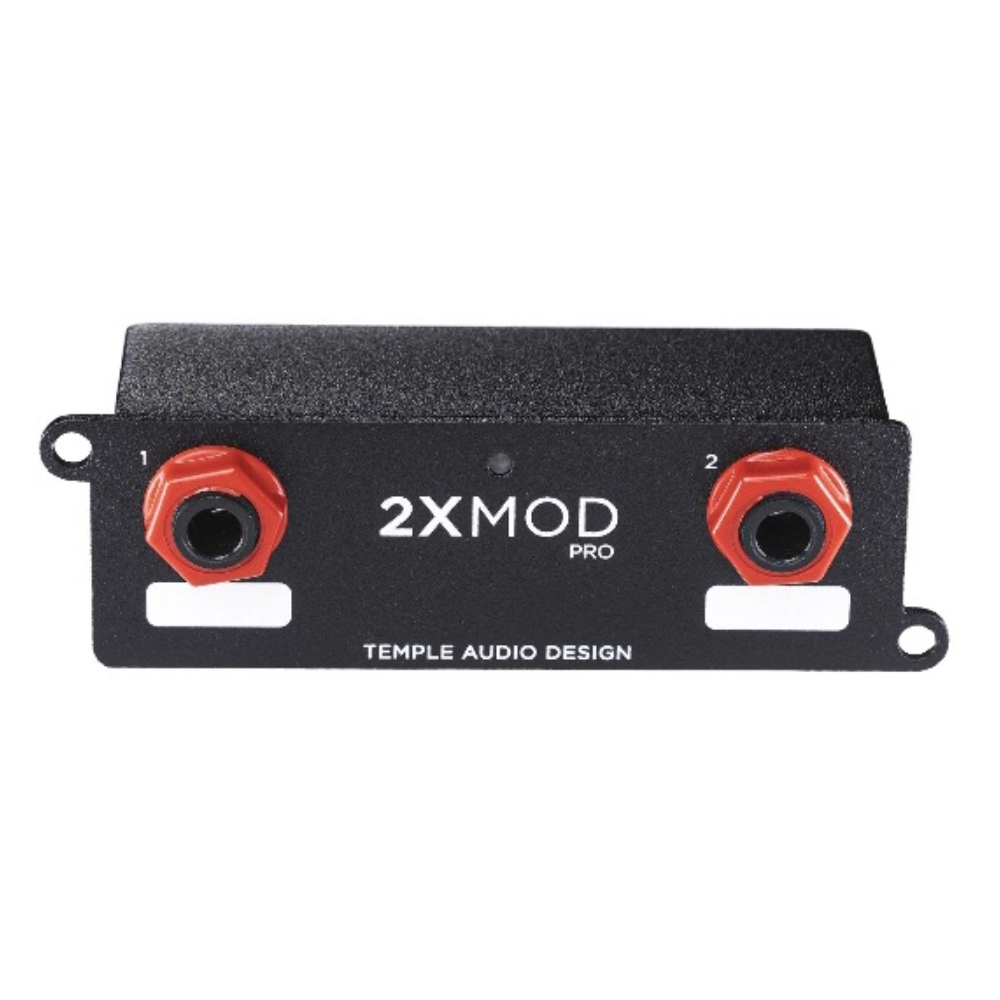

Temple Audio MOD-2XPRO 2 Channel Buffer Module
MOD-2XPRO
Payment plans from Affirm, learn more
- Temple Audio
- Shipping Calculated at checkout, most in stock products ship same day
The 2X Pro has two premium class-A buffered channels in one compact MOD.
Features
• Dual Premium Buffers - Two ultra-low noise, ultra-low distortion, quality class-A buffers
• Easily installed with two screws and a standard screwdriver
• Label each channel with a marker, wipe off with rubbing alcohol

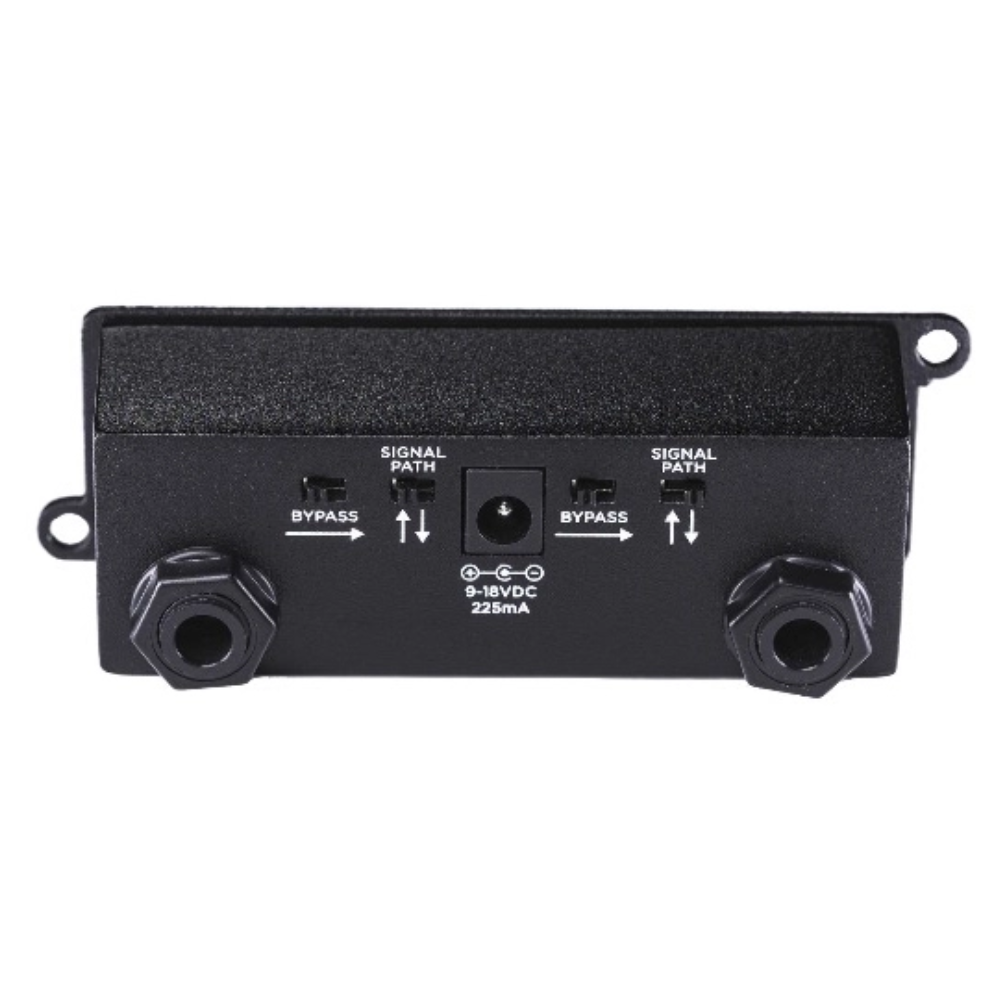

• Disengage the buffer on either side to bypass as needed
• 32V rails provide exceptional headroom from standard 9-18V power supplies
Specifications
POWER
The 2X MOD Pro utilizes 32V rails; providing exceptional headroom from standard 9-18V power supplies.
When provided with 9-18V, the internal voltage will always be 32V. There is no advantage to running at 18V.
Input Voltage: 9-18VDC
Input Current: 250mA @ 9V, 130mA @ 18V
SIGNAL
Input Impedance: 1M
Output Impedance: 60 Ohms
THD+N (Total Harmonic Distortion plus Noise): < 0.0003%
Signal to Noise Ratio: 135dB
Frequency Response: 10Hz - 80kHz +/- 0.3 dB
