The Light Source - 24" Mega-Beam Clamp, 2 Ton, Mill Finish,
MBC2T-24M-2
Payment plans from Affirm, learn more
- The Light Source
- Shipping Calculated at checkout, most in stock products ship same day

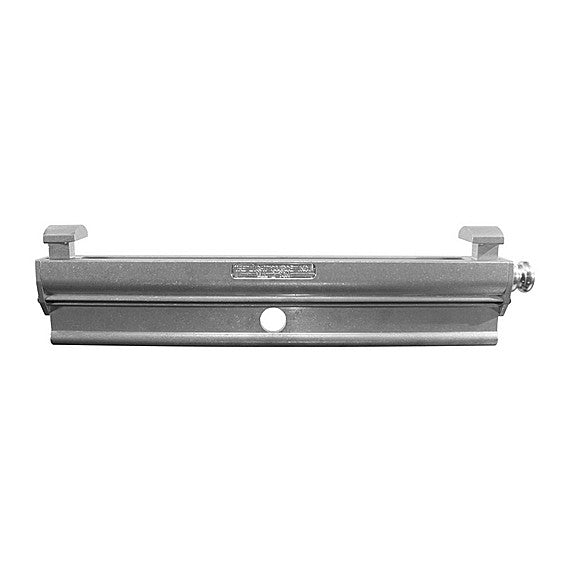

The Mega-Beam Clamp is a low profile, sliding jaw design that allows the load to be secured as closely as possible to the I-beam. The 24" model is load rated for 2 tons.
Two aircraft aluminum jaws are adjusted on the 3/4"-6 TPI Acme threaded shaft. The spring loaded handle locks after adjustment. The center hole is 1 1/2".
The 24" Mega-Beam Clamp fastens from 2" to 24" wide on I-beam flanges up to 1" thick. For I-beam flanges up to 2" thick, Mega-Beam Clamps are available with 2" jaws. The 2" jaws may also be purchased separately.
The aluminum construction is half the weight of steel units and has a wider gripping range.
The Mega-Beam Clamp can be used for both permanent and temporary installations.
