Overview of TOA - M-633D Digital Stereo Mixer - Used
The M-633D is a stereo mixer equipped with 12 input channels (6 monaural inputs and 3 stereo inputs) and 6 output channels (2 monaural outputs, 1 stereo output, and 1 stereo recording output). It has 2 monaural channel and 1 stereo channel bus lines, allowing each input signal to be assigned to each bus line individually. It features digital signal processing functions such as Automatic Resonance Control function (ARC), Feedback Suppressor function (FBS), Automatic Clipguard function (ACG), and Automatic Mute function (AUTO MUTE). It performs advanced acoustic compensation by means of automatic processing without the use of an acoustic measuring instrument. It can be mounted in an EIA component rack (1U size).
SPECIFICATIONS (*4) 0 dB = 1 V
- Power Source: 120 V AC, 60 Hz
- Power Consumption: 13 W
- Frequency Response: 20 Hz - 20 kHz
- Sampling Frequency: 48 kHz
- Dynamic Range: 90 dB or more (IHF-A weighted)
- Distortion: 0.03 % or less, 1 kHz, -10 dB(*4) input, 0 dB(*4) output
(20 Hz - 20 kHz BPF) - InputS: 6 monaural input channels (MONO IN 1 - 6), selectable independently from 3 types of inputs below for each channel
LINE
: -10 dB(*4), 2.4 KΩ
MIC
: -46 dB(*4), 2.4 KΩ
PHANTOM
: -46 dB(*4), 2.4 KΩ
supplies phantom power of +24 V DC, 10 mA
electronically balanced
Removable terminal block (3 pins), phone jack
3 stereo inputs (L, R) (STEREO IN 1 - 3)
-10 dB(*4)/ 10 kΩ,
RCA jack (STEREO IN 1 - 3), Stereo mini jack (ST IN 1) - Output: 2 monaural output channels (MONO OUT 1, 2)
0 dB(*4) (applicable load: 1 kΩ or more), electronically balanced,removable terminal block (3 pins)
1 stereo output (L, R) channel (ST OUT L, R)
0 dB(*4) (applicable load: 1 kΩ or more), electronically balanced,removable terminal block (3 pins)
1 stereo recording output (L, R) channel (REC OUT L, R)
-10 dB(*4) (applicable load: 1 kΩ or more), RCA jack - Bus Line: Monaural channel × 2, Stereo channel × 1
- AD Converter: 24 bits
- DA Converter: 24 bits
Signal Processing
- Automatic Resonance Control Function: 3 output channels (each monaural output channel, stereo output L, R), independent settings for each channel, automatic creation of EQ curves (for sound field compensation)
ARC measurement start switch × 1, Function ON/OFF check indicator × 1 - Feedback Suppression Function: 6 channels (each monaural input channel),independent settings for each channel Function ON/OFF switch × 6, Function ON/OFF check indicator × 6Automatic Clipguard Function6 channels (each monaural input channel), independent settings for each channel
- Automatic Mute Function: Function ON/OFF switch × 1
- Input Level Indicator: 2-color LED indicator: Green (for appropriate level)/red (for peak level)
- Output Level Indicator: 2-color LED indicator: Green (for appropriate level)/red (for peak level)
- Finish Panel: Aluminum, black, hairline
Case: Precoated steel sheet, black, 30 % gloss - Dimensions: 420 (W) × 44 (H) × 341.3 (D) mm (16.54" × 1.73" × 13.44")
- Weight: 4 kg (8.82 lb)

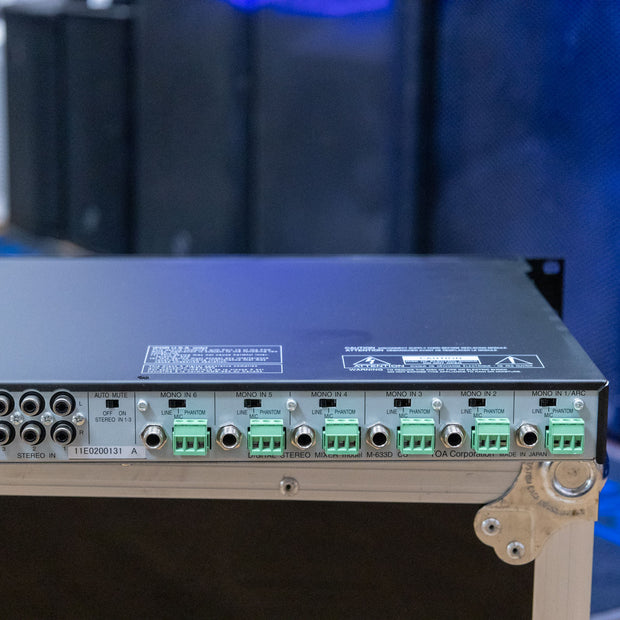

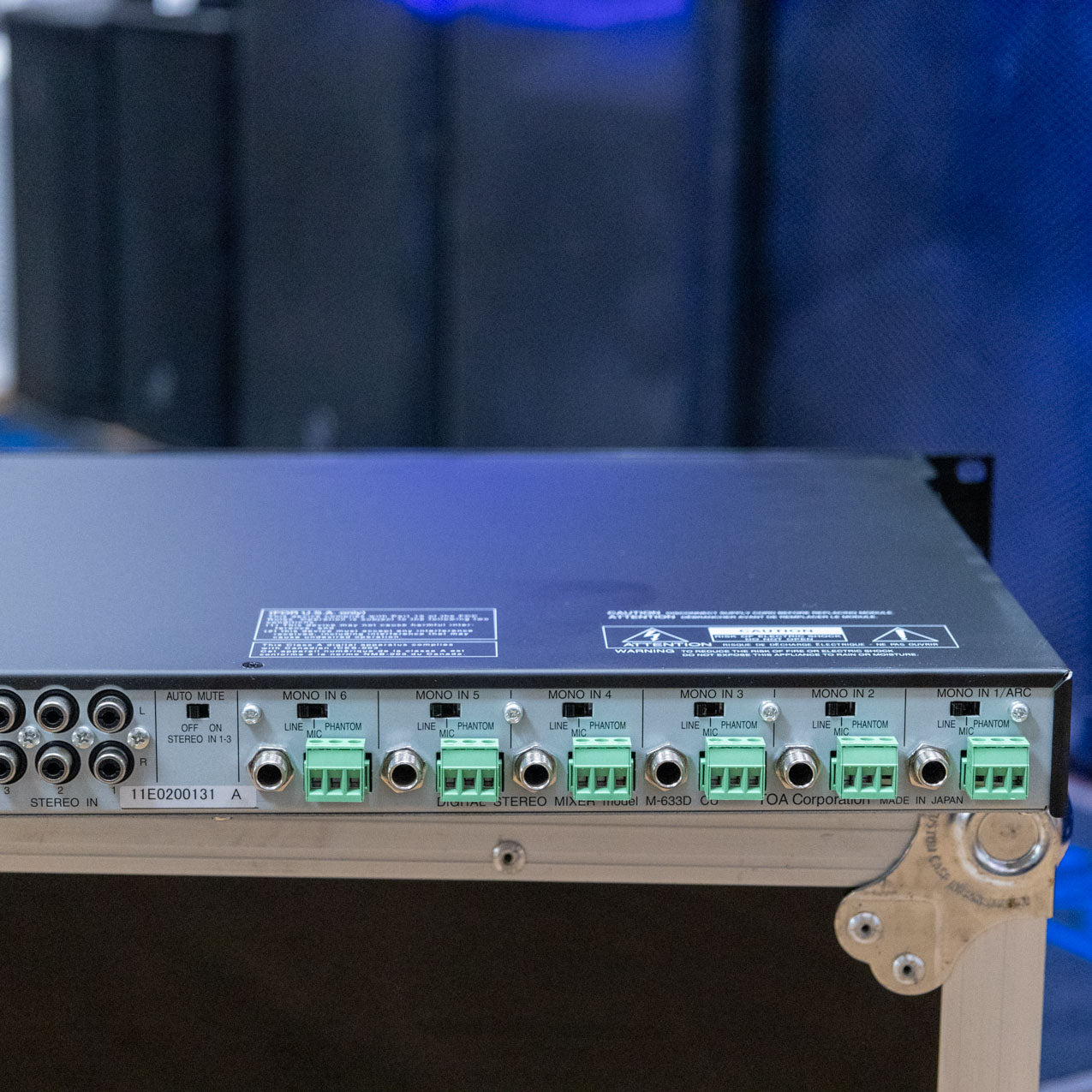

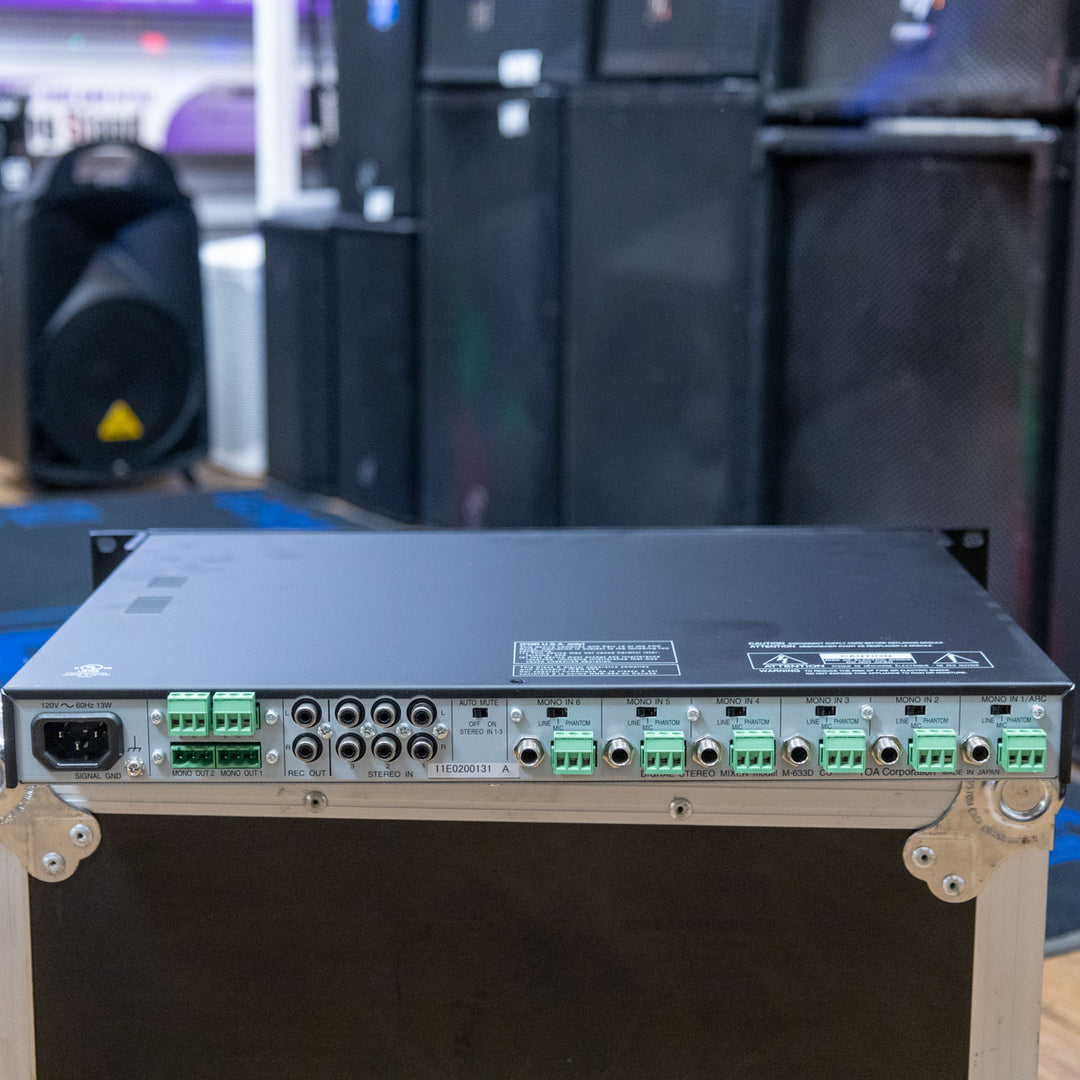

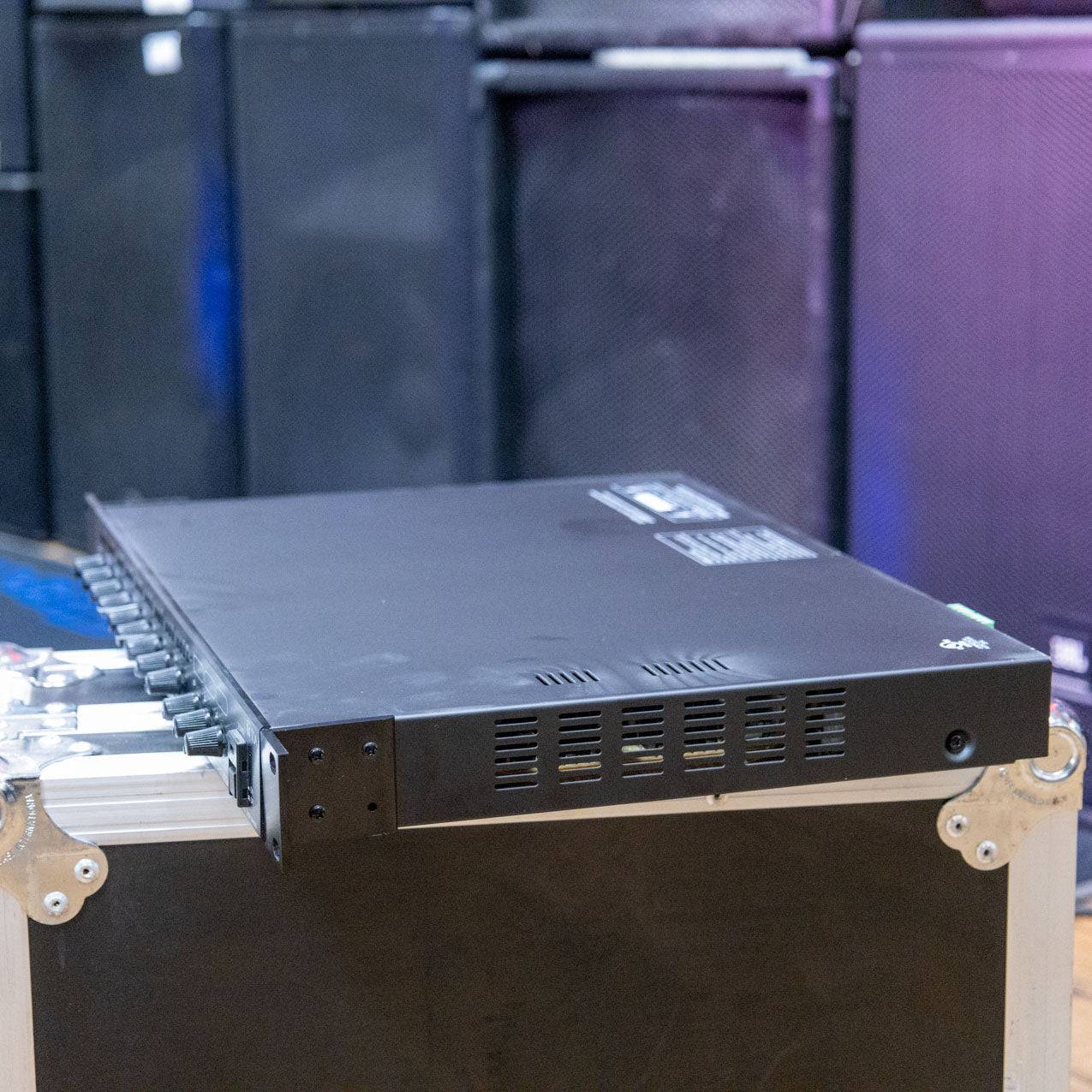

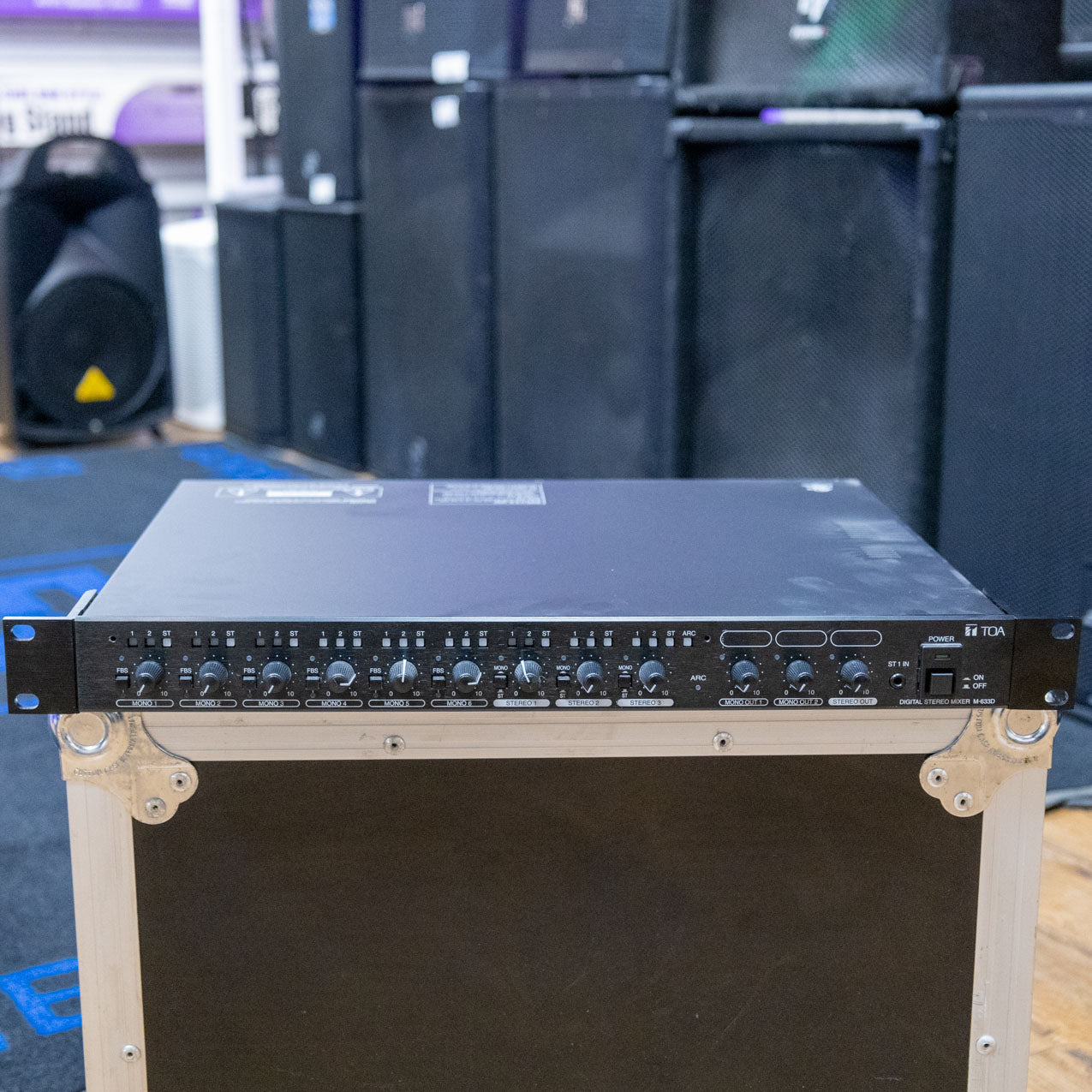

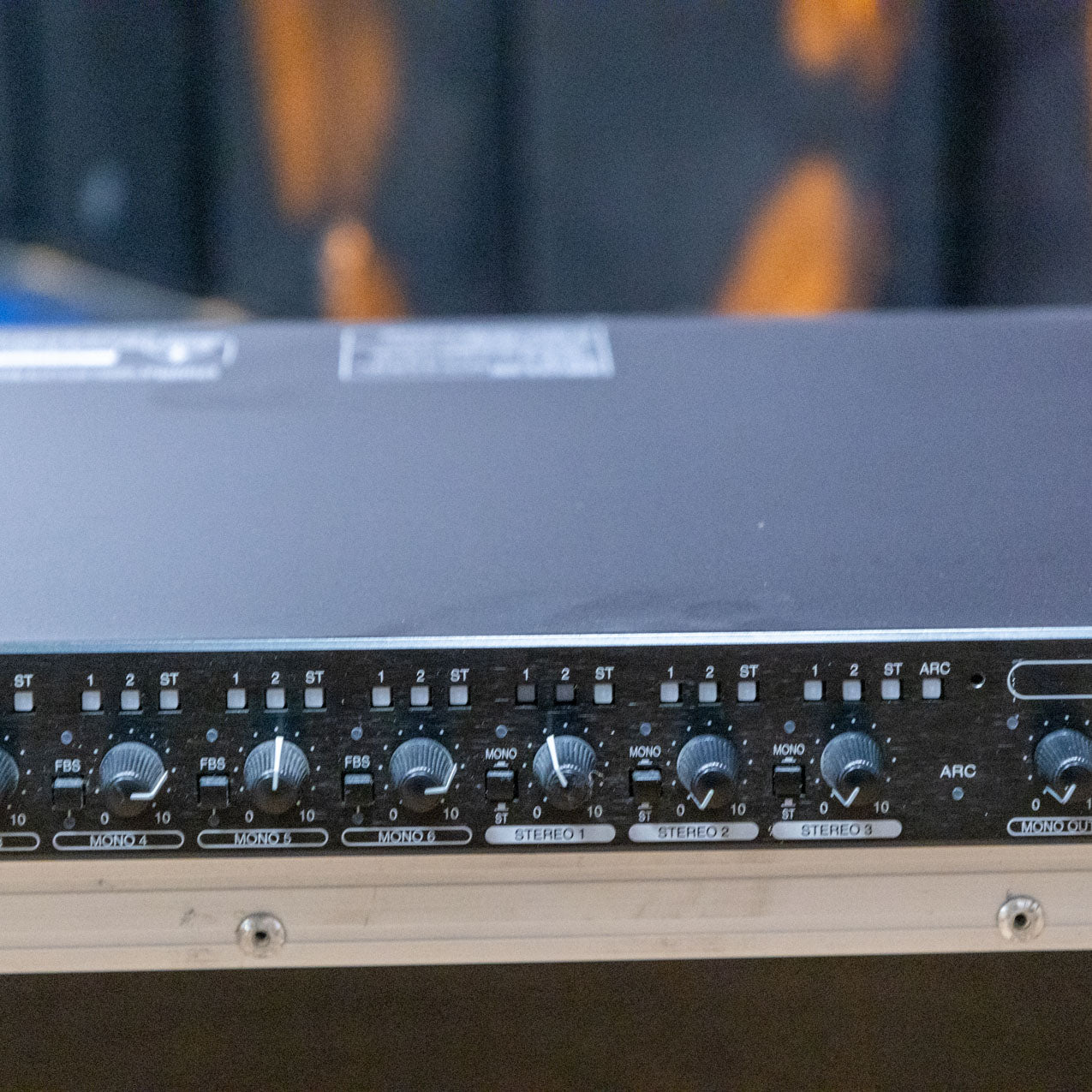

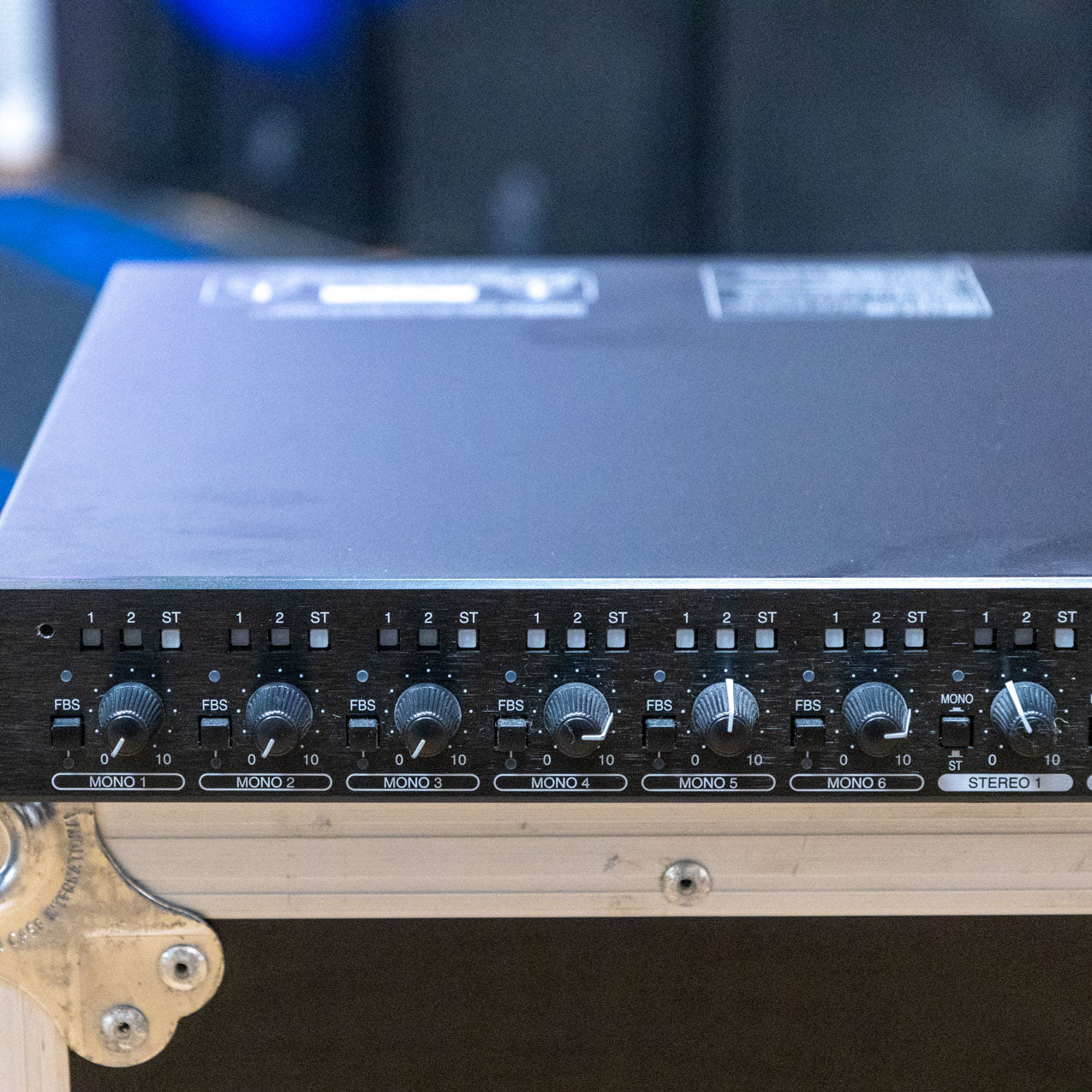

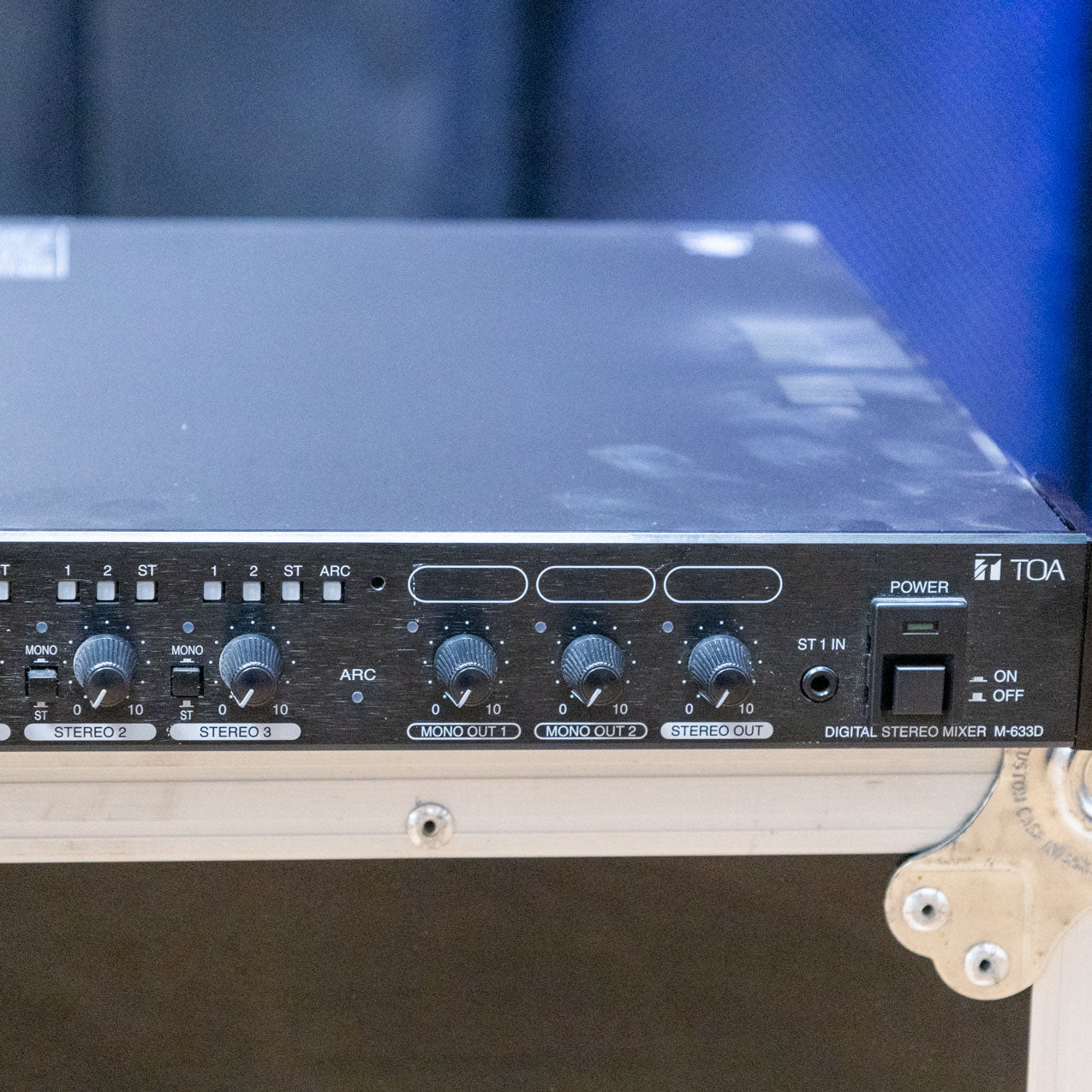

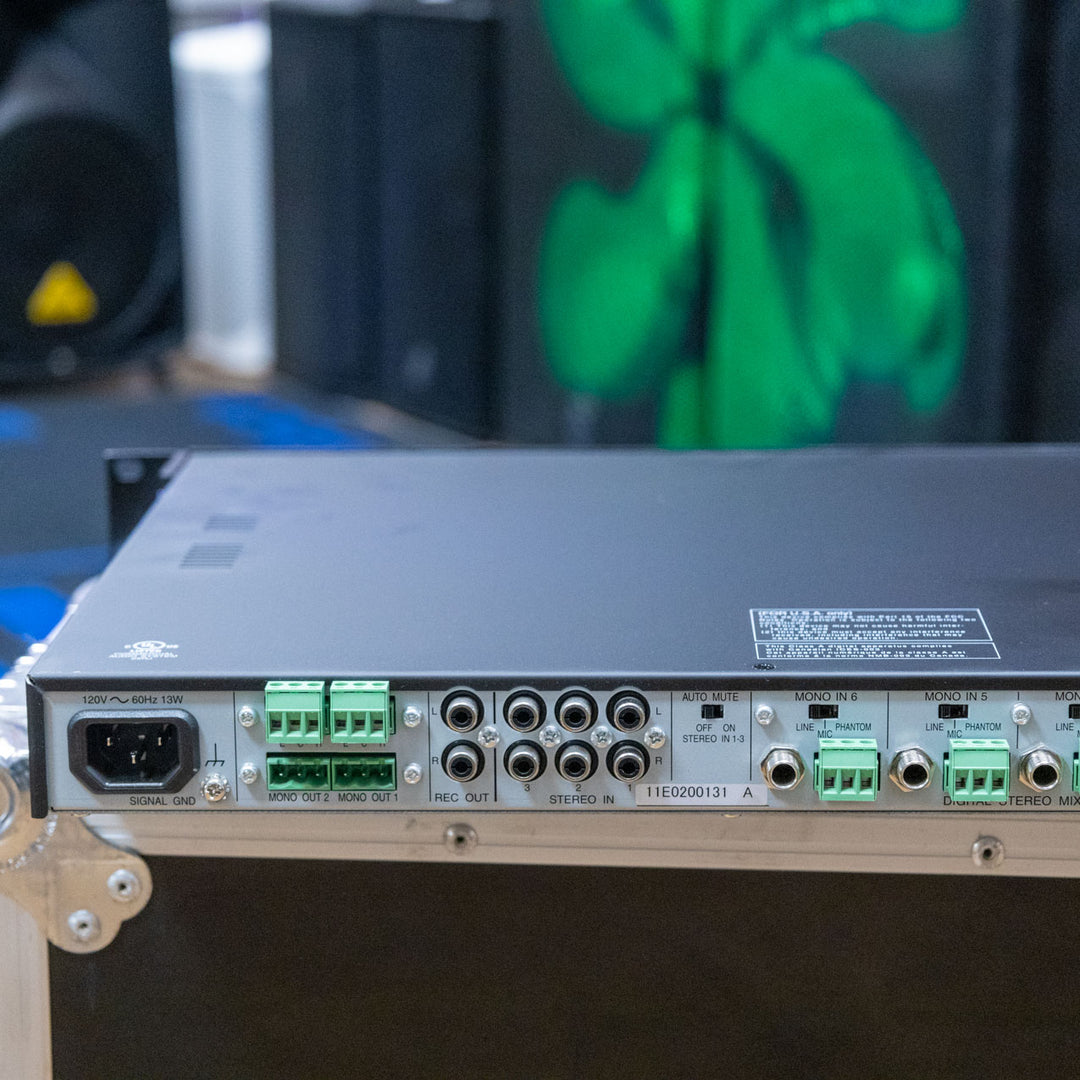

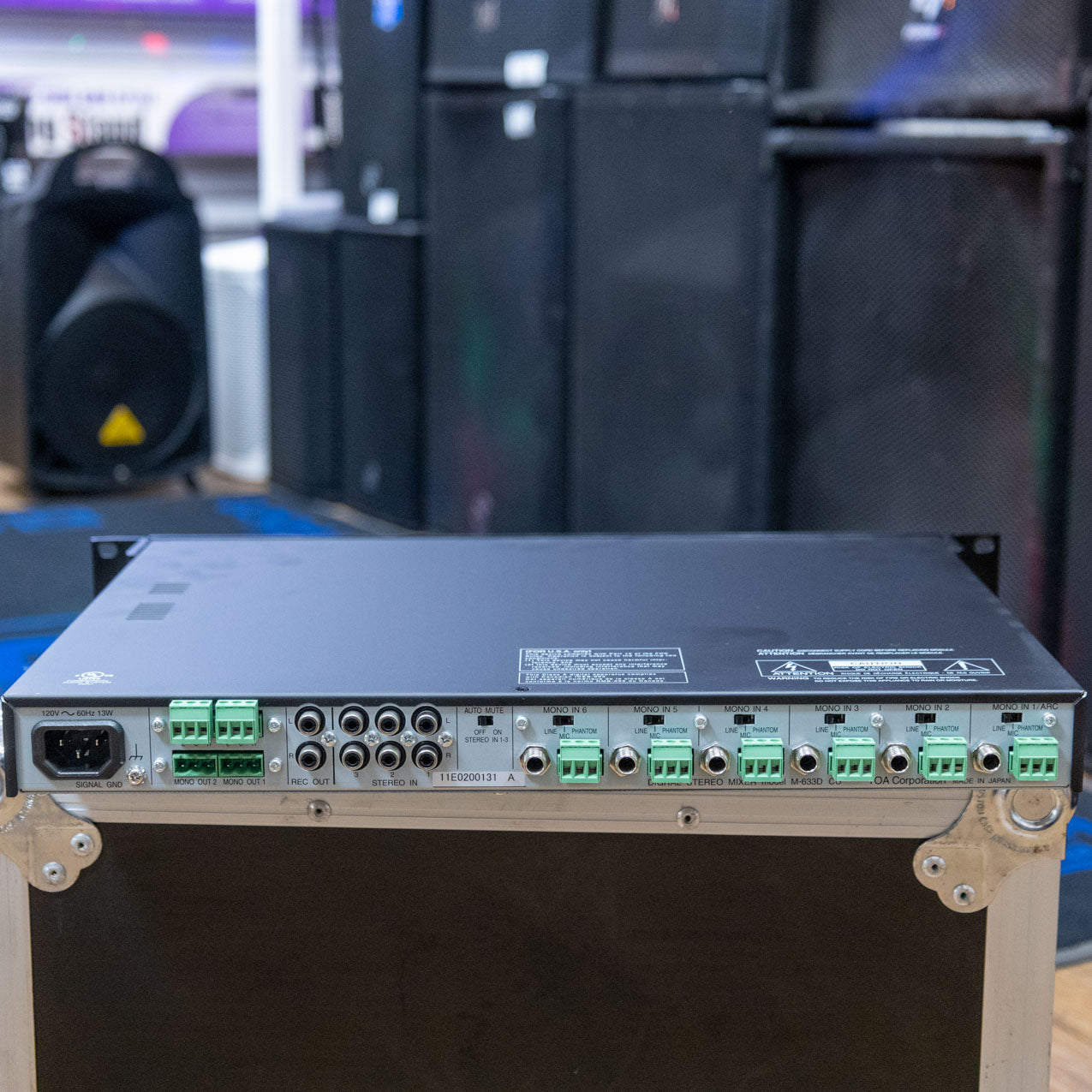

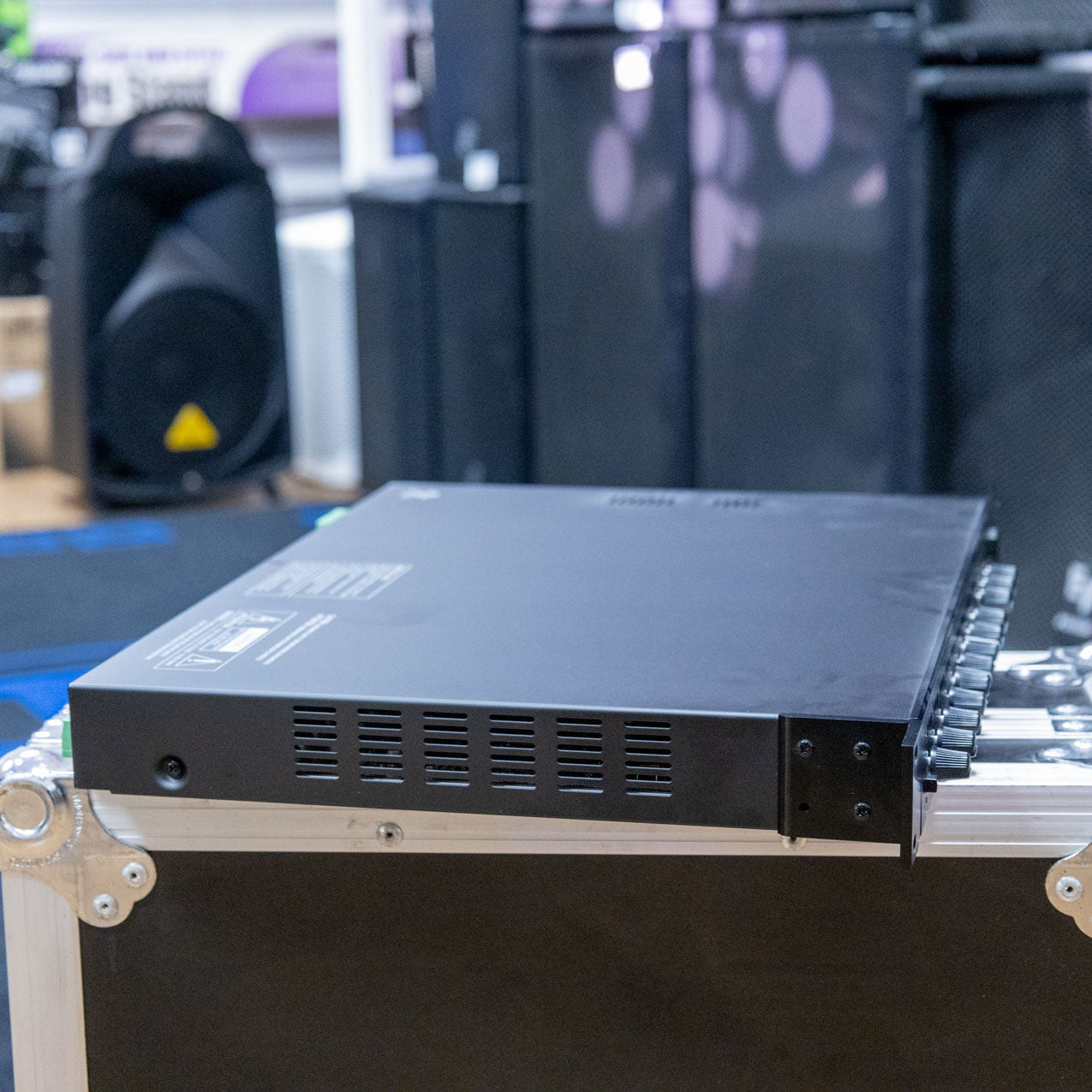

Special Note: This item is previously owned. Please see pictures for reference and feel free to contact us with any specific questions. Used & Consignment products come with a 7 day trial-period from date of delivery, and otherwise are final sale.
