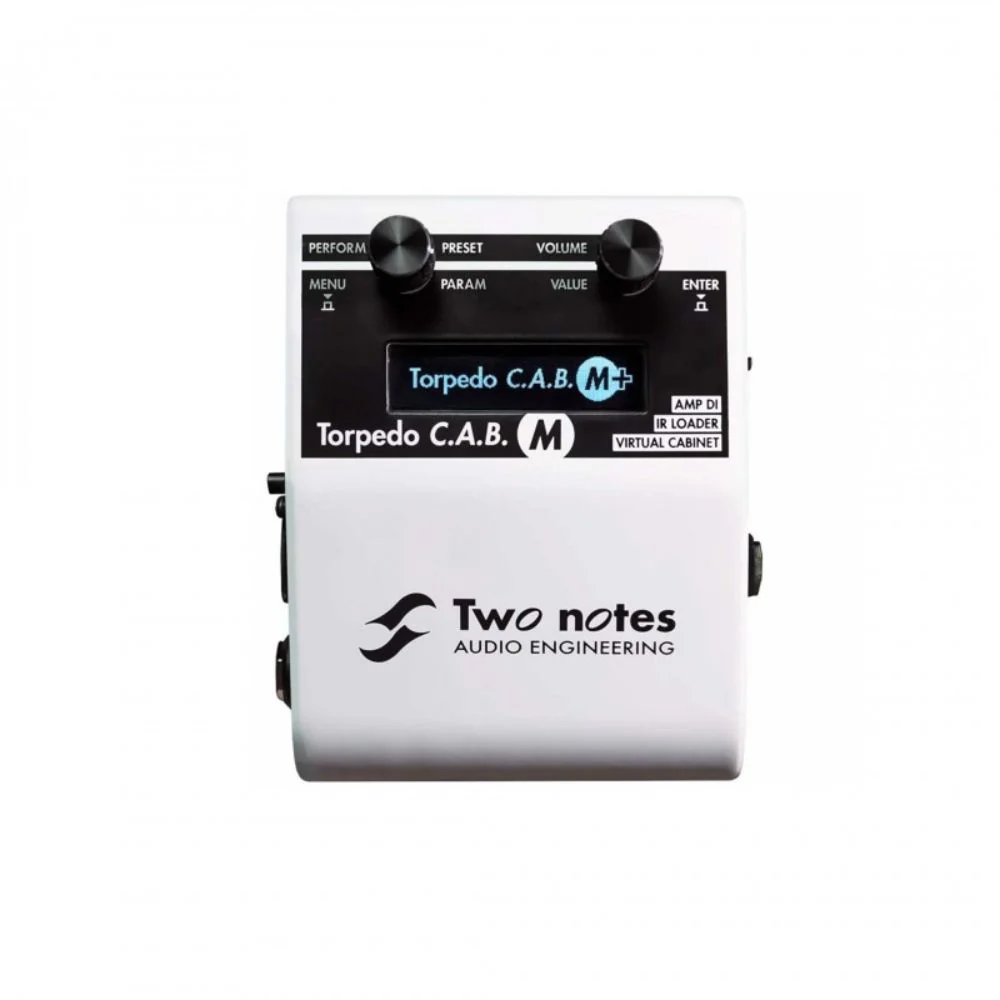

Two Notes Torpedo C.A.B. M Speaker Simulator
TNCABM
Payment plans from Affirm, learn more
- Two Notes
- Shipping Calculated at checkout, most in stock products ship same day
The Torpedo CAB M+ is a powerful pedalboard platform that provides the ideal foundation for building incredible tones without amps or cabinets. It offers a studio-quality, amp-free rig with 32 premium DynIR virtual cabinets, each accompanied by a choice of 12 room emulations and 8 microphones. Building on the success of the Torpedo CAB M, the CAB M+ includes a stunning clean preamp, refined power amps, an enhancer, a tuner, extended reverbs, and a noise gate.
The all-new selection of 32 premium DynIR virtual cabinets includes official cabinet captures from Celestion, Engl, and Victory Amplification. In addition to speaker cabinets, the Torpedo CAB M+ offers a clean preamp based on an original SilverFace B'man 74, tube amp emulations, and a wide range of effects designed to shape your sound exactly as you envision it.
Virtual recording is achieved by selecting a speaker cabinet and two microphones, and precisely positioning each microphone in front of the cabinet. The Torpedo CAB M+ allows the user to assume the role of a sound engineer in a professional studio.
In the box:
1 Torpedo CAB M+ unit in a protective case,
1 AC adapter,
1 USB cable
, 1 256MB memory card,
1 quick start guide.
Specifications

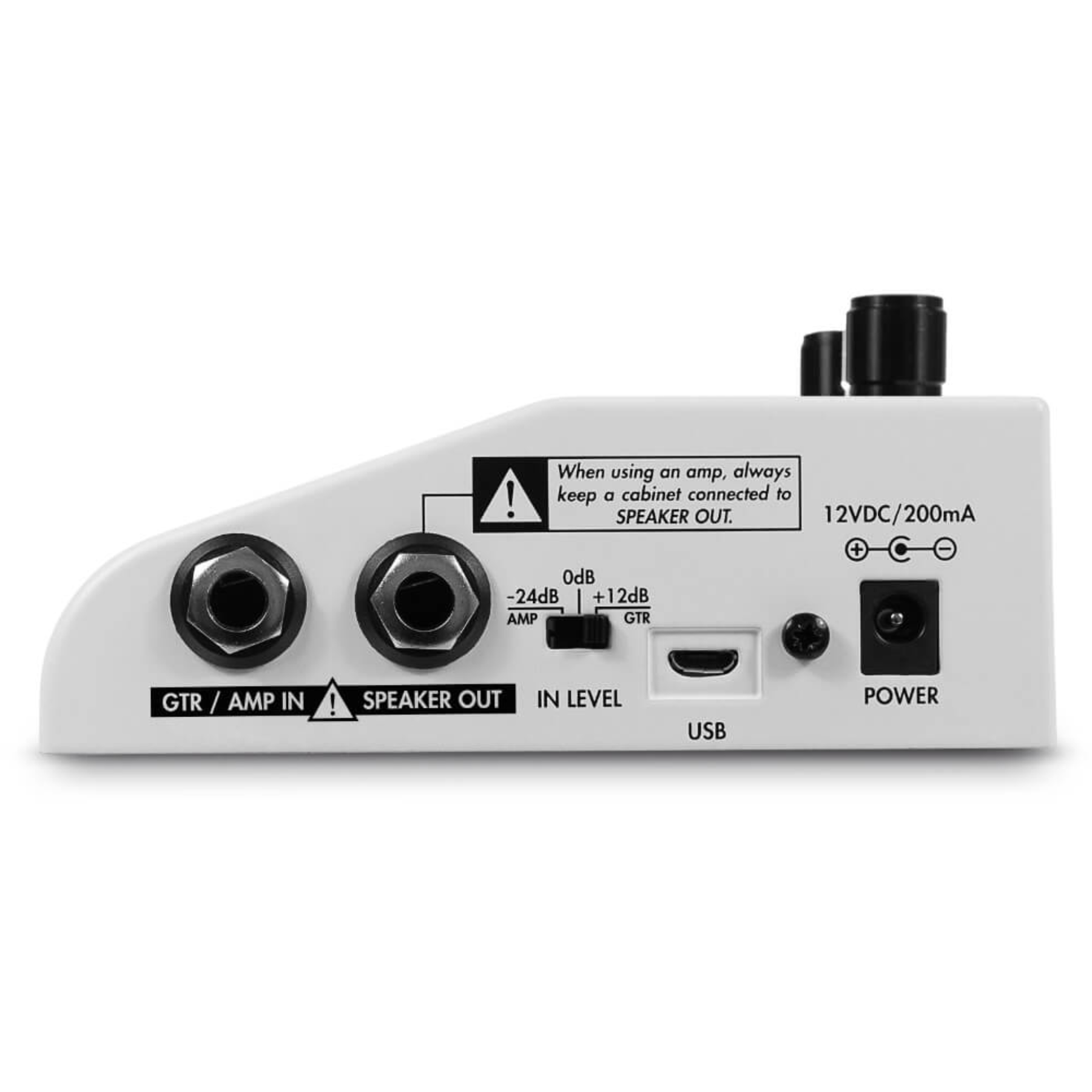

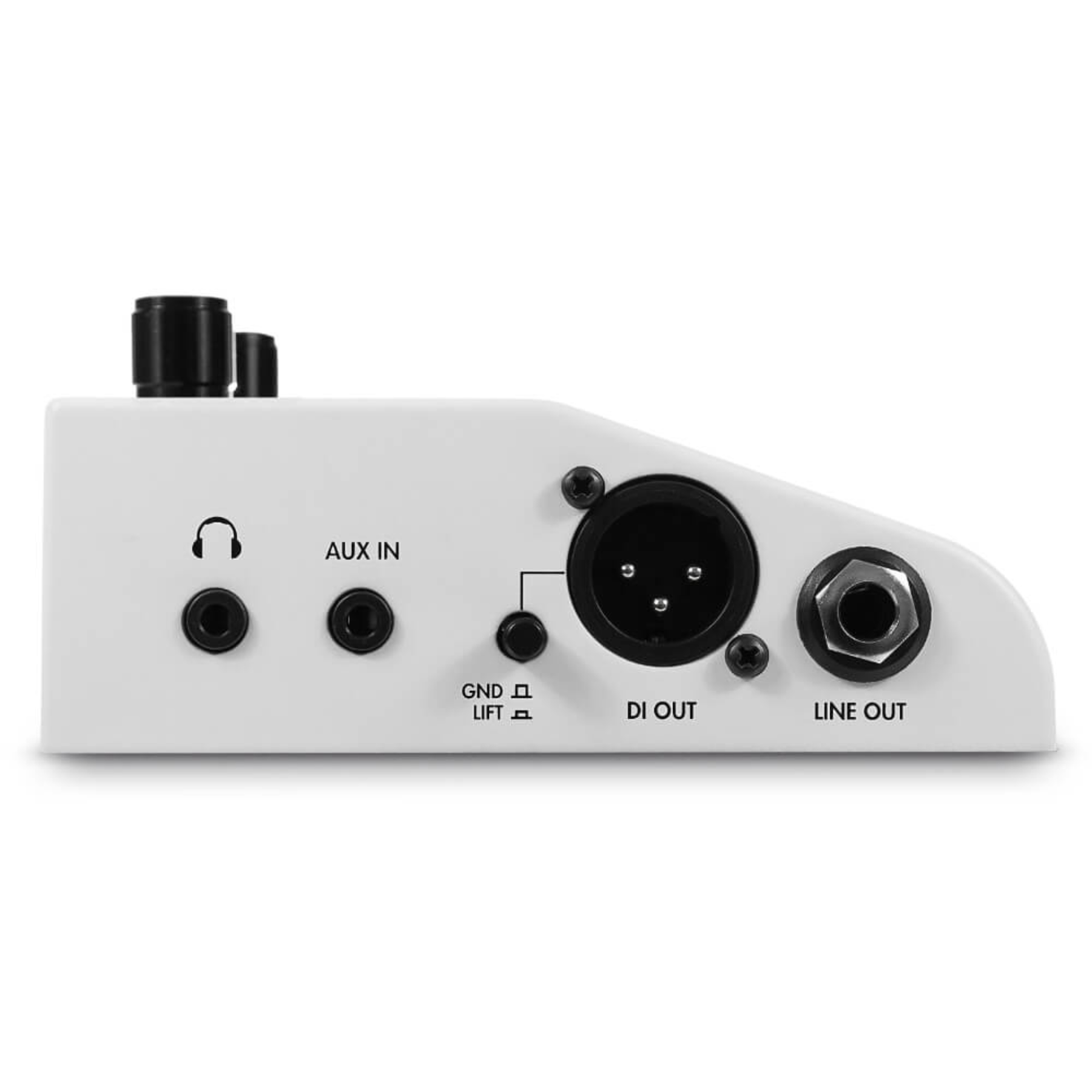

Input/Output
Amp/Inst/Line Input: 1/4" balanced (TRS) jack.
Auxiliary Input: 1/8" (3.5mm) TRS jack.
Speaker Output: 1/4" balanced (TS) jack.
*Unprocessed, unbuffered, directly connected to the amp input.
DI Output: Balanced XLR
Line Output: 1/4" balanced (TRS) jack.
Headphone Output: 1/8" Mini-Jack (TRS).
USB Connector: USB 2.0 Micro-B.
Memory Card: 256MB Micro-SD included, cards up to 32GB supported.
Digital Audio
AD/DA Converters: Studio-quality 24-bit/96kHz.
Bandwidth (-1dB): 30Hz - 19kHz.
Signal-to-Noise Ratio: 91dB.
Internal Processing: 32-bit floating-point
Latency: 2.2 ms (line input to line output)
Power Supply
AC adapter: 2.1mm DC jack, center negative
Input Voltage: 12V DC
Power Consumption: Approx. 2W
Current Consumption: 200mA
Dimensions and Weight
Dimensions (W x D x H): 12.1cm x 10cm x 6cm / 4.8" x 4" x 2.4" (including connectors and buttons)
Weight: 450 g / 0.99 lbs
*If you own an original CAB M and you upgrade your firmware to CAB M+ (FREE OF CHARGE), you retain your 32 existing virtual cabinets from your original purchase and enjoy the benefits of the upgrade.
