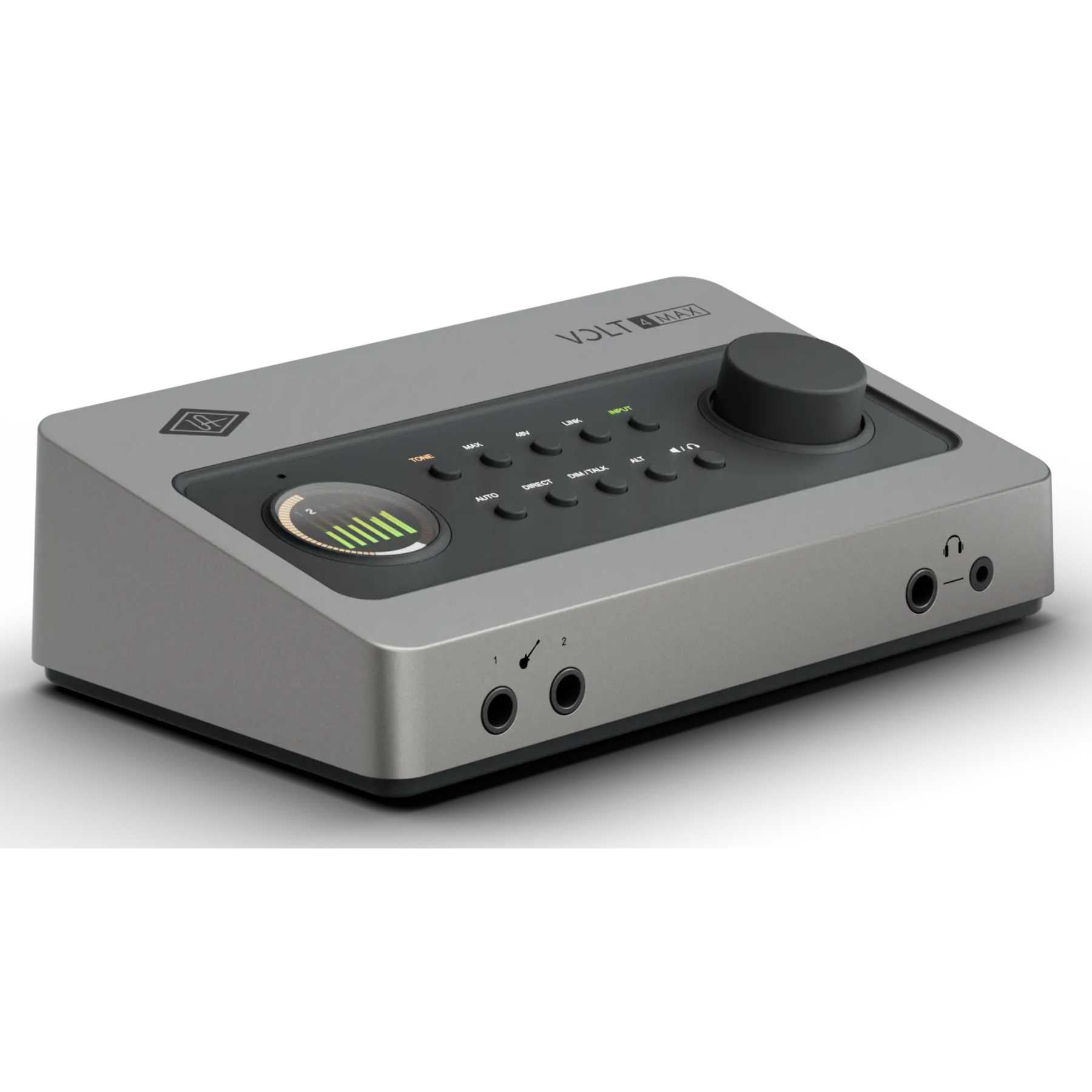

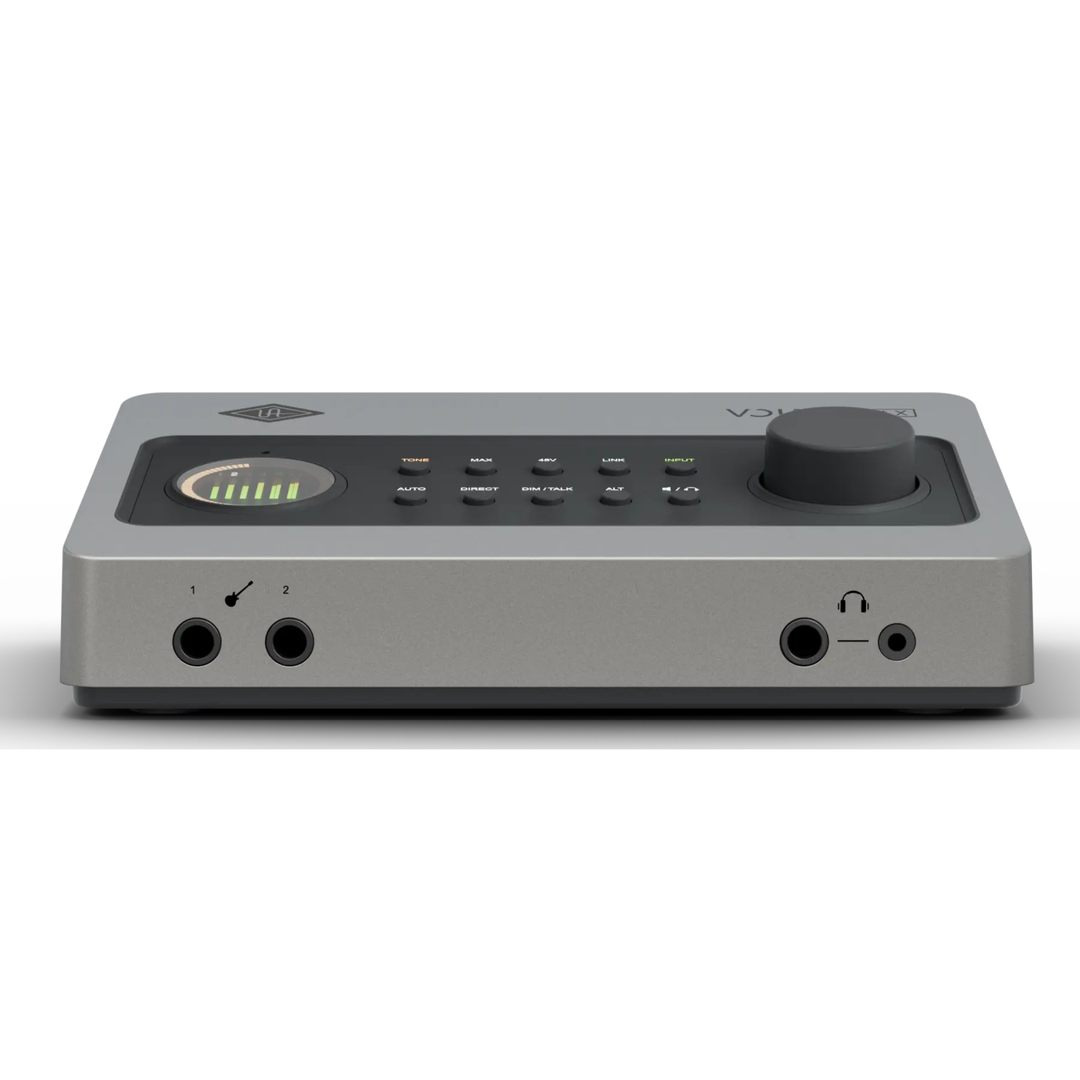

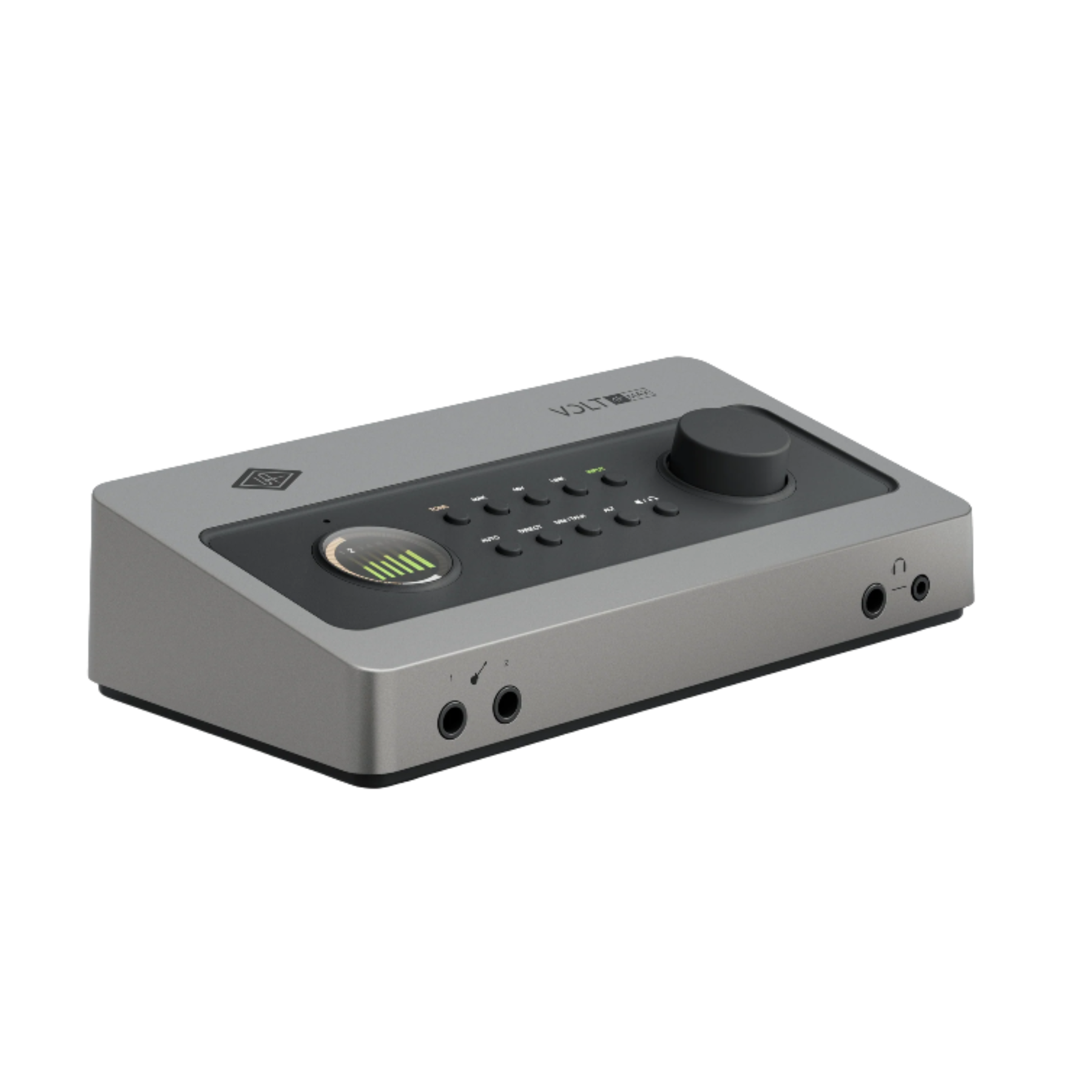

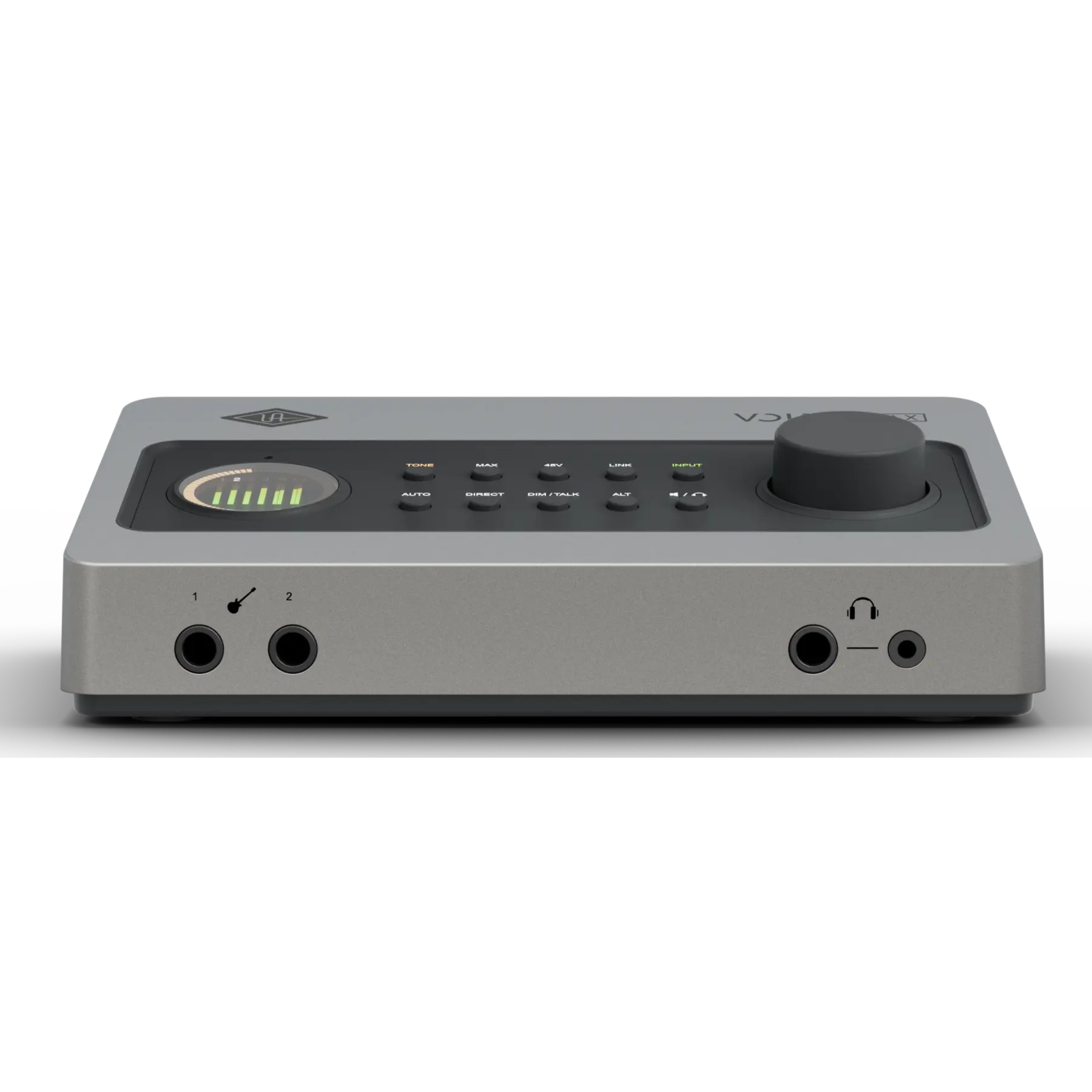

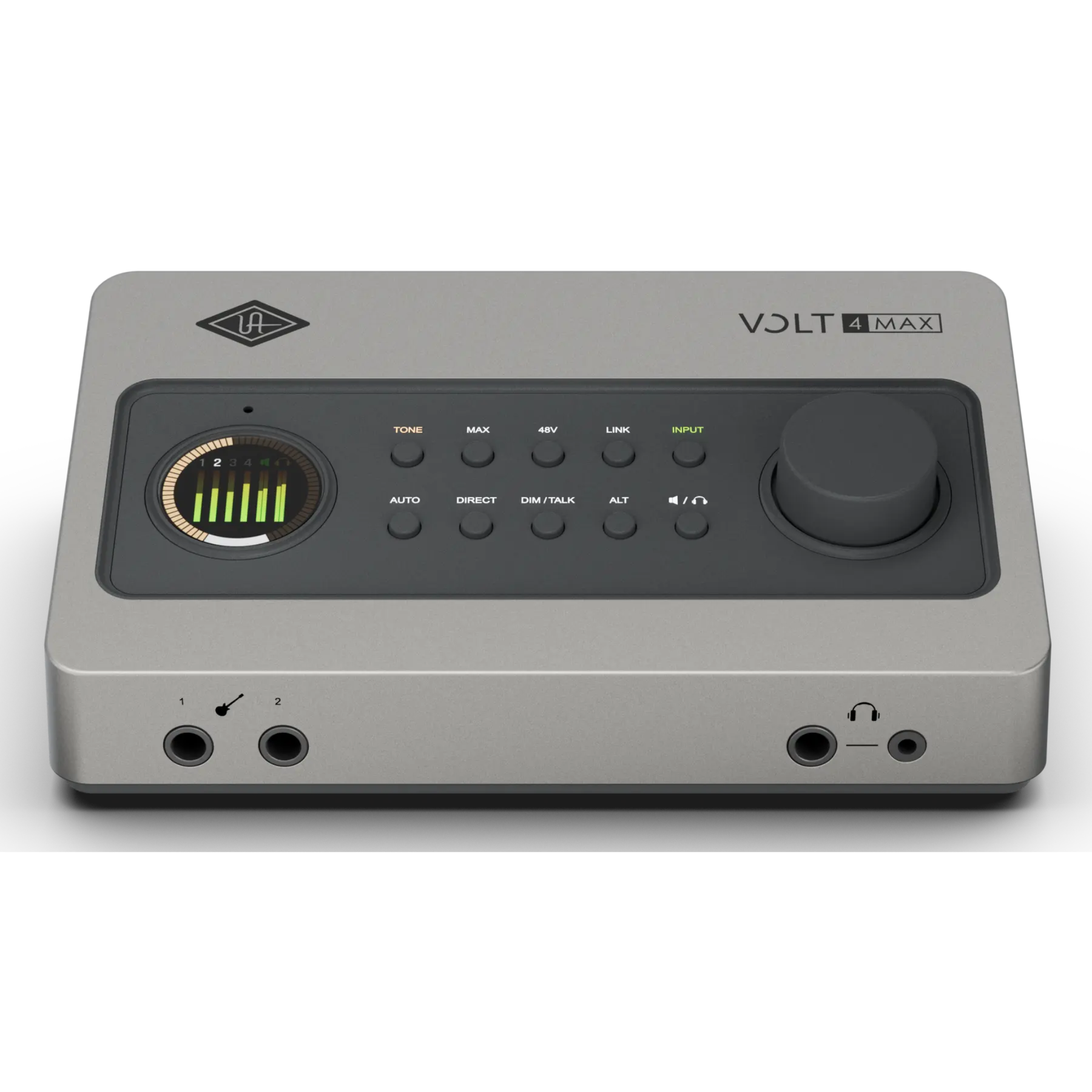

Universal Audio Volt 4P Max 12-in / 6-out USB Audio Interface with Onboard Tone Shaping and Compression

A Record-Making Machine for the Whole Band
Volt 4P Max is a flagship desktop USB audio interface with four Tone Shaping Preamps, a Smart Display with bright visual feedback, speaker switching, and Max dynamics processing. Taken together, it gives drummers, bands, and producers the connectivity to record large sessions with the full sound of a pro studio.

Built by the same Universal Audio team as legendary Apollo interfaces, Volt Max gives you studio mic preamp tones and classic compression on every channel at the push of a button. And when it's time to commit, you get the perfectly tailored suite of award-winning UAD plug-ins and the LUNA Digital Audio Workstation.

Studio Sound for the Full Band, at the Push of a Button
Home recordings and phone demos can sound thin and lifeless. Volt Max gives your recordings incredible tone right from the start. With three harmonic mic preamp modes - Warmth, Focus, and Shine - you can quickly add Tube, Solid State, and British Class-A tone to everything you record.

Add Punch with Max Processing
Volt Max lets you punch up your vocals, guitars, bass, and drums as you track, thanks to Max dynamics processing. With six push-button presets ranging from "Rap Vocals" to "Jangly Acoustic," you'll get big, radio-ready sounds based on our venerable 1176 and LA-2A studio compressors. Combined with its three preamp modes, it puts 18 inspiring sonic possibilities right at your fingertips.

Hear Every Detail with Best-in-Class 32-Bit Converters
When you capture that perfect take, Volt Max's 32-bit / 192 kHz converters preserve every detail, exactly as it happened. And with loud, clear speaker and headphone outputs, you'll get the perfect monitoring levels, from your first take to your final mix.

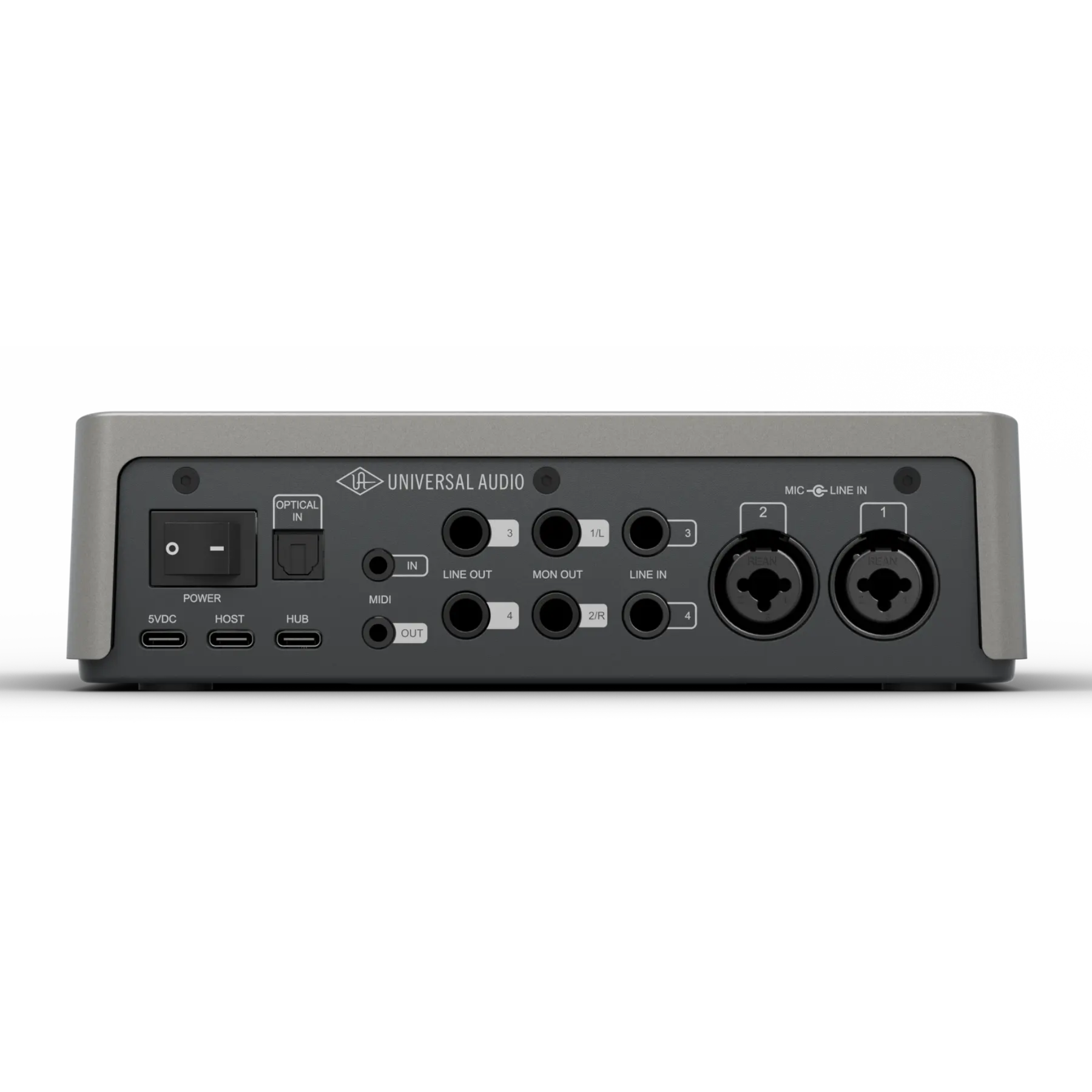

Capture Everything with Expanded I/O
The flagship Volt 4P Max gives you more of everything. It starts with four Tone Shaping Preamps to record multiple musicians and instruments at the same time. Tap into clean 48V phantom power for your fancy studio condenser mics. Connect your controllers and synths over MIDI. And with ADAT you can add eight more digital inputs, should the need arise.

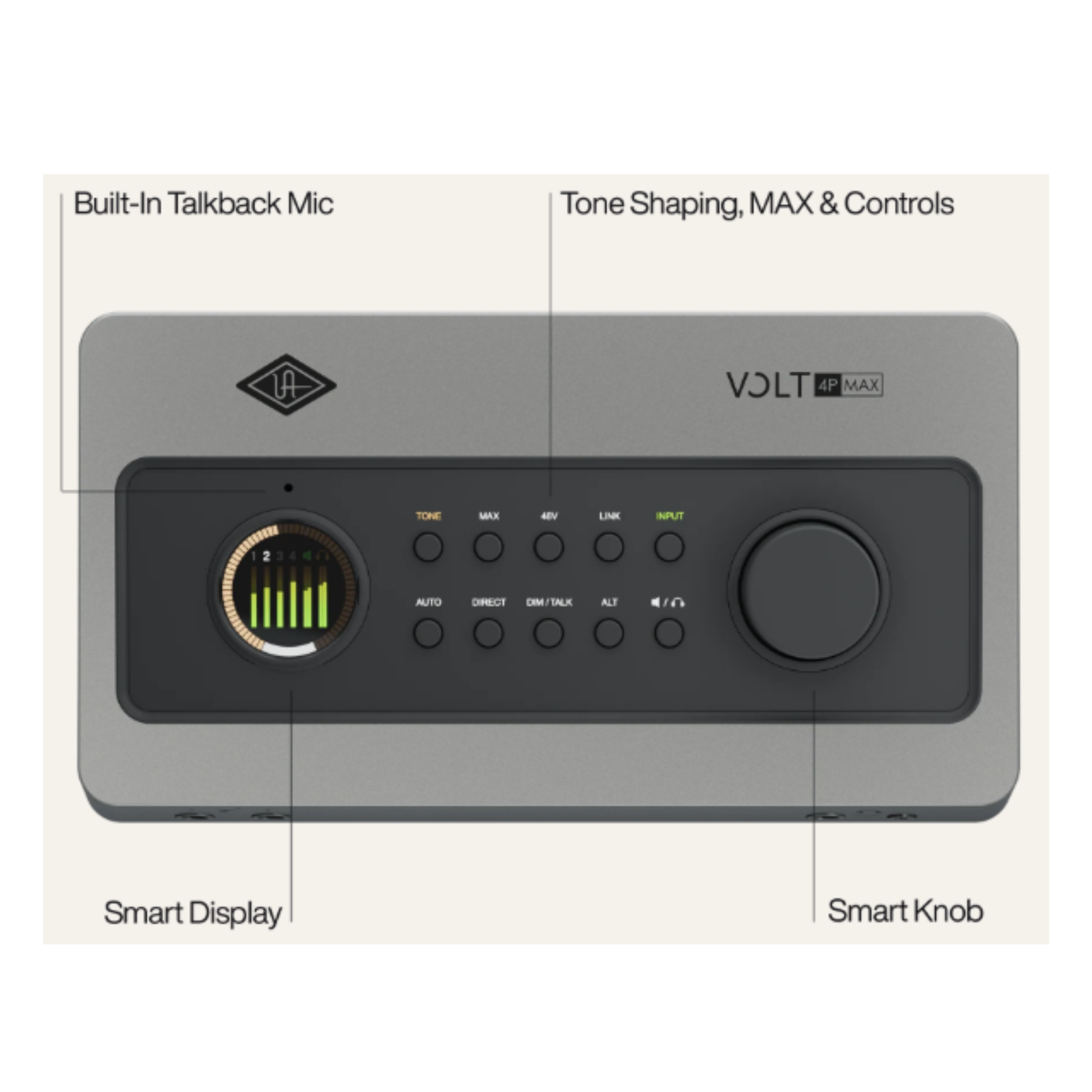

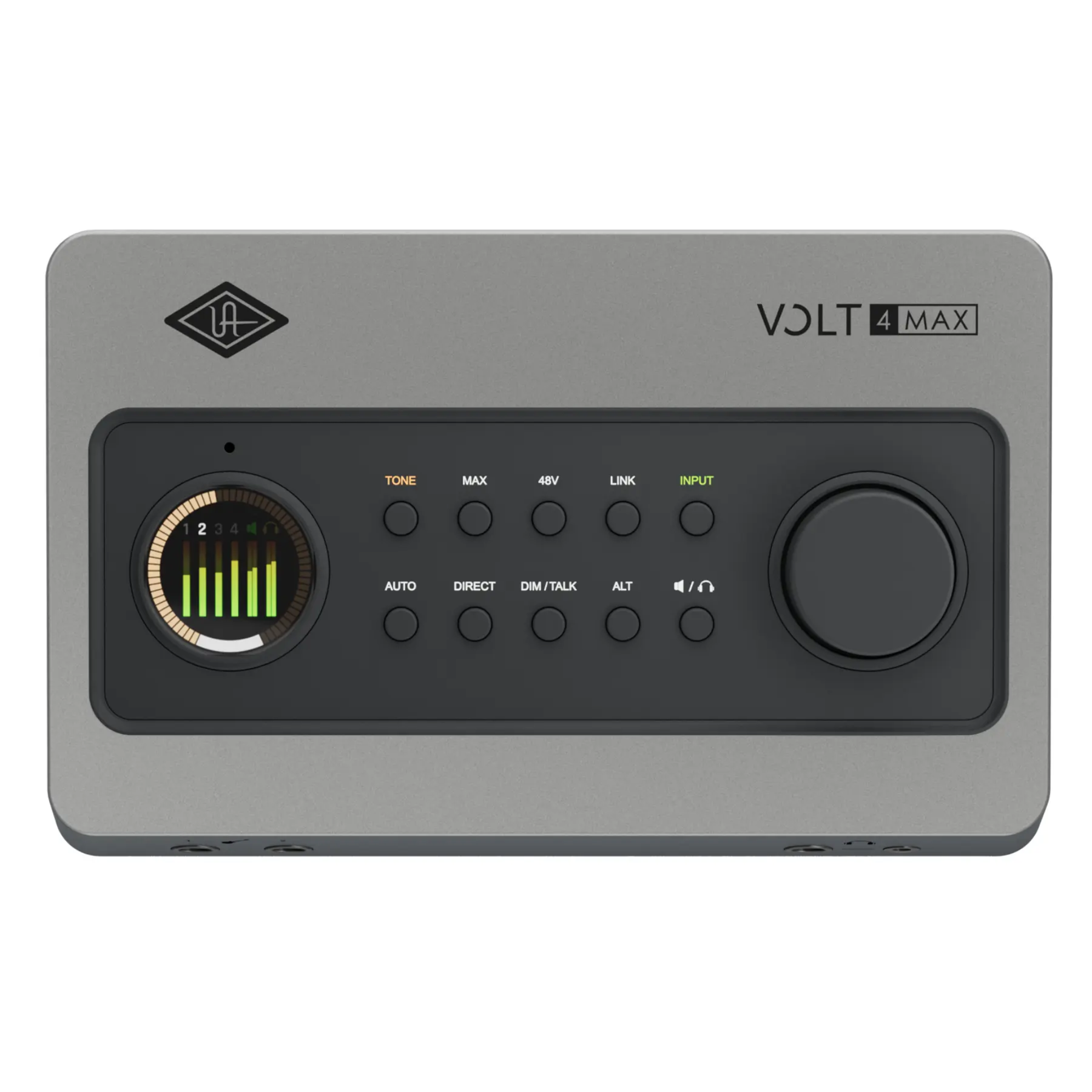

See the Big Picture with Smart Display
Volt Max's beautiful full-color Smart Display shows your inputs, levels, and settings in detail. So you spend less time setting up and more time creating.

Get the Perfect Levels with Auto-Gain
Nothing's worse than a perfect take wrecked by digital distortion. Auto-Gain sets your recording levels in seconds, and Clip Protection catches unexpected peaks. So you can focus on the performance instead of the meters.

Start Making Music in Minutes
When you're inspired, every second counts. Thankfully, Volt Max is ready, willing, and USB class-compliant on Mac, Windows, iPad, and iPhone. No downloads or drivers. Works with any DAW. So you can be up and recording in minutes.

Shape Your Songs with UAD Plug-Ins and LUNA
Every Volt includes over 15 UAD plug-ins and instruments - the same software used to create and mix countless hit records for decades. Plus you get LUNA, UA's award-winning DAW with authentic "big studio" sound and smart tools designed to make recording easy.

Ideal for Larger Podcasts and Livestreams
Volt Max's Loopback feature allows you to blend live sources with computer audio. So you can mix multi-guest podcasts and livestreams in realtime. Or just level up your video calls. There's even a Talkback mic to communicate with talent. It's the same way pro broadcasters work, built into every Volt.

Features

• 12-in / 6-out desktop USB audio interface with professional 32-bit / 192 kHz audio conversion
• Four Tone Shaping Preamps with 60 dB gain and three harmonic character modes - Warmth, Focus, and Shine - for the rich sounds of classic analog mic preamps at the source
• Four mic / line inputs for tracking up to four sources at once
• Max Processing - onboard realtime compression with six musical presets for vocals, guitars, and bass, modeled on classics like the LA-2A and 1176
• Over 18 character combinations by pairing Tone and Max, all completely noise-free
• Two front-panel Hi-Z instrument inputs and additional line outputs
• Speaker switching between two sets of monitors (Main and Alt)
• Built-in talkback microphone for effortless studio communication
• ADAT or S/PDIF optical input for up to eight channels of digital expansion, plus MIDI In and Out
• Onboard USB hub for connecting peripherals and powering external MIDI controllers
• Full-color Smart Display for bright, at-a-glance visual feedback, including gain-reduction metering
• Auto-Gain and Clip Protection for perfect recording levels, every time
• Two studio-quality headphone outputs (with one shared cue mix) for monitoring and collaboration
• Full integration with the UAD Console app and LUNA, including session recall and low-latency cue mixes
• Built-in loopback for podcasting, streaming and content creation
• Independent 48V phantom power per channel for condenser microphones
• USB bus-powered and class-compliant for easy setup with Mac, Windows, iPad, and iPhone
• Stylish, rugged construction built to withstand years of use

Included Software

UAD Volt Studio Bundle
- LUNA Digital Audio Workstation
- Topline Vocal Tune
- UA 610 Tube Preamp & EQ Collection
- Century Tube Channel Strip
- Teletronix LA-2A Tube Compressor
- UA 1176 Classic FET Compressor
- Pure Plate Reverb
- Galaxy Tape Echo
- Oxide Tape Recorder
- Vibe Analog Machines
- PolyMAX Synth
- Anthem Analog Synth
- UAD Lion '68 Super Lead Amp
- UAD Showtime '64 Tube Amp

Additional Software
- Melodyne Essential by Celemony
- Ampeg® SVT-VR Classic Bass Bundle by Plugin Alliance (Includes Ampeg SVT-VR Classic, bx_Tuner, bx_Masterdesk_Classic)
- Virtual Drummer DEEP by UJAM
- Virtual Bassist DANDY by UJAM
- Splice INSTRUMENT
- Prisma - Producer Lab by UVI
- FL Studio Producer Edition (3 months free)

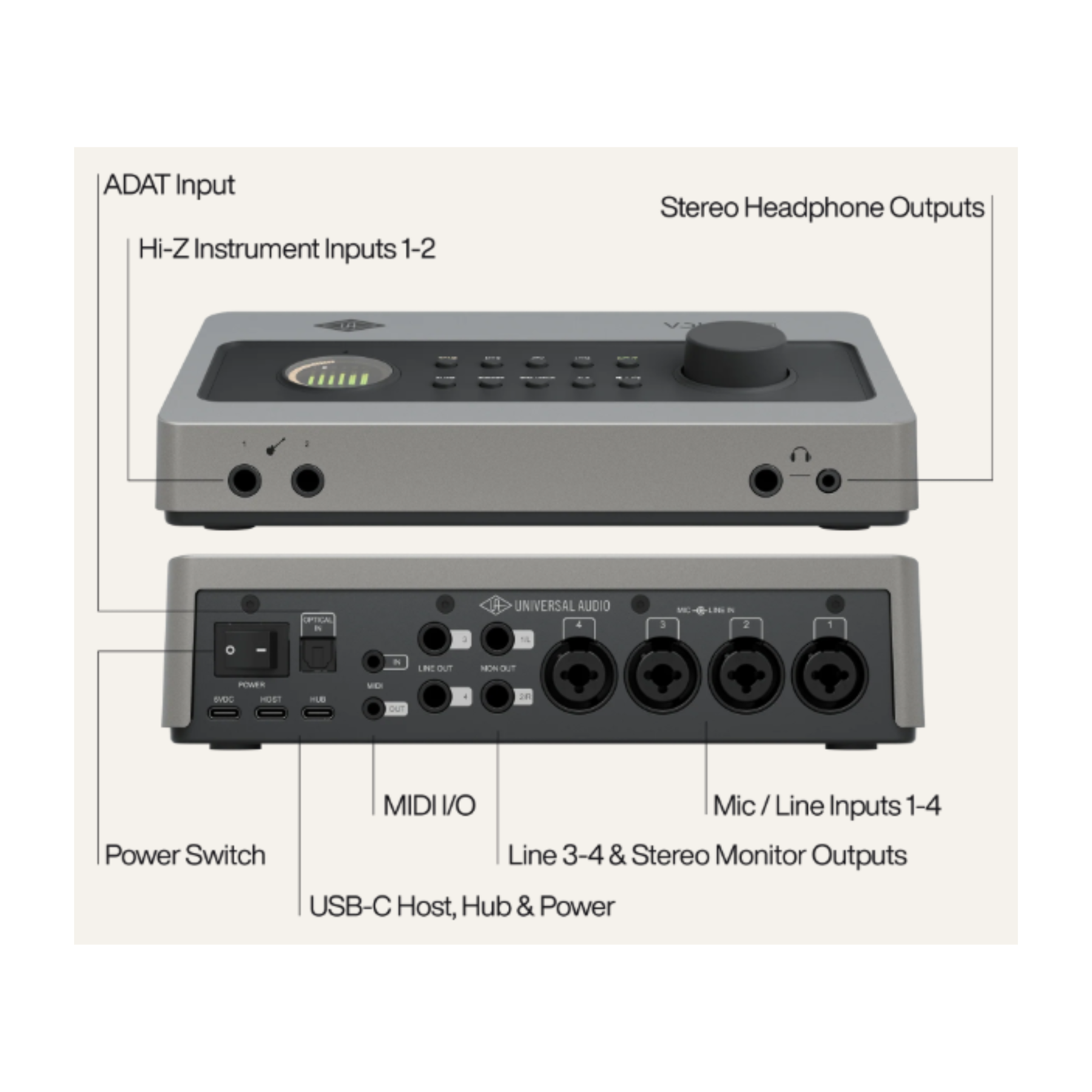

Specifications

I/O
- Simultaneous I/O: 12-in / 6-out
- Microphone Preamps: Four, 60 dB available gain, with Tone Shaping, Harmonic Saturation, and Max Compression
- Monitor Outputs: Two stereo (main and alt speaker switching)
- Headphone Outputs: Two stereo (one shared cue mix)
- USB: One USB 2.0 Host port, One USB Hub port for peripherals supplies 5VDC @ 0.5A maximum, One USB External Power input port requires 5VDC @ 2A minimum (3A provided with unit), USB Type-C connectors
- Digital / Optical: ADAT or S/PDIF optical input
- ADAT IN: 8 channels at 44.1 and 48 kHz, S/MUX capable 4 channels at 96 kHz, S/MUX capable 2 channels at 192 kHz
- S/PDIF IN: 2 channels at all supported sample rates
- MIDI: In, Out, 1/8" TRS Mini-Jack, MIDI Type A
- Talkback: Built-in microphone

A/D D/A Conversion
- Supported Sample Rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192
- Bit Depth: 32

Power
- USB Bus-Powered: Yes
- Power Consumption (@ 5VDC): 6.0W typical, 9.1W maximum
- On / Off Switch: Yes - Rear Panel

ANALOG I/O

Instrument Inputs 1-2
- Frequency Response: 20 Hz to 20 kHz +0.02 dB
- Dynamic Range (Aweighted): 116 dB
- THD + Noise (1 kHz @ -1 dBFS): -108 dB (0.0004%)
- Maximum Input Level: 13 dBu
- Input Impedance: 1 Megohms
- Available Gain (Digitally-controlled): 60 dB
- Connector Type: 1/4" TS unbalanced

Microphone Inputs 1-4
- Frequency Response: 20 Hz to 20 kHz +0.08 dB
- Dynamic Range (Aweighted): 119 dB
- THD + Noise (1 kHz @ -1 dBFS): -108 dB (0.0004%)
- Maximum Input Level: 14 dBu
- Input Impedance: 2 Kilohms
- Available Gain (Digitally-controlled): 60 dB
- Phantom Power: +48V (switchable per channel)
- Connector Type: XLR Combo Jack, pin 2 positive

Line Inputs 1-4
- Frequency Response: 20 Hz to 20 kHz +0.05 dB
- Dynamic Range (Aweighted): 119 dB
- THD + Noise (1 kHz @ -1 dBFS): -108 dB (0.0004%)
- Maximum Input Level: 22 dBu
- Input Impedance: 10 Kilohms
- Available Gain (Digitally-controlled): 60 dB
- Connector Type: 1/4" Combo Jack, TRS balanced or TS unbalanced

Monitor & Line 3-4 Outputs
- Frequency Response: 20 Hz to 20 kHz +0.05 dB
- Dynamic Range (A-weighted): 126 dB
- THD + Noise (1 kHz @ -1 dBFS): -112 dB (0.0003%)
- Maximum Output Level: 20.2 dBu
- Output Impedance: 200 Ohms
- Connector Type: 1/4" TRS balanced or TS unbalanced, (DC coupled)

Headphone Outputs
- Frequency Response: 20 Hz to 20 kHz +0.08 dB
- Dynamic Range (Aweighted): 116 dB
- THD + Noise (1 kHz @ -1 dBFS into 300Ω): -103 dB (0.0007%)
- Maximum Output Power into 32Ω: 45 mW
- Maximum Output Power into 300Ω: 24 mW
- Connector Type: 1/4" and 1/8" TRS stereo unbalanced, (DC coupled)
