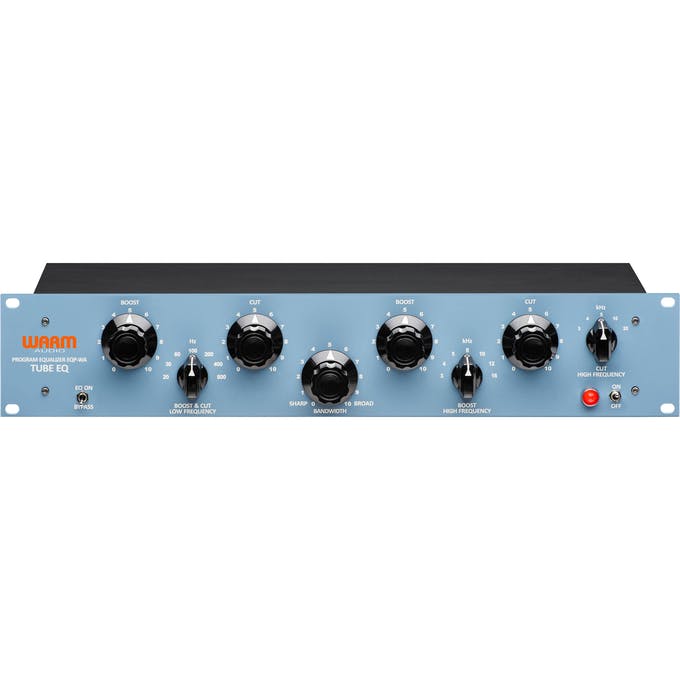

Warm Audio EQP-WA Tube Equalizer EQ

The EQP-WA is a re-creation of the most renowned tube Equalizer in studio history, the "Pultec EQP-1A". Not only does the look and feel of the EQP-WA match the classic Pultec units, but the sonic quality has been carefully considered by using top-end components such as CineMag transformers and premium tubes. This fully discrete Tube EQ can pull euphoric sonics from any track and bring a brilliance and luster to mixes that’s nearly impossible to achieve inside-the-box. We are proud to have once again redefined the industry standard by bringing a fully professional-grade equalizer to the market at a price that's just as remarkable as the unit.

Features:

• Utilizes premium grade input and output cinemag usa transformers.
• Tube equalizer based on the classic “pultec” eqp-1a.
• Premium high voltage 12ax7 and 12au7 tubes.
• Cinemag inductor eq section.
• Eq section is bypassable - signal still passes through tubes and transformers for warming effect.
• Xlr and trs transformer balanced outputs.
• Flat frequency response from 20 hz - 50 khz.
• Xlr and trs transformer balanced inputs.
• No insertion loss - loss restored by tube amplifier.
• 5 added frequency points for greater flexibility.
• Switchable 115/230 volt iec power inlet.
• Dimensions: 19 x 3.5 x 6 inches - 2ru rack mountable.
• Low frequency boost - 20, 30, 60, 100, 200, 400, 800 hz - 12 db.
• Low frequency cut - 20, 30, 60, 100, 200, 400, 800 hz - 18 db.
• High frequency boost - 3, 4, 5, 8, 10, 12, 16 khz - 18 db.
• High frequency cut - 3, 4, 5, 10, 20 khz - 14 db.
• Boost and cut controls can be used simultaneously for phase effect.
