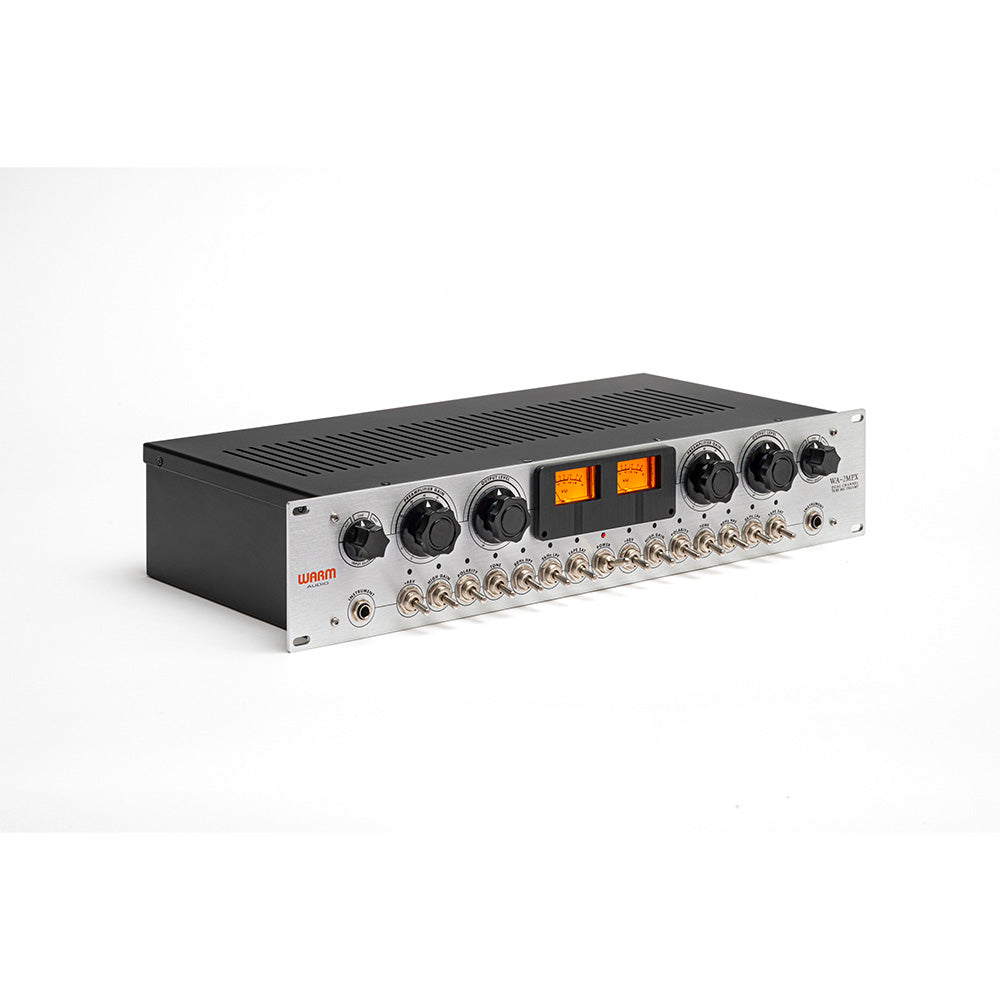

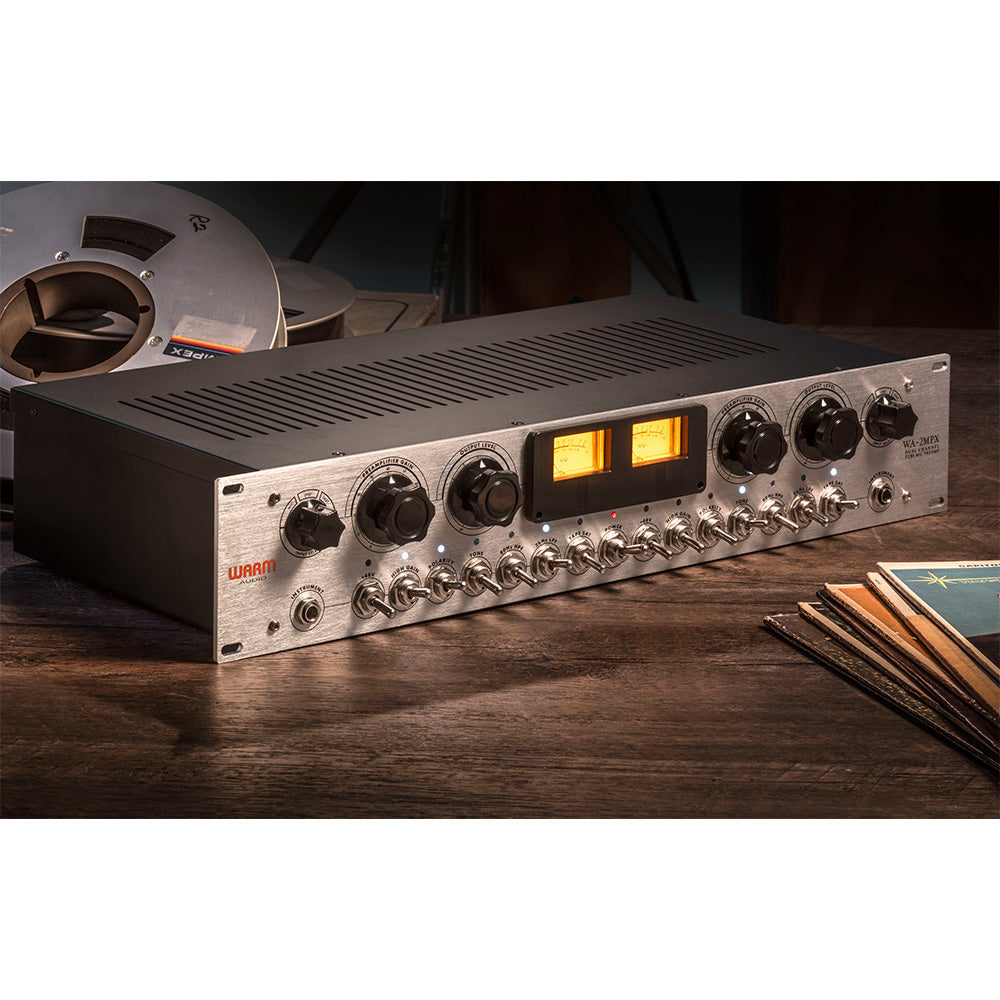

Overview of Warm Audio WA-2MPX Dual-Channel Tube Mic Preamp
The WA-2MPX is an authentic reproduction of the most revered microphone tube preamp that pioneered the birth of rock ‘n’ roll & radio-ready hits. During the golden-era of tape recording, this style of vintage tube preamp became the signature sound in the signal chain of hit recordings including Elvis Presley, Les Paul, and Bing Crosby - and is a sound that is still pursued by today’s biggest artists. With premium components, true-to-original circuit design, and tape saturation control, the WA-2MPX authentically reproduces all the analog tone of the original to bring vintage warmth & color to your sound.
- Authentic Reproduction Of The Most Revered Tape-Era Tube Preamp

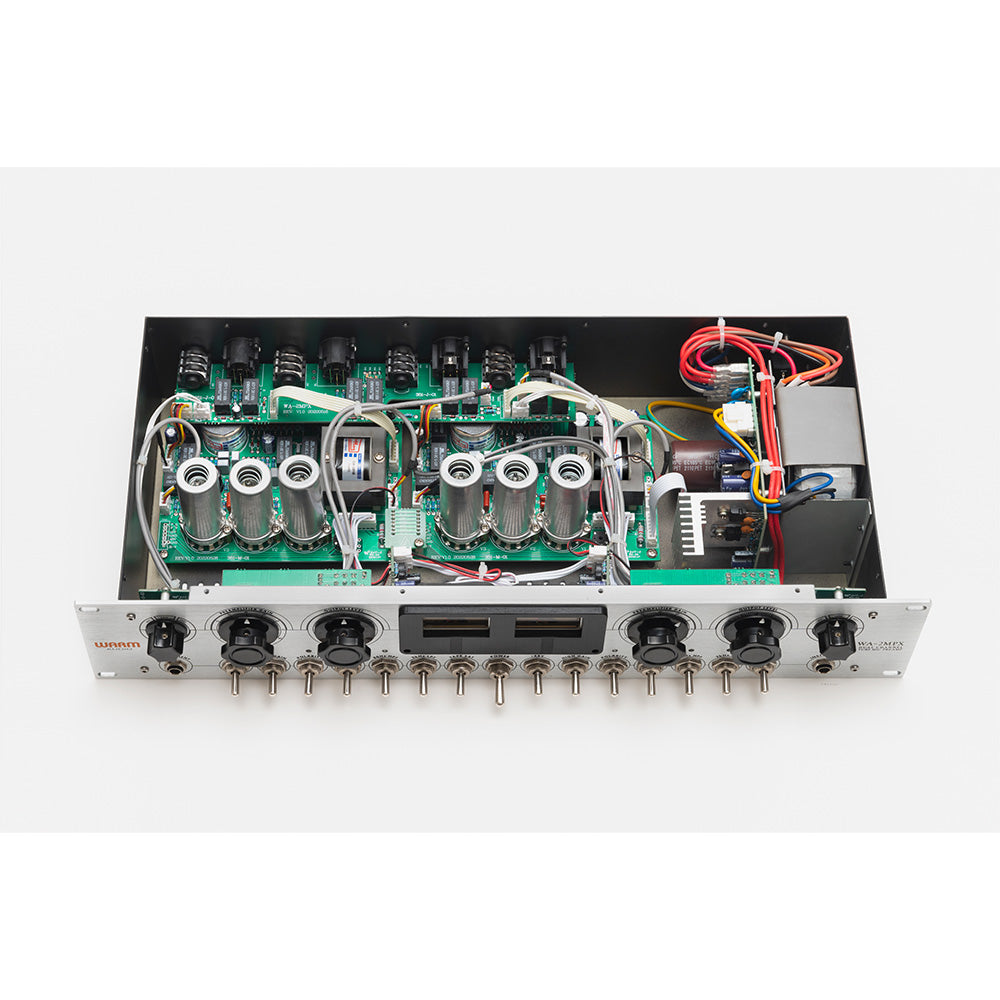

- Fully Discrete, Hand-Built Construction With 3 Tubes Per Channel For Ultimate Analog Tone
- Selectable Tape Saturation Adds Harmonic Distortion & Natural Compression
- 90dB Of Analog Tube Gain Per Channel

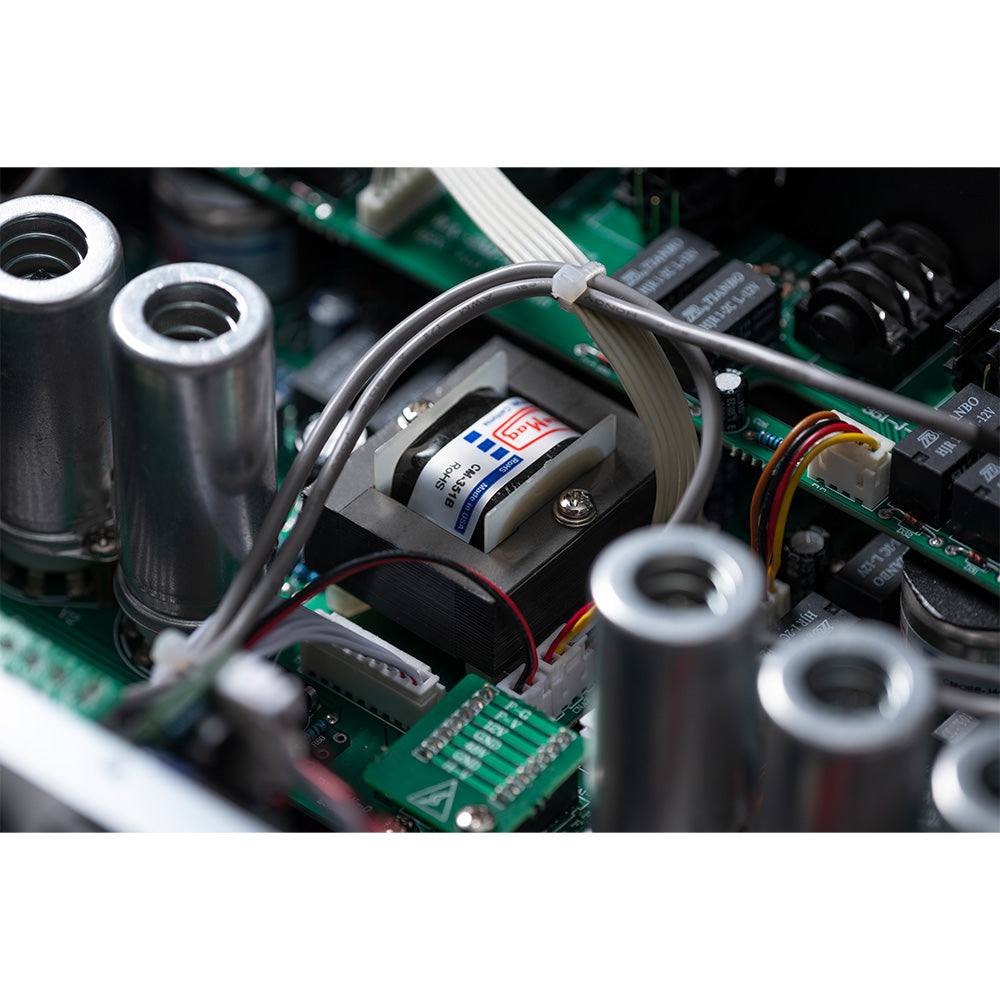

- Custom-Wound, Large-Core CineMag USA Transformers
- Mic Input: 600Ω Transformer (6000Ω Rated)
- Mic Input With “Tone” Engaged: 150Ω Transformer (1500Ω Rated)
- Premium (2X) 12AX7 & (1X) 12AU7 Vacuum Tubes
- 600Ω Output Attenuator
- Engage High Gain Control For An Added 20db (From 70db To 90db) Of Clean Gain For Low-Output Mics And Low-Volume Sources
- 48v Phantom Power & Polarity Switch
- Classic Warm Audio Tone Control That Alters The Input Transformer Impedance Adding Extra Analog Color
- 80Hz High-Pass Filter To Control Unruly Bass Frequencies
- 2kHz Low-Pass Filter To Focus Preamp Power & Warmth On Mids For Added Punch

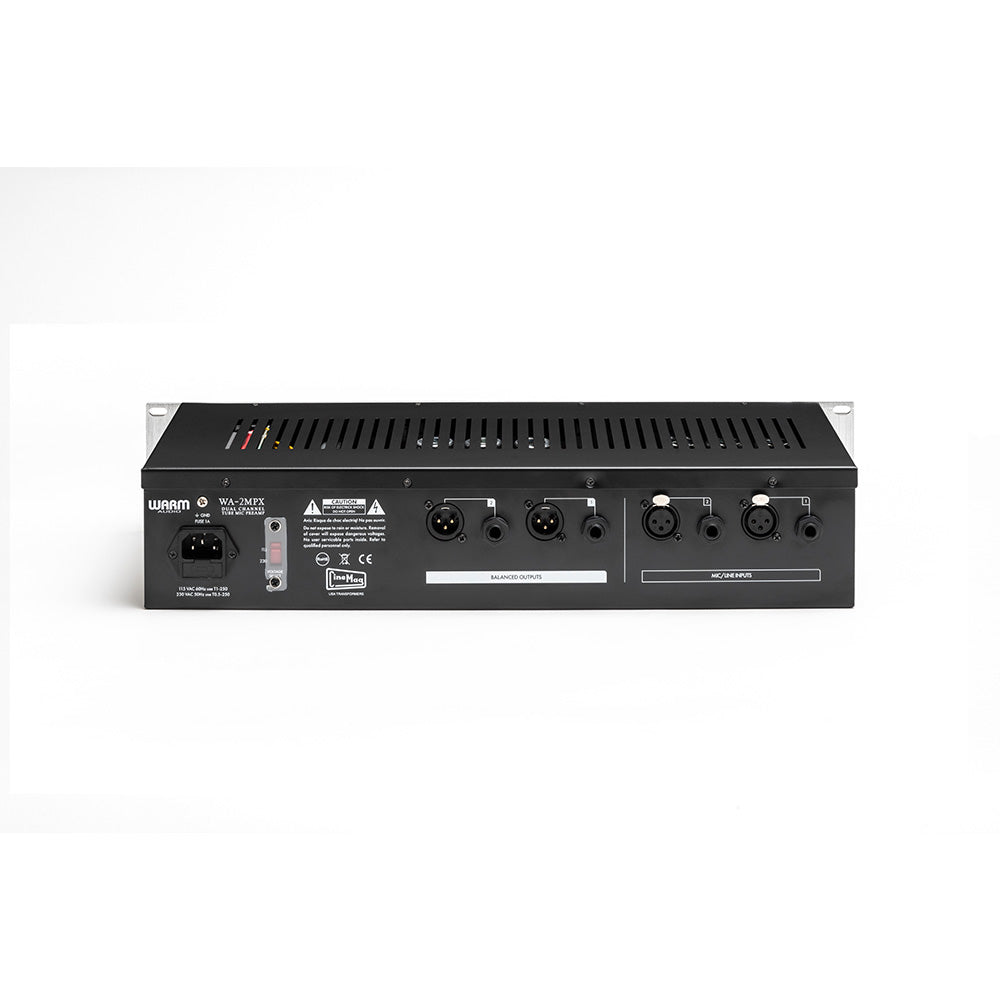

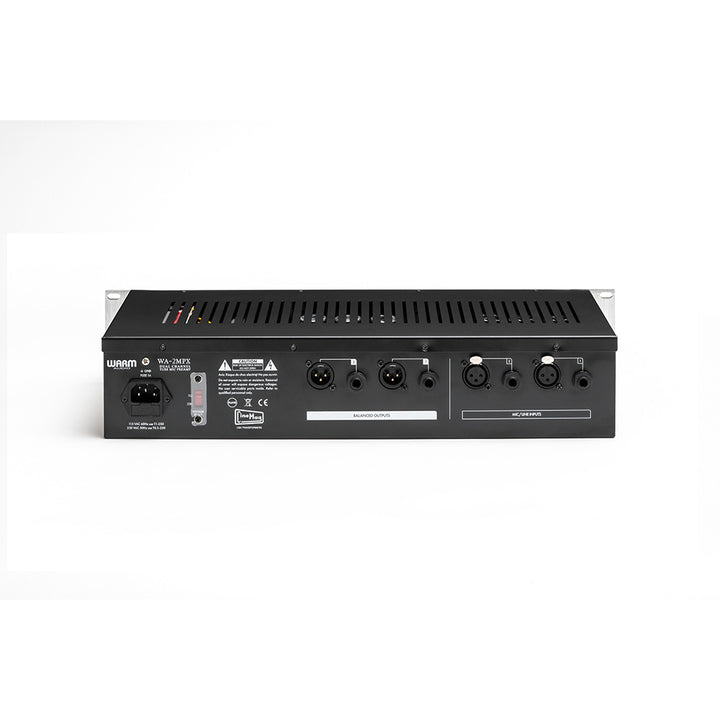

- Inputs: XLR Mic, TS Instrument & TRS Line.
- Outputs: XLR / TRS Line Level

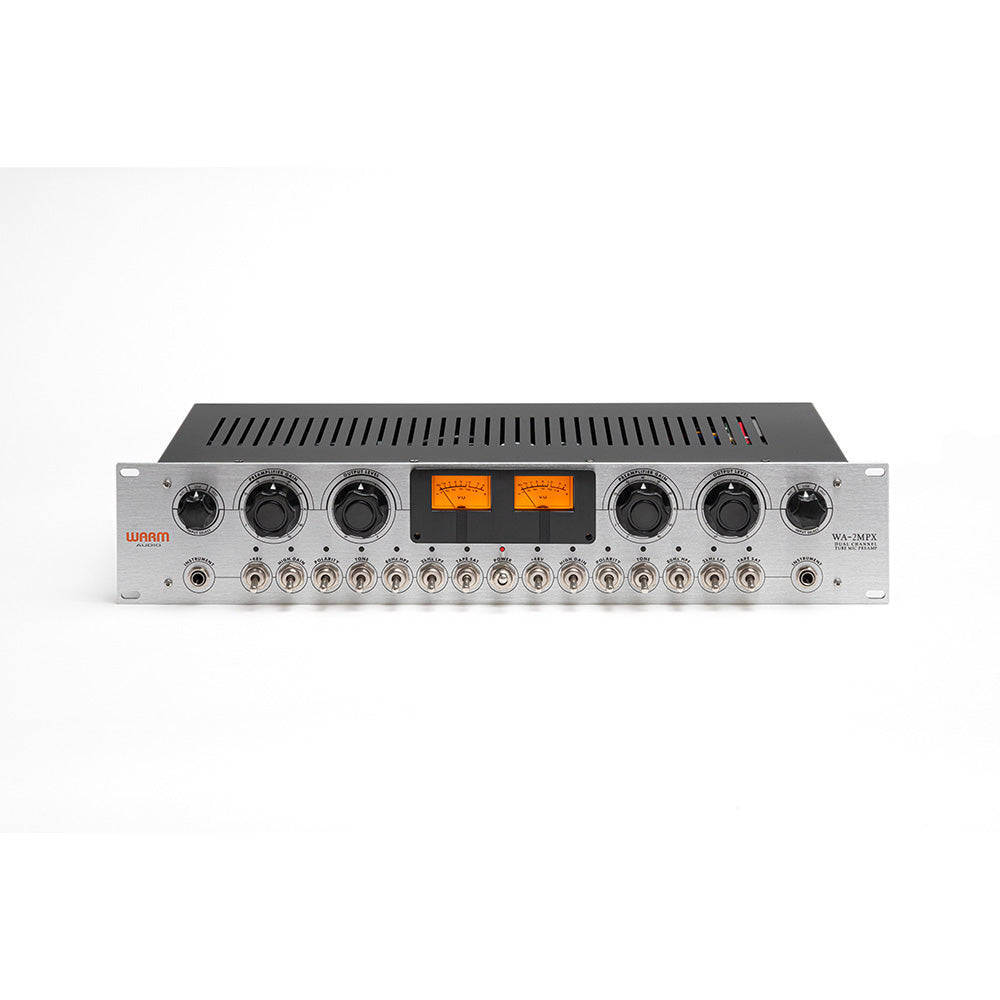

- VU Meter Level Indication
- Frequency Response: 20Hz-20kHz
- Aluminum Faceplate, Steel Chassis, & Vintage Bakelite-Style Knobs
- Internal IEC 115v/230v Power Inlet
