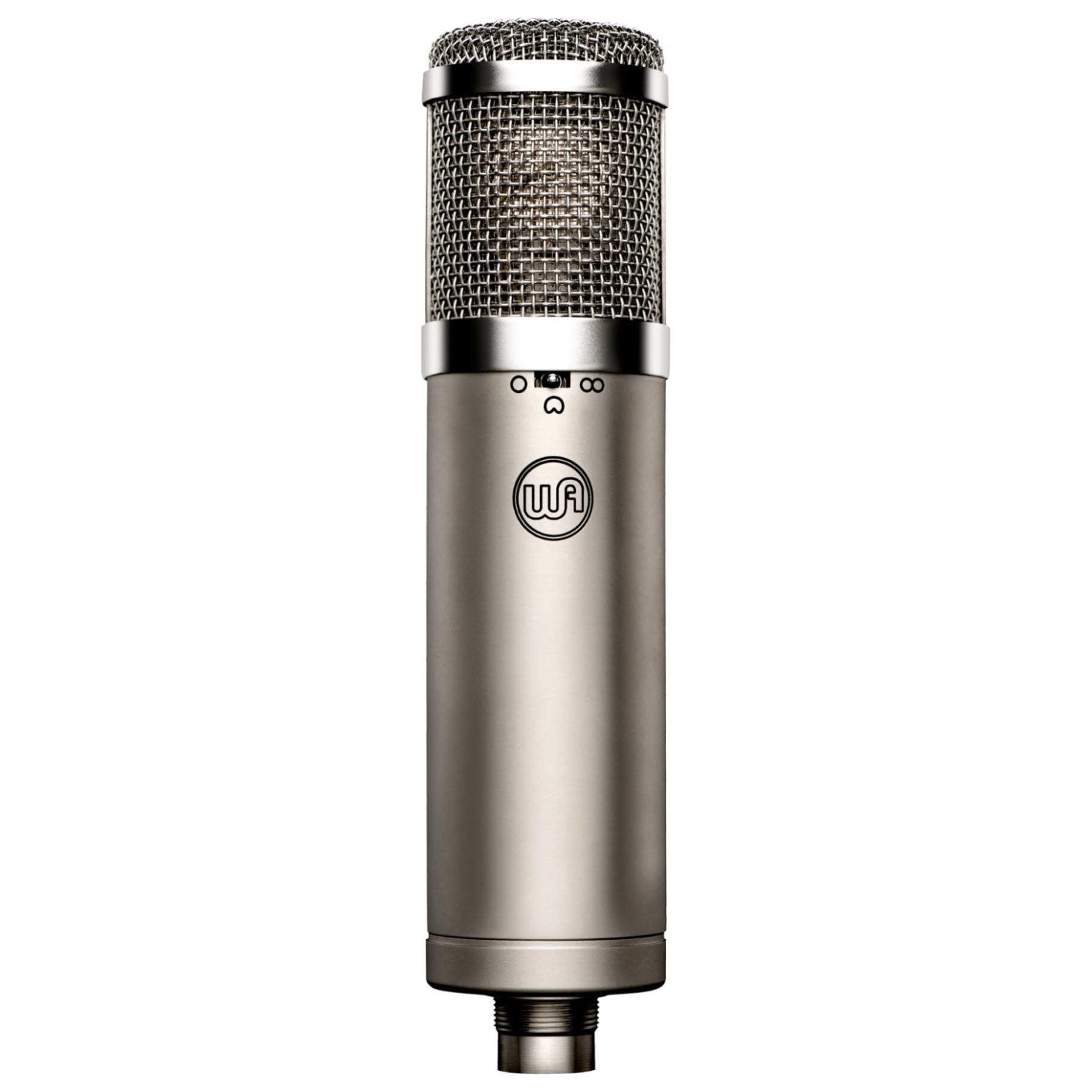

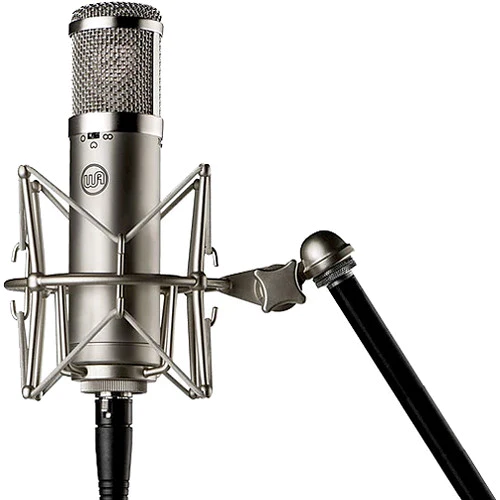

Warm Audio WA-47 JR Fet Condenser Microphone
WA47JR
Payment plans from Affirm, learn more
- Warm Audio
- Shipping Calculated at checkout, most in stock products ship same day
The WA-47jr is an FET transformerless version of the highly renowned classic ‘47 microphone that has been used on countless hit records for the last 50+ years. The WA-47jr is fully discrete, has 3 polar patterns and is designed for pro studio, home studio, live, and broadcast applications. The WA-47jr sounds great on vocals, acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass/woodwind instruments, and an array of other sources.
The WA-47jr proudly utilizes a custom k47 style capsule reproduction, designed with the same hole pattern and frequency response as the vintage design. Our version of this capsule (model# WA-47-B-80v) is carefully manufactured by an Australian capsule manufacturer with careful precision and repeat-ability that allows the most important sonic piece of the classic mic to be heard and influence the tone and signature of the WA-47jr. The WA47jr's low-noise and discrete signal path, when paired with this excellent true '47 style capsule, allows it to obtain a very similar tone to the classic ‘47 microphone, but at a much lower price tag. The WA-47jr utilizes the same k47 style capsule found in our flagship WA-47 tube condenser microphone.
Features:
- FET Transformerless '47 Style Condenser Microphone.
- Custom True '47 Capsule Reproduction (K47 Style)
- Model# WA-47-B-80v.
- Capsule Makeup: Gold Sputtered, Dual Large Diaphragm, Single Backplate, 6 Microns NOS Mylar (PET Film).
- Polar Patterns: Cardioid, Figure-Of-Eight, And Omnidirectional.
- Pad: -10db
- High-Pass Filter: 70Hz
- Self-Noise: 9dBA
- Dynamic Range: 138dBA

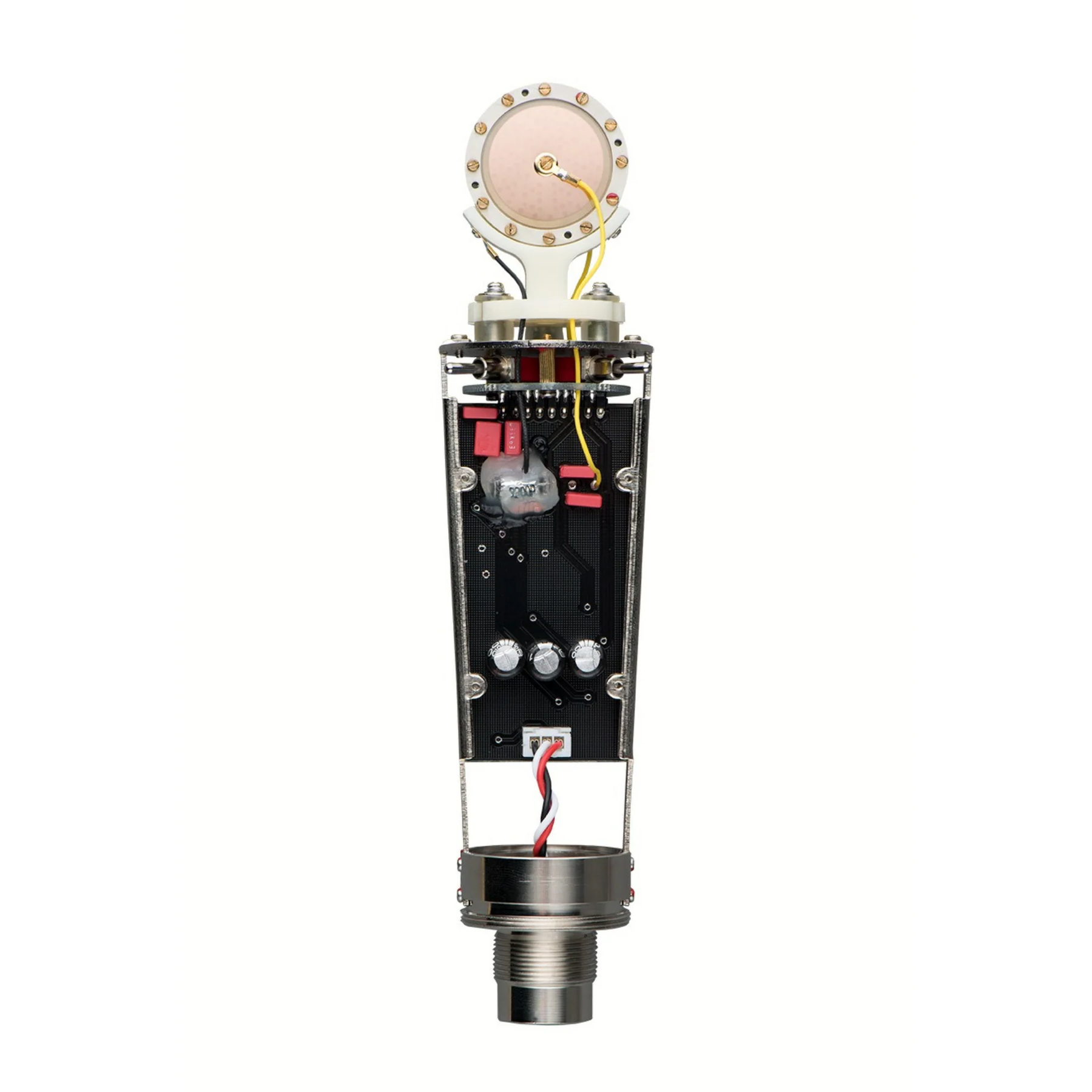

- Fully Discrete Signal Path, Toshiba FET’s, Wima Film Capacitors, Panasonic Electrolytic Capacitors
- Maximum SPL: 147/157dB (@1kHz 1kOhms 0.5% THD, 0/-10dB)
- Frequency Range: 20 Hz~20 KHz
- Sensitivity: 10mV/Pa Or -40dB
- Output Impedance: 100 Ohms
- Rated Load Impedance: ≥1kOhms
- Equivalent Noise: 10dBA (IEC651)
- Total Weight: 1.1 Lbs
- Mic Diameter: 52mm
- Mic Length: 210mm
- Includes: Shockmount, Hard Mount, Zipper Storage Pouch
