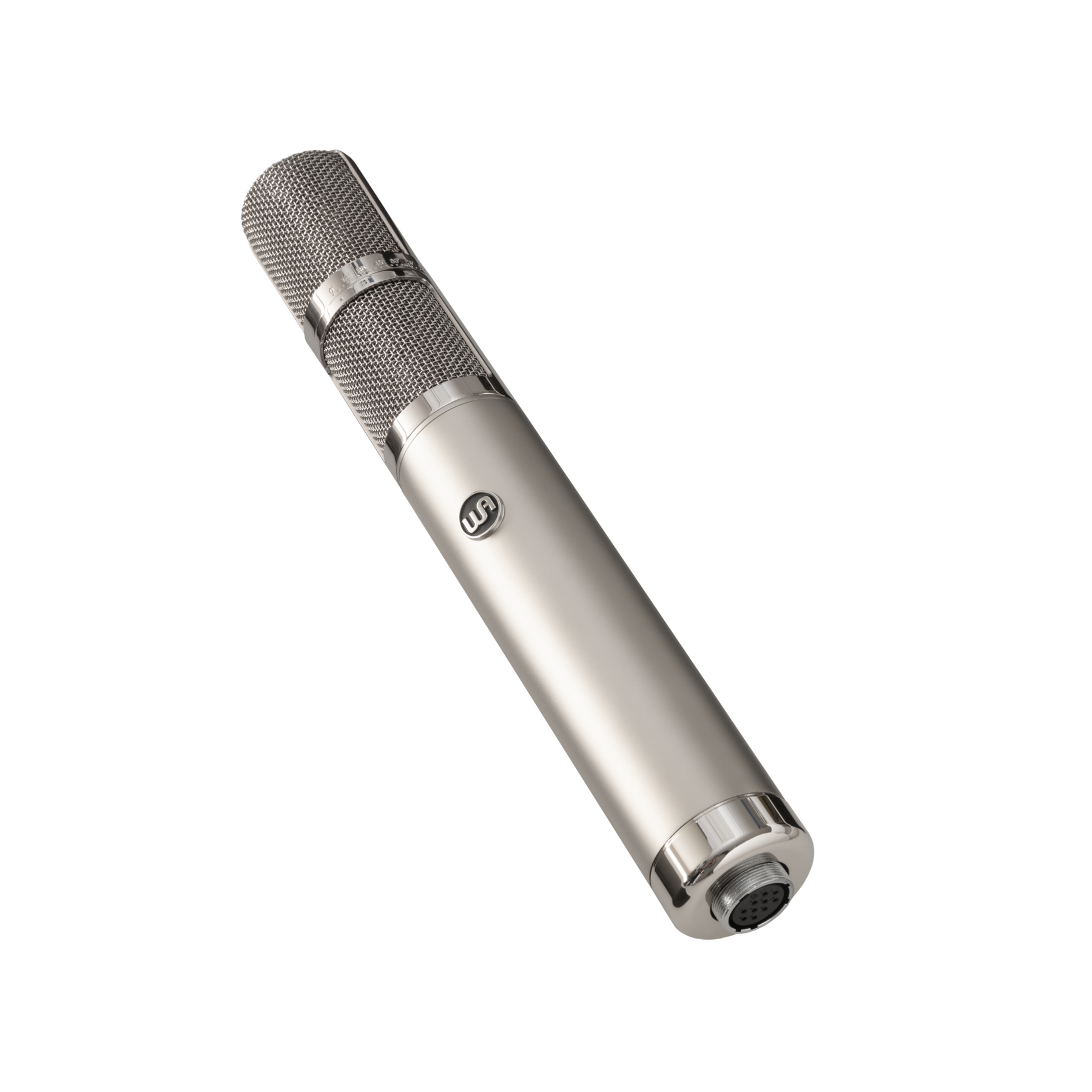

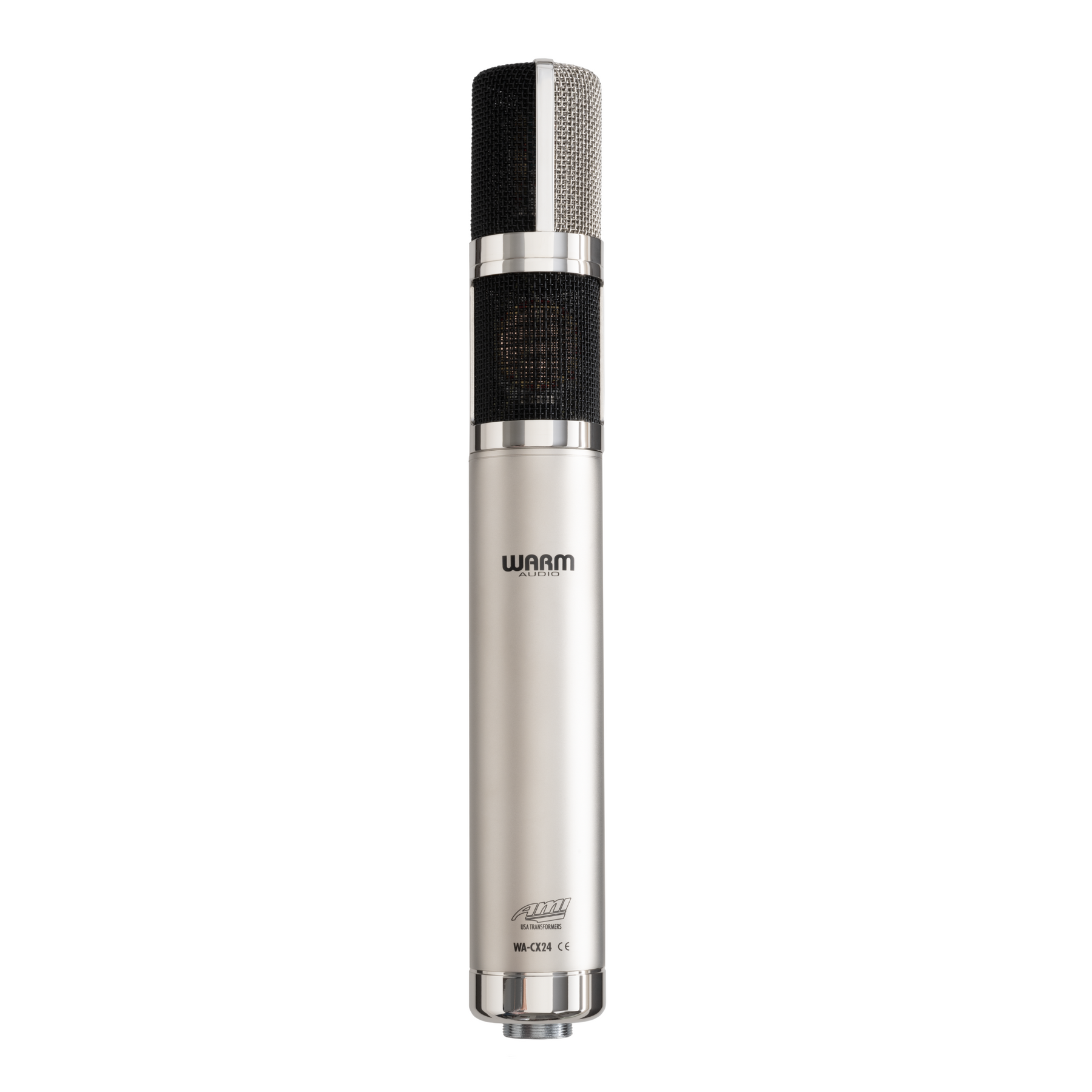

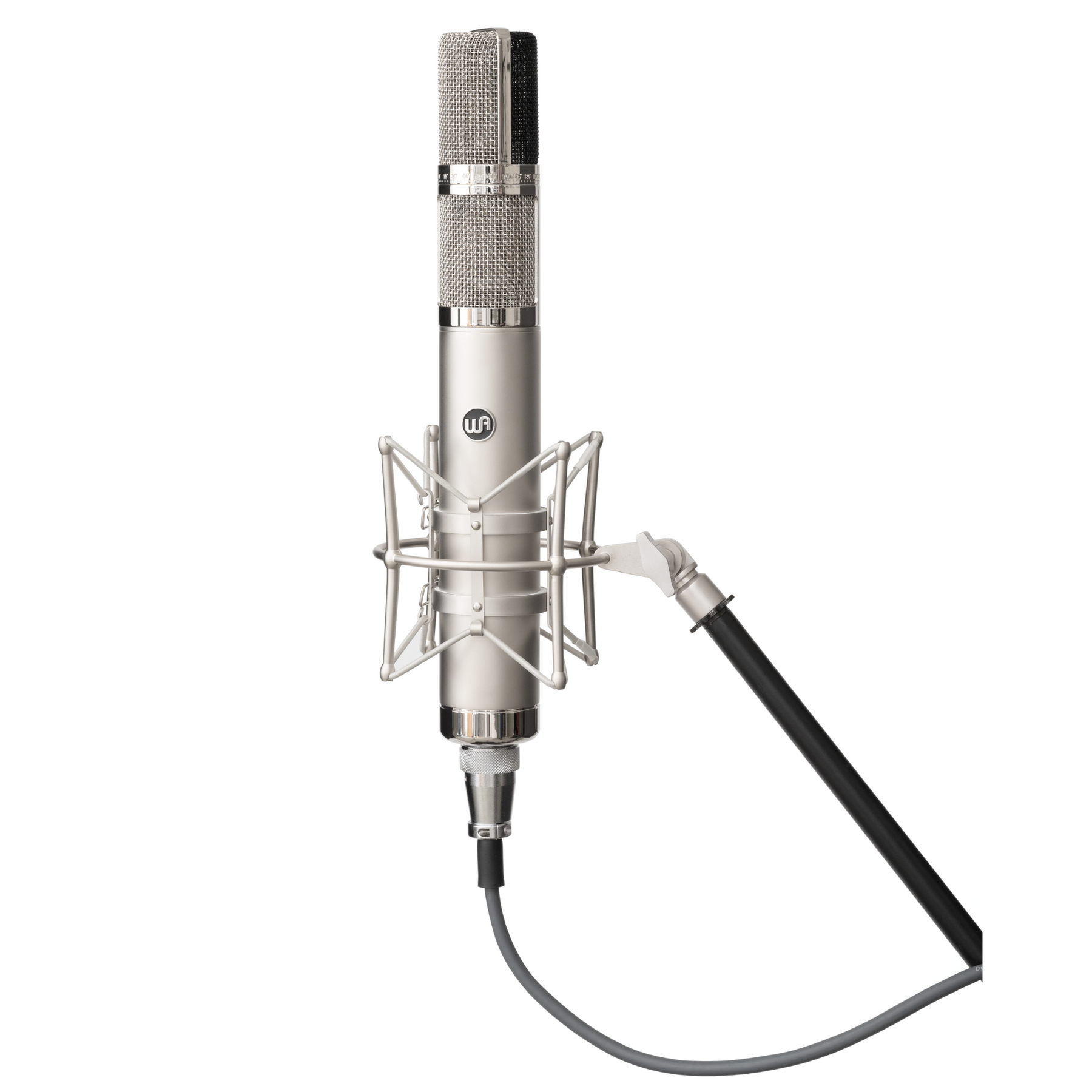

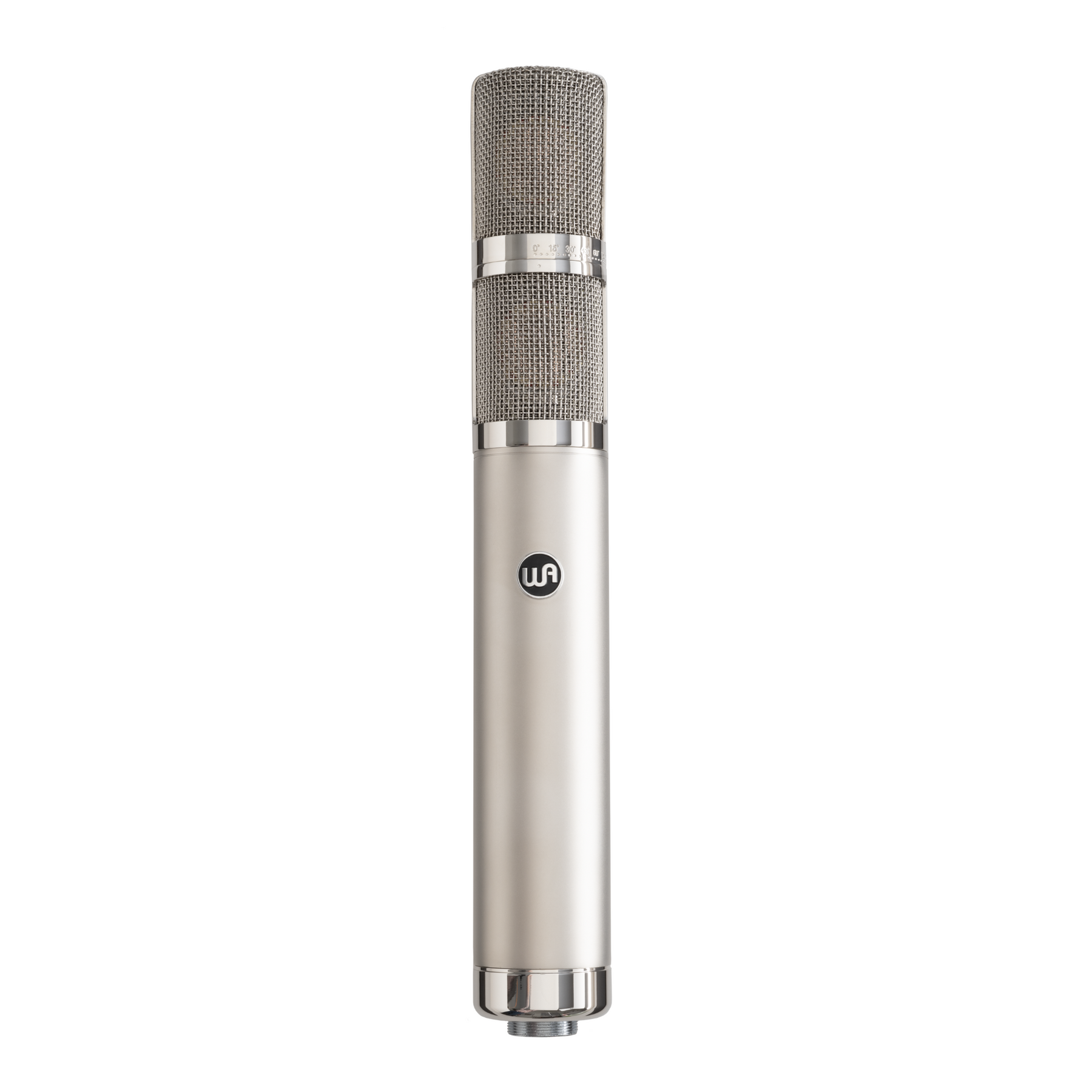

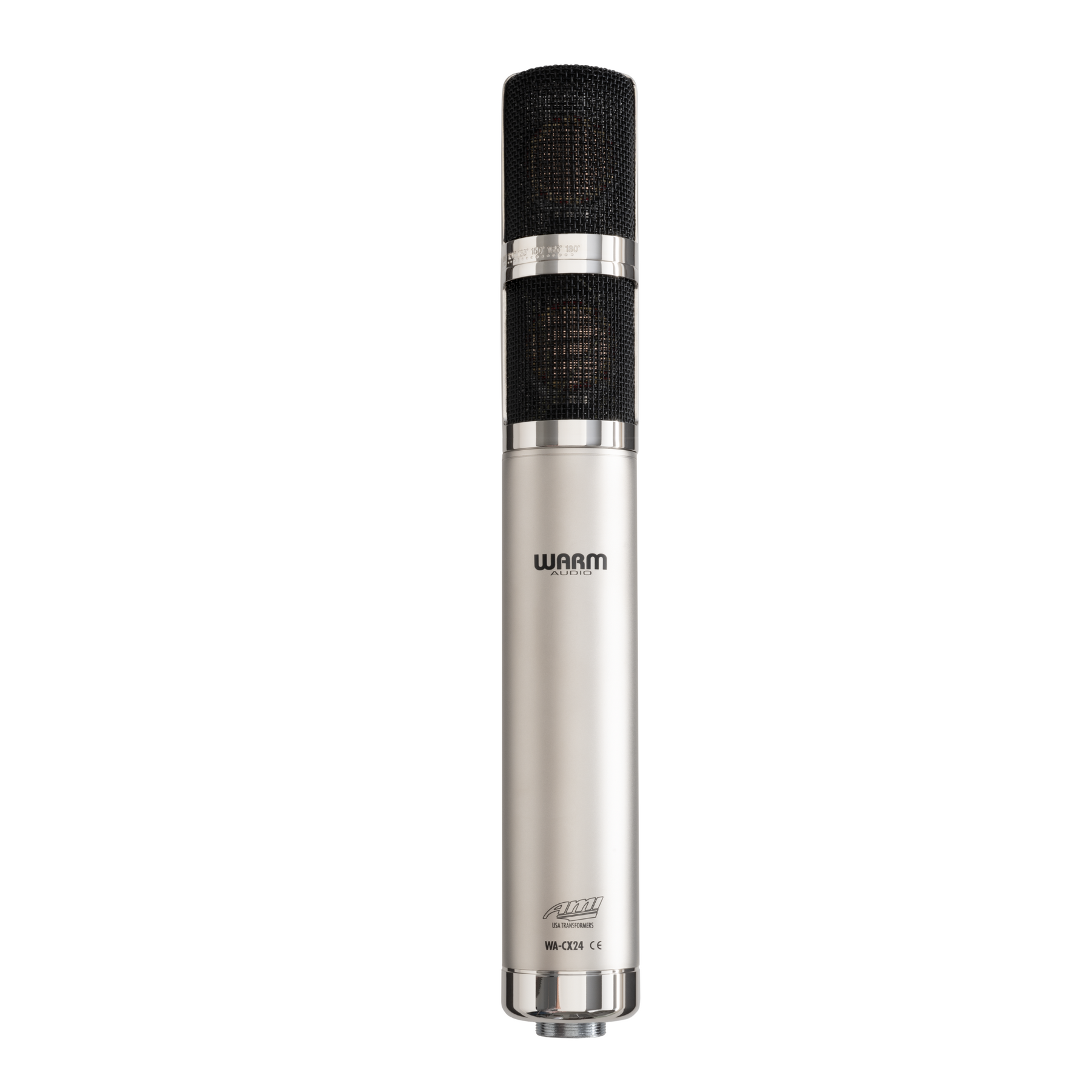

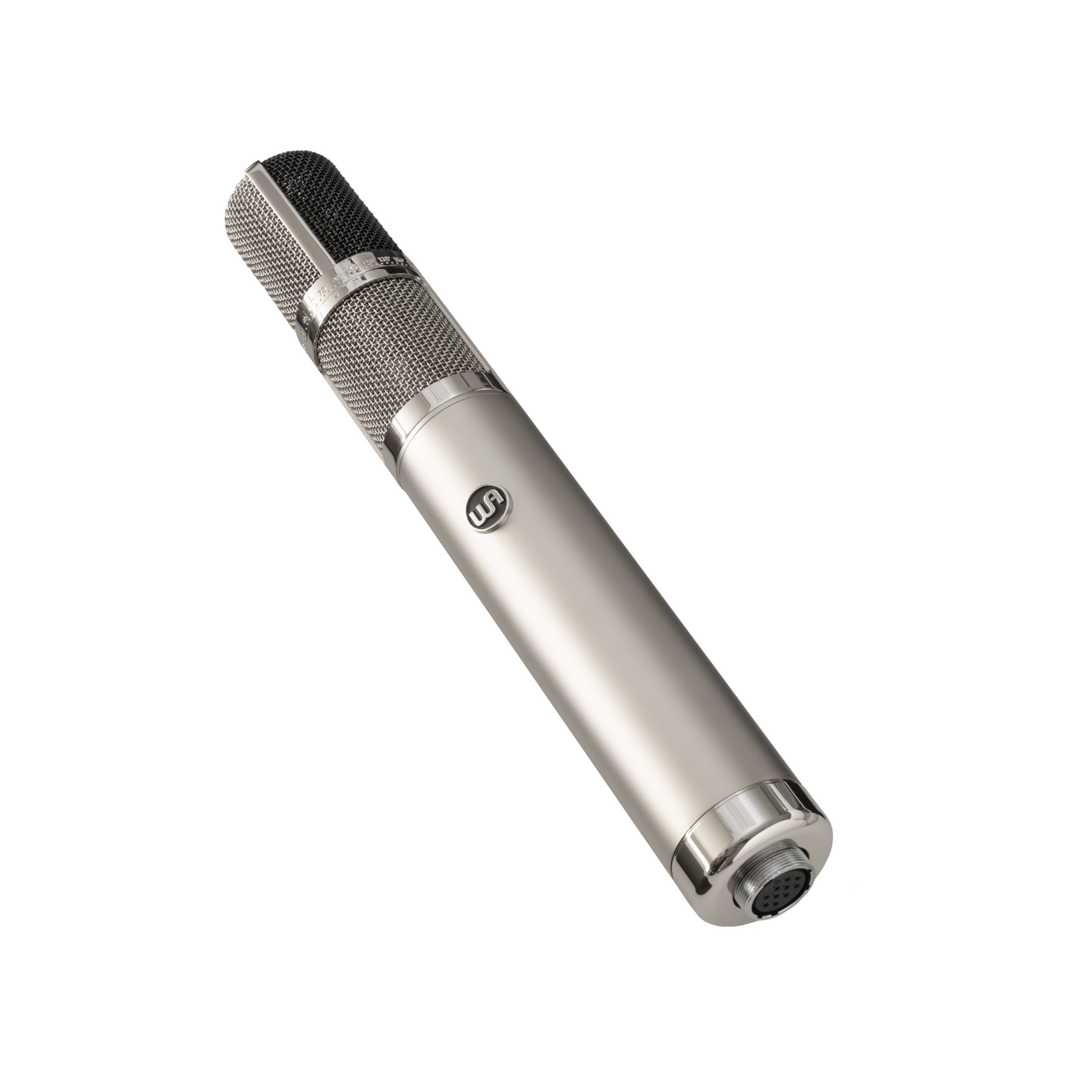

Overview of Warm Audio WA-CX24 Large-diaphragm Stereo Tube Condenser Microphone
The WA-CX24 faithfully recreates one of the most iconic vintage stereo large-diaphragm condenser microphones ever produced. Known for capturing tight bass, naturally rich midrange, and smooth highs, the sound profile of the WA-CX24 is ideal for stereo vocals, pianos, acoustic guitars, drums, and many more stereo recording applications. Inside the WA-CX24, premium components including all-brass CK12-style capsules and TAB-Funkenwerk USA output transformers to deliver the lauded sound profile of the original.
Tech Specs
·Faithful Recreation Of The Most Legendary Stereo Tube Condenser Microphone Of All Time
·2X Custom Edge Terminated, Dual-Backplate, All-Brass Vintage CK12-Style Capsules
·2X Custom T14 TAB-Funkenwerk (AMI) USA Output Transformers
·Premium 12AY7 Vacuum Tube
·Premium Polystyrene and Wima Film Capacitors
·Polar Patterns: 9 Patterns - Cardioid, Omnidirectional, Figure-8, + 6 Additional Mixed Patterns (Accessible On Two Switches, One Per-Capsule)
·Max SPL: 149 dB
·Frequency Response: 30Hz-20 kHz
·Output Impedance: 200 Ohms
·Signal-to-Noise Ratio: 73 dB
·EIN / Self-Noise: 22 dBA
·Power Source: External IEC grounded PSU
·Cable: Gotham 5-Meter GAC-9, Premium 9-Pin Tube Microphone Cable
·Total Weight: 20.5 lbs (9.3 kg), Mic Only: 3 lbs (1.4 kg)
·Mic Dimensions: 14” x 2” (35.6 cm x 5 cm)
·Package Includes: Stereo Microphone, Wood Box, Power Supply, Shockmount, 9-Pin Gotham Swiss Cable, IEC Cord, Tweed Flight Case
Music City Canada is an authorized reseller for Warm Audio products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
