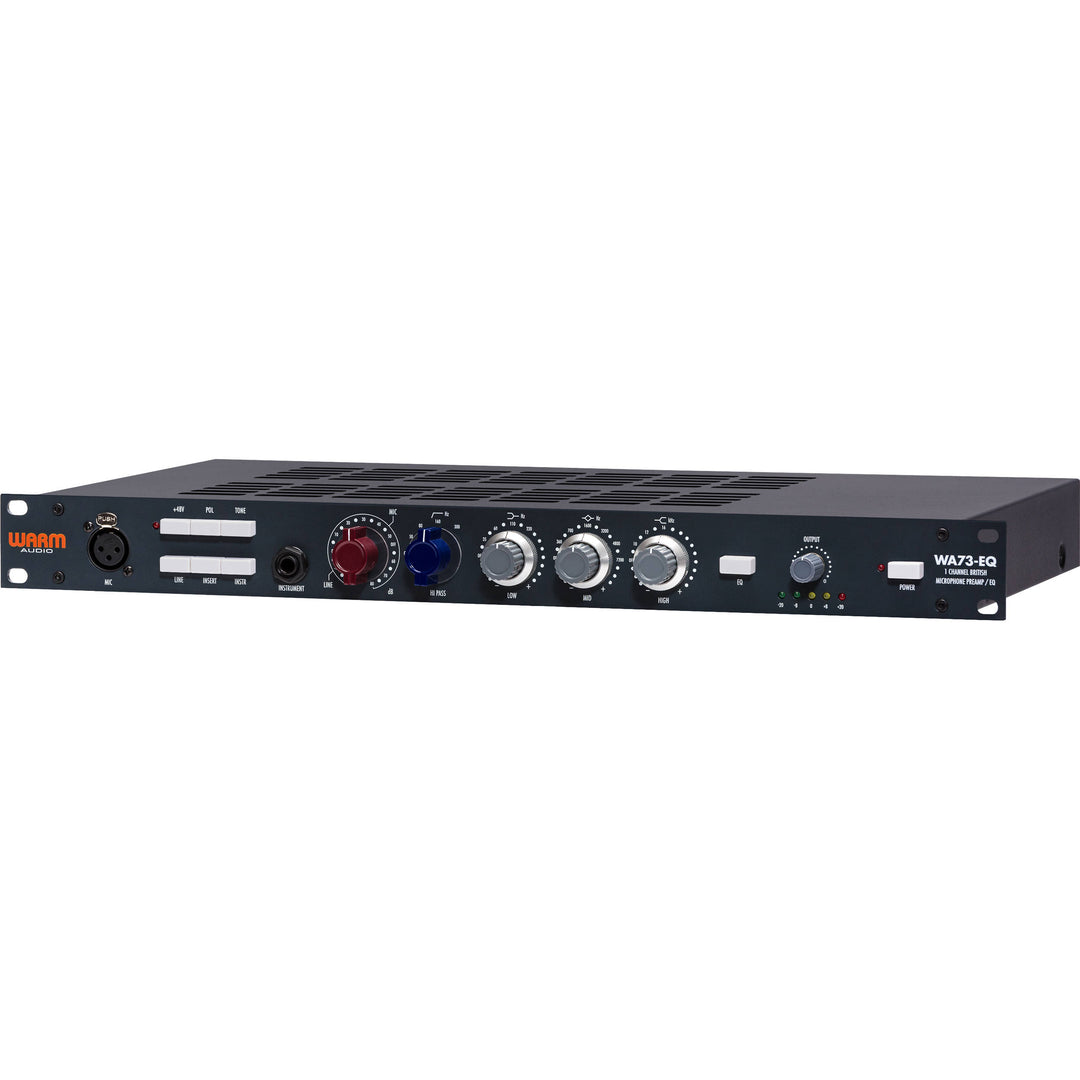

Warm Audio WA73-EQ Single Channel British Mic Pre and EQ

The WA73-EQ is a “Desert Island” boutique preamp, but it can also be classified as a studio and live work-horse. Classic '73-style preamps are known for being versatile tools that work with all kinds of microphones from Condenser, to Dynamic, to Ribbon. The WA73-EQ equally shines on all types of microphones and sources including; vocals, acoustic/electric guitars, bass, drums, percussion, orchestras, keyboards, and even as a tone shaping tool to run partial or complete mixes through. With 80dB of gain and a fully discrete Carnhill Transformer balanced signal path, there’s no recording, mixing or engineering task that the WA73-EQ can’t handle.

Features:

• Single channel, class a, '73-style british microphone preamp with eq
• Uk made carnhill transformers
• Uk made - blore edwards eq dual-concentric switch potentiometers
• Hand wired, hand assembled
• 80db of gain - resistor stepped gain switch
• Fully discrete
• Tone button - changes input transformer impedance for varying tone
• Polarity switch
• 48v phantom power
• Inductor based 3 band eq
• Low band boost/cut - 35, 60, 110, 220 hz
• Mid band boost/cut - 360, 700, 1600, 3200, 4800, 7200 hz
• High band boost/cut - 10, 12, 16 khz
• Additional high band frequency eq points added (compared to vintage 1073)
• 4 position inductor based hipass filter - 50, 80, 160, 300 hz
• Xlr mic inputs (front & back)
• Line level trs input
• Ts send/receive insert jacks
• Xlr & trs line level outputs
• Direct in, instrument input
• Output control
• Led level indication
• Freq response 20hz - 20khz +/-.5 db
• 19" rack mountable
• Internal iec 115v/230v power inlet
