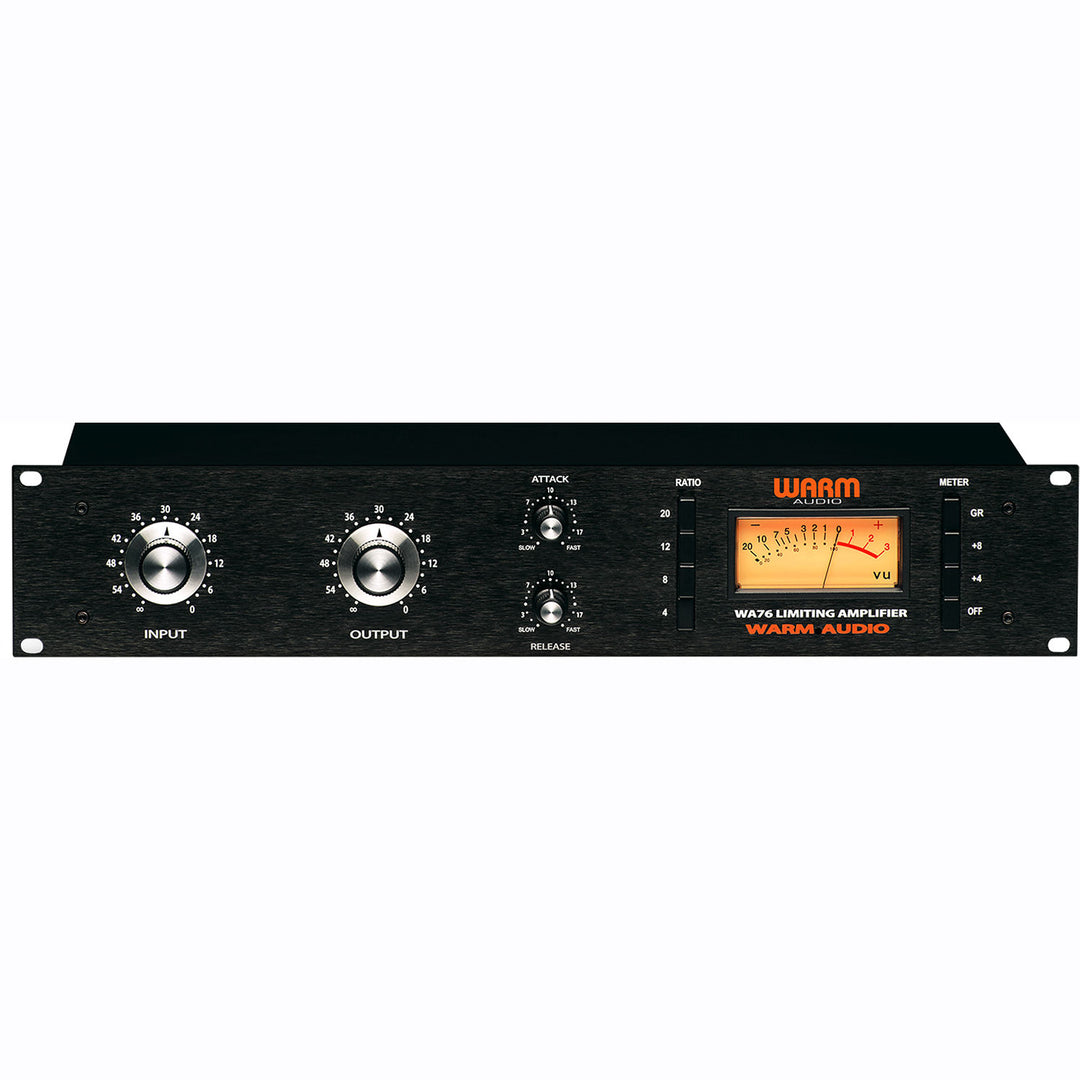

Overview of Warm Audio WA76 Discrete Compressor
The WA76 Discrete Compressor is a modern reproduction of the Classic '76 Revision D. The WA76 has a fully discrete signal path and uses the original Reichenbach Engineering's (now CineMag) transformer design. The classic '76 was a major breakthrough in limiter technology, and used on hundreds of hit records since its inception. Engineers have craved the ultra-fast attack time and trademark sound of the '76 for decades, and now it is finally affordable!
Features:
- Utilizes premium grade input and output cinemag usa transformers.
- True to the classic '76 compressor in design and performance.
- Completely discrete signal path.
- Modeled after the d revision.
- Supports the famous "all buttons in" ratio setting.
- Ultra fast attack time.
- Class a line level output amplifier.
- Input impedance - 600 ohms, bridges-t control (floating).
- Frequency response ± 1 db 20 hz to 20khz.
- Xlr and trs inputs. Xlr and trs outputs.
- 50db of gain.
- Less than 0.4% total harmonic distortion from 50 hz to 20 khz with limiting.
- Signal to noise ratio is greater than 74 db at +25 dbm.
- Ein -104.1 dbm.
- Attack time, 20 microseconds to 800 microseconds.
- Release time, 50 milliseconds to 1 second.
- Meter provides db gain reduction and db output.
- Switchable 115/230 volt iec power inlet.
- 19″ rackmount chassis, 2u.
Music City Canada is an authorized reseller for Warm Audio products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
