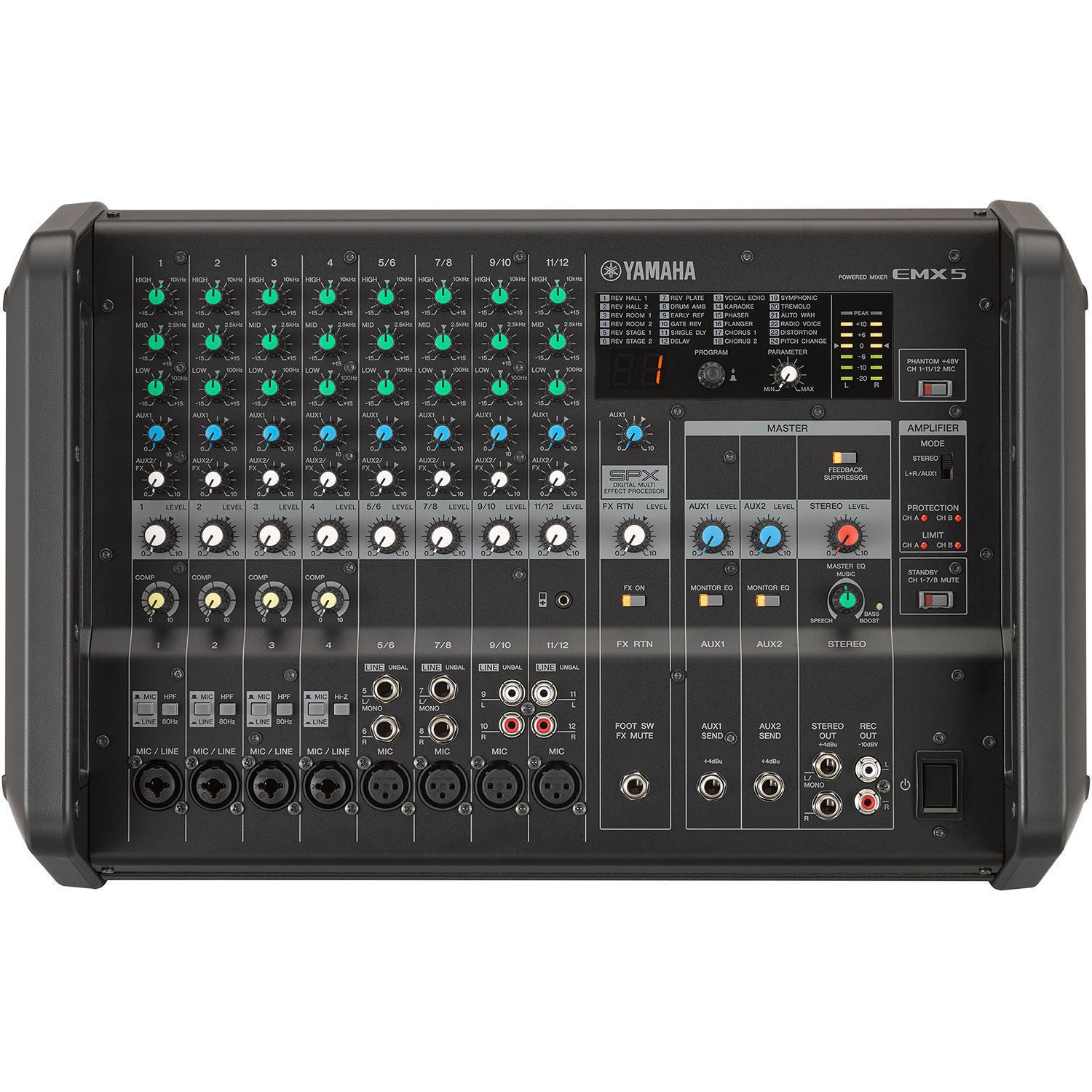

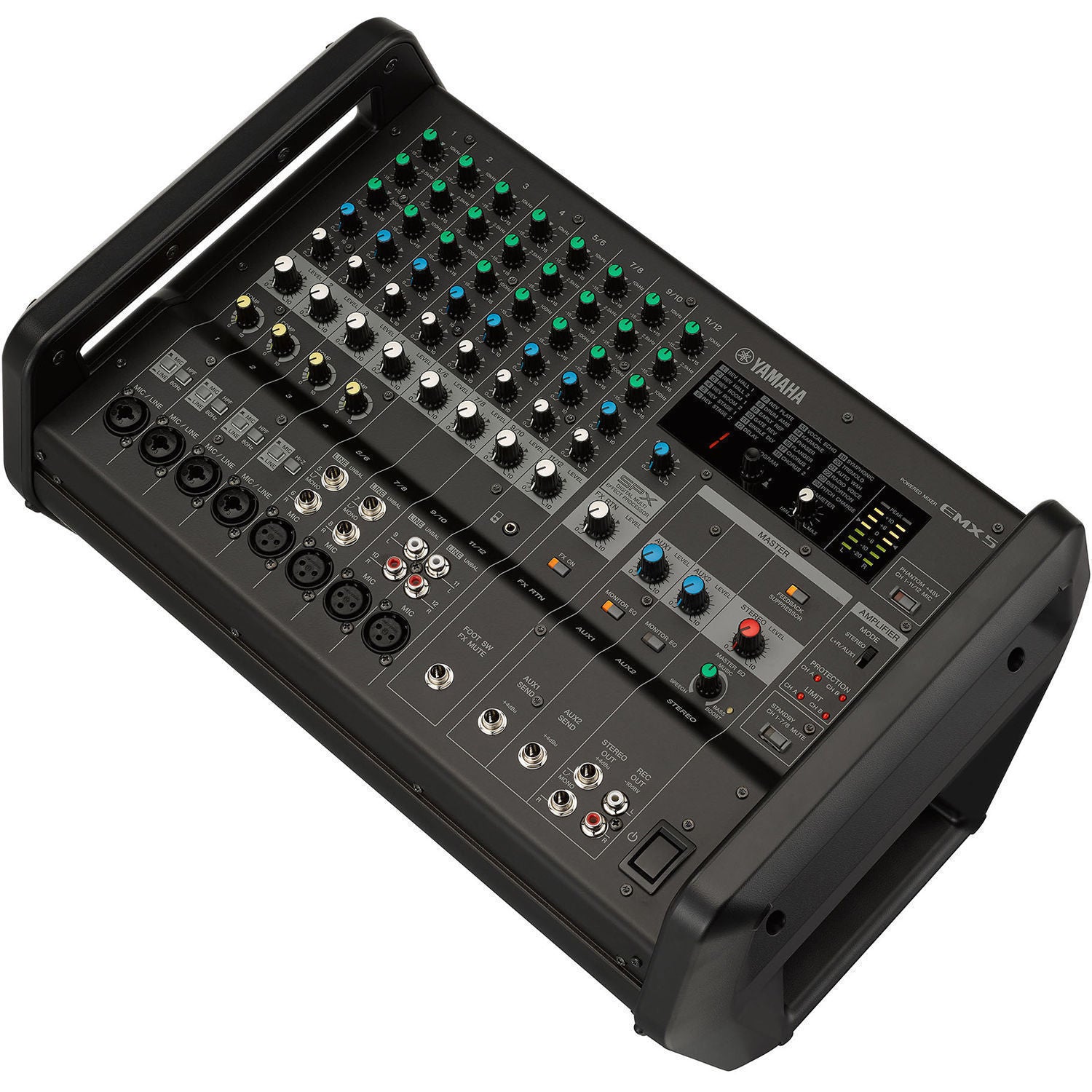

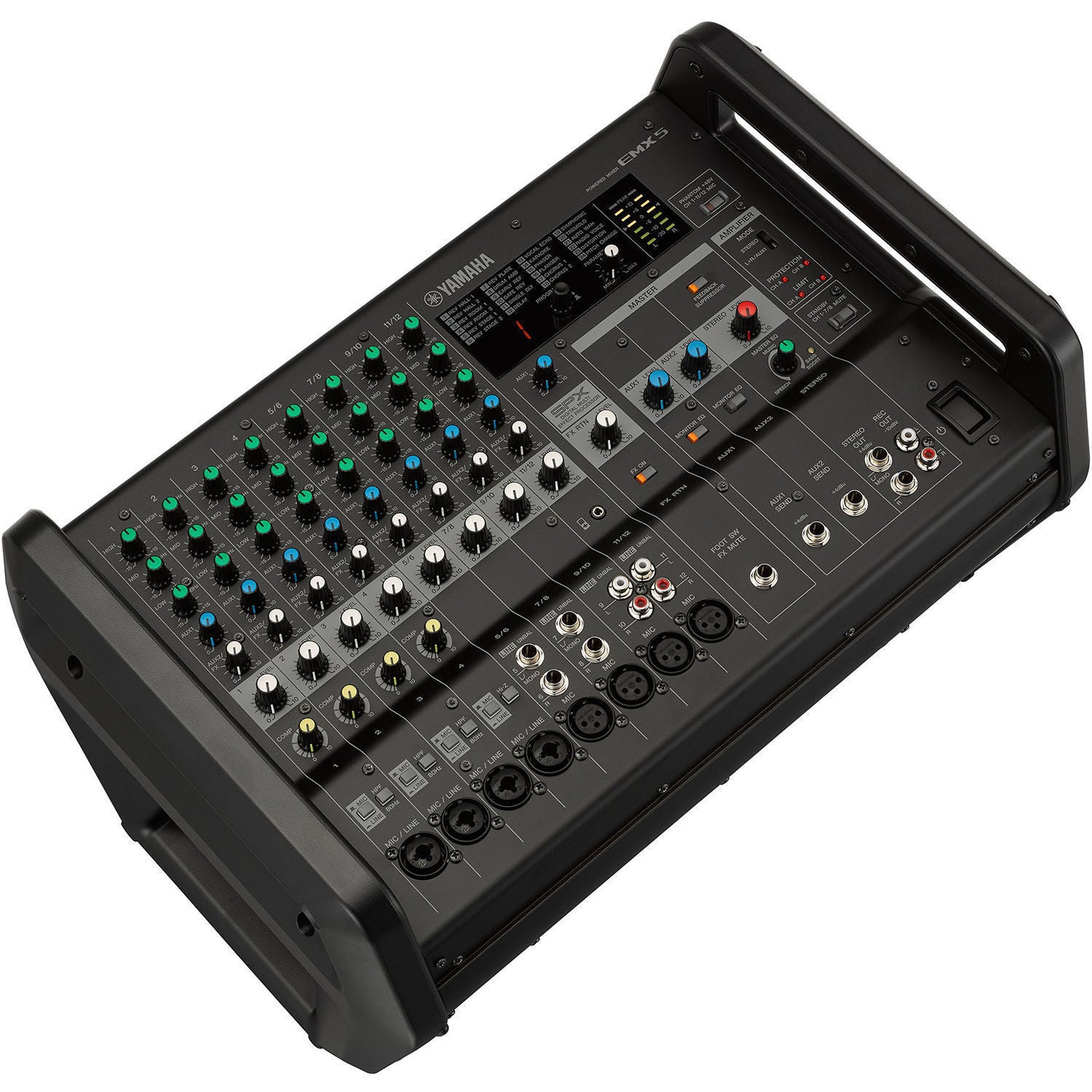

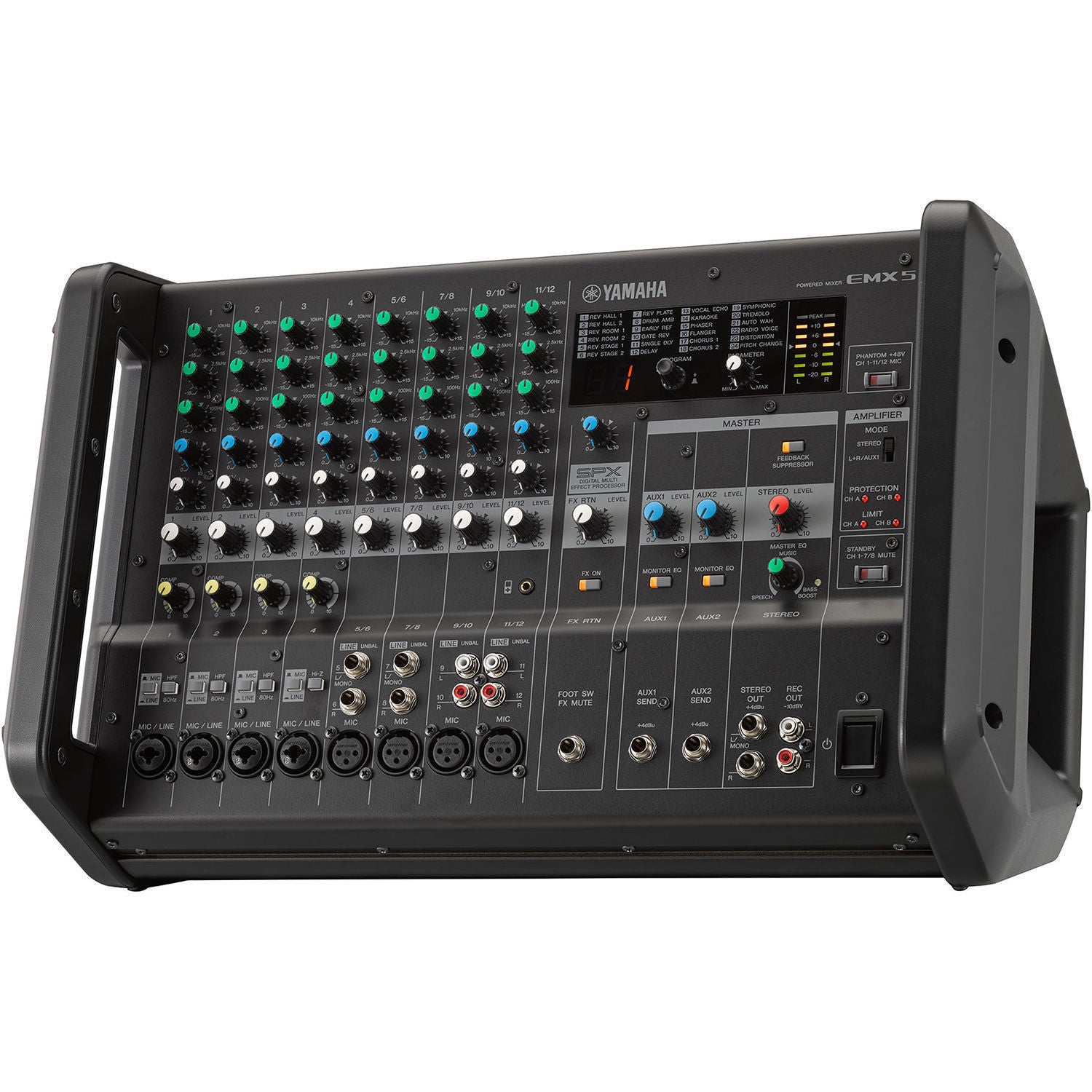

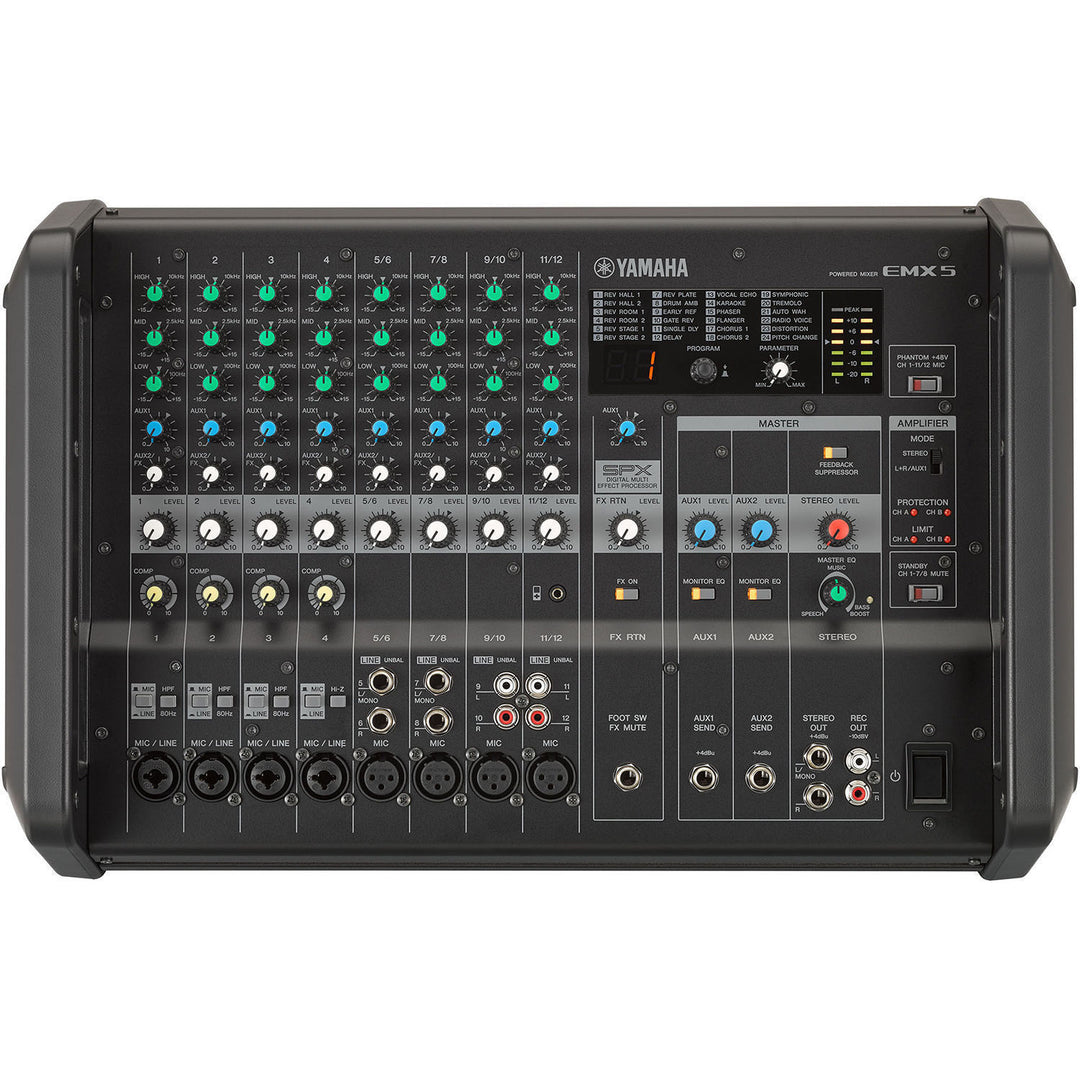

Overview of Yamaha EMX5 Powered Mixer
Powerful & High Efficiency Class-D Amplifier
The EMX7 and EMX5 models feature a built-in high-efficiency power amplifier of 2 x 710W, 2 x 630W of output power respectively. Despite their low power consumption, these amps are capable of very high volume output, yet still manage to remain surprisingly lightweight. Both models also come equipped with an onboard overload protection function to improve reliability and prolong component life and performance quality.
Robust But Extremely Portable Design

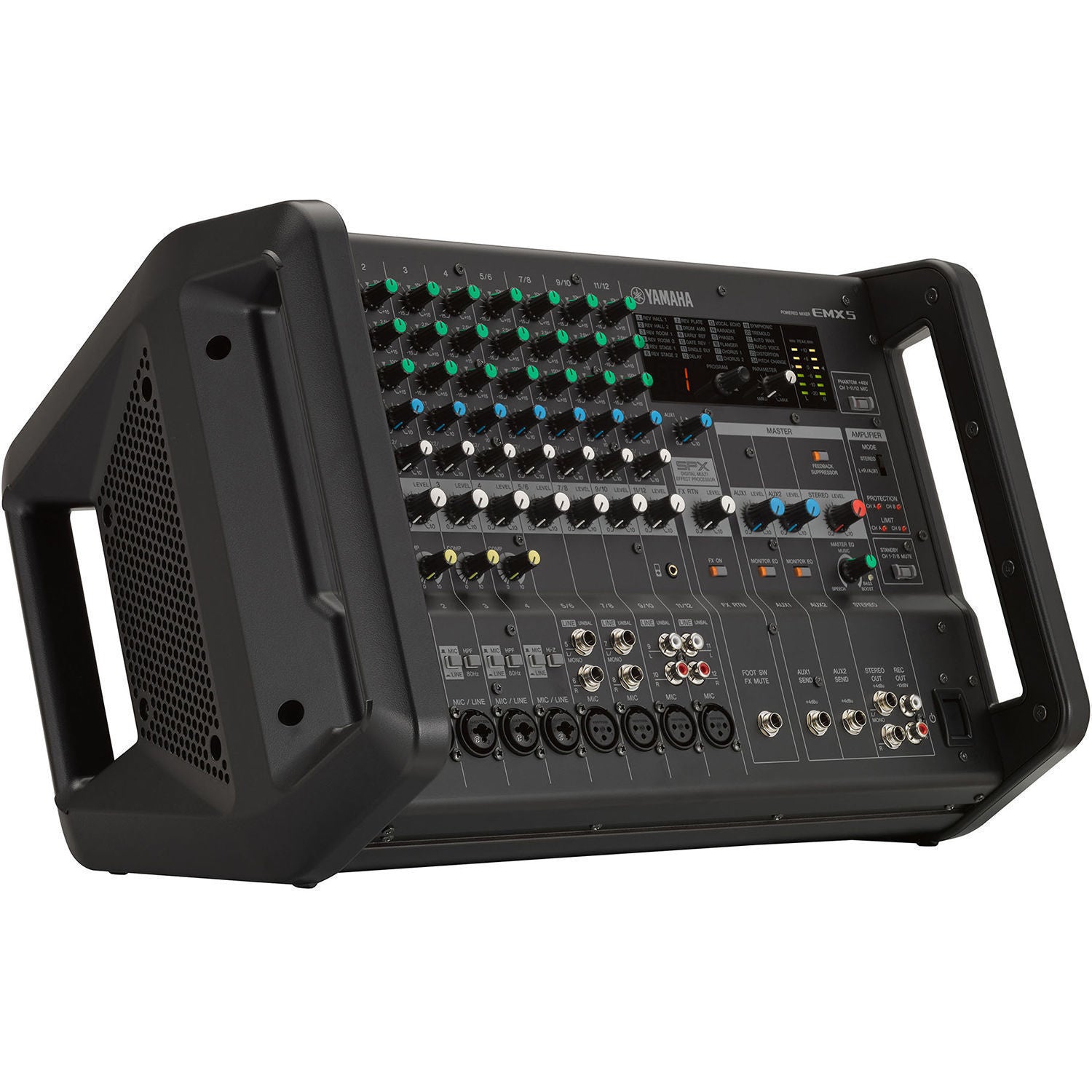

The EMX7 and EMX5 benefit from a robust and portable design with a rugged, impact-resistant, powder-coated metal chassis geared towards extended operation and road usage. Large handles on the front and back of the enclosure make it extremely portable, and also help to protect knobs and terminals on the surface of the chassis from impact or pressure during transport.
Easy Setup, Easy Operation
With their intuitive, user-friendly architecture, the EMX7 and EMX5 can be setup and operated quickly and easily by users with a fundamental understanding of sound reinforcement. Their versatile enclosure design allows users to choose from a variety of vertical or horizontal placements depending on the type of application. From a tabletop, floor, or installation environment no matter used on a tabletop or from a seated position with the mixer placed on the floor.
Outline
I/O
Inputs: TOTAL 12 Channels : 8 Mono (MIC/LINE), 4 Stereo (LINE)
Phantom power: +48 V

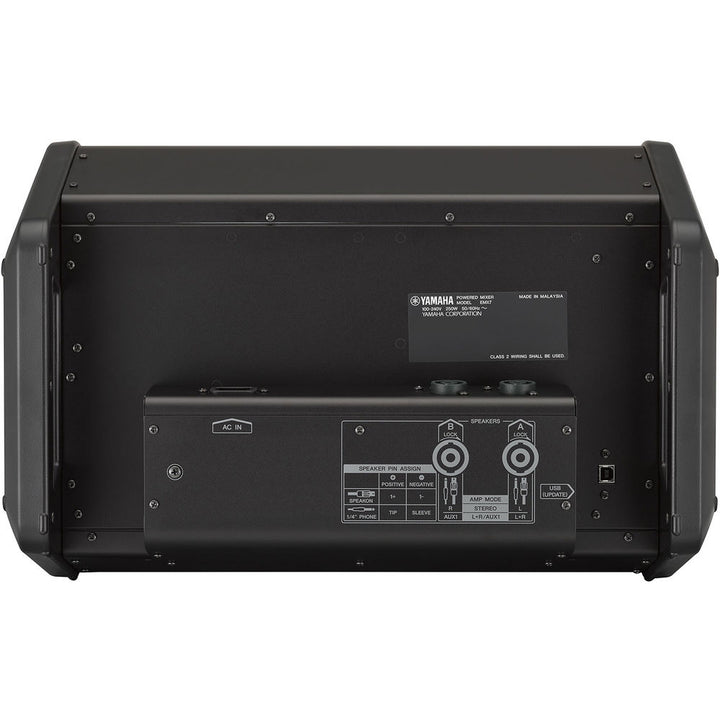

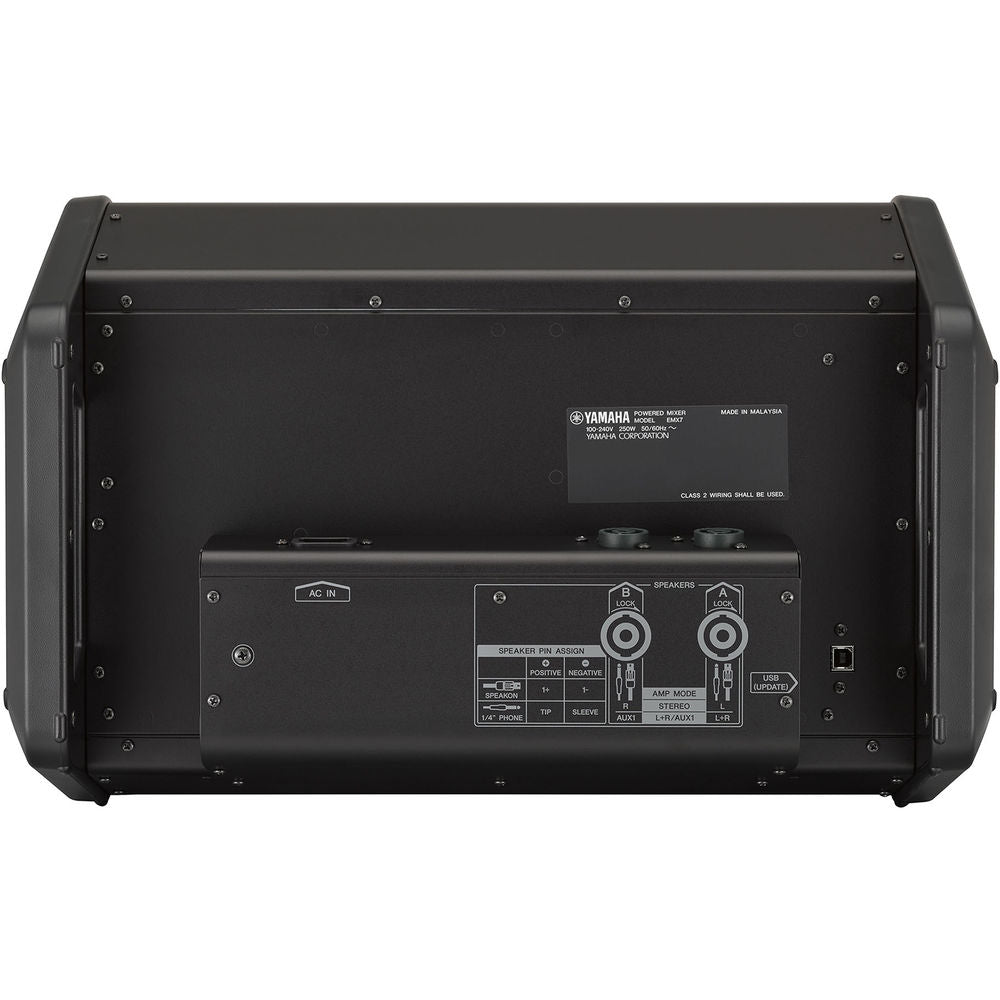

Outputs: SPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R]
Control and others: FOOT SWITCH : Effect Mute On/Off
Bus: Stereo: 1, AUX: 2 (Including FX)
Input Channel Function
PAD: 30 DB (CH1-4)
Hi-Z: Supported (CH4)
HPF: 80 Hz, -12 DB/Oct. (CH1–3)
COMP: 1-Knob COMP (CH1–4)
EQ HIGH: 10 KHz +15 DB / -15 DB (Shelving)
EQ MID: 2.5 KHz +15 DB / -15 DB (Peaking)
EQ LOW: 100 Hz +15 DB / -15 DB (Shelving)
On-board processors
DSP: SPX Algorithm 24 Programs, Feedback Suppressor, Master EQ, Monitor EQ
