Overview of Yamaha STAGEPAS100 5-input Portable PA System w/ Bluetooth Connectivity
Portable PA system equipped with a 100 W power amp, coaxial compression driver with 1.4" voice coil HF and 6.5" cone LF, and a 3-channel mixer.
The STAGEPAS 100 portable PA system strikes a perfect balance between high-quality sound and ultimate portability that will allow you to turn virtually any location into your own intimate live stage. Coming in two versions, one with a battery and one without, the lightweight yet durable design, effortless operation, and astonishing sound of the STAGEPAS 100 will help you reach your audience with the full expression of your performance.
Features
• 100 W Class-D amplifier
• 1.4" HF + 6.5" LF high-quality coaxial compression driver using an FIR filter for the crossover
• 3-channel mixer (2 monaural mic/line + 1 line)
• Equipped with a 2-band master EQ
• Compatible with Hi-Z input (Channel 2 only)
• Equipped with mix-out
• Carrying handle doubles as an adjustable stand
• Compatible with audio accompaniment over Bluetooth
• Optional carrying bag (BAG-STP100) available for convenient transport
Compact design. Big sound.
Far more than just a speaker that amplifies your mic or instrument inputs, the diminutive STAGEPAS 100 delivers impressive sonic performance by leveraging some of the same technologies used in Yamaha's high-end professional products. A powerful, high-quality coaxial compression driver combined with FIR-X filters for the HF and LF crossover delivers sound pressure, precise phase response, and a natural dispersion that will ensure every nuance of your performance is conveyed loud and clear to your audience.
Start the show in seconds

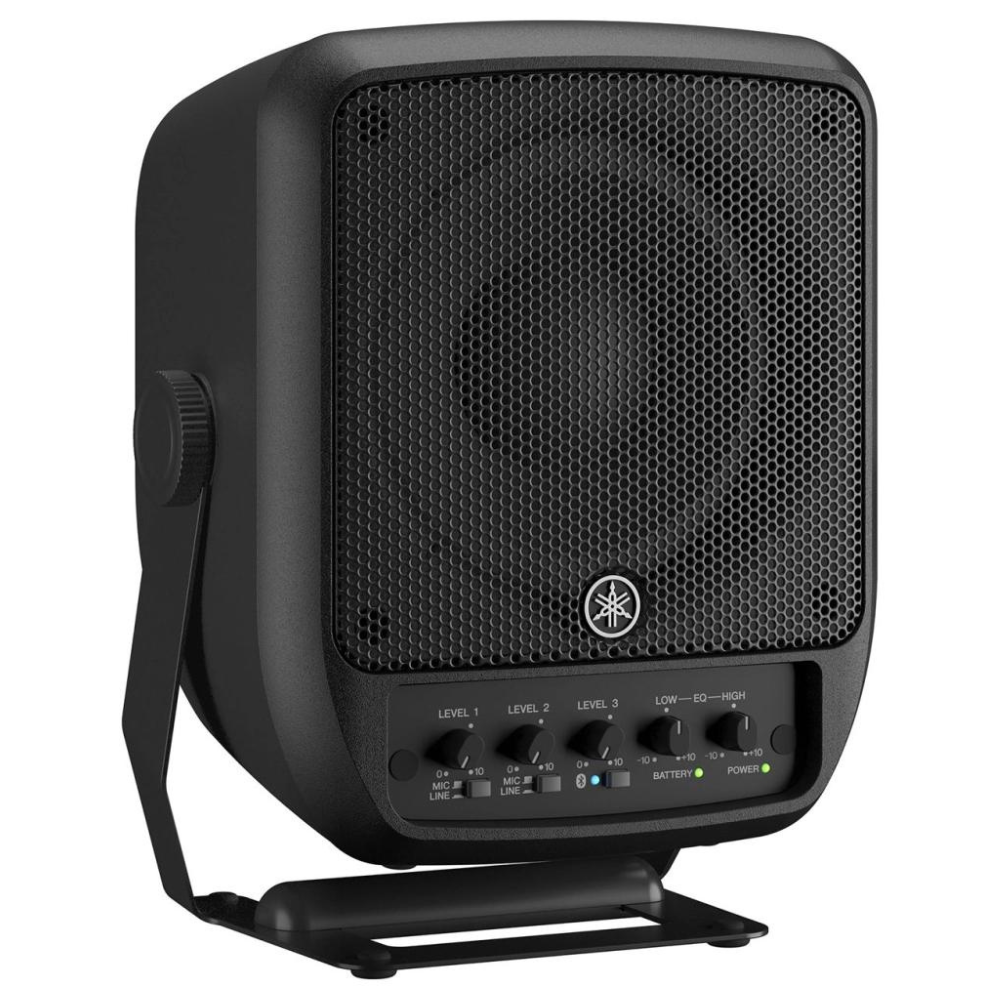

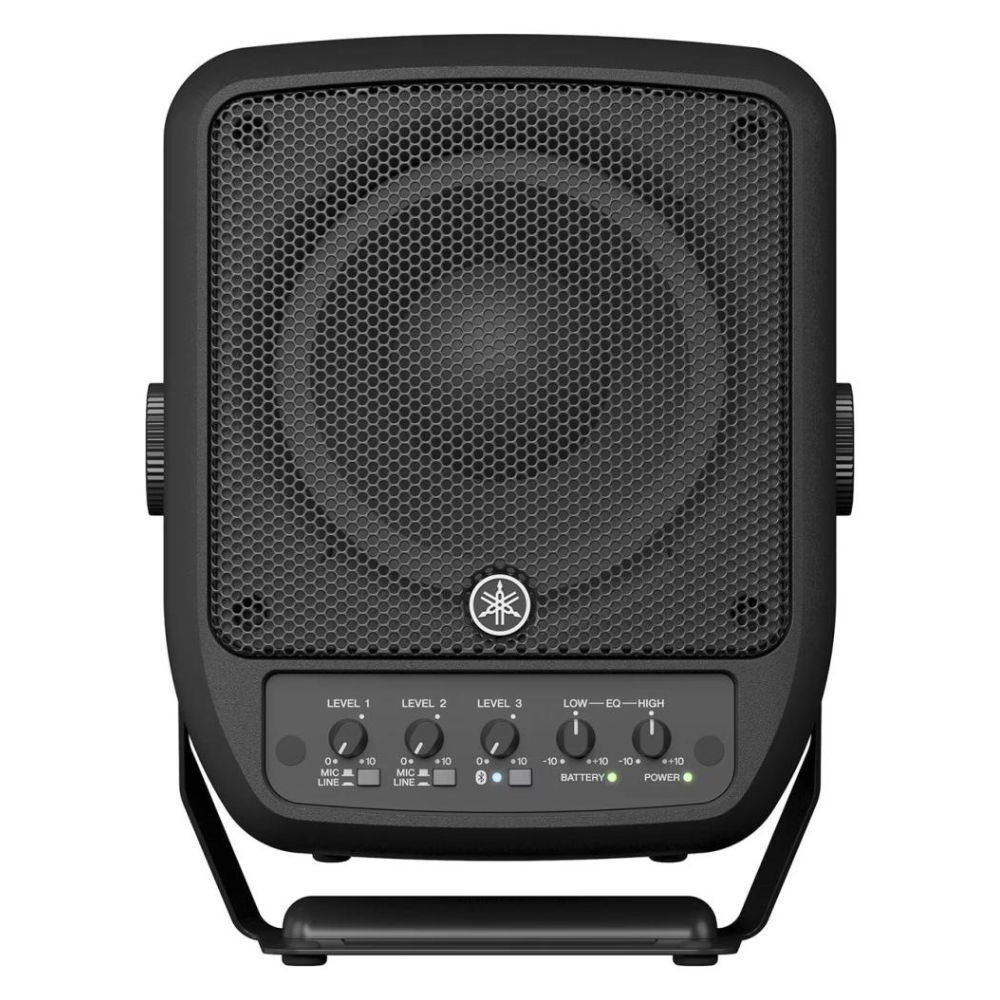

With an unrivaled ease of operation and a setup requiring mere seconds, the STAGEPAS 100 will have you sounding great and performing in an instant. Just turn the power on, connect a microphone and your instrument, turn the volume up, and you're ready to go. The master EQ is right on the front panel making it easy to dial in your sound or adjust settings on the fly.
"A PA in the palm of your hand"
With all the essentials for a compact PA packed into a durable cabinet weighing just 5 kg, the STAGEPAS 100 takes portability to a whole new level. Having a personal live stage you can easily carry in one hand makes it possible to set up and play anywhere, anytime.
Specifications
Type: 2-way Bi-amp Powered Speaker with mixer

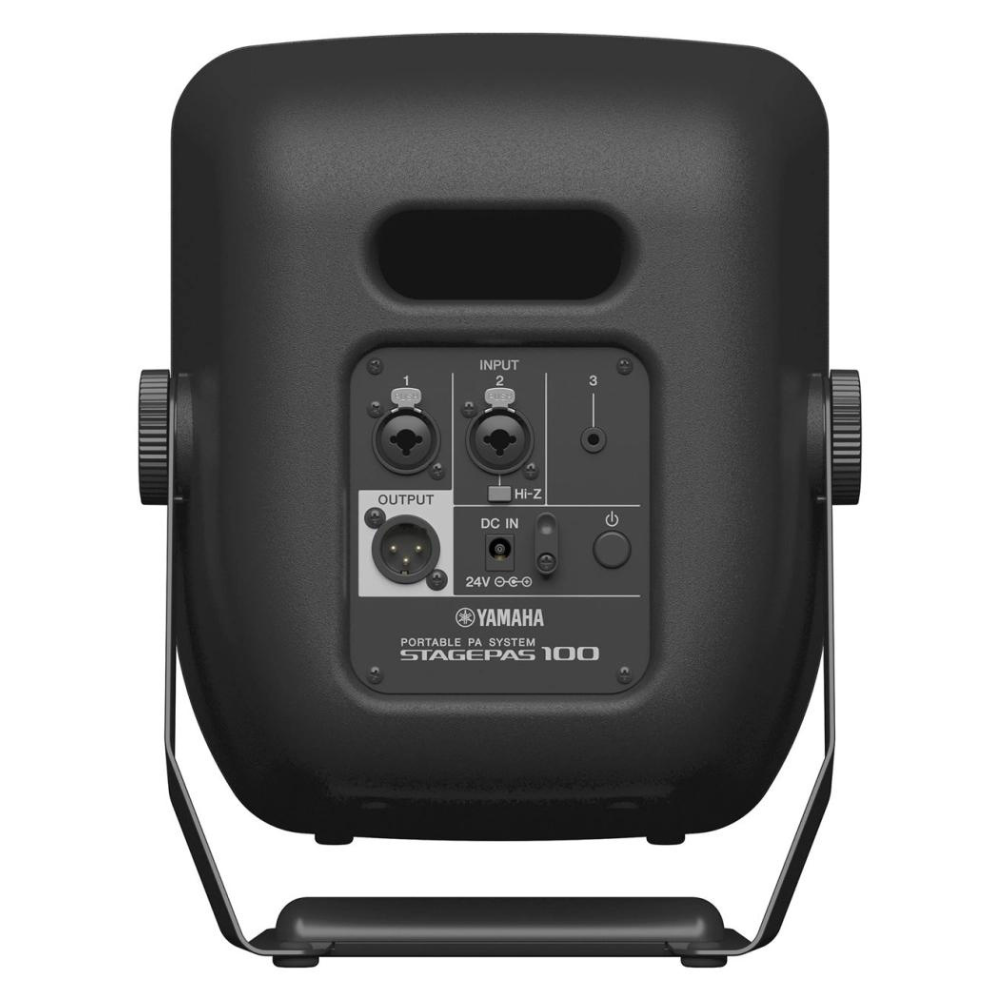

I/O:
INPUT 1: Combo (mic/line)
INPUT 2: Combo (mic/line)
INPUT 3: Stereo Mini x1 (line)
OUTPUT: XLR3-32 (INPUT 1-3 mix)
Bluetooth: Ver.5.0, A2DP (SBC, AAC), Class 1
Mixing channels: 3
Input channel functions: Hi-Z: CH2
Output channel functions: 2 Band EQ
General
Speaker type: Coaxcial speaker with compression driver
Frequency range (-10dB): 70 Hz - 20 kHz
Coverage area: H90° x V90°
Crossover: 1.8 kHz (FIR-X)
Maximum output level (1m; on axis): 120 dB SPL
Components
LF: 6.5" Cone, 1.7" voice coil
HF: 1" throat compression driver, 1.4" voice coil
Amplifier class: Class-D
Power rating
Dynamic: 100 W (LF: 93 W, HF: 7 W)
Cooling: Natural convection (no fan)
Power consumption: 10 W (Idle), 30 W (1/8 power)
Power requirements: 100-240 V 50/60 Hz
Cabinet material: Plastic (PP)

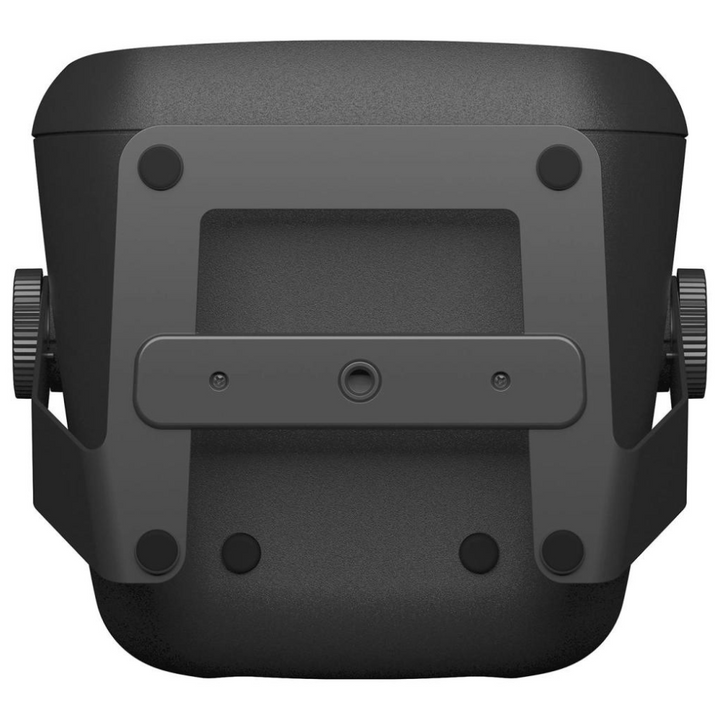

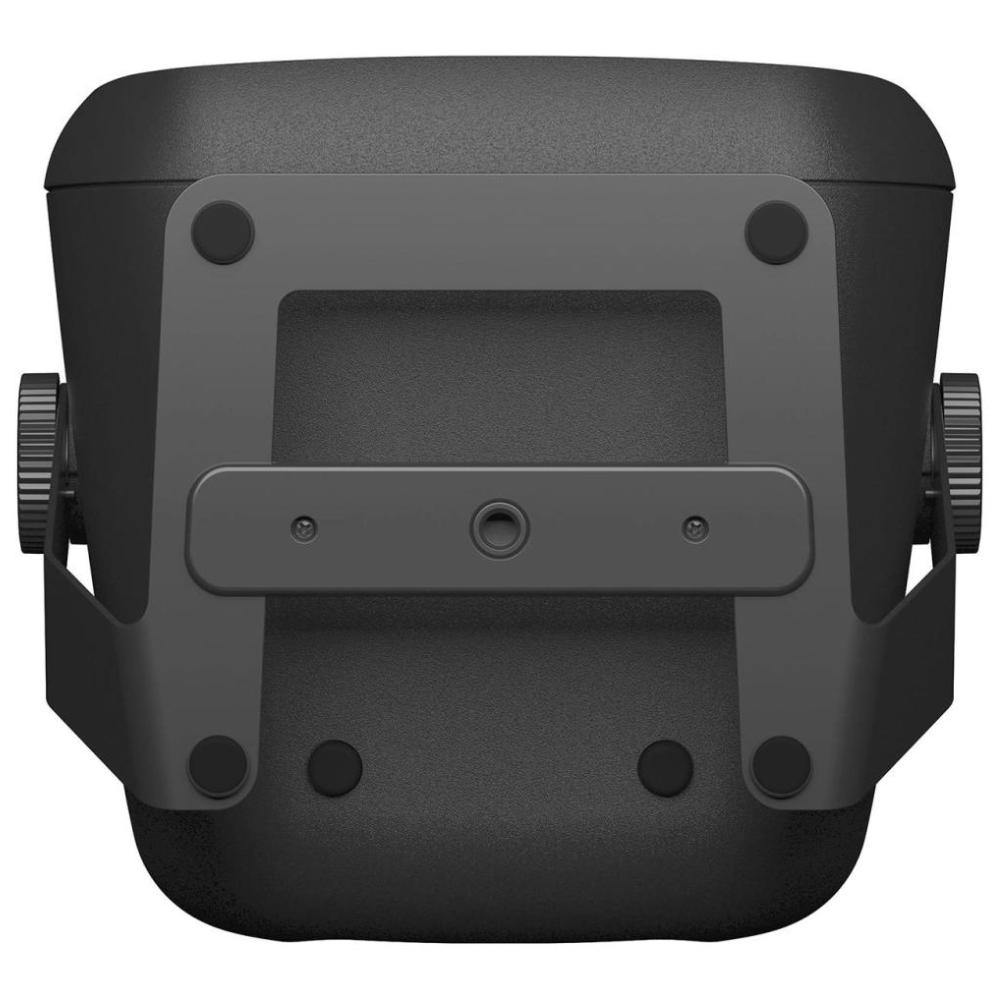

Handle: Bottom x1 (Rotatable)
Flying and mounting hardware: 1 3/8", depth 12 mm (center of handle)
Dimensions (W x H x D): 239 x 310 x 215 mm (9.5" x 12.3" x 8.5"), with handle
Weight: 5.2 kg (11.5 lbs), without AC adaptor
Accessories: Power cord x 1, AC adaptor (PA-500) x 1
Options: Carrying bag: BAG-STP100
