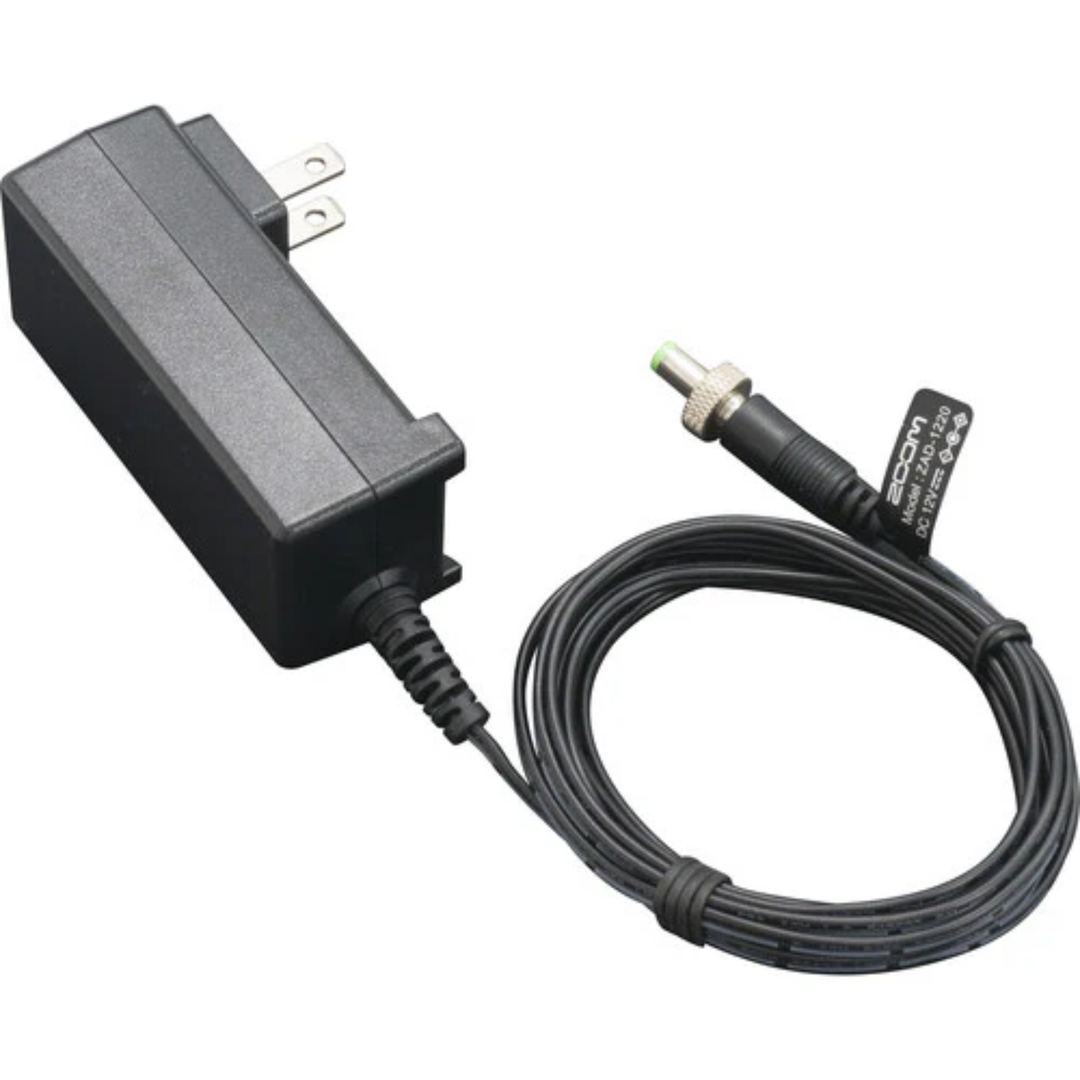

Zoom AD-1220 AC Adapter for R20 Multitrack Recorder
ZAD01220D
Payment plans from Affirm, learn more
- Zoom
- Shipping Calculated at checkout, most in stock products ship same day
The Zoom AD-1220 is the dedicated AC power adapter for the Zoom R20 Multitrack Recorder. Its primary function is to supply consistent and reliable power to the R20 when connected to a standard AC wall outlet. A significant feature of this adapter is its screw-lock connector, which provides a secure and stable connection to the recorder, minimizing the risk of accidental disconnections during critical recording or performance situations.
Designed for global usability, the ZAD-1220 supports an input voltage range of 100 to 240 VAC. It delivers a 12 VDC, 2A output with a center-positive polarity, precisely matching the power requirements of the Zoom R20. The adapter's compact design maintains the portability of the recorder itself.
Specifications
General
Compatibility: Zoom R20
Power
Power Source: AC Input
Power I/O: Not Specified by Manufacturer
Center Tip Polarity: Positive
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
DC Input Power: 12 VDC at 2 A
Maximum Power Output: Not Specified by Manufacturer
Physical
Color: Black
Packaging Info
Package Weight: 0.335 lb
Box Dimensions (L x W x H): 4.7 x 3.2 x 2.2"
