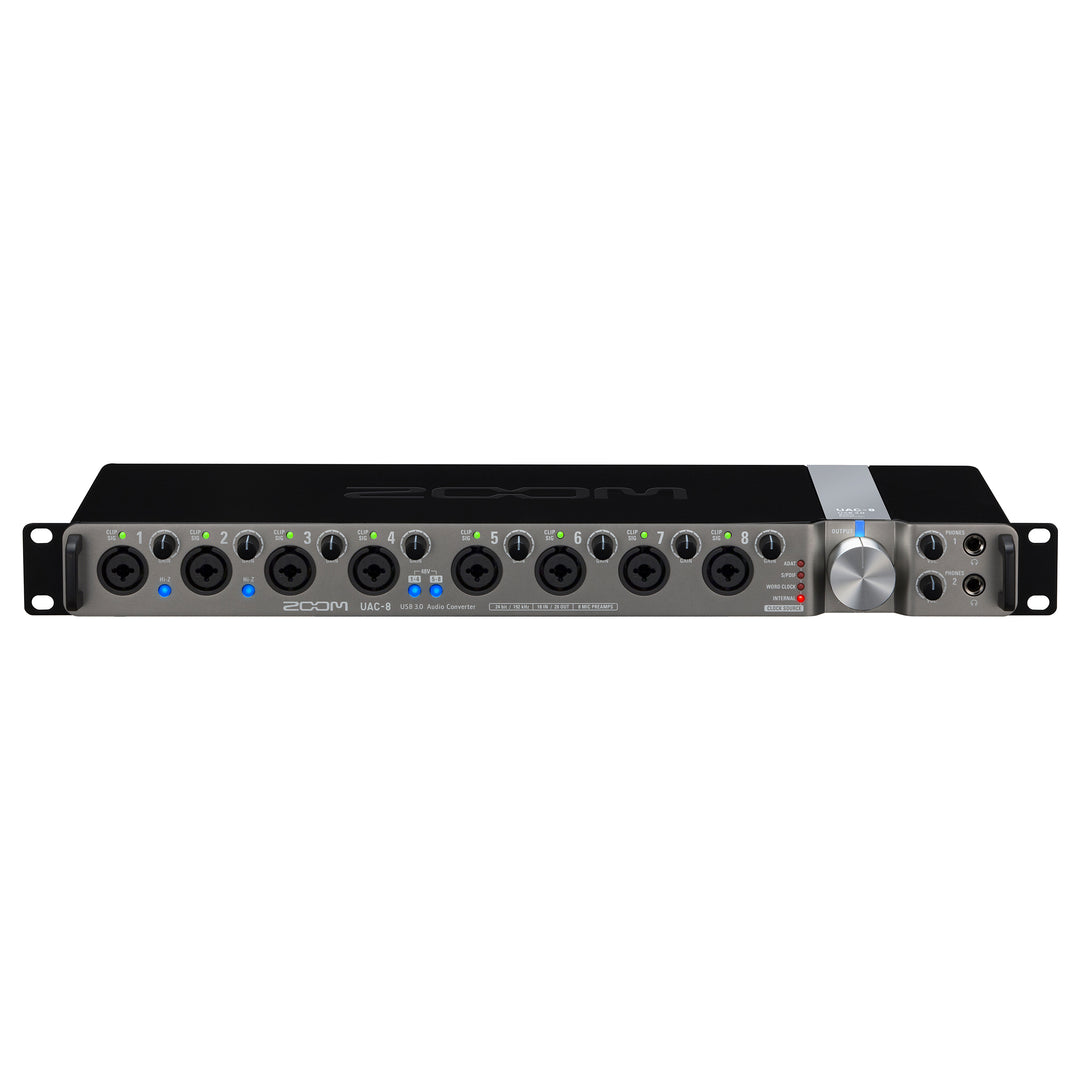

Zoom UAC-8 USB 3 Audio Recording Interface

There’s a whole new world of possibilities for Mac and PC Creators — high-speed, high-resolution, and low-latency. Upgrade your rig with the rackmountable UAC-8, and add 18 inputs and 20 outputs to your USB 3.0-equipped Mac or Windows computer—even your iPad.* Plug in a microphone, line-level device, or instrument and start bringing your ideas to life, or take the UAC-8 onstage to enable high-res audio playback, all the way up to 24-bit/192 kHz.  * Apple Camera Connection kit or Lightning to USB Camera Adapter required.

The SuperSpeed USB 3.0 transfer protocol used by the UAC-8, with a speed of 2.0 ms roundtrip @ 96 kHz / 32 samples, is ten times faster than USB 2.0 and six times faster than FireWire 800. That not only ensures low latency, it provides a data stream that's unaffected by computer jitter (slight variations in timing), so there's no need to connect an external master clock source. The UAC-8 provides a wide variety of both analog and digital connectors. 8 front panel combo XLR/TRS inputs accept mic- and line-level signals, and you can even plug instruments directly into Inputs 1 and 2. Dedicated input gain controls and Clip LEDs make it easy to set optimum input levels, and a Phantom Power switch enables the use of condenser microphones.

The UAC-8 has dual balanced analog TRS output jacks for connection to monitors, and there are also 8 discrete balanced TRS analog line outputs for multichannel monitoring or connection to external effects devices. A large front-panel Output knob offers fast control over output level, and there are two independent ¼" stereo headphone jacks, each with its own dedicated volume control, for private monitoring. 8 ADAT and stereo S/PDIF digital inputs/outputs allow for the connection of up to 10 external channels, and built-in Word Clock enables easy integration into any system. In addition, MIDI In and Out is provided to allow interfacing with devices such as electronic keyboards and drum machines.

The UAC-8 uses high-end components such as the AKM AK5388 analog-to-digital converter and AKM AK4413 digital-to-analog converter. In addition, the UAC-8 performs 4-times upsampling during both analog-to-digital and digital-to-analog conversion. In other words, when the sampling frequency is set to 44.1 kHz or 48 kHz, the UAC-8 processes the signal at high resolution 176.4 kHz or 192 kHz. For A/D conversion, this means less aliasing noise; for D/A conversion, this means increased clarity and fidelity. In standalone mode, the UAC-8 can be used as an 8-channel mic preamp and analog-to-digital or digital-to-analog converter without being connected to a computer.

The Zoom UAC-8 comes with a free download license for Steinberg’s Cubase LE music production software, providing not just the ability to capture incredible high-resolution / low-latency audio in every box, but to do spectacular things with it. Take your recordings to a more professional level. Steinberg’s powerful and state-of-the-art audio software used by creators around the world now comes with every Zoom UAC-2 and UAC-8 purchase.

Features:

• 18‐in/20‐out SuperSpeed USB 3.0 audio interface
• Standalone mode allows use as an 8-channel mic preamp and A/D or D/A converter without connection to a computer
• Support for recording and playback of up to 24‐bit/192 kHz high‐resolution audio
• Low latency audio streaming
• 8 combo balanced XLR/TRS analog input connectors accept both mic and line‐level signal
• High‐performance mic preamps with up to +60 dB of amplification
• Hi‐Z switches allow direct connection of electric guitar or bass (INPUT1, INPUT2)
• Independent gain controls and clip LEDs for each input
• Switchable +48V phantom power (INPUTS 1‐4, INPUTS 5‐8)
• 10 balanced TRS output jacks for connection to mixers, amplifiers, self‐powered speakers, headphones, or effects devices
• Dual front-panel 1/4" headphone outputs with dedicated volume controls
• Large knob output volume control
• 4x upsampling during A/D and D/A conversion for reduced noise and enhanced fidelity
• Asynchronous transfer system unaffected by computer jitter
• S/PDIF IN/OUT: 2IN / 2OUT, up to 24‐bit/192 kHz
• ADAT Optical IN/OUT: 2 IN / 2 OUT at 192/176.4 kHz (S/MUX4 compatible), 4 IN/4 OUT at 96/88.2 kHz (S/MUX compatible), 8 IN / 8 OUT at 48/44.1 kHz
• Word Clock in/out
• Clock source indicator
• MIDI in/out
• Rack-mountable (1U space)
• Robust metal housing
• Works with all USB 3.0-equipped Mac and Windows computers and Apple iPad*

* Apple Camera Connection kit or Lightning to USB Camera Adapter required
